8" Subwoofers

The m3 8 is an 8" long X-Max subwoofer. Long hours in the R&D department is what it took to develop the newest version of our 8" subwoofer. We designed a tall roll stitched surround, oversized spiders, and a tall cast frame that allows for extreme amounts of cone travel. All of these newly designed parts allow for lower frequency reproduction. The bolted down spaced spider design keeps it all linear. The m3 8 uses a gap cooled design to allow the 2" copper coil to thermally take more power than other 2" coil motors with the traditional pole venting. Key Features • Extremely rigid non-pressed paper cone assembly • High Roll Stitched Multilayered reinforced polymer foam surround • Rigid propylene dust cover with White DC logo • Bolted down & spaced Linear roll spiders • Sewn flat heavy duty tinsel lead wire • Custom Cast aluminum black frame • FEA analyzed and optimized motor assembly – Fully CNC machined • Rubber mounting gasket and custom tooled motor boot. • DVC 2.0” Copper voice coil.  Size 8" Mounting Depth 5.75" Mounting Hole Diameter 7.25" Outside Driver Diameter 8.5" Weight 18 lbs VC Diameter 2" Displacement .1³ ft Magnet Weight 15 lbs Power Handling RMS/Peak 600/1200 Impedance (Ohm) D2 Sd 201.93cm² Vas 7.3L Cms 0.135 mm/n Mms 150.66 g Fs 35.3Hz BL 17.9 N/A Re 6.28 Ohm Le 5 mH Qms 6.68 Qes 0.66 Qts 0.601 Xmax 18mm Ref SPL @ 1 watt 78.7 Suggested Ported  .75^3 ft

Read more less

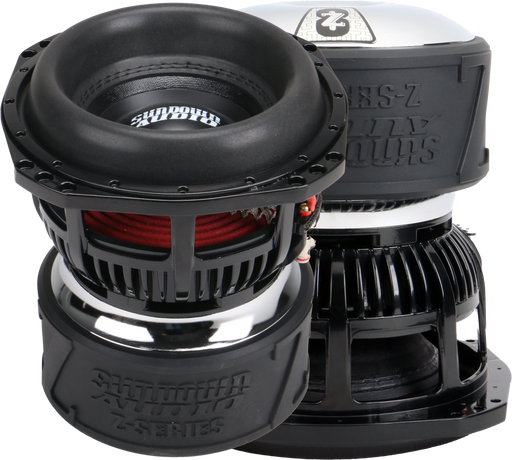

Small Size. Serious Power. Unmatched Engineering. Don’t let the size fool you — the Z8 Series 8” subwoofer is built to perform well beyond expectations. With an incredible 2000 watts RMS and 4000 watts peak power handling, this compact beast is ready to drop low, hit hard, and take a beating — all while maintaining control and clarity. Designed for high-output systems with limited space, the Z8 offers the same elite-level engineering found in our larger Z Series drivers, packed into an 8-inch frame. This sub is built around a black aluminum 2.75" 4-layer round-winding voice coil with a massive 30mm Xmax, giving it incredible excursion and power handling for its size. Every component is engineered for airflow and cooling: from the optimized high-velocity pole vent to the cast-aluminum vented frame spacer ring and heavily vented magnetic gap. Add in stitched XL tinsel leads, a Mega-Roll v.2 surround, custom spider packs, and a large aluminum Faraday ring, and you’ve got a sub that’s made for real-world abuse and long-term performance. Designed specifically for ported enclosures (sealed not recommended), the Z8 thrives in a 1.0 cu. ft. net enclosure tuned to 32Hz. Whether you’re building a powerhouse daily driver or squeezing competition-level performance into a tight space, the Z8 delivers big bass in a small footprint — no compromises. Features Power Handling:2000 Watts RMS / 4000 Watts Peak Xmax = 30mm  Heavily vented magnetic gap Spring Loaded Terminals Optimized high-velocity pole vent Innovative high-velocity cast-aluminum vented frame spacer ring Black aluminum 2.75 inch 4-layer round-winding voice coil sing our proprietary ultra-thick winding method Mega-Roll v.2 surround Custom tooled basket Large aluminum Faraday (shorting) Ring Stitched-On XL Tinsel Leads to prevent fatigue and failure Custom-tooled ultra-linear spider packs

Read more less

The SQBASS is an 8-Inch Subwoofer with a slim, compact design providing 600 Watts MAX and a frequency response of 20Hz - 150Hz. Low Impedance 2-Ohm subwoofer to bring out the maximum performance of the built-in amplifier. With it's compact size you can fit the SQBASS under your vehicle's seat without diminishing sound quality. With your remote bass control take control of your music experience by precisely adjusting the levels of the bass you desire. Digitally optimized subwoofer with built-in amplifier (2-Ohm) for efficient and accurate bass. RMS Power: 14.4V DC Impedance: 2 ohm 1 x 50W THD: <0.5% Signal-to-Noise ratio: >80dB Frequency response: 20Hz-150Hz Input Sensitivity: High Level 300mV-10V/ Low Level 100mV-3.5V Low Pass Filter: 50-150Hz Bass Boost: 0 to 12dB Subsonic Filter: 20Hz Fuse rating: 25A Size (LxWxH): 290x245x77 mm

Read more less

Product Overview: Audio Ace’s Budget-Friendly Powerhouse (D4)   The Audio Ace STR8 NST 8" D2 is an 8-inch subwoofer designed for big output on a budget. Rated for 1,000W RMS, this compact powerhouse is built to deliver strong sound and high performance without the flagship price tag. It features a 2.5-inch epoxy-coated voice coil, a robust 159 oz motor, and a linear excursion (X_max) of 15.5mm each way. The Dual 2 Ohm impedance provides flexible final impedance options of 1 Ohm or 4 Ohms.   AUDIO ACE STR8 NST 8" DUAL 4 OHM SPECIFICATIONS Size 8 Inch RMS Power Handling 1,000 Watts Nominal Impedance Dual 2 Ohm (D2) Voice Coil 2.5 Inch Epoxy Coated Motor Weight 159 oz Maximum Excursion (Xmax) 15.5mm Each Way Mounting Depth 6.5 Inches Cutout Diameter 7.264 Inches THIELE-SMALL PARAMETERS Sensitivity (SPL) 82 dB Electrical Q (Qes) 0.616 Mechanical Q (Qms) 5.529 Total Q (Qts) 0.554 Resonance Frequency (Fs) 54 Hz Effective Piston Area (SD) 196.07 BL Factor (Bl) 19.132

Read more less

Impressive Performance in a Compact 8-Inch Design The Resilient Sounds Entry V2 8" is a versatile and high-performing entry-level subwoofer designed to deliver outstanding low-end response while maintaining a compact form factor. This 8-inch woofer is conservatively rated at 500W RMS and features a double-stacked, FEA-optimized motor and a 2-inch voice coil. Its sturdy construction and optimized design ensure reliable performance and a remarkably resilient daily listening experience. With a nominal impedance of Dual 4 Ohm, it offers system flexibility, allowing for a final 2 Ohm or 8 Ohm load.   TECHNICAL SPECIFICATIONS Specification Detail Model RS 8 V2 RMS Power Handling 500 Watts Voice Coil 2" Nominal Impedance Dual 4 Ohm THIELE-SMALL PARAMETERS Sensitivity (SPL) 80.9 dB Resonance Frequency (Fs) 35.728 Hz BL Factor (BL) 21.323 DC Resistance (RE) 8 Ohms Mechanical Q (QMS) 2.674 Electrical Q (QES) 0.488 Total Q (QTS) 0.413 Compliance (CMS) 0.16 uM/N Moving Mass (MMS) 123.556 g Equivalent Volume (VAS) 8.547 L   RECOMMENDED ENCLOSURE SPECIFICATIONS Internal Volume (Cubic Ft) 0.5 - 0.75 CU FT Tuning Frequency 30 - 34 HERTZ Port Area 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT Mounting Depth 5 INCHES Cutout Diameter 7.25 INCHES

Read more less

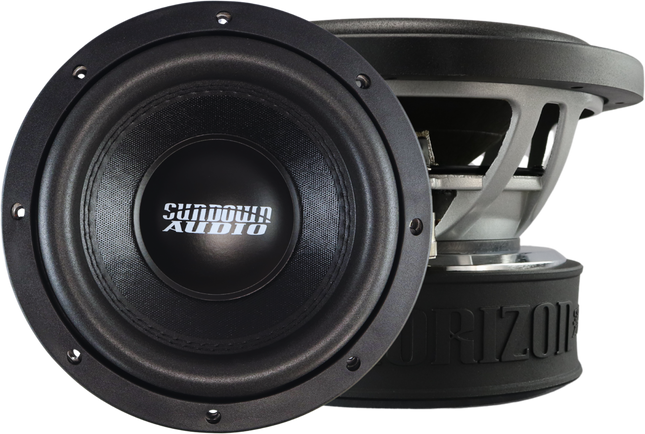

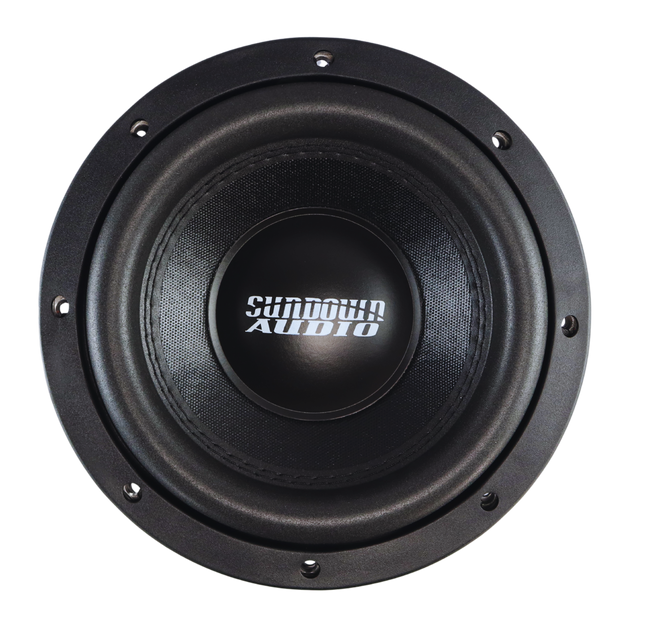

HZ Series Key Features: RMS Power: 8" – 500W RMS / 2" Voice Coil Voice Coil Options: Dual 4Ω - High temp 4-layer copper voice coil wire XMAX: Class-leading 14mm Xmax Frame: Heavy-duty cast aluminum basket Cooling: Vented motor gap and pole piece for optimized heat dissipation Durability: Stitched Mini-XL tinsel leads and bolted spider pack Suspension: High-roll surround with progressive spider for smooth, controlled excursion Recommended Enclosure: Ported for maximum efficiency and output

Read more less

  The Hideaway HS10 is a compact powered 10-inch subwoofer that delivers surprising low frequency impact in a tough, all-aluminum frame. FIT PLUS KICKER innovates once again, with FIT+™ (Fail-safe Integration Technology PLUS). Accepting input signals ranging from a mere 0.25 volt to as high as 40 volts (400 watts at 4Ω) and fully compatible with newer vehicles using start/stop systems, the HS10 works with almost any vehicle on the road today without the added expense of a line output converter. ROCKIN’ REMOTE The included remote control allows you to change the amount of bass without changing the radio volume, for the perfect mixture of bass in your music at any volume. FULLY LOADED The Hideaway comes with an adjustable low-pass crossover, variable +6dB bass boost, phase switch, and two auto turn-on options: DC-offset or signal sensing. FANTASTIC FIT A mere two millimeters taller than its little brother the HS8, the HS10 delivers more power and a bigger impact in an all-aluminum frame. EASY INSTALL The quick-connect Molex® plug and harness includes power, signal and remote turn-on. It also features high- and low-level inputs for integration with nearly any factory or aftermarket head unit, plus two automatic turn-on options for incredibly easy activation. Specifications   Subwoofer (in, cm) 10, 25 RMS power (watts) 180 Frequency response (Hz) 25-120     Crossover 12dB/octave Lowpass 50–120Hz;   24dB/octave Highpass @ 25Hz     Phase switch 0°/180°     Input sensitivity: Low level - 250mV-10V   High level - 1V-40V     KickEQ boost variable to +6dB @ 40Hz     Remote bass included     Box Depth (in, cm) 14, 35.6     Box Height (in, cm) 3-1/8, 8.1     Box Width (in, cm) 9-7/8, 24.9     Weight (lbs, kg) 11.4, 5.17     Wiring harness 17' power input/ 8' speaker-level input/ 2' ground/ 2' remote turn-on

Read more less

KICKER's legendary subwoofer technology continues to lead the way for clear-sounding, ground-pounding bass in a vehicle. Compact Performer KICKER's legendary subwoofer technology continues to lead the way for clear-sounding, ground-pounding bass in a vehicle. It's incorporated into KICKER's latest bass machine, the brand's first compact powered subwoofer and an International Consumer Electronics Show (CES) Innovations award winner for design and engineering. Plug-and-Play Bass The KICKER Hideaway Compact Powered Subwoofer delivers surprising low frequency output from a remarkably small enclosure, setting a new standard in plug-and-play bass performance and convenience in a vehicle. At just over three inches high and nearly 14 inches long, the Hideaway combines a 150-watt amplifier and an 8-inch subwoofer to add thumping bass to any vehicle from the tightest locations. It also provides a quick-connect power plug and Velcro®-fastened nylon straps for secure installation and simple but fast removal. Mr. Irby's Recipe - FOR BASS! KICKER Senior Vice President Charlie Schultz said, "Our president Steve Irby was intimately involved in the design process with the KICKER Research and Development team, and they nailed it with the Hideaway Powered Subwoofer.""The output is amazing," said Irby during listening tests. Feature Full The quick-connect Molex® plug and harness entails power, signal and remote turn-on. The Hideaway comes with a remote bass control for fine-tuning bass levels, adjustable low-pass crossover, variable +6dB bass boost, phase-cancelling switch for max output and two automatic turn-on options. It also features high- and low-level inputs for integration with nearly any factory or aftermarket head unit. Specifications   Subwoofer (in, cm) 8, 20     RMS power (watts), 14.4V 150 150   Frequency response (Hz) 25-120     Crossover 12dB/octave low pass at 50-120Hz;   24dB/octave high pass at 25Hz Phase switch 0°/180° 0°/180°   Input sensitivity: Low level - 125mV-5V   High level - 250mV-10V KickEQ boost variable to +6dB @ 40Hz Remote bass included Box Depth (in, cm) 13-7/8, 35.2 Box Height (in, cm) 3-1/8, 7.94 Box Width (in, cm) 9-3/8, 23.8 Weight (lbs, kg) 9.4, 4.3 Wiring harness 17' power input/ 8' speaker-level input/ 2' ground/ 2' remote turn-on

Read more less

RMS 400 watts Dual 2 or 4 ohm voice coils Optimized for small, sealed enclosures Lightweight Neodymium motor Computer-optimized foam “w” surround Two-inch 8-layer copper voice coil Large aluminum Faraday ring for smooth acoustic response Patented high strength cast aluminum frame Low distortion motor construction High-temperature voice coil wire Spring-loaded terminals Stitched-on tinsel lead wires The SD-4 series truly is a world-class sound quality woofer with low mounting depth, small box requirements, yet extraordinarily high power handling. It's the ideal choice for anyone seeking a high-quality, low-mounting-depth subwoofer that performs hammers in small enclosures. With enhanced mechanical durability and superb sound quality, you get the perfect marriage of form and function.

Read more less

8" L7T 4 Ohm The L7T 8-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils. Features: Uses a Sealed or Ported Enclosure Square Sub Design Moves 20% More Air Than Round Subwoofers Easily Mounts Under or Behind a Seat Dual Voice Coil Design Ribbed Santoprene Surround Resists Heat And Degrading Bumped Top Plate For More Excursion & Smoother Performance SoloKon™ Cone With 360-Degree Back Bracing UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation Durable Steel Basket Specifications Thiele/Small Parameters 46L7T84 T/S Parameters Product Dimension Sheet 46L7T8 Dimensions CNC Software L7T.DXF - for subwoofer hole cutouts 3D Printing Software L7T.SLDPRT - 3D-printing of grille spacers Size (IN.,CM) 8, 20 Impedance (OHMS) 4 DVC Recommended Amplifier Power (watts RMS) 350 Peak Power (watts, per ANSI/CTA-2031-A) 700 Sensitivity (dB 1w/1m) 84.835 Frequency Response (Hz) 30-100 Mounting Depth (IN.,CM) 2-3/4, 7 Mounting Cutout, Square (IN.,CM) 7-3/8, 18.8 Min Rec Sealed Box Volume (CU. FT., Liters) 0.2, 5.66 Max Rec Sealed Box Volume (CU. FT., Liters) .75, 21.2 Min Rec Vented Box Volume (CU. Ft., Liters)** .8, 22.7 Max Rec Vented Box Volume (CU. Ft., Liters)** 1.2, 34 What's in the box? one 8-inch subwoofer, one owner's manual, two stickers Warranty When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase.

Read more less

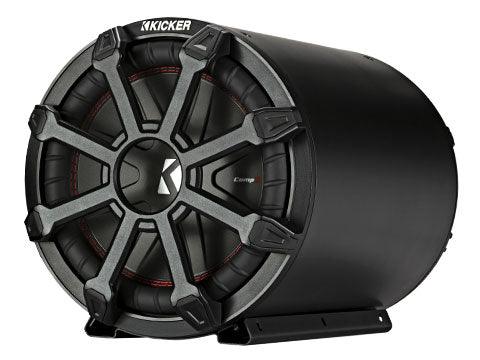

Mount them nearly anywhere - KICKER TB Eight-Inch Tube Speakers are awesome bass-makers that pound! TUBE POWER Ultra-deep and surprisingly loud, TB subs mount in your trunk or your truck with equal ease. You get the bump you want without losing the space you need. Features: Two Ohm Speaker Thick ABS Tube Construction Flexible Horizontal or Vertical Mounting System Spring-Loaded Speaker Terminals CompR Woofer and Reflex Sub Ceramic Magnet Advanced Heat Management System Signature Double Red Stitching Grilles included This TB Eight-Inch Tube Speaker works best with 300 watts of recommended power. Specifications TypeReflex Size (in., cm)8, 20 Impedance (ohms)2 Power Watts (peak/RMS)600/300 Sensitivity (dB 1w/1m)84.4 Box Top Depth (in, cm)--- Box Bottom Depth (in, cm)12-7/8, 32.8 Box Height (in, cm)Vert. Mount: 13-7/16, 34.1; Horiz. Mount: 8-5/8, 21.9 Box Width (in, cm)8-1/2, 21.6 What's in the Box:1 - enclosure assembly2 - vertical mounting brackets1 - horizontal mount base1 - Horizontal mount hook(retainer)1 - Horizontal mount plate(retaining clamp)7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure11 - nylon flat washers (to be used on all mounting fasteners)4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle)1 - owner’s manual2 - Kicker stickers
