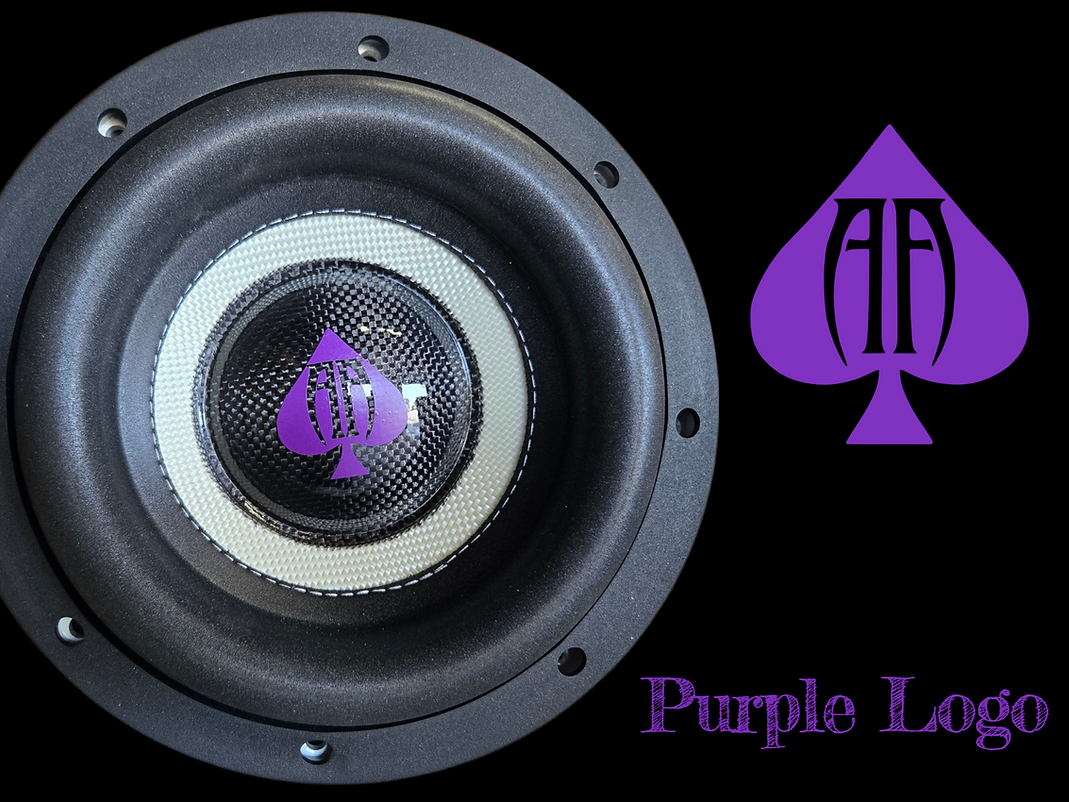

Product Overview: Audio Ace’s Budget-Friendly Powerhouse (D4)

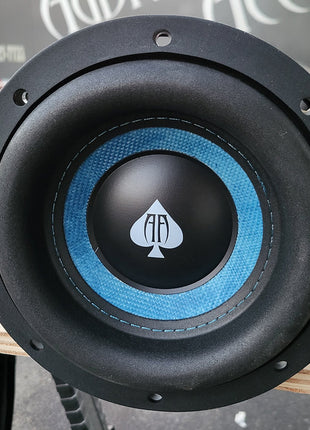

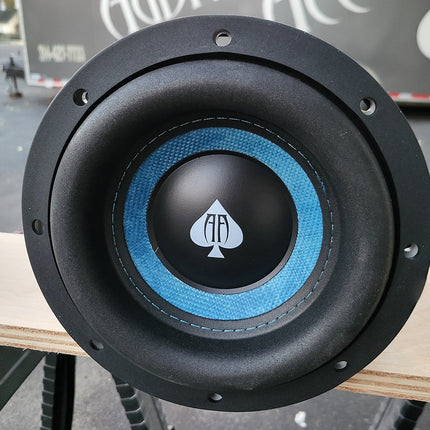

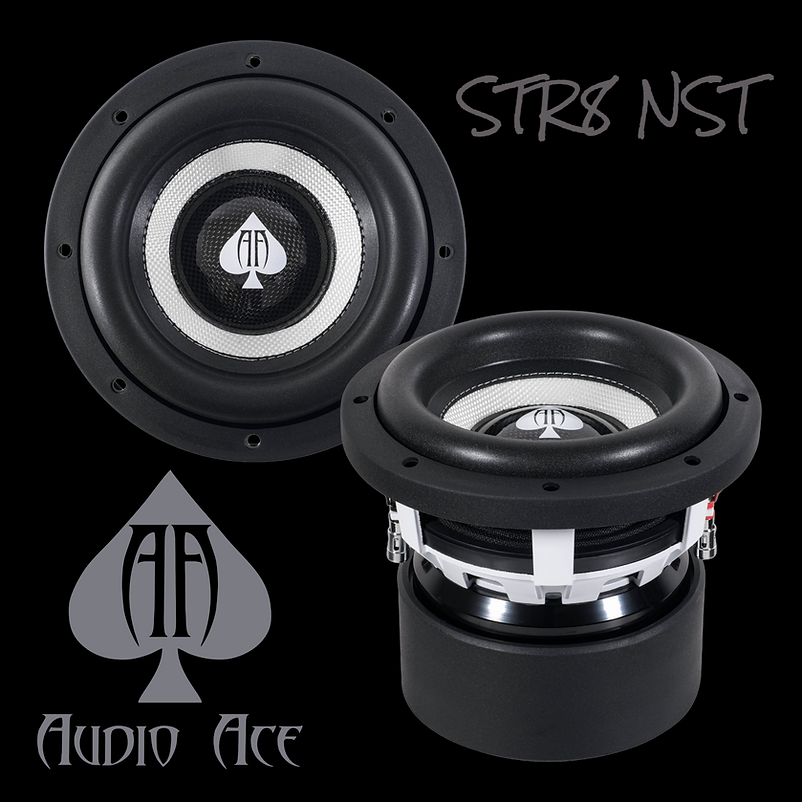

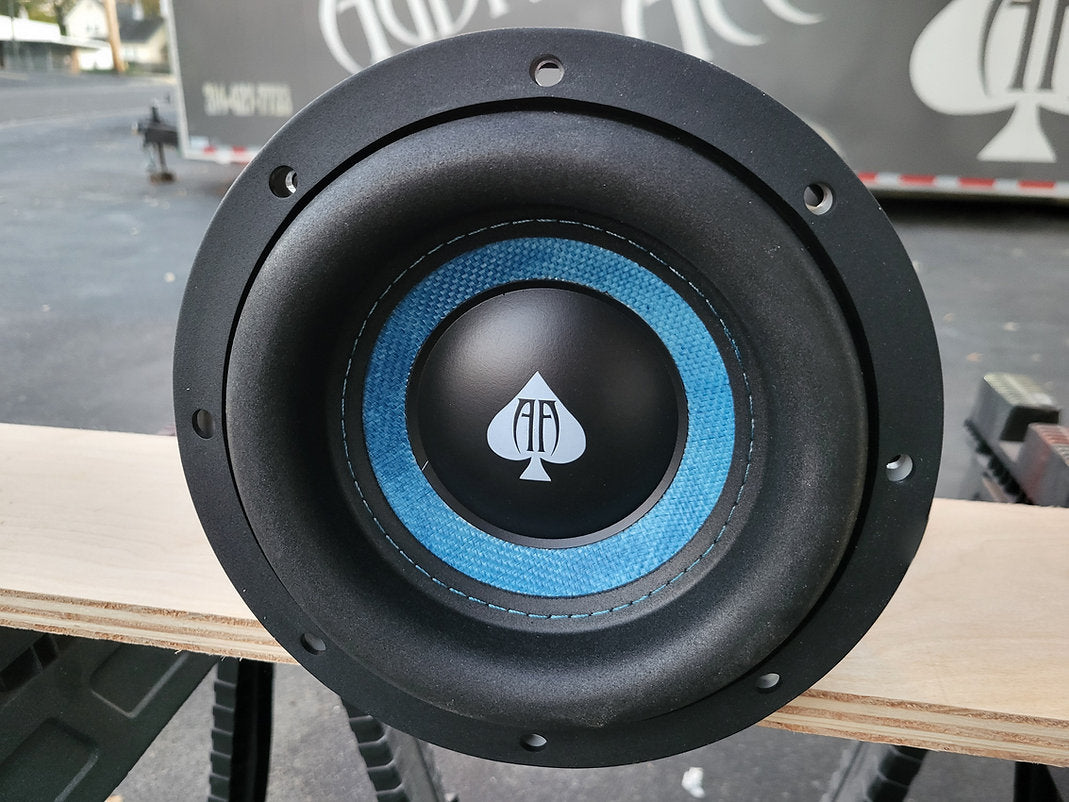

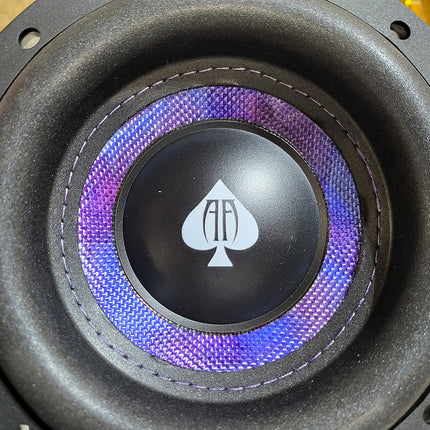

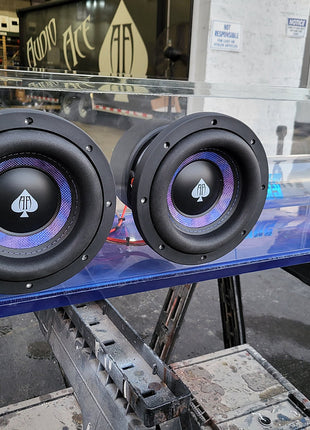

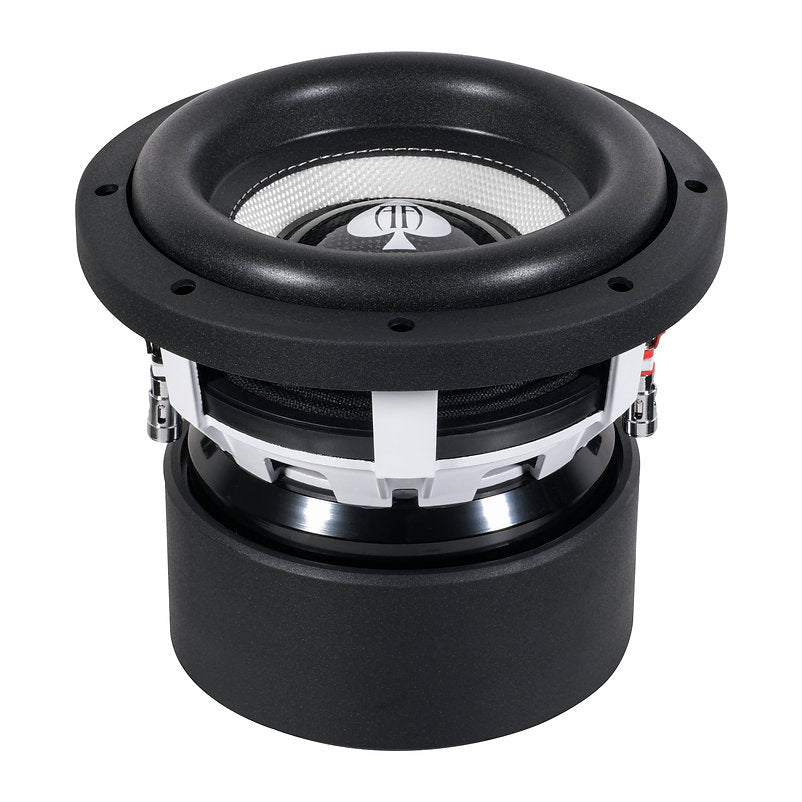

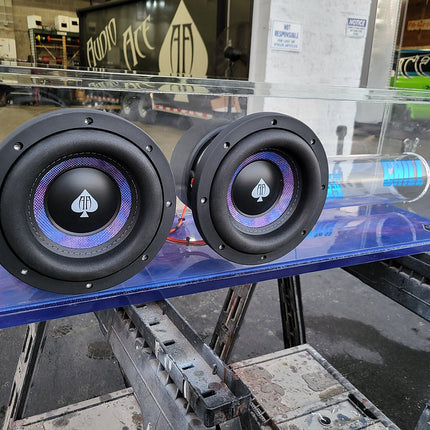

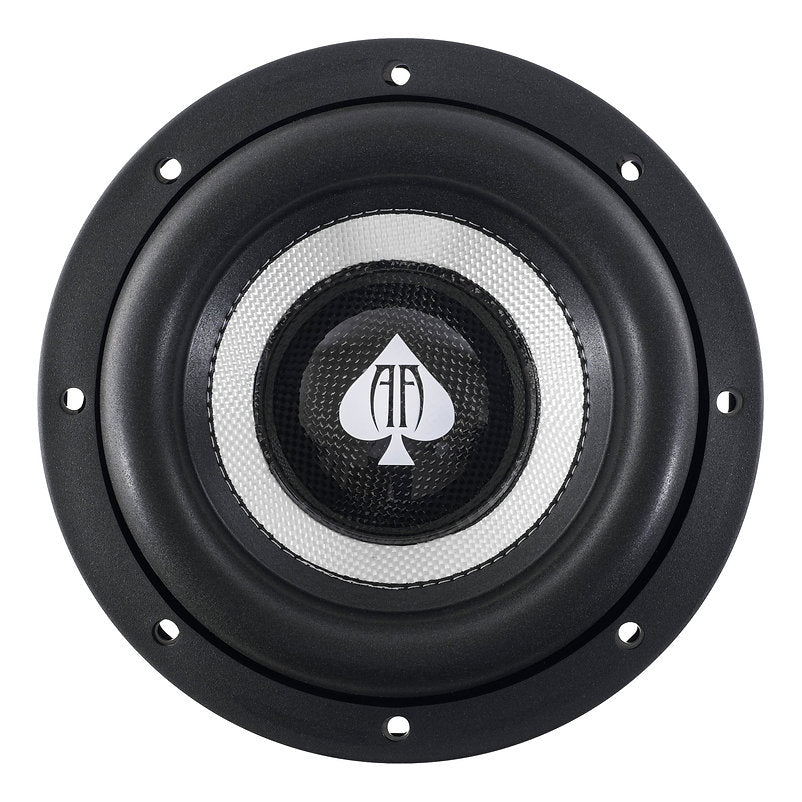

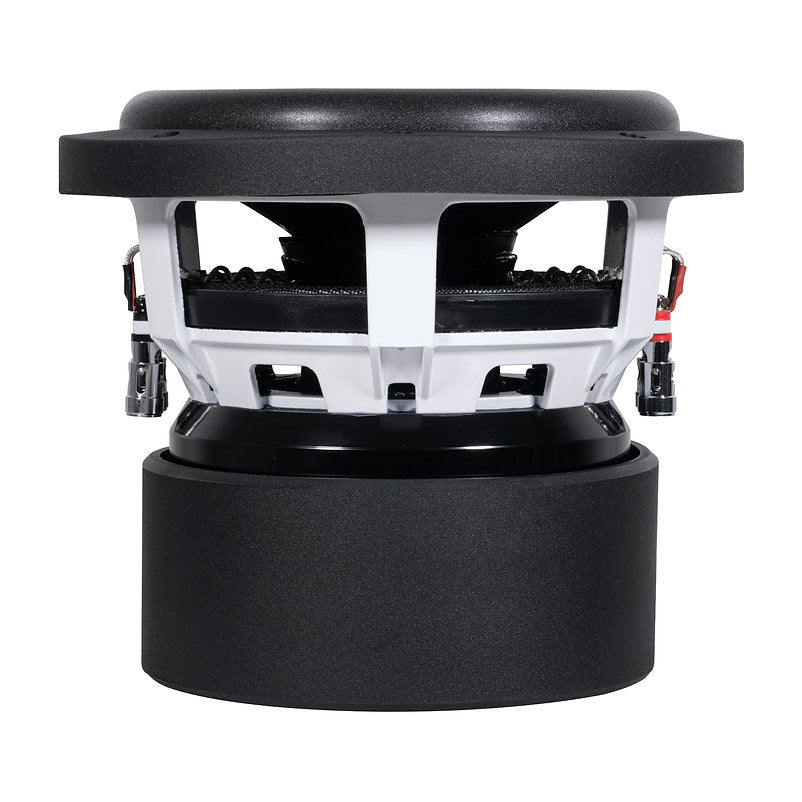

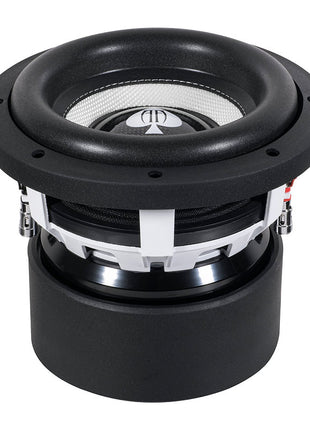

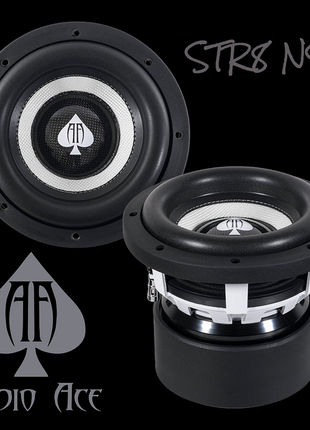

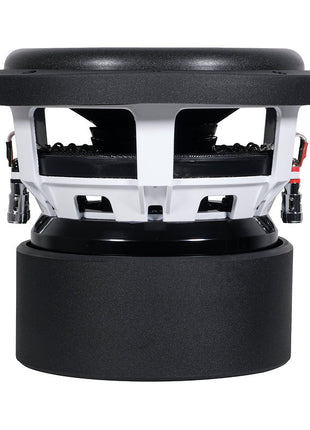

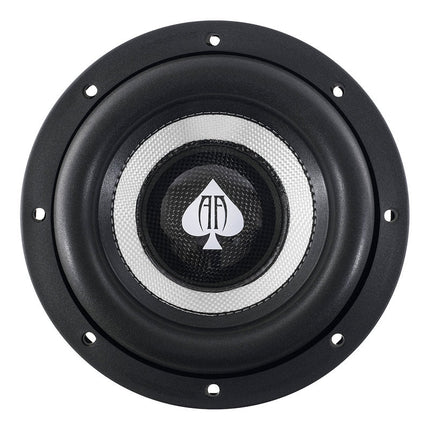

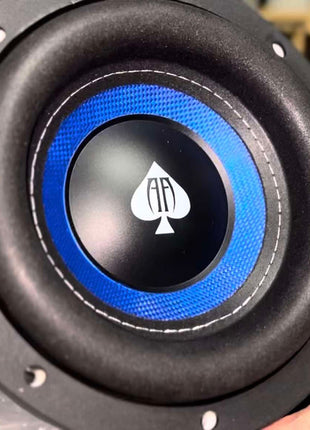

The Audio Ace STR8 NST 8" D2 is an 8-inch subwoofer designed for big output on a budget. Rated for 1,000W RMS, this compact powerhouse is built to deliver strong sound and high performance without the flagship price tag. It features a 2.5-inch epoxy-coated voice coil, a robust 159 oz motor, and a linear excursion (X_max) of 15.5mm each way. The Dual 2 Ohm impedance provides flexible final impedance options of 1 Ohm or 4 Ohms.
AUDIO ACE STR8 NST 8" DUAL 4 OHM SPECIFICATIONS
|
| Size |
8 Inch |
| RMS Power Handling |
1,000 Watts |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| Voice Coil |
2.5 Inch Epoxy Coated |

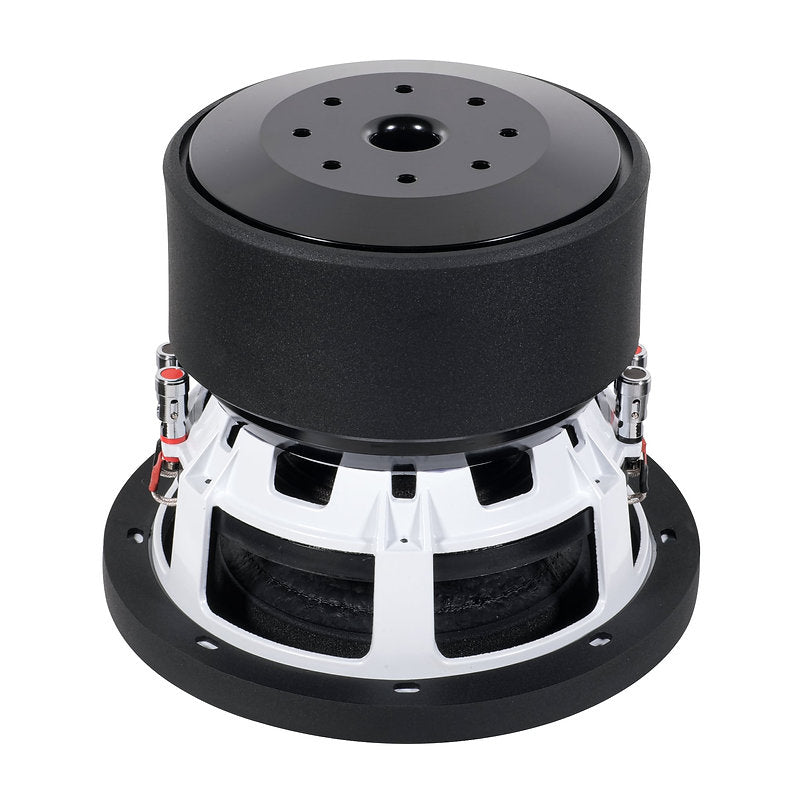

| Motor Weight |
159 oz |
| Maximum Excursion (Xmax) |
15.5mm Each Way |
| Mounting Depth |
6.5 Inches |
| Cutout Diameter |
7.264 Inches |
| THIELE-SMALL PARAMETERS |
| Sensitivity (SPL) |
82 dB |
| Electrical Q (Qes) |
0.616 |
| Mechanical Q (Qms) |
5.529 |
| Total Q (Qts) |
0.554 |
| Resonance Frequency (Fs) |
54 Hz |
| Effective Piston Area (SD) |
196.07 |
| BL Factor (Bl) |
19.132 |
