PRV Audio

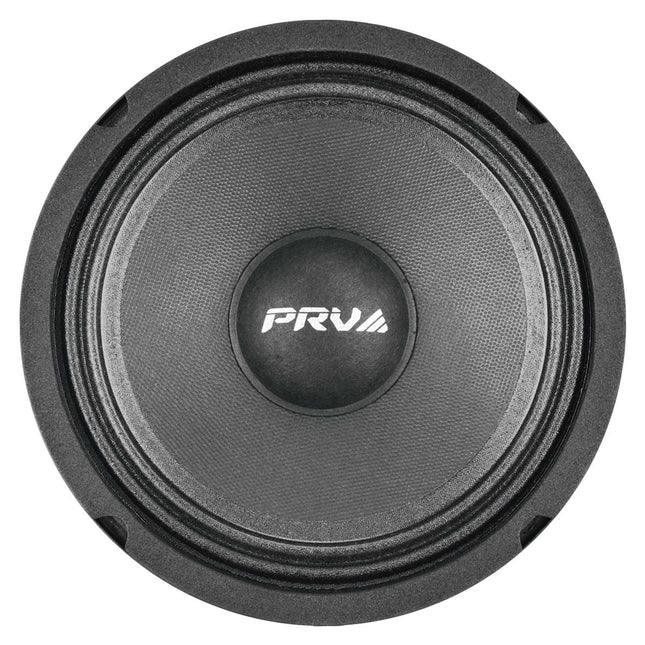

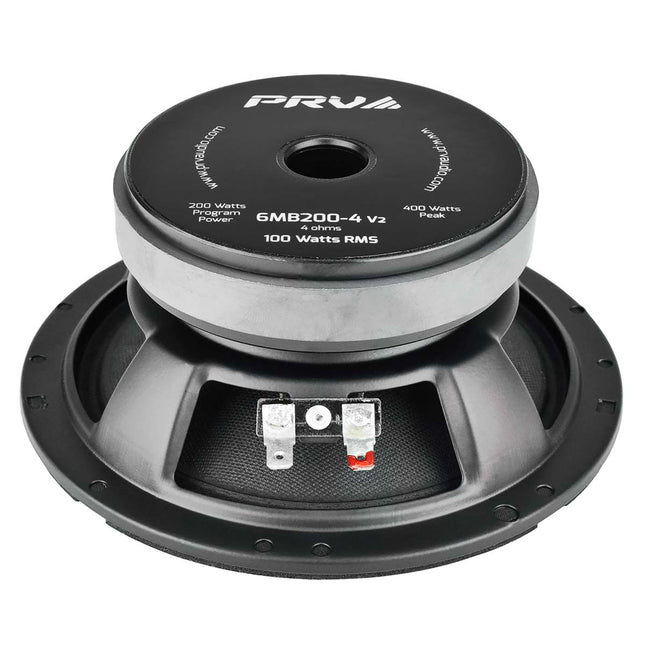

The PRV Pro Audio Loudspeaker, 6MB200 v2 mid bass woofer, offers outstanding durability and a smooth punch of mid bass for small enclosures. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors. The 6MB200-v2 now has more extended mid range response, up to 6.5 kHz compared to its previous model, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its light weight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio applications. Highlights Nominal Impedance: 4 Ohms Rated AES Power Handling (RMS): 100 Watts Program Power: 200 Watts Sensitivity (1W/1m): 93.5 dB Voice Coil Diameter: 1.5″ GENERAL SPECIFICATIONS Nominal Diameter 6″ (152 mm) Nominal impedance 4 Ohms Rated AES Power Handling (RMS) 100 Watts Program Power 200 Watts Sensitivity 2.83V at 1m 93.5 dB Recommended Hi Pass Crossover****For Full Power Handling 125 Hz****12db Per Octave Crossover Frequency Response at -10dB 125 – 6,500 Hz Voice Coil Diameter 1.5″ (38 mm) Voice Coil Wire Copper Voice Coil Winding Depth 12.5 mm Former Material Kapton Magnetic Gap Depth 5.8 mm Frame Material Stamped Steel

Read more less

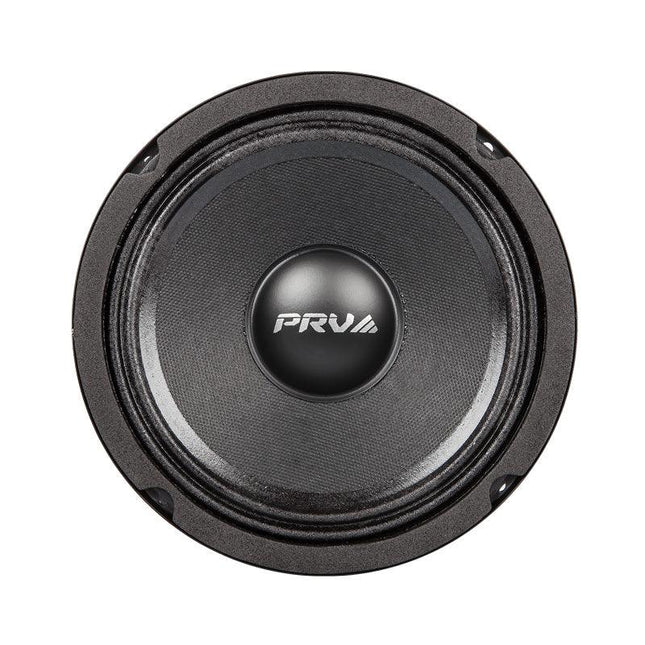

Features The PRV Pro Audio Loudspeaker, 6MB200 mid bass woofer, offers outstanding durability and a smooth punch of mid bass for small enclosures. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors. The 6MB200 offers very smooth mid range response, up to 4.5 kHz, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its light weight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio applications. Highlights Nominal Impedance: 8 Ohms Rated AES Power Handling (RMS): 100 Watts Program Power: 200 Watts Sensitivity (1W/1m): 93 dB Voice Coil Diameter: 1.5″

Read more less

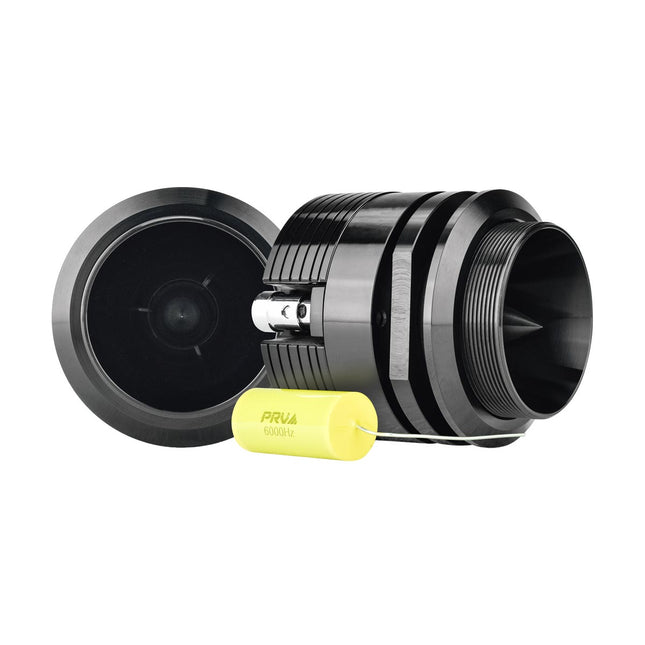

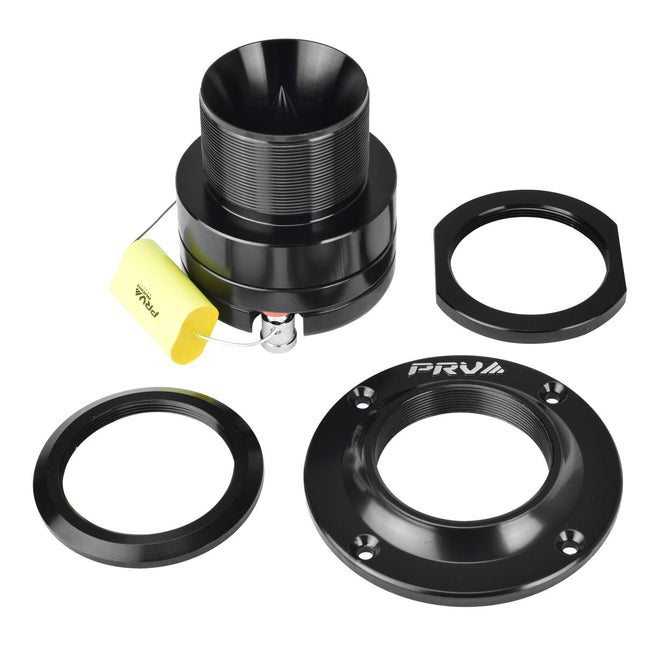

New Evolution of our 1″ exit neodymium bullet tweeters!• Smaller – Motor has been re-designed to be more compact on its total mounting depth.• Improved Designed – Featuring a new concept, easy to replace diaphragm ( solderless ) PRV Audio’s TW400Ti-Nd-4 v2 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 106 dB from 4,500 to 20,000 Hz. Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included. GENERAL SPECIFICATIONS Nominal impedance 4 Ohms Nominal Power Handling* 60 Watts Continuous Program Power (RMS)** 120 Watts Max Peak Power*** 240 Watts Sensitivity 2.00V at 1m 106 dB Recommended High Pass CrossoverFor Full Power Handling 6000 Hz12db/oct Crossover Frequency Response at -10dB 4,500 – 20,000Hz Voice Coil Diameter 1.0″ (25.4 mm) Voice Coil Wire Aluminum Voice Coil Former Material Kapton Diaphragm Material Titanium Flux Density 1.45 T Magnet Material Neodymium *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker. EXTRA INFO Overall Depth 2.58″ (65.5 mm) Mounting Depth 1.51″ (38.5 mm) Overall Diameter 2.19″ (55.7 mm) Cutout Diameter 1.69″ (43 mm) Net Weight 0.72 lbs (0.33 kg) Shipping Weight (pair) 2.14 lbs (0.97 kg) Carton Dimensions W x L x H 6.02″ x 3.26″ x 3.54″(153 x 83 x 90 mm)

Read more less

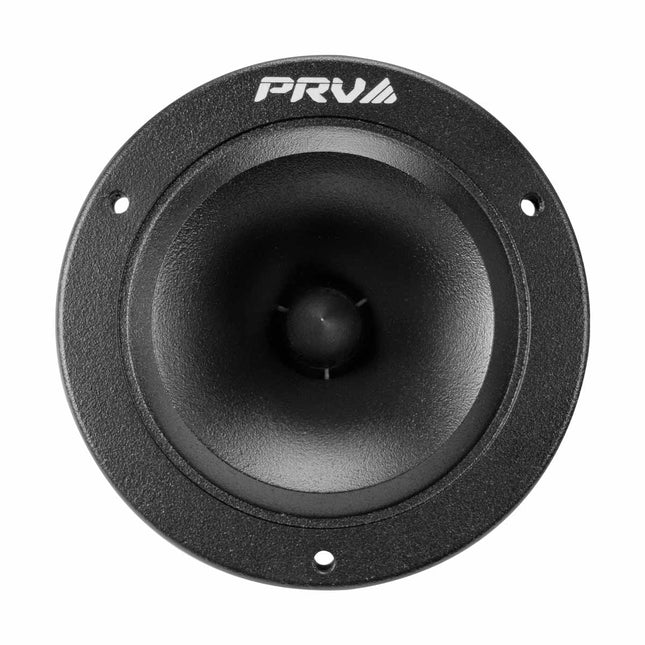

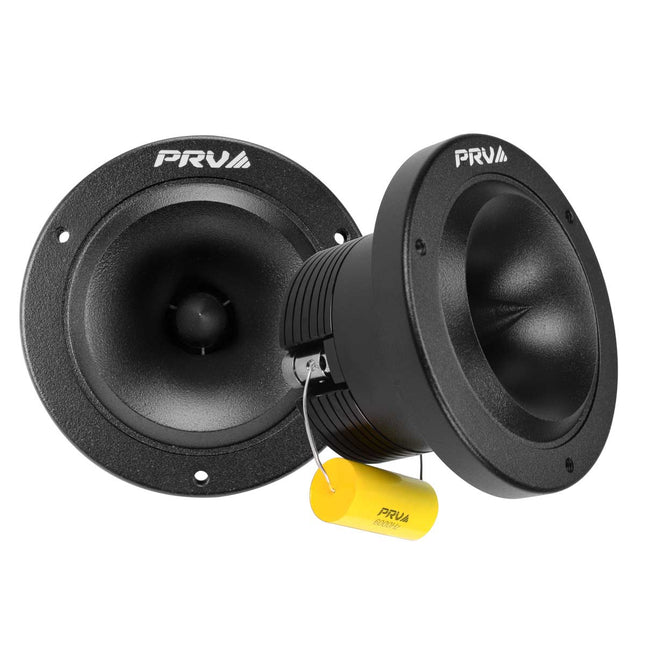

PRO Audio 1″ Exit Neodymium Bullet Super Tweeter The PRV Audio TW400Ti-Nd-4 PRO Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight ans size dramatically without compromising any performance. Highlights Designed to fit in tight spaces without any major modifications Titanium diaphragm for an accurate and detailed response Designed to add high output, high frequency response to any interior system Hidden push terminal connection, takes less space on installation Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz Sold in Pairs After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for the TW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes. GENERAL SPECIFICATIONS Nominal impedance 4 Ohms Nominal Power Handling* 60 Watts Continuous Program Power (RMS)** 120 Watts Max Peak Power*** 240 Watts Sensitivity 2.00V at 1m 106 dB Recommended High Pass CrossoverFor Full Power Handling 6000 Hz12db/oct Crossover Frequency Response at -10dB 4,500 – 20,000Hz Voice Coil Diameter 1.0″ (25 mm) Voice Coil Wire CCAW Voice Coil Former Material Kapton Diaphragm Material Titanium Flux Density 1.45 T Magnet Material Neodymium *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker. EXTRA INFO Overall Depth 2.38″ (60.5 mm) Mounting Depth 1.85″ (47.7 mm) Overall Diameter 3.48″ (88.5 mm) Cutout Diameter 2.27″ (57.7 mm) Net Weight 0.88 lbs (0.40 kg) Shipping Weight (pair) 1.98 lbs (0.9 kg) Carton Dimensions W x L x H 7.95″ x 3.94″ x 2.76″(202 x 100 x 70 mm)

Read more less

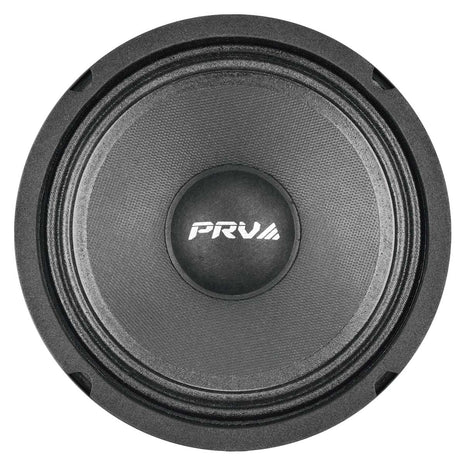

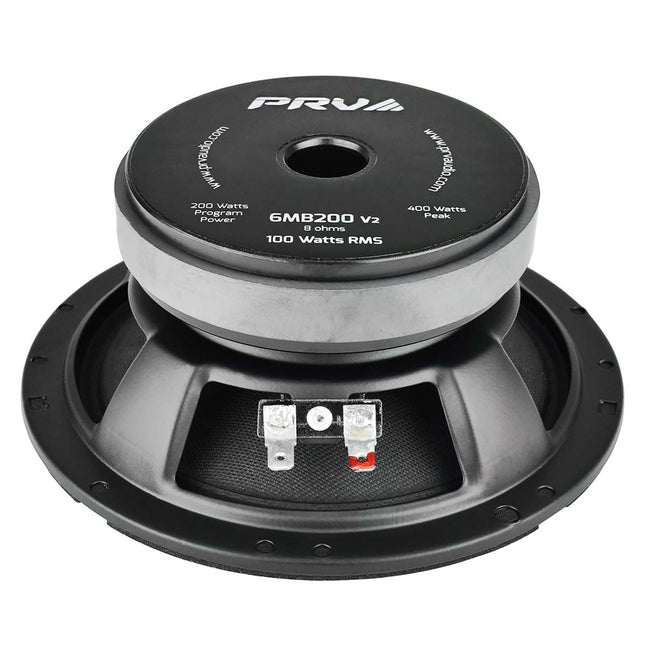

The PRV Pro Audio Loudspeaker, 6MB200 v2 mid bass woofer, offers outstanding durability and a smooth punch of mid bass for small enclosures. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors. The 6MB200-v2 now has more extended mid range response, up to 6.5 kHz compared to its previous model, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its light weight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio applications. Highlights Nominal Impedance: 8 Ohms Rated AES Power Handling (RMS): 100 Watts Program Power: 200 Watts Sensitivity (1W/1m): 93.5 dB Voice Coil Diameter: 1.5″ GENERAL SPECIFICATIONS Nominal Diameter 6″ (152 mm) Nominal impedance 8 Ohms Rated AES Power Handling (RMS) 100 Watts Program Power 200 Watts Sensitivity 2.83V at 1m 93.5 dB Recommended Hi Pass Crossover****For Full Power Handling 125 Hz****12db Per Octave Crossover Frequency Response at -10dB 125 – 6,500 Hz Voice Coil Diameter 1.5″ (38 mm) Voice Coil Wire Copper Voice Coil Winding Depth 12.5 mm Former Material Kapton Magnetic Gap Depth 5.8 mm Frame Material Stamped Steel

Read more less

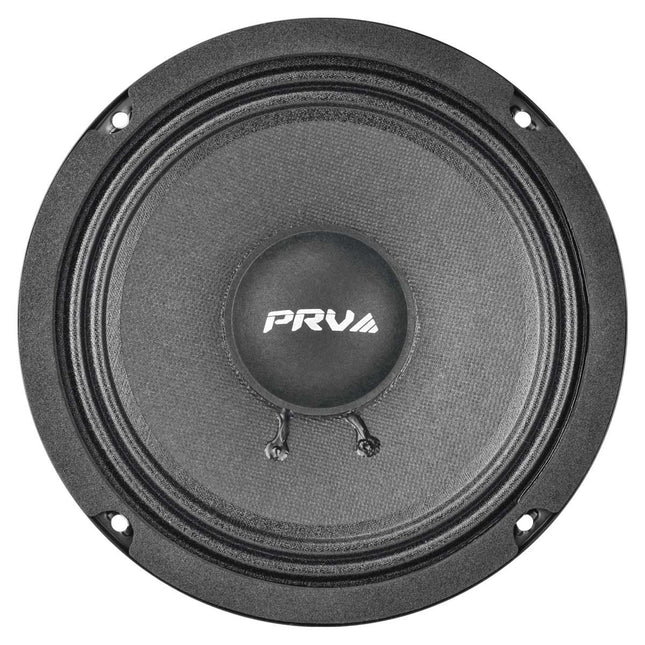

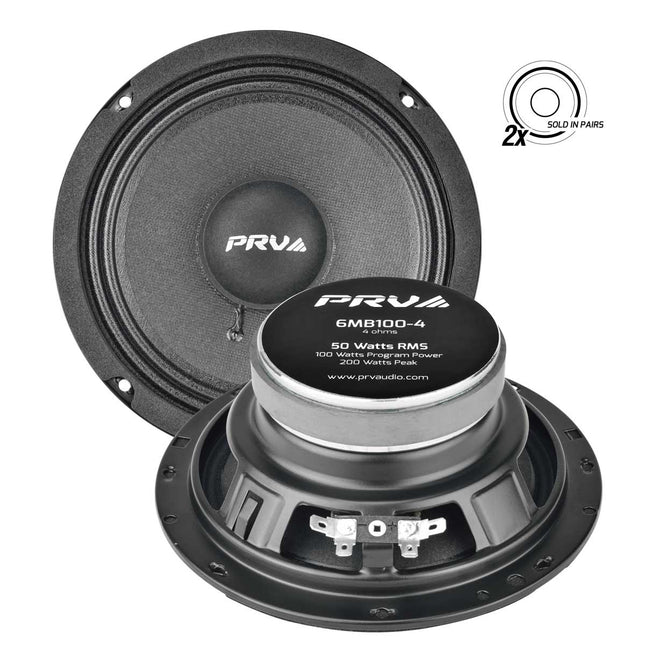

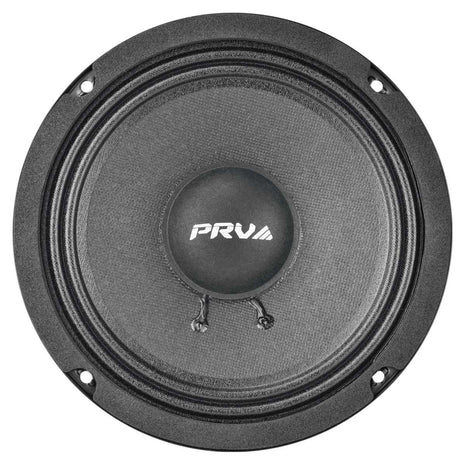

6.5″ Midbass Speakers 6MB100-4 – PAIR of factory replacement 4 ohms Loudspeakers We have combined the PRO audio and high fidelity audio into a new type of driver aimed at delivering high levels of clean output from stock speaker locations.The 6MB100-4 speakers can be used to transform a stock system into a concert level experience without cutting up interior panels. The shallow mounting depth of 2.32″ is designed for easier installation with its standard frame size that fits in many OEM speaker locations. Highlights Under 2.32″ (60 mm) mounting depth, with compact diameter magnet motor Broad 90 – 10,000 Hz frequency range for ultimate flexibility Nominal Impedance: 4 Ohms – perfect to install from radio outputs Power handling: 50 watts RMS / 200 watts max Sensitivity (1W/1m): 90 dB – Improvement over most stock car audio speakers GENERAL SPECIFICATIONS Nominal Diameter 6″ (152 mm) Nominal impedance 4 Ohms Rated AES Power Handling (RMS) 50 Watts Program Power 100 Watts Sensitivity 2.00V at 1m 90 dB Recommended Hi Pass Crossover**For Full Power Handling 90 Hz** **12db Per Octave Crossover Frequency Response at -10dB 90 – 10,000 Hz Voice Coil Diameter 1.5″ (38 mm) Voice Coil Wire CCAW Voice Coil Winding Depth 8 mm Former Material Kapton Magnetic Gap Depth 5 mm Frame Material Stamped Steel EXTRA INFO Overall Diameter 6.54″ (166 mm) Front Mount Baffle Cutout 5.60″ (142 mm) Mounting Depth 2.32″ (59 mm) Overall Depth 2.55″ (64.7 mm) Net Weight 1.98 Lbs (0.90 kg) Shipping Weight 3.62 Lbs (1.64 kg) Carton Dimensions W x L x H 7.17″ x 14.19″x 3″ (182 x 182 x 105 mm)

Read more less

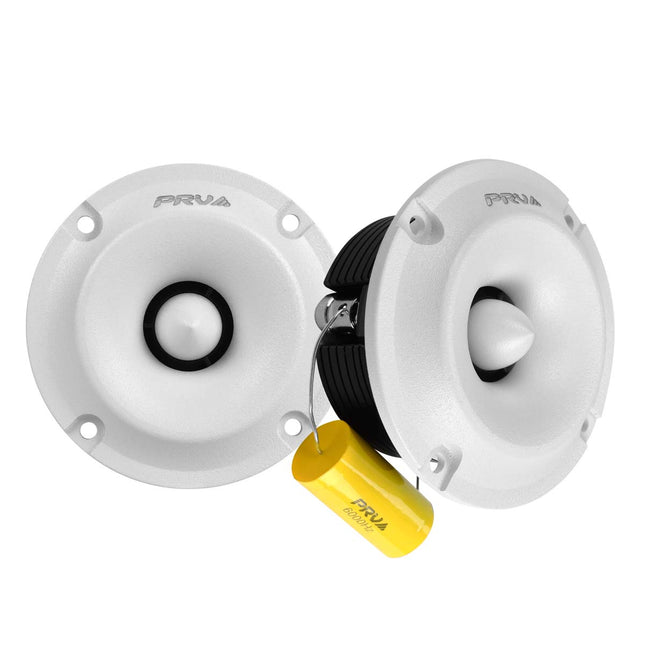

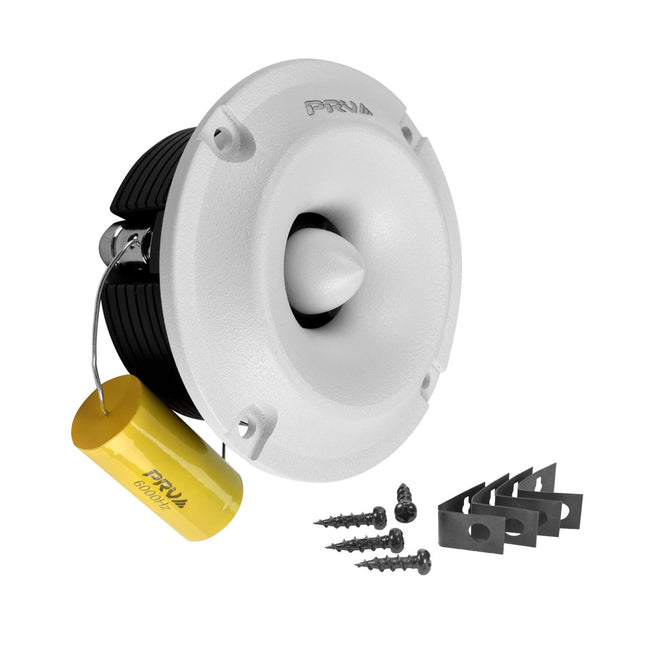

PRV Shallow Car Audio Bullet Tweeter TW400Ti-Nd-4 SLIM WHITE Neodymium 4 Ohm 3″ Rounded – Ultra Slim Easy to Mount Tweeters (Pair) The PRV Audio TW400Ti-Nd-4 SLIM WHITE Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight ans size dramatically without compromising any performance. Highlights Designed to fit in tight spaces without any major modifications Titanium diaphragm for an accurate and detailed response Designed to add high output, high frequency response to any interior system Hidden push terminal connection, takes less space on installation Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz Sold in Pairs – Mounting Screws are included, Also available in Black. After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for the TW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes.Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 SLIM WHITE 1″ exit titanium compact bullet super tweeter! The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 105 dB from 4,500 to 20,000 Hz. GENERAL SPECIFICATIONS Nominal impedance 4 Ohms Nominal Power Handling* 60 Watts Continuous Program Power (RMS)** 120 Watts Max Peak Power*** 240 Watts Sensitivity 2.00V at 1m 105 dB Recommended High Pass CrossoverFor Full Power Handling 6000 Hz12db/oct Crossover Frequency Response at -10dB 4,500 – 20,000Hz Voice Coil Diameter 1.0″ (25 mm) Voice Coil Wire CCAW Voice Coil Former Material Kapton Diaphragm Material Titanium Flux Density 1.45 T Magnet Material Neodymium *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker. EXTRA INFO Overall Depth 1.61″ (41 mm) Mounting Depth 1.22″ (31 mm) Overall Diameter 2.92″ (74 mm) Cutout Diameter 2.27″ (57.7 mm) Net Weight 0.66 lbs (0.30 kg) Shipping Weight (pair) 1.54 lbs (0.70 kg) Carton Dimensions W x L x H 6.77″ x 3.15″ x 1.99″(172 x 80 x 50 mm)

Read more less
