Description

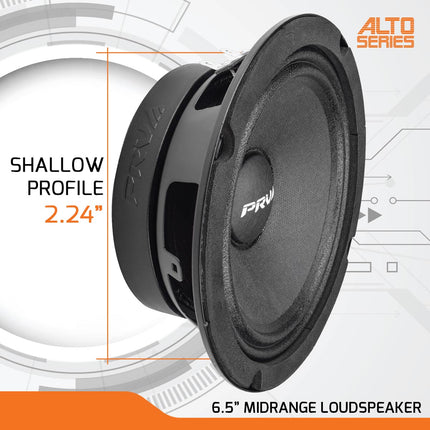

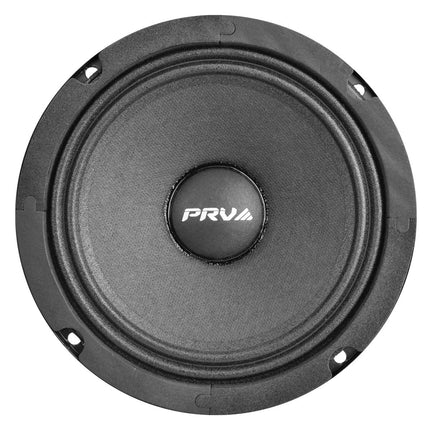

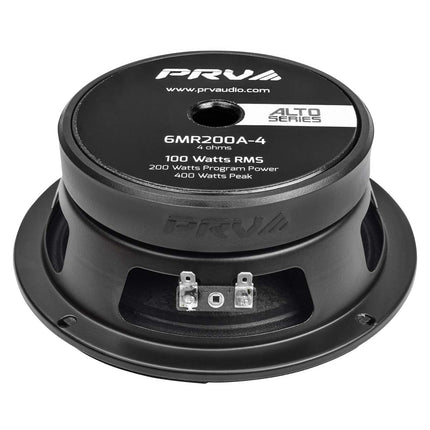

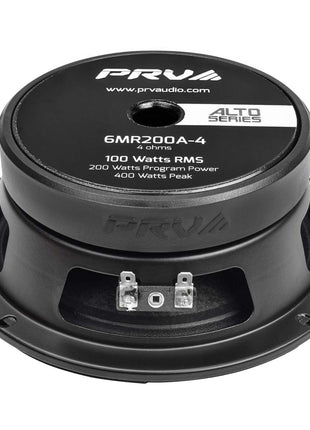

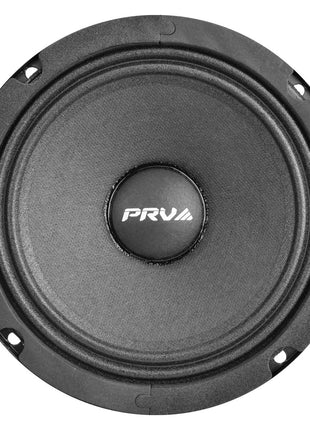

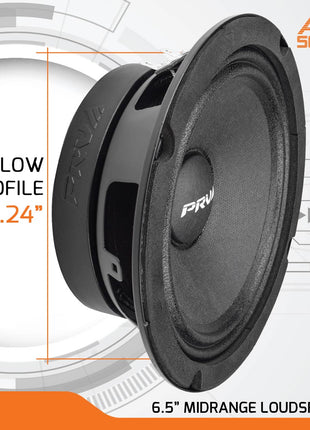

The 6MR200A mid range speaker is the evolution of the 6MR250A, this unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24″ mounting depth. To ensure absolute signal fidelity, a cloth sealed surround is combined with a carefully crafted Kevlar-loaded paper cone. Additionally, a vented pole piece allows heat to escape for reduced power compression.
Use this midrange in professional 3-way live sound cabinets, as a high output car audio door speaker, or as a midrange in a bass guitar speaker.
Highlights
- Nominal Impedance: 4 Ohms
- Rated AES Power Handling (RMS): 100 Watts
- Program Power: 200 Watts
- Sensitivity (1W/1m): 94 dB
- Voice Coil Diameter: 1.5″
GENERAL SPECIFICATIONS
| Nominal Diameter |
6″ (152 mm) |
| Nominal impedance |
4 Ohms |
| Rated AES Power Handling (RMS) |
100 Watts |
| Program Power |
200 Watts |
| Sensitivity 2.83V at 1m |
94 dB |
Recommended Hi Pass Crossover*
*For Full Power Handling |
150 Hz**
**12db Per Octave Crossover |
| Frequency Response at -10dB |
155 – 11,000 Hz |
| Voice Coil Diameter |
1.5″ (38 mm) |
| Voice Coil Wire |
Copper |
| Voice Coil Winding Depth |
8.0 mm |
| Former Material |
Kapton |
| Magnetic Gap Depth |
5.5 mm |
| Frame Material |
Stamped Steel |
