Beyma

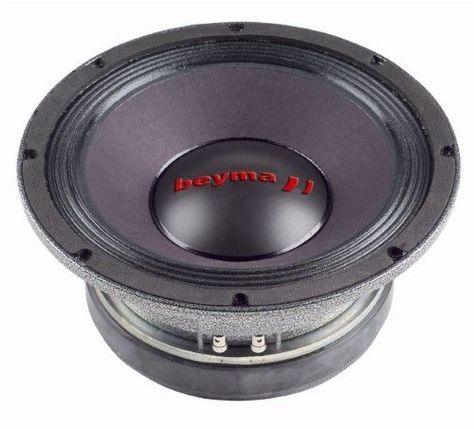

Brand New Beyma PRO8MI 8" Competition Series 200 watt 4 ohm Mid-bass/Midrange Speaker Integrated in the Competition line, these speakers have been developed fromsome of the most demanded models all over the planet by the Car Audio market inBeymas professional line.Beyma presents a total of 4 new loudspeaker models, among them its worth payingparticular attention to PRO8MI. This loudspeaker has diameter of 8" and iscapable of handling very high power: 200 Wrms. Thanks to the special design,optimized to reproduce the midrange frequency, the loudspeaker offers highsensitivity in all models that are around 100 dB.Its important to emphasize that although this loudspeaker seems physicallyintended for woofer or subwoofer; this speaker is not designed to reproduce thatfrequency range. Meaning we could break it quite easily if we intend to give itsuch use.On the contrary, if we use it to reproduce the frequencies for which it isdesigned, this speaker can generate very high levels with great high qualityplayback. But always as part of a system in which there also woofers and/orsubwoofers to complement it and reproduce the lower frequencies where themidrange loudspeakers, with its special design, cant.The cutoff frequency recommended for these speakers not only have to take intoaccount the frequency range, but also the impedance curve of each one of them.Based on these data the recommended cuts would be the following:PRO8MI:Minimum lower cutoff frequency (High Pass): 200Hz Maximum upper cutoff frequency (Low Pass): 4-5 kHzHigher cutoff frequencies allow greater tolerance, but it is very important torespect the lower ones too. Also, the filtering should have a minimum slope of12dB per octave (second order filter). Features: Beyma pro 8MI is a high power 8" car midrange speaker from the beyma competition series Handles 200 watts AES & 400 watts program power Designed for medium frequencies reproduction Features a large 2" voice coil & a high 98db SPL Delivers clear & detailed midrange of high quality Available in 4 ohms only Specifications: Nominal diameter: 200 mm. / 8 in. Nominal impedance: 4 ohms Power handling / maximum: 200 W RMS / 400 W Sensitivity: 98 dB 1w @ 1m Frequency range: 150 - 7000 Hz Voice coil diameter: 51.7 mm. / 2 in. Bl factor: 7.6 N / A Moving mass: 0.018 Kg.

Read more less

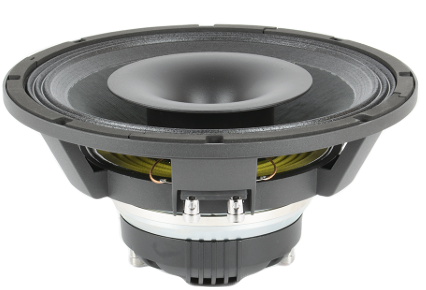

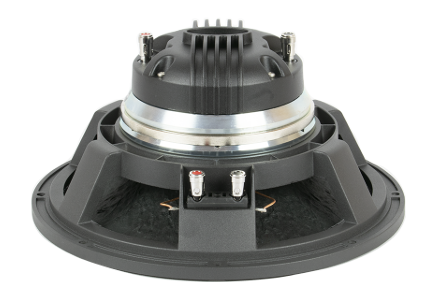

BOTH HF & LF DRIVERS UTILIZE LIGHTWEIGHT NEODYMIUM MAGNETS 12″ WOOFER FEATURES A LARGE 4″ VOICE COIL & HIGH 6.0MM XMAX DEMODULATION RINGS FOR BOTH THE HIGH FREQUENCY & LOW FREQUENCY UNITS 60° HORN COVERAGE FOR HIGH FREQUENCY CONTROLLED DISPERSION HF FEATURES AN ALUMINUM RIBBON VOICE COIL W/ A COMBINATION TITANIUM DOME & MYLAR SURROUND THAT PRODUCES AN EXTREMELY SMOOTH SOUND WOOFER IS WATERPROOF & HANDLES A POWERFUL 400 WATTS AES & 800 WATTS PROGRAM WELL SUITED FOR COMPACT PORTED SPEAKER CABINETS SOUND IS VERY WARM, DETAILED & SMOOTH ON YOUR EARS EVEN TO THE MOST DISCERNING LISTENER! SOLD PER SPEAKER TECHNICAL SPECIFICATIONS Nominal diameter   300 mm 12 in Nominal impedance LF/HF   8/16 ohm Minimum impedance LF/HF   6.8/13.5 ohm Power capacity LF/HF   400/90 W AES Program power LF/HF   800/180 w Sensitivity LF/HF   98/105 2.83 @ 1 m @ 2Π Frequency range   35-20000 Hz Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope) Voice coil diameter LF/HF   100/72 mm – 4 /2.9 in Dispersion (conical)   60º BL factor   18.1 N/A Moving mass   0.048 kg Winding length   16 mm Xdamage pp   28 mm LF Recone kit ref.   5M12CXA4ND8 HF diaphragm ref.   5MCP756 THIELE SMALL PARAMETERS Fs   45 Hz Re   6.6 ohm Qms   6.24 Qes   0.28 Qts   0.26 Vas   102.2 l Cms   260 µm / N Rms   2.19 kg/s Efficiency %   3.25 Sd   0.055m² Xmax   6 mm Vd   210 cm³ Le @1 kHz   1mH CONSTRUCTIVE DETAILS Net weight   7.18 kg 15.83 lb Total weight   8.05 kg 17.75 lb Magnet   Neodymium

Read more less
