Hifonics

DescriptionHifonics Zeus 6.5 inch 3 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair) RMS POWER HANDLING (CEA426B)50 MAXX POWER300 SPEAKER IMPEDANCE4 Ω FREQUENCY RESPONSE +/- 3DB40 Hz - 22 kHz SENSITIVITY (1 WATT/1 METER)88 db CROSSOVER POINT4 khz CROSSOVER SLOPE12dB MOUNTING DIAMETER/CUT OUT5.59 OUTSIDE DIAMETER7.01 MOUNTING DEPTH/CHASSIS DEPTH2.13 DIMENSIONS14.88 x 8.5 x 4.13 in WEIGHT3.5 lbs TWEETER DOME MATERIAL:Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements SURROUND:Rubber Moisture Resistant Rubber Surround with high Mid-Bass Impact CONE:Alpha-Cellulose Cones Light weight for speed and very rigid for deep bass SURROUND / CONE COUPLING:High Temperature Adhesive Special adhesive is chosen to create a permanent bond between the cone and the surround TINSEL LEADS:Braided Highly conductive while remain flexible during high power applications VOICE COIL:Pure Copper Creates strong magnetic field with a very thin extrusion VOICE COIL FORMER:Kapton Lightweight and efficiently dissipates heat SPIDER:Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process. COOLING SYSTEM: Overcoil Air is exchanged over the voice coil through the spider CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element FRAME TYPE: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application CONNECTORS: Spade Use spade connectors or solder direct for the best connection GRILLS: Yes Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat

Read more less

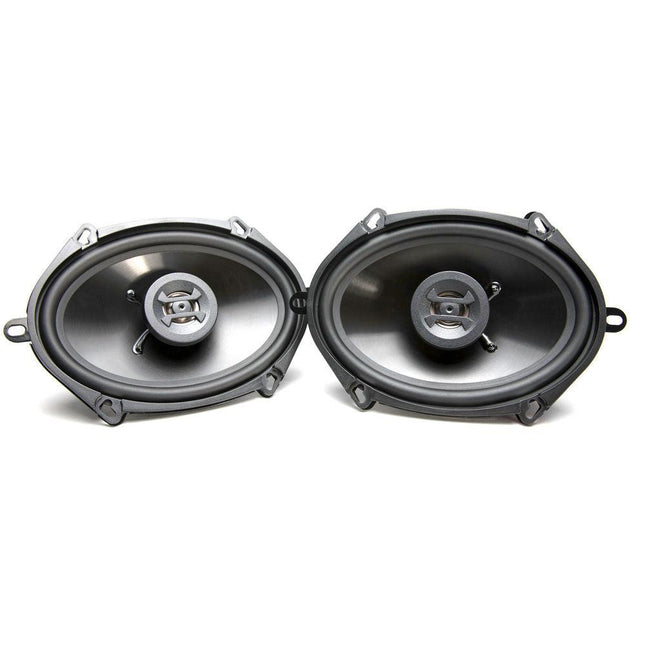

DescriptionHifonics Zeus 5 x 7 / 6 x 8 inch 2 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair) - includes 6x8 inch adapter plate (No Grills) RMS POWER HANDLING (CEA426B)90 MAXX POWER250 SPEAKER IMPEDANCE4 Ω FREQUENCY RESPONSE +/- 3DB46Hz-20kHz SENSITIVITY (1 WATT/1 METER)88 db CROSSOVER POINT4 khz CROSSOVER SLOPE12dB MOUNTING DIAMETER/CUT OUT5.67 OUTSIDE DIAMETER8.60 x 5.56 No Grill MOUNTING DEPTH/CHASSIS DEPTH2.13 DIMENSIONS12.75 x 9.63 x 3.69 in WEIGHT3.4 lbs TWEETER DOME MATERIAL:Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements SURROUND:Rubber Moisture Resistant Rubber Surround with high Mid-Bass Impact CONE:Alpha-Cellulose Cones Light weight for speed and very rigid for deep bass SURROUND / CONE COUPLING:High Temperature Adhesive Special adhesive is chosen to create a permanent bond between the cone and the surround TINSEL LEADS:Braided Highly conductive while remain flexible during high power applications VOICE COIL:Pure Copper Creates strong magnetic field with a very thin extrusion VOICE COIL FORMER:Kapton Lightweight and efficiently dissipates heat SPIDER:Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process. COOLING SYSTEM: Overcoil Air is exchanged over the voice coil through the spider CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element FRAME TYPE: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application CONNECTORS: Spade Use spade connectors or solder direct for the best connection GRILLS: No Typically used in factory dash replacement locations where grills are not required TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat

Read more less

DescriptionHifonics Zeus 3.5 inch 2 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair). (No Grills). RMS POWER HANDLING (CEA426B)25 MAXX POWER125 SPEAKER IMPEDANCE4 Ω FREQUENCY RESPONSE +/- 3DB80Hz-20kHz SENSITIVITY (1 WATT/1 METER)88 db CROSSOVER POINT6 khz CROSSOVER SLOPE12dB MOUNTING DIAMETER/CUT OUT3.41 OUTSIDE DIAMETER3.41 No Grill MOUNTING DEPTH/CHASSIS DEPTH1.5 DIMENSIONS9.75 x 5.88 x 3 in WEIGHT2 lbs TWEETER DOME MATERIAL:Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements SURROUND:Rubber Moisture Resistant Rubber Surround with high Mid-Bass Impact CONE:Alpha-Cellulose Cones Light weight for speed and very rigid for deep bass SURROUND / CONE COUPLING:High Temperature Adhesive Special adhesive is chosen to create a permanent bond between the cone and the surround TINSEL LEADS:Braided Highly conductive while remain flexible during high power applications VOICE COIL:Pure Copper Creates strong magnetic field with a very thin extrusion VOICE COIL FORMER:Kapton Lightweight and efficiently dissipates heat SPIDER:Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process. COOLING SYSTEM: Overcoil Air is exchanged over the voice coil through the spider CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element FRAME TYPE: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application CONNECTORS: Spade Use spade connectors or solder direct for the best connection GRILLS: No. These speakers are typically installed behind an OEM panel TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat

Read more less

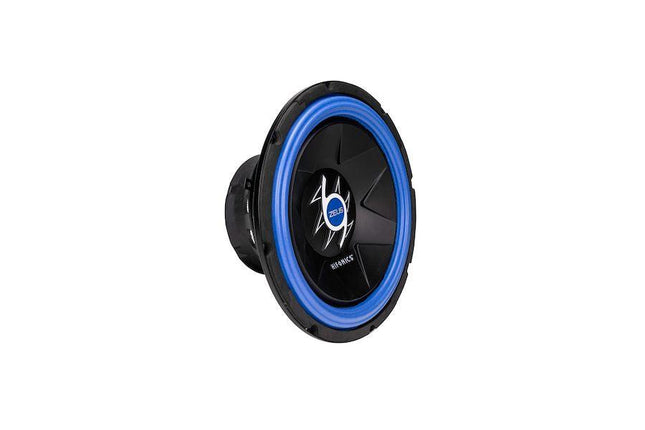

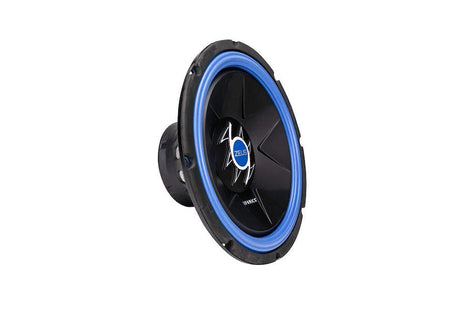

DescriptionFEATURES INCLUDE: Dual 4 Ohm design Ideal for medium and large ported enclosures Thermal Formed Polypropylene ZEUS symbol and unqiue 6 spoke molded cone creates a strong cone face Heavy gauge, powder-coated, stamped steel basket provides a solid base for the motor system and moving parts “Through the Frame Venting” with mesh grill Rear motor cover protects the back of the subwoofer   CONFIGURATION Round VOICE COILS 2 IMPEDANCE (OHMS) 4 ohms x 2 RMS POWER HANDLING (WATTS) 300 PEAK POWER HANDLING (WATTS) 600 CUT-OUT (IN) 9 MOUNTING DEPTH (IN) 4.96 OUTSIDE DIAMETER (IN) 10.08 SENSITIVITY (1 WATT/1 METER) 86dB ENCLOSURE RECOMMENDATION Small Sealed or Medium - Large Vented SUBWOOFER TERMINAL TYPE Spade style terminals for easy installation. WOOFER CONFIGURATION Round. SURROUND/CONE COUPLING The pressure treated blue foam surround along with the Zeus spider helps keep the piston motion of the subwoofer linear and distortion free. ​VOICE COIL/FORMER ASSEMBLY Vented aluminum former holds a 2” voice coil while allowing the heat to be exchanged. (Less heat means less distortion). SPIDER Specialized Hifonics cotton spider, along with the surround, allows the ZEUS Gamma woofer to handle more power with minimum distortions. FRAME/VENTING A unique Hifonics heavy duty powder coated steel frame allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability. MOTOR Vented high energy motor assembly with 37oz magnets increases power handling and increases SPL.

Read more less
