Specifications Model MW-80 Type Midbass Size 8" Frequency response 60 - 6000 Hz Package quantity Pair Voice coil size 2.00" Cone Paper Magnet Ferrite Voice coil wire CCAW Surround Cloth RMS Power 175 W MAX Power 350 W Frame Steel Impedance 4 Ohm SPL 93.50 dB Fs 75.00 Hz Qts 0.56 BL 7.50 Re 3.8 Vas 10.50 L Mounting depth 2.95" (75.0 mm) Cut-out dimension 7.20" (183.0 mm) Gross weight 13.23 lb (6.00 kg)

Read more less

Specifications Model CBR-620 Type Speakers Size 6.5 " Frequency response 60 - 20000 Hz Package Quantity Pair VC Size 1.00 " Cone Paper Magnet Ferrite Surround Material Cloth RMS Power 75 Watt MAX Power 150 Watt Frame Steel Impedance 4 Ohm SPL 91.00 dB Fs 60.00 Hz Qts 0.45 BL 5.50 Vas 20.40 L

Read more less

Specifications Model XBR-6913 Type Speakers Frequency response 50-20000 Hz Package Quantity Pair VC Size 0.00 " Cone Paper Magnet Ferrite Surround Material Foam RMS Power 60 Watt MAX Power 120 Watt Impedance 4 Ohm SPL 91.00 dB Fs 65.00 Hz Qts 0.52 BL 5.10 Vas 25.60 L Mounting Depth 79.0 mm

Read more less

Specifications: Model:ABR-200.2 Type: Amplifier Class-AB Number of the channels:2 Frequency Response:10-20000 Hz 2 Ohm RMS Power (14.4 V):100 W x 2 4 Ohm RMS Power (14.4 V):80 W x 2 4 Ohm RMS Power (Bridge):200 W x 1 Minimum permissible load on the channel:2 Ohm Minimum permissible load in a bridge connection:4 Ohm Input SPL: 0.2 - 6 V Low Pass Filter:50-500 Hz High Pass Filter:50-500 Hz Crossover :12 dB/Oct Bass Boost: None dB Damping Factor:≥ 170 Working Voltage: 9 - 15 V Signal-to-noise Ratio:≥ 92 dB Dimensions:(L xWxH): 10.63 x 8.66 x 1.97 inch

Read more less

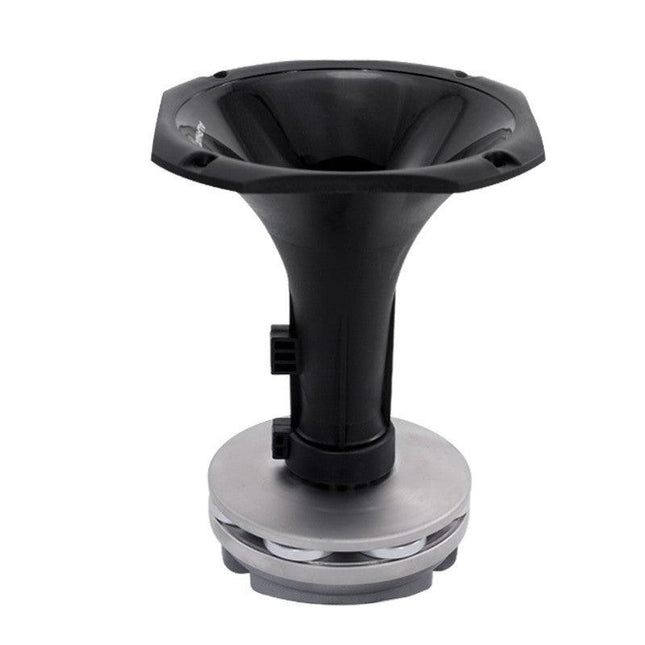

Powerful professional high-frequency driver, which is aimed to make your car louder than others! Titanium diaphragm and aluminum voice coil allow reproducing the highest frequencies! Due to heavy-duty neodymium motor, it was managed to achieve the sensitivity of 110 dB! Specifications Model AP-D50NEO Type Driver Frequency response 1200 - 20000 Hz Package quantity 1 Pc Voice coil size 1.75 inch Diaphragm Metal Magnet Neodymium Voice coil wire CCAW RMS Power 100 W MAX Power 200 W Body Alu Impedance 8 Ohm SPL 110.00 dB Fs 1000.00 Hz Mounting depth 7.83 inch Cut-out dimension 3.94 inch Gross weight 4.96 lb (2.25 kg)

Read more less

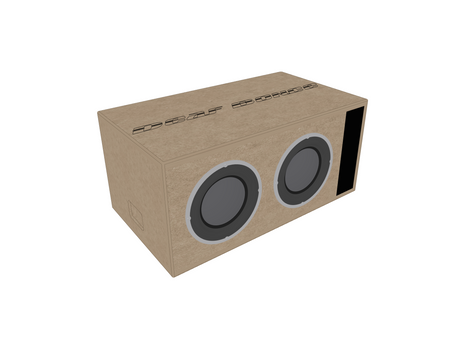

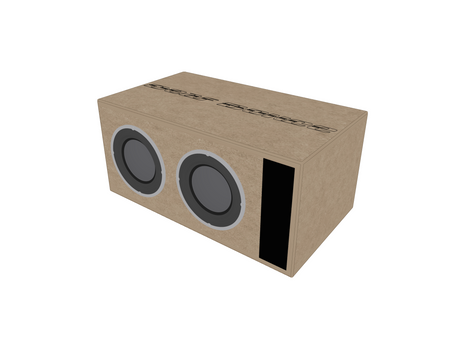

Custom built enclosure specifically for the Deaf Bonce 3512R 12" subwoofer. Specifications: 4.957445 cubic feet net enclosure 32.0 hz tuning 72.0 sq inches of port 16.0" x 4.4617" port dimensions 11.18" subwoofer cut out 1" triple refined MDF construction 1" center baffle brace Dense, uniform, void-free triple refined MDF panel Ships bare / unfinished — sanded and ready to finish your way Pre-wired metal binding post with 10ga OFC wire Dimensions/Weight: 18.0" tall 38.625" wide 21.875" deep Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Deaf Bonce 3512R 12" subwoofer. At Basshead Supply the goal with the "foundation series" enclosures is to offer subwoofer specific enclosures that are well built and well performing at the most affordable price — finished YOUR way. Using premium 1" triple refined MDF all around — a heavier, higher-grade board — we are able to achieve a dense, acoustically inert enclosure; the heavy, dead panel has no resonance of its own, so it stays out of the way of your sound. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1" baffle and an additional 1" baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. These ship BARE and unfinished — sanded and ready for you to finish your way, whether that's paint, bedliner, vinyl wrap, or carpet; we recommend sealing the raw MDF promptly and keeping it dry until finished. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

Read more less

Custom built enclosure specifically for the Deaf Bonce SA310 10" subwoofer. Specifications: 3.0 cubic feet net enclosure 33.0 hz tuning 43.5 sq inches of port 12.0" x 3.625" port dimensions 9.33" subwoofer cut out 1" (24mm) plywood construction 1" (24mm) center baffle brace 17 ply birch veneer construction Gray stained finish Pre-wired metal binding post with 10ga OFC wire Dimensions/Weight: 14.0" tall 30.25" wide 22.5" deep Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Deaf Bonce SA310 10" subwoofer. At Basshead Supply the goal with the "performance series" enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1" Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1" baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

Read more less

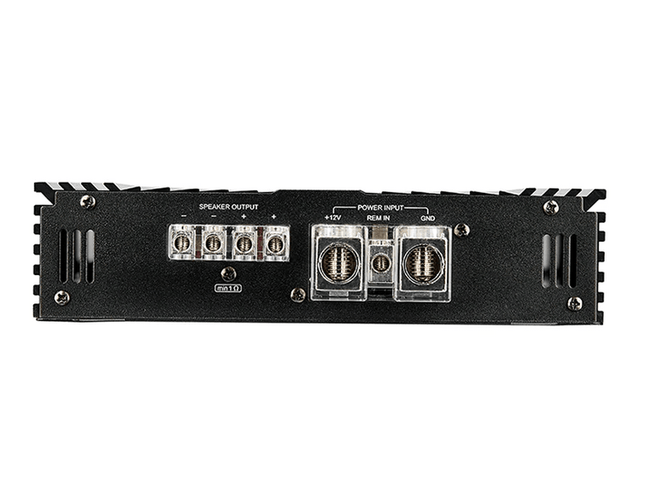

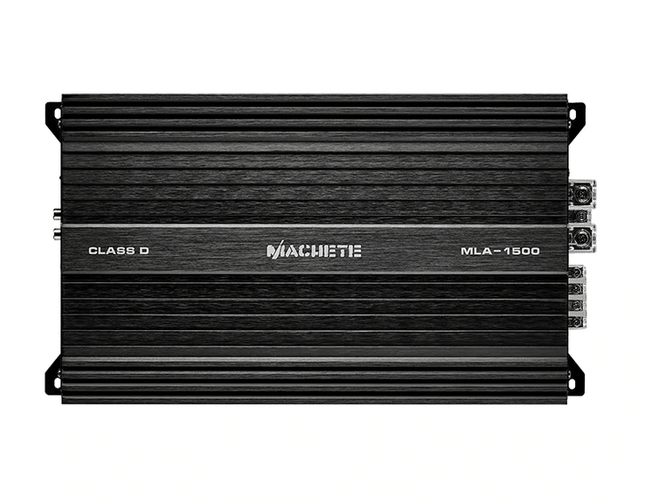

Specifications Model MLA-1500 Class D Number of the channels 1 Frequency response 10 - 180 Hz 1 Ohm RMS Power (14.4 V) 1480 W 2 Ohm RMS Power (14.4 V) 920 W 4 Ohm RMS Power (14.4 V) 540 W Minimum permissible load on the channel 1 Ohm Input SPL 0.2 - 6 V Low pass filter 40 - 180 Hz Crossover 12 dB/Oct Subsonic filter 0 - 50 Hz Input terminal 4 Ga Output terminal 8 Ga Working voltage 10 - 15 V Signal-to-noise ratio ≥ 99 dB Size (WxLxH) 14.76 x 8.50 x 1.96 inch

Read more less

Specifications Model XBR-513 Type Speakers Size 5.25 " Frequency response 90 - 200000 Hz Package Quantity Pair VC Size 1.00 " Cone Paper Magnet Ferrite Surround Material Cloth RMS Power 40 Watt MAX Power 80 Watt Frame Steel Impedance 4 Ohm SPL 89.00 dB Fs 80.00 Hz Qts 0.65 BL 4.80 Vas 14.20 L

Read more less

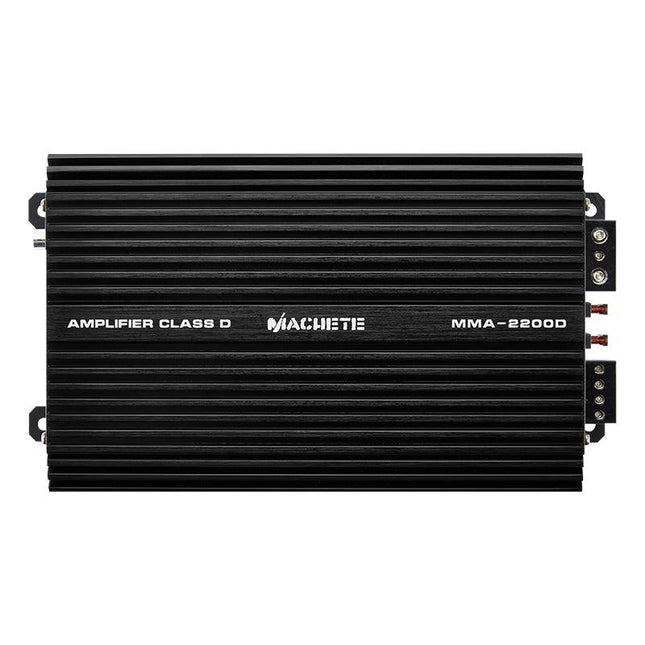

Specifications Model MMA-2200D Class D Number of the channels 2 Frequency response 10-22000 Hz 2 Ohm RMS Power (14.4 V) 300 W x 2 4 Ohm RMS Power (14.4 V) 200 W x 2 4 Ohm RMS Power (Bridge) 600 W x 1 Minimum permissible load on the channel 0 Ohm Input SPL 0.2 - 6 V Low pass filter 50-500 Hz High pass filter 50-500 Hz Crossover 12 dB/Oct Bass frequency adjustment 45 Hz Damping factor ≥ 150 Working voltage 9 - 15 V Signal-to-noise ratio ≥ 90 dB Size (WxLxH) 5.20 x 9.25 x 1.85 inch Gross weight 4.67 lb (2.12 kg)
