Description

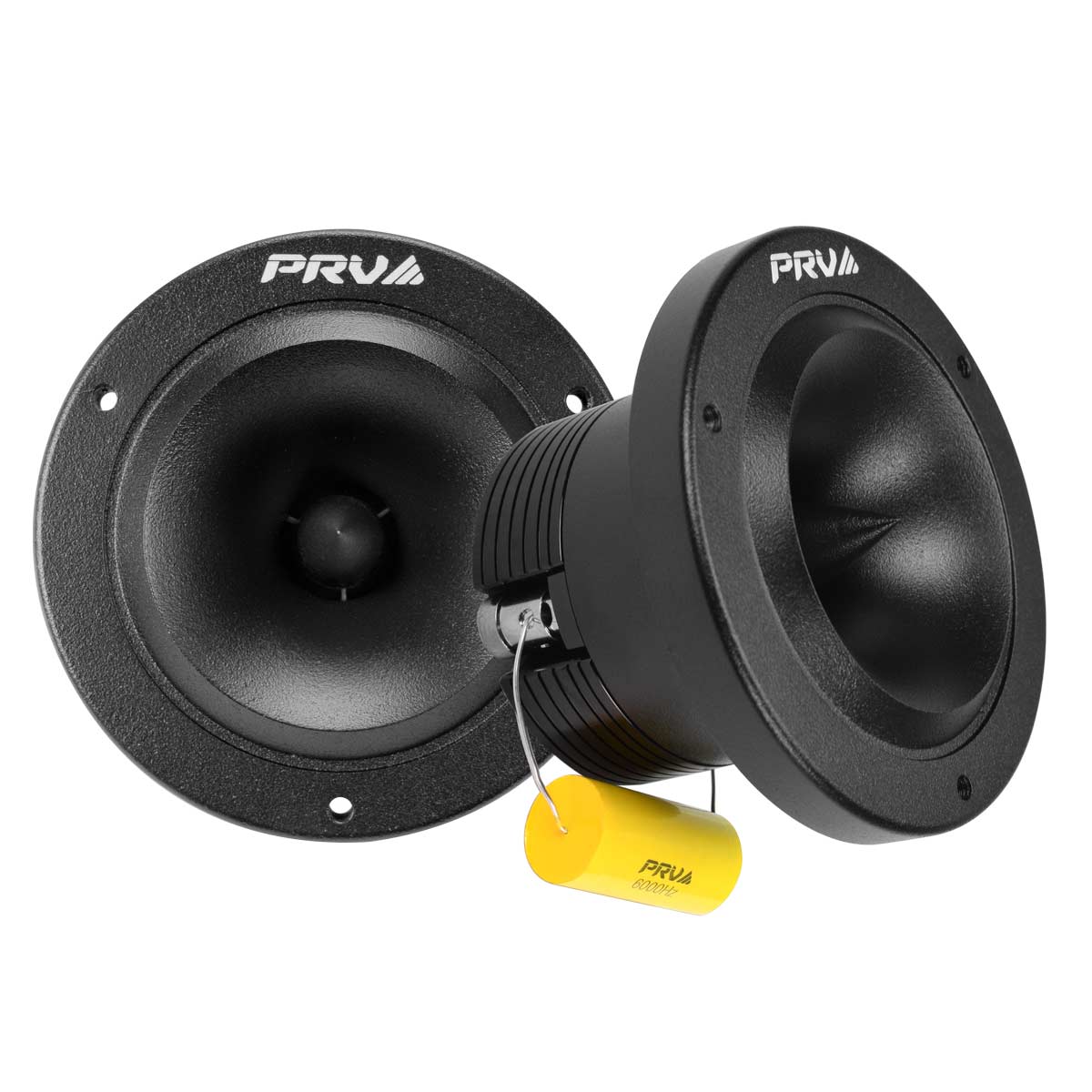

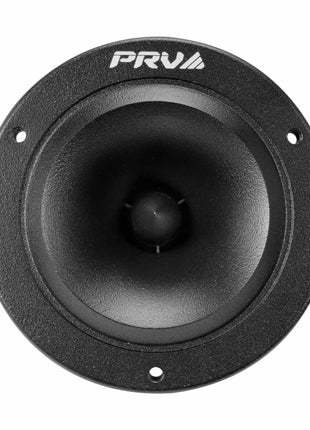

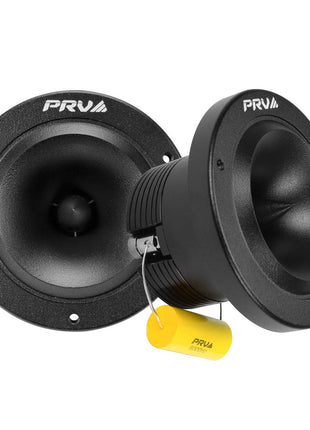

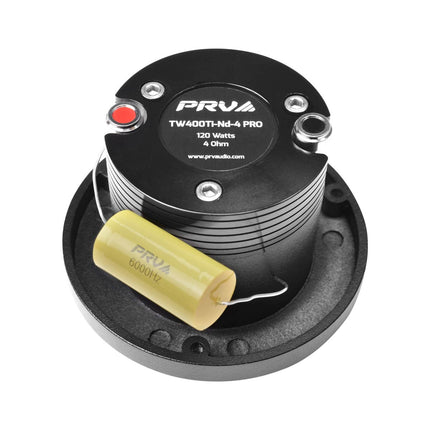

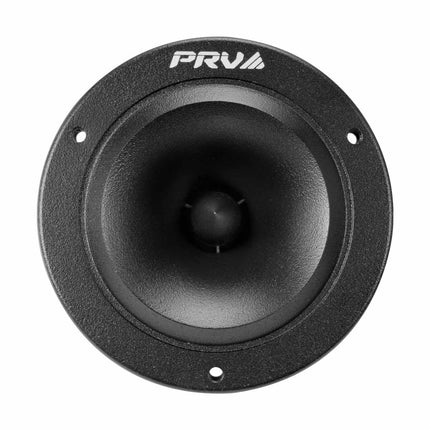

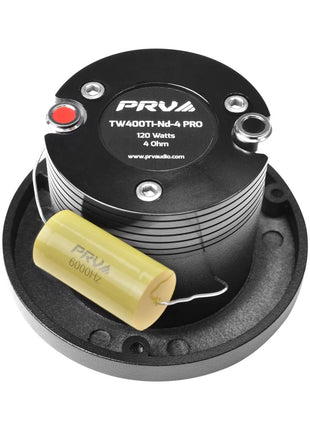

PRO Audio 1″ Exit Neodymium Bullet Super Tweeter
The PRV Audio TW400Ti-Nd-4 PRO Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight ans size dramatically without compromising any performance.
Highlights
- Designed to fit in tight spaces without any major modifications
- Titanium diaphragm for an accurate and detailed response
- Designed to add high output, high frequency response to any interior system
- Hidden push terminal connection, takes less space on installation
- Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
- Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz
- Sold in Pairs
After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for the TW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes.
GENERAL SPECIFICATIONS
| Nominal impedance |
4 Ohms |
| Nominal Power Handling* |
60 Watts |
| Continuous Program Power (RMS)** |
120 Watts |
| Max Peak Power*** |
240 Watts |
| Sensitivity 2.00V at 1m |
106 dB |
Recommended High Pass Crossover
For Full Power Handling
|
6000 Hz
12db/oct Crossover
|
| Frequency Response at -10dB |
4,500 – 20,000Hz |
| Voice Coil Diameter |
1.0″ (25 mm) |
| Voice Coil Wire |
CCAW |
| Voice Coil Former Material |
Kapton |
| Diaphragm Material |
Titanium |
| Flux Density |
1.45 T |
| Magnet Material |
Neodymium |
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
EXTRA INFO
| Overall Depth |
2.38″ (60.5 mm) |
| Mounting Depth |
1.85″ (47.7 mm) |
| Overall Diameter |
3.48″ (88.5 mm) |
| Cutout Diameter |
2.27″ (57.7 mm) |
| Net Weight |
0.88 lbs (0.40 kg) |
| Shipping Weight (pair) |
1.98 lbs (0.9 kg) |
| Carton Dimensions W x L x H |
7.95″ x 3.94″ x 2.76″
(202 x 100 x 70 mm)
|
