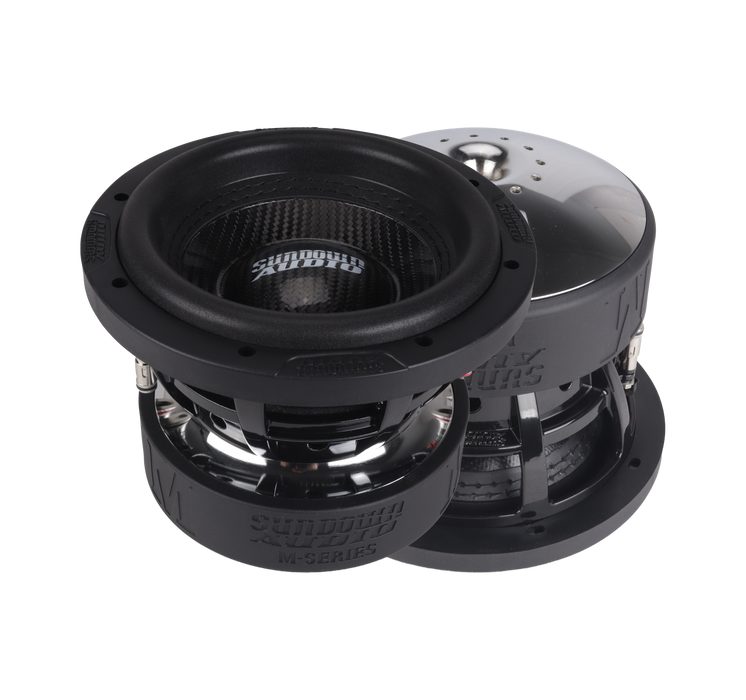

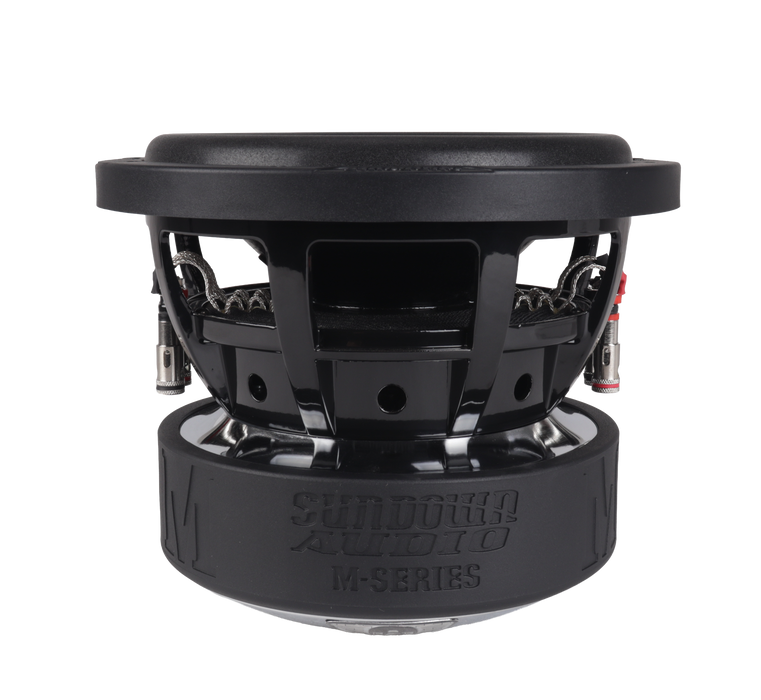

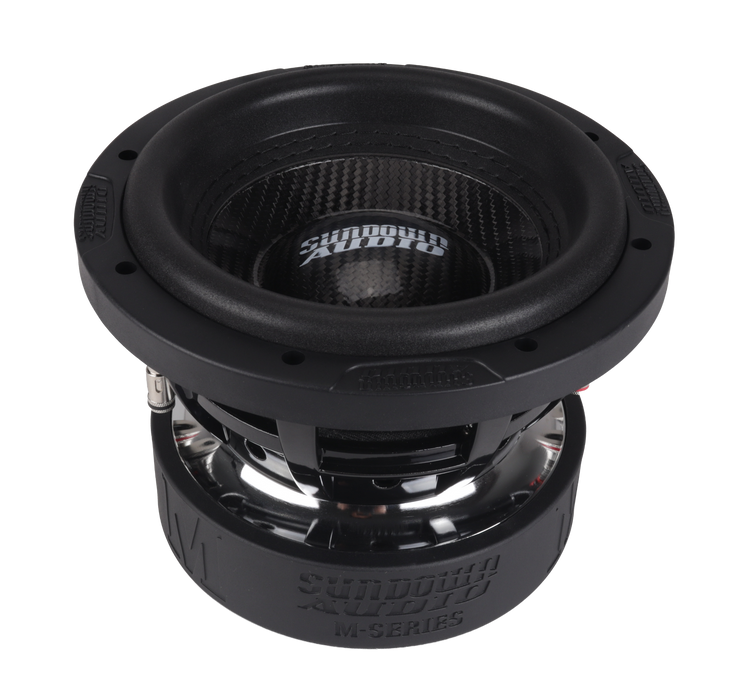

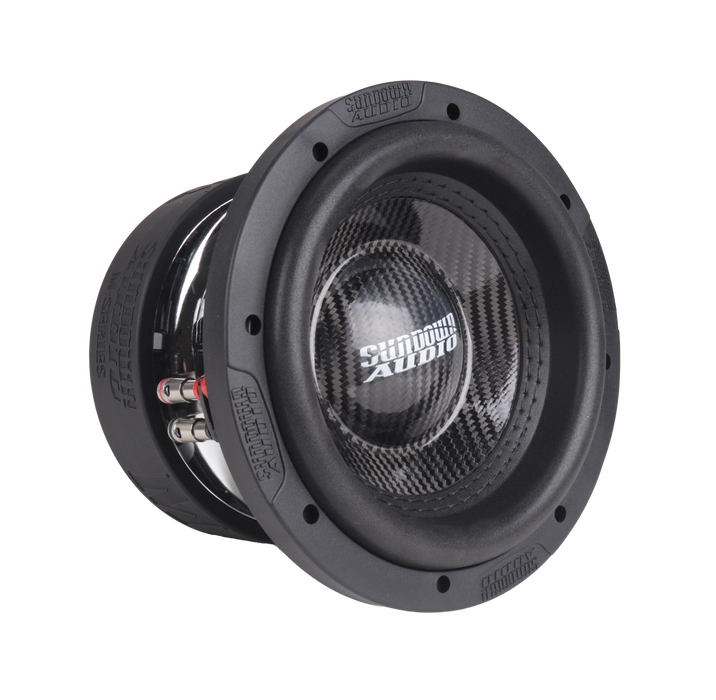

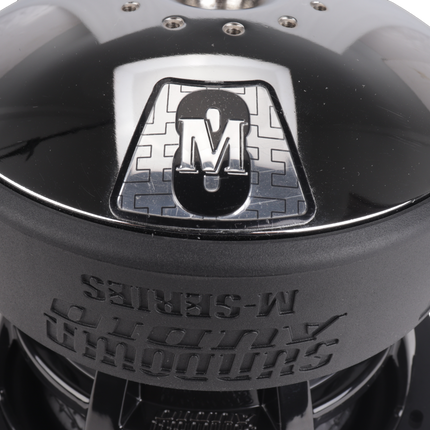

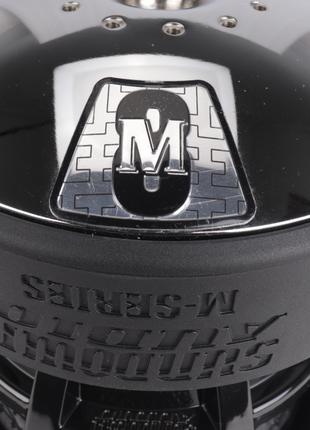

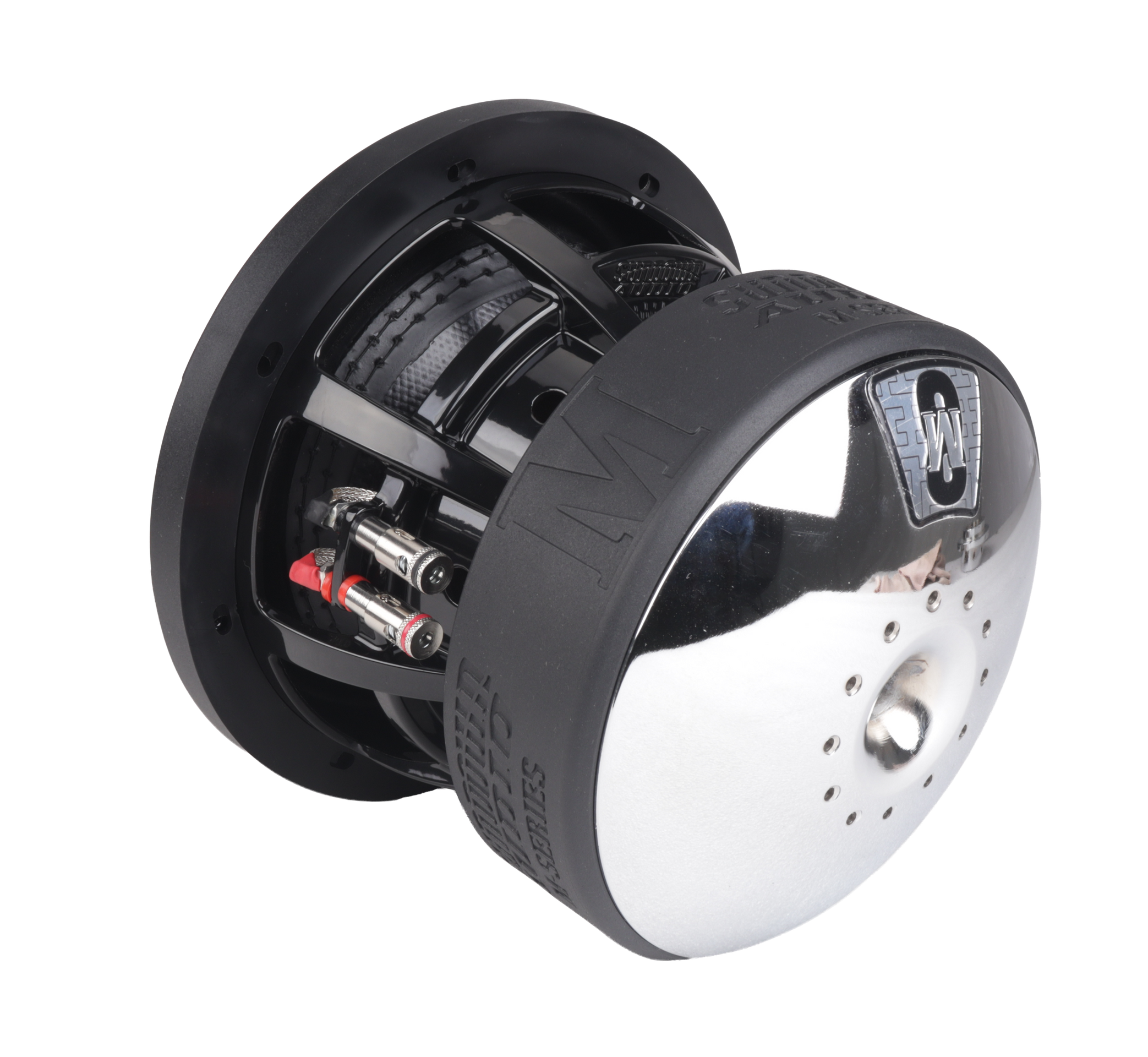

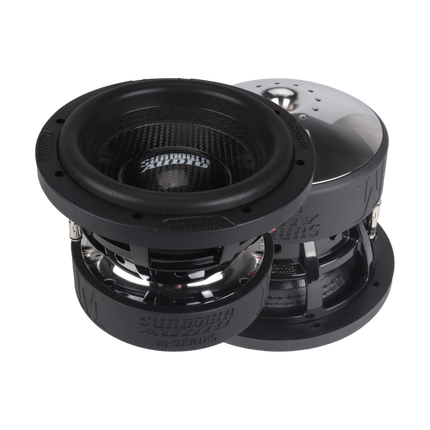

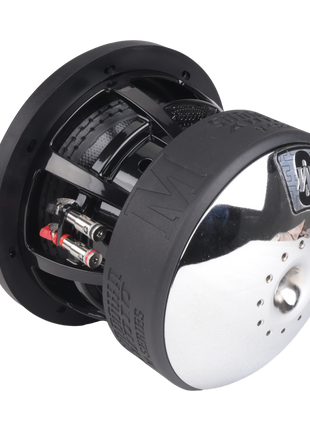

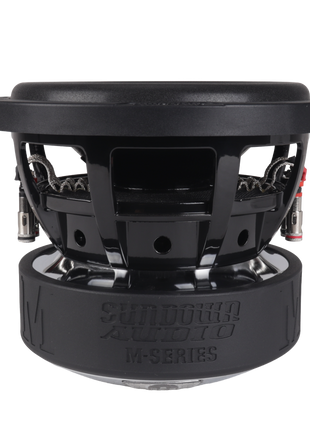

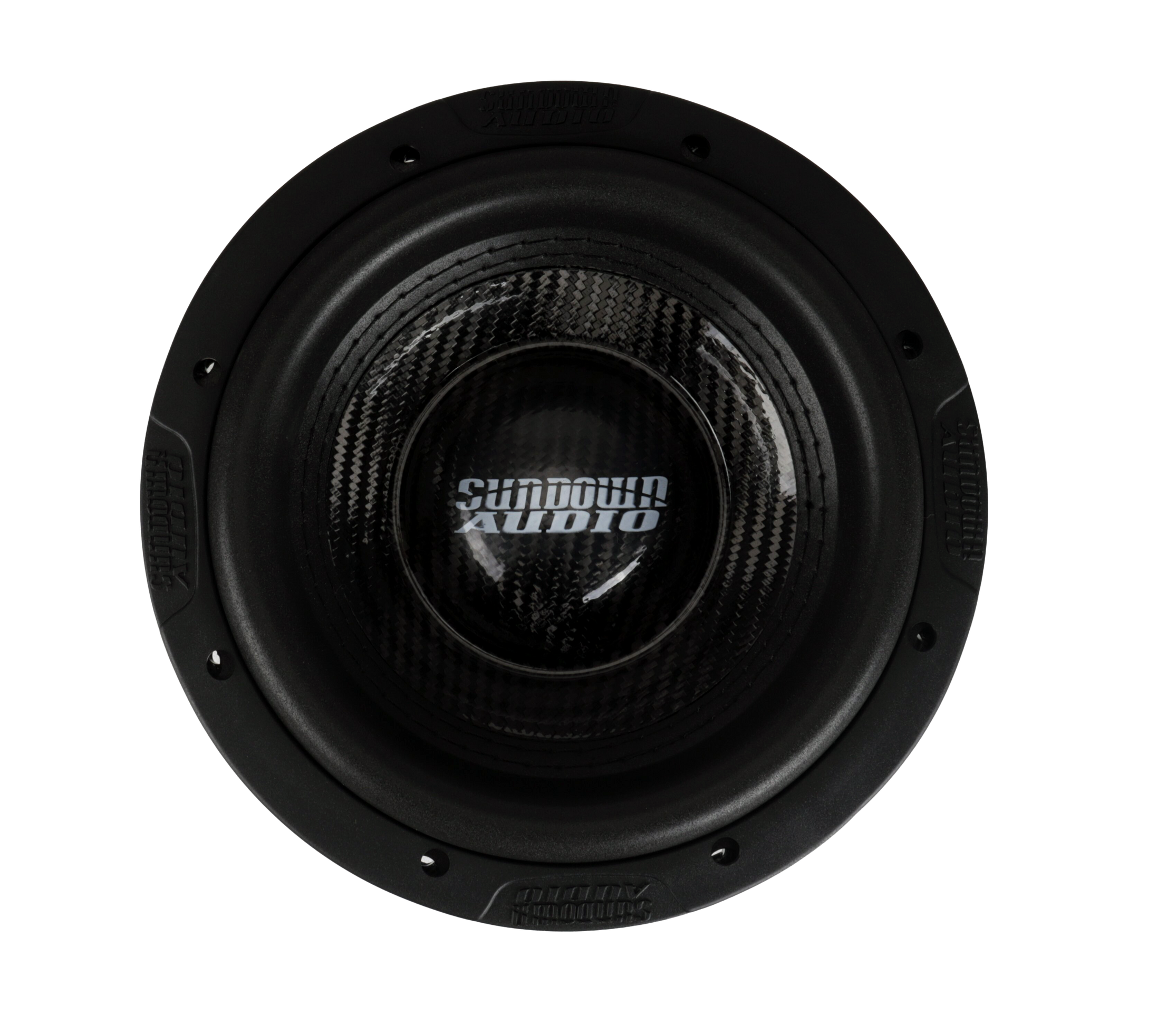

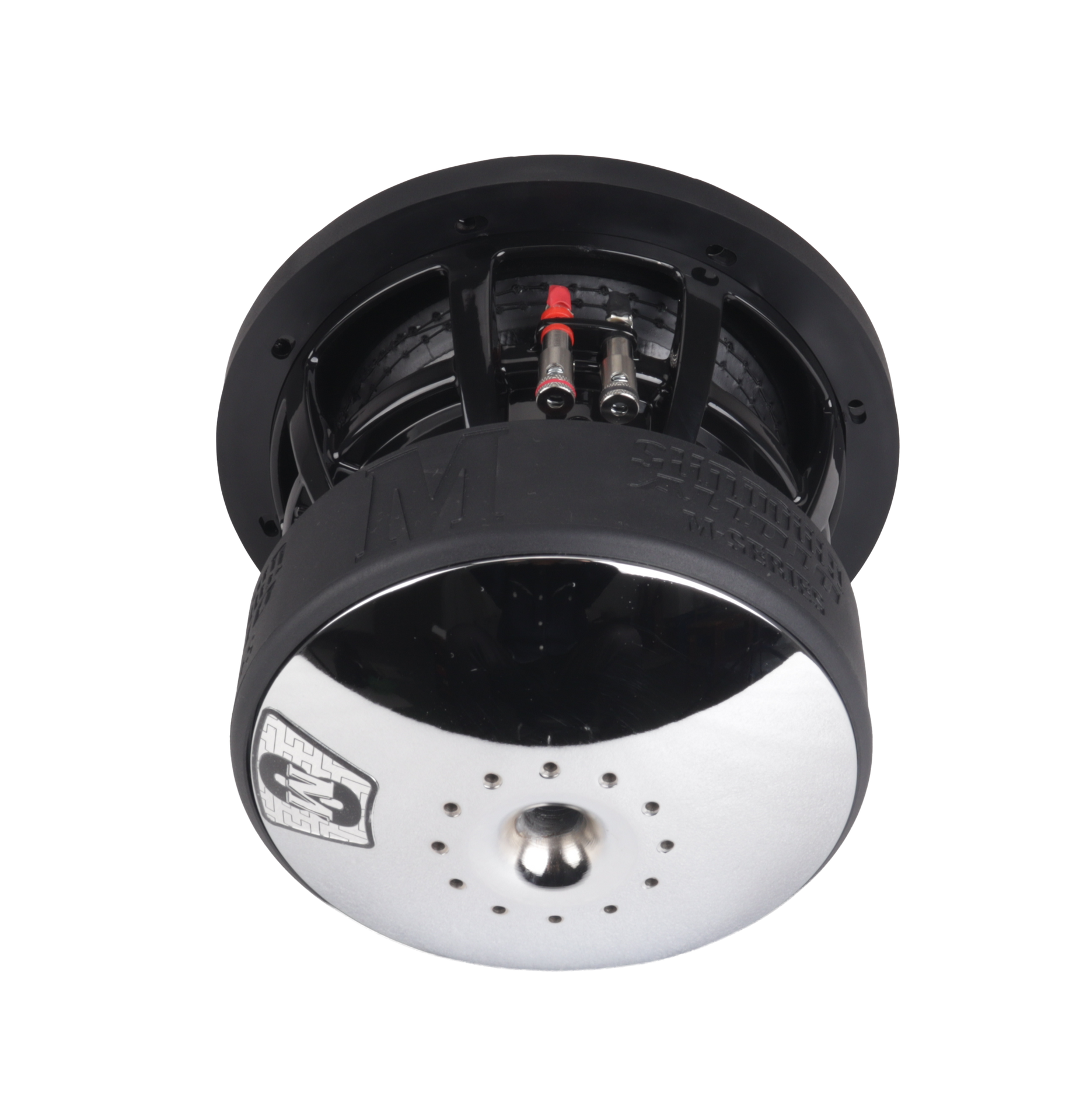

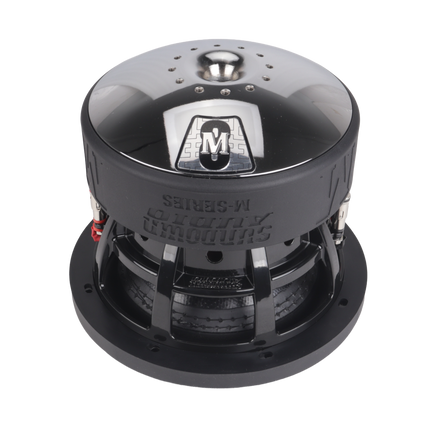

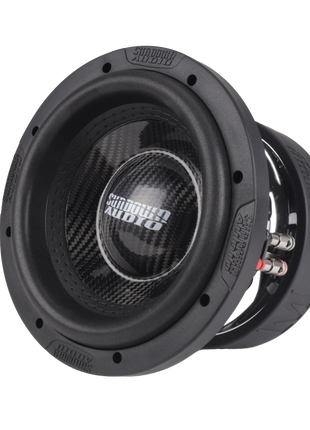

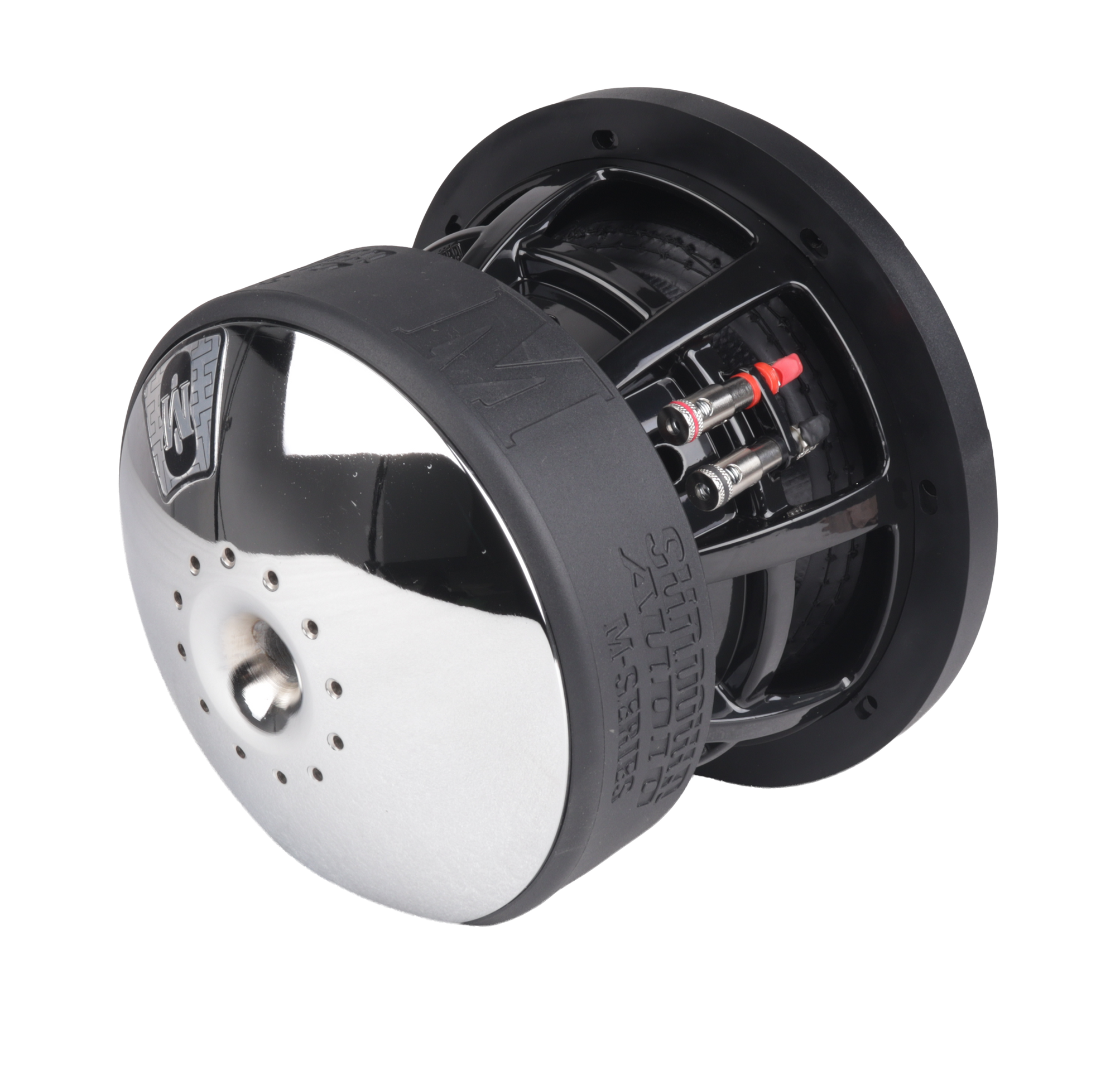

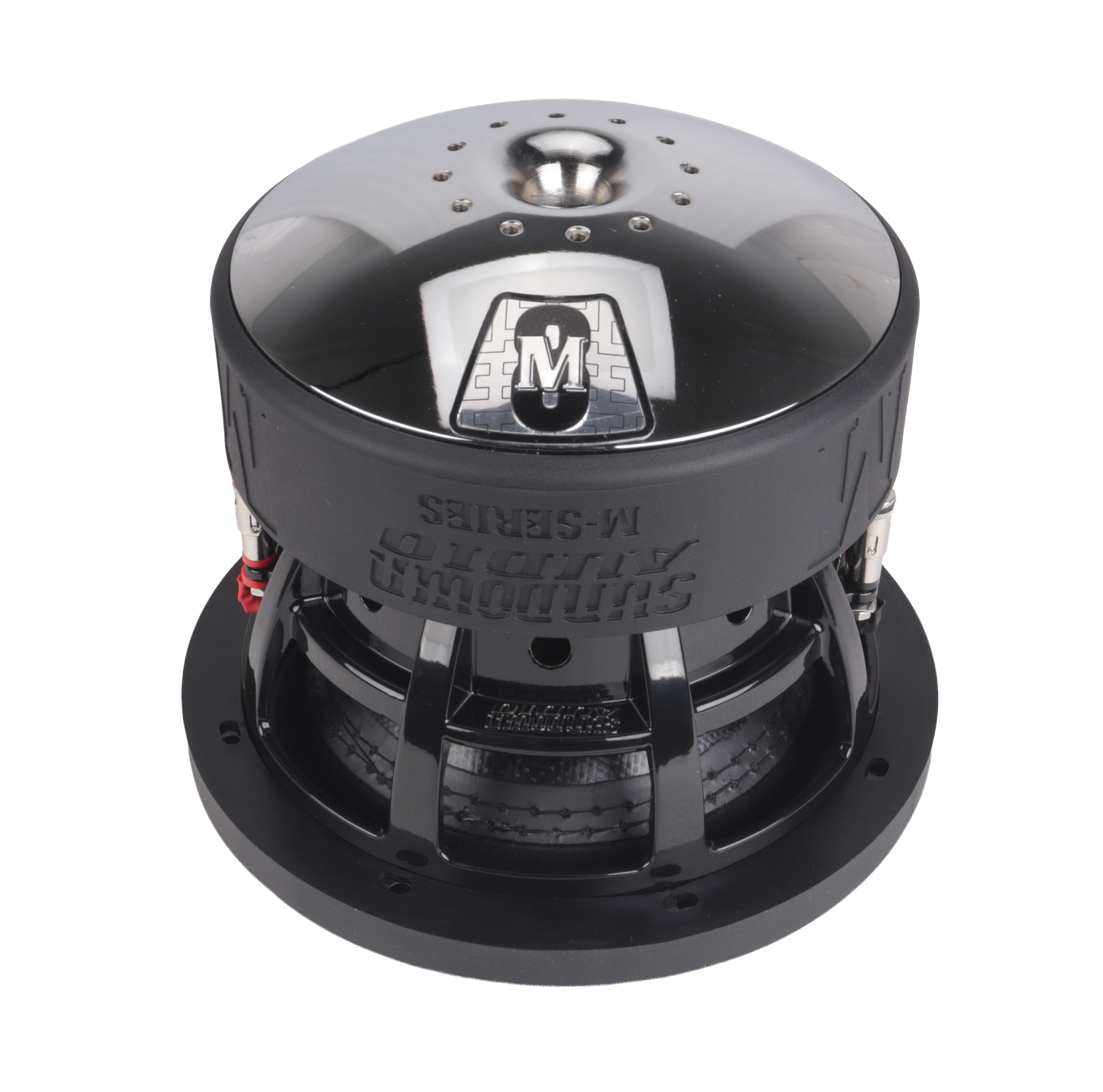

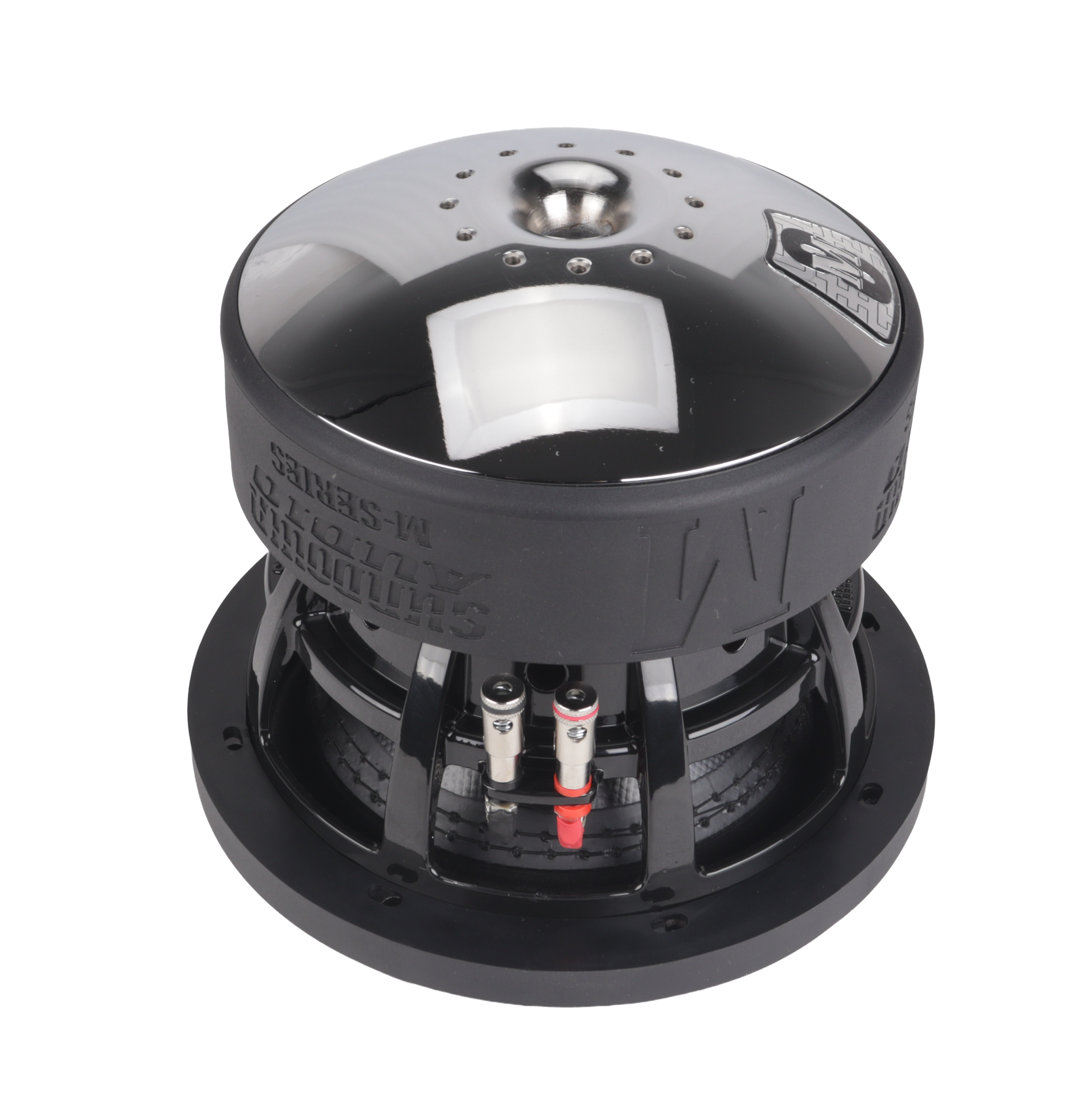

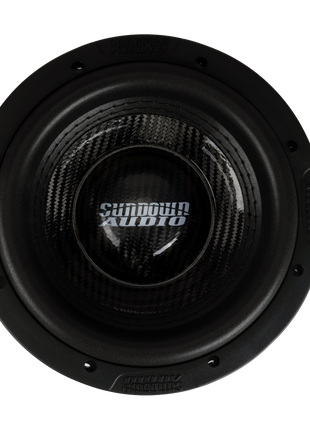

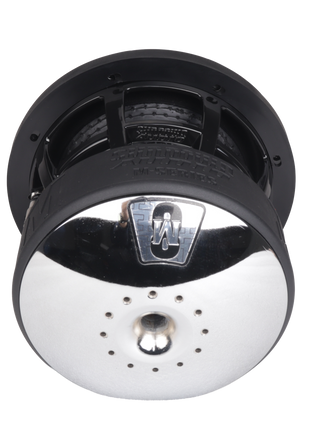

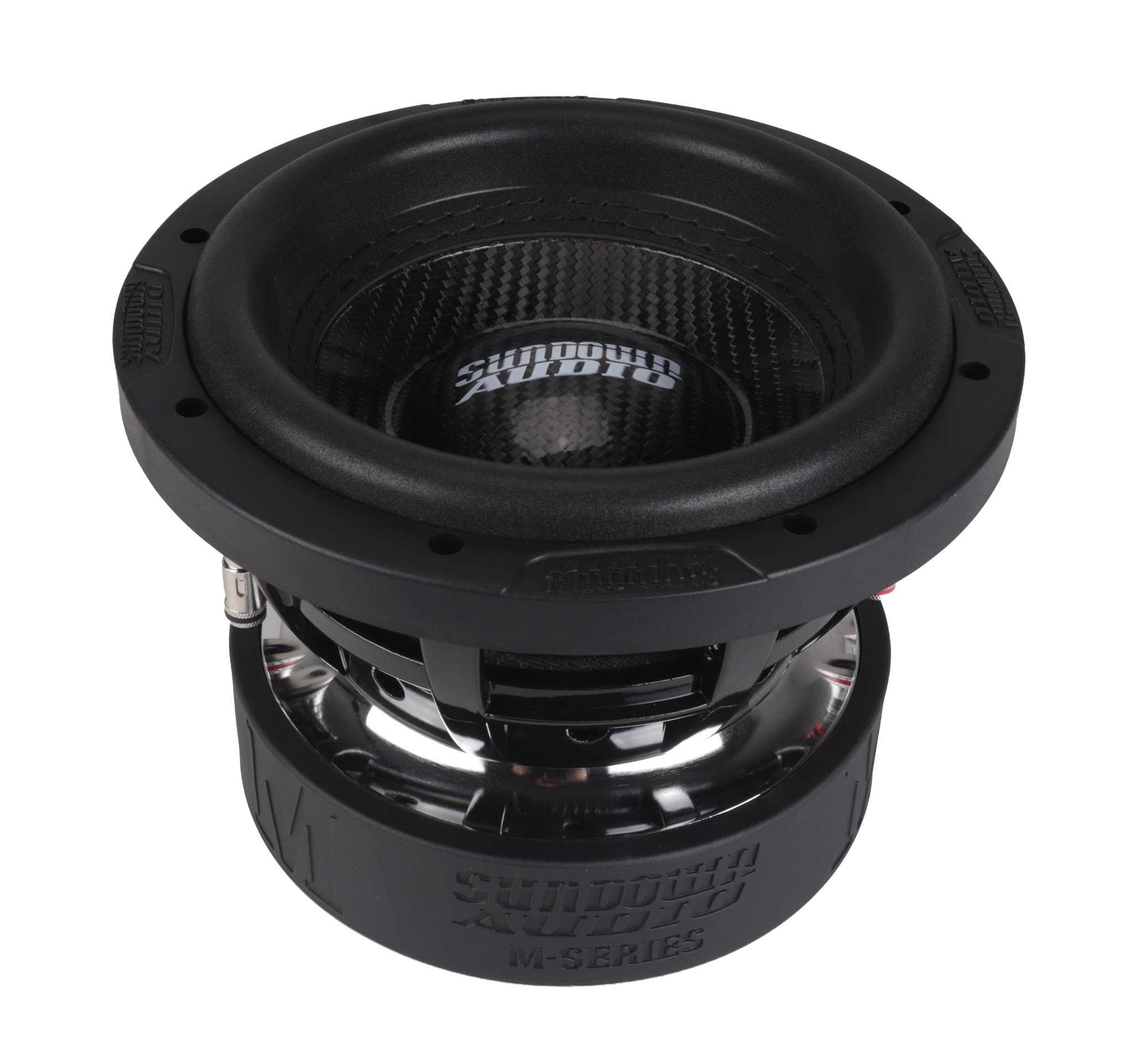

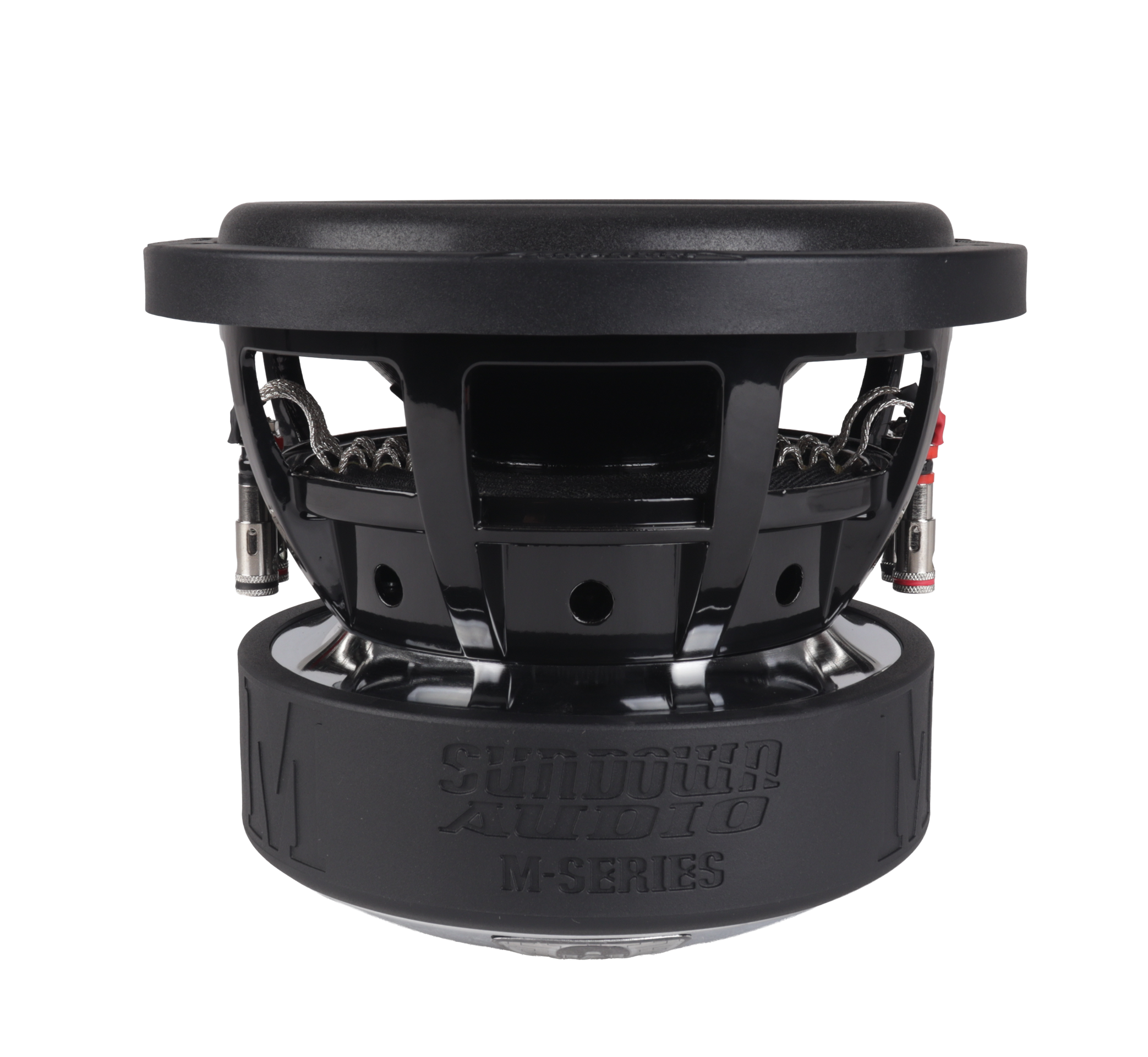

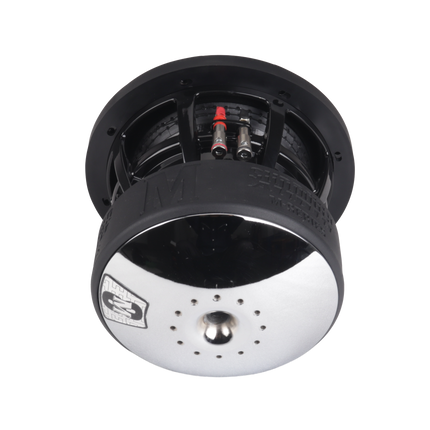

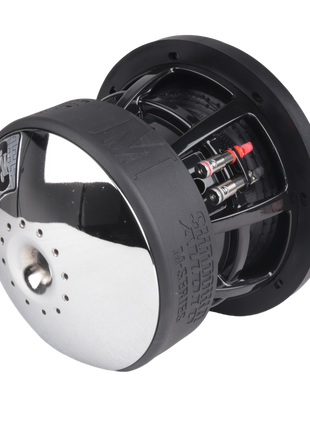

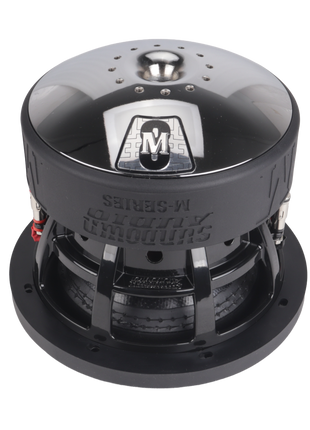

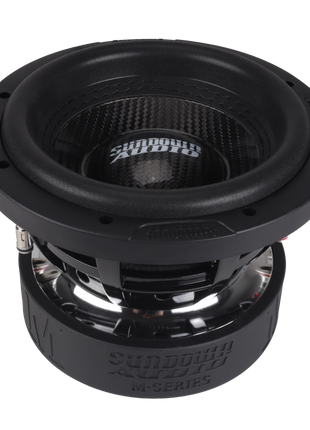

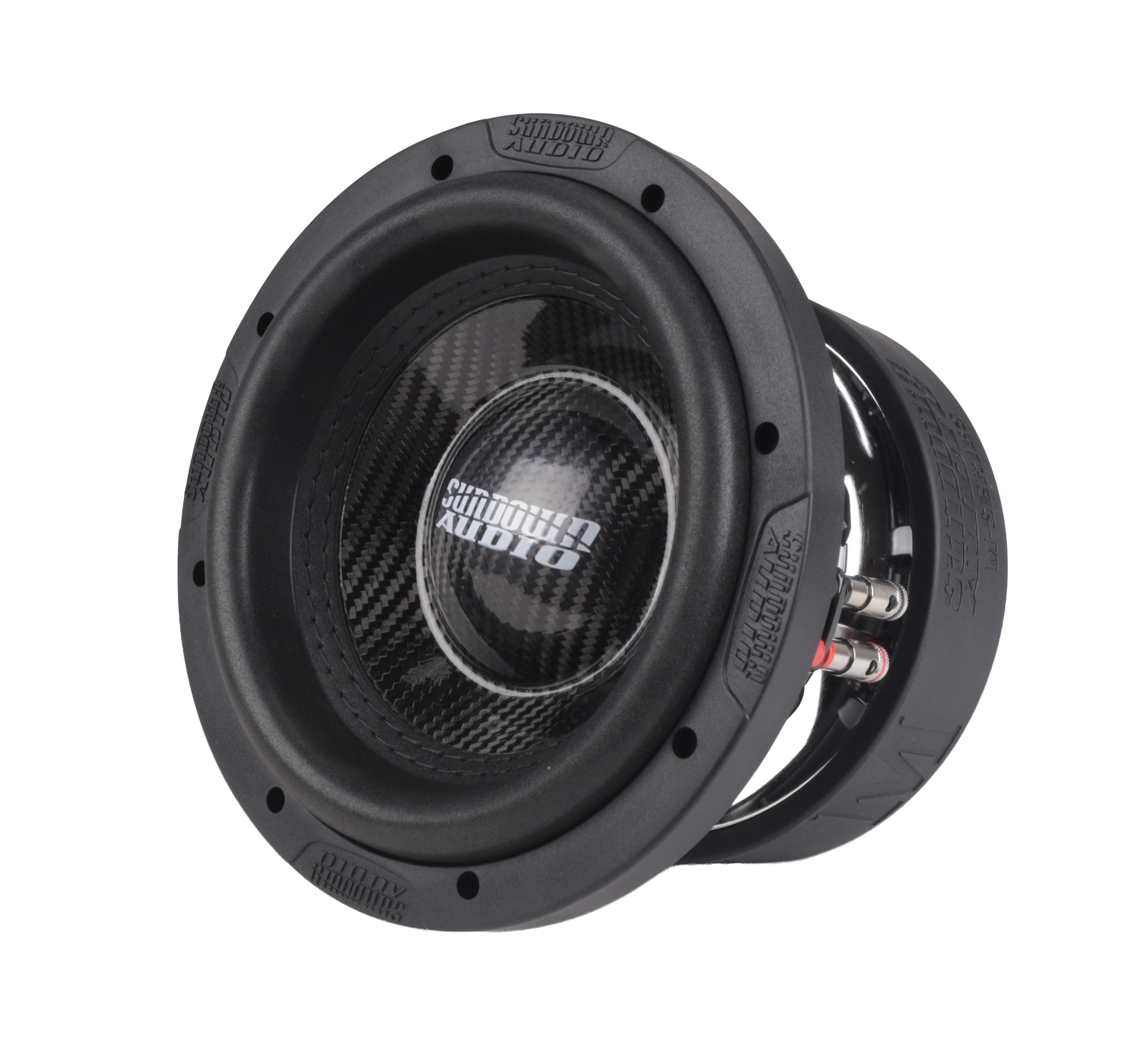

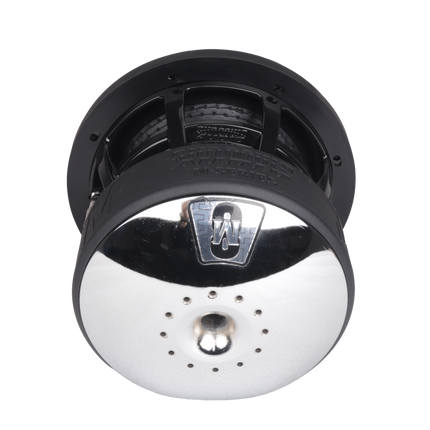

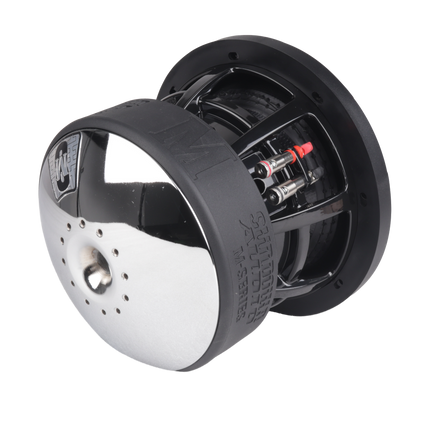

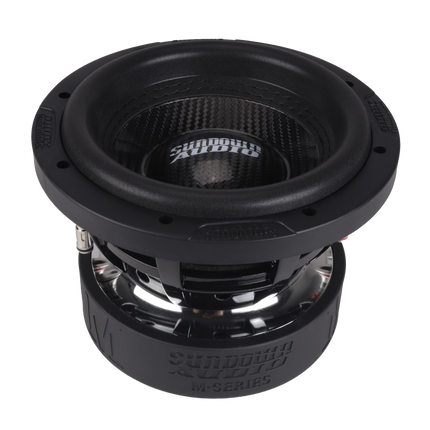

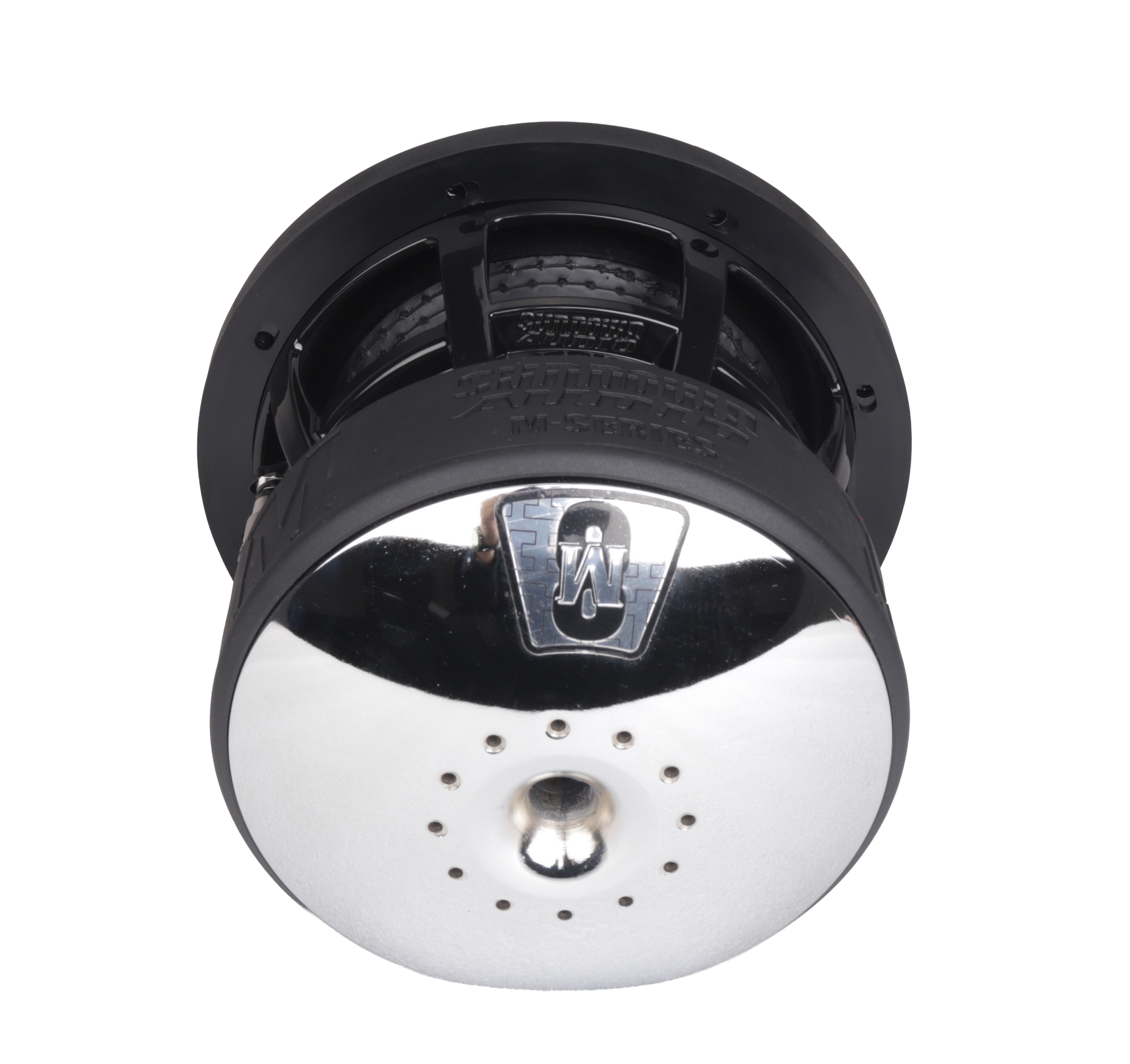

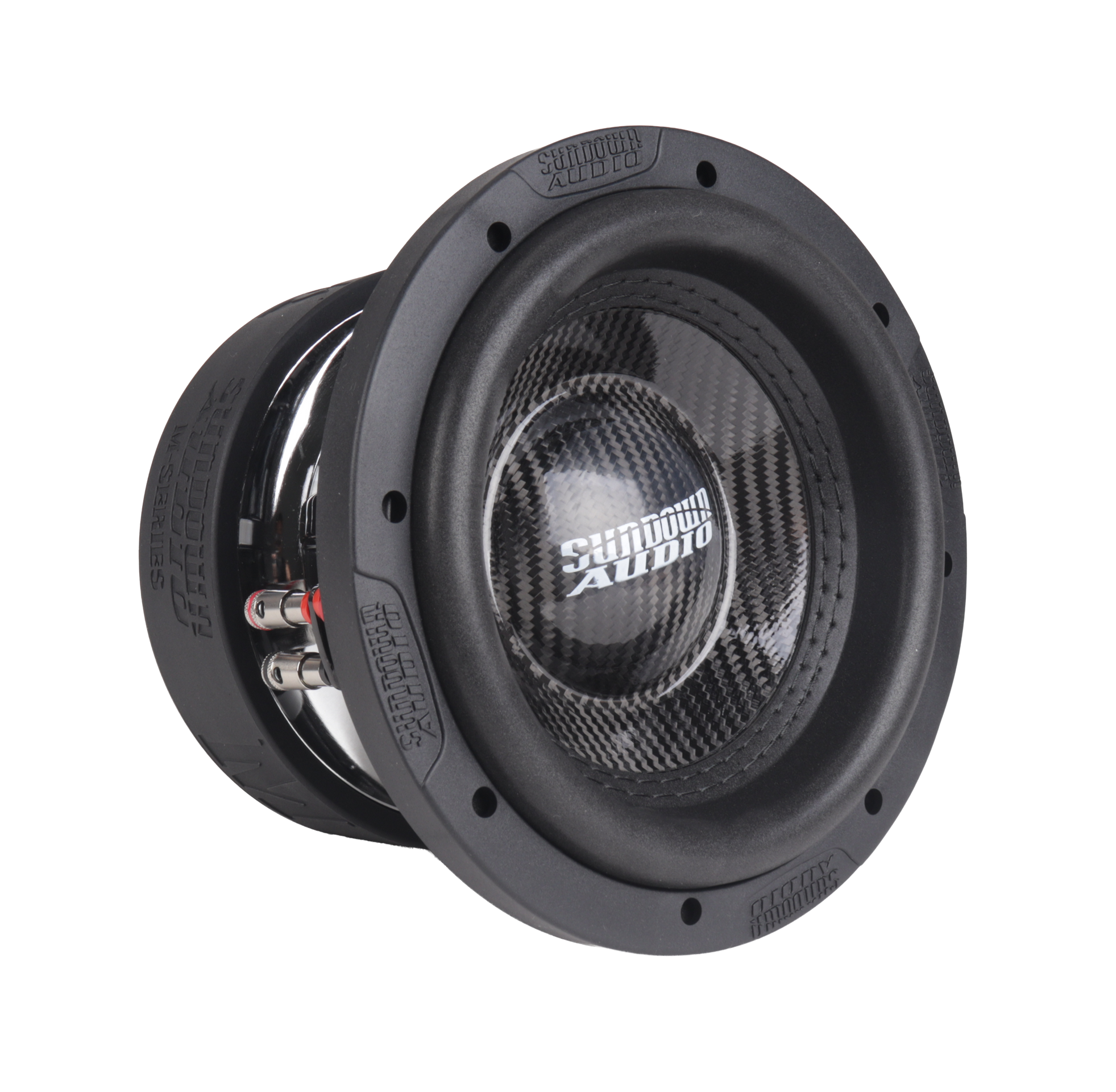

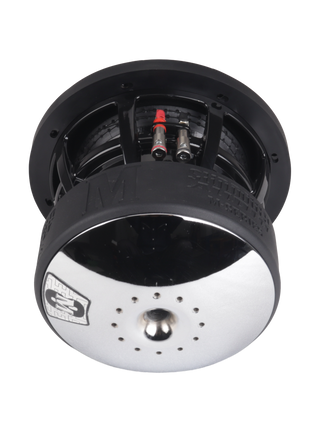

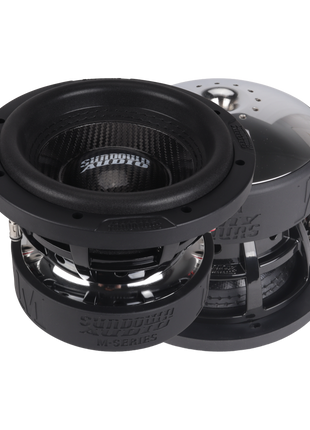

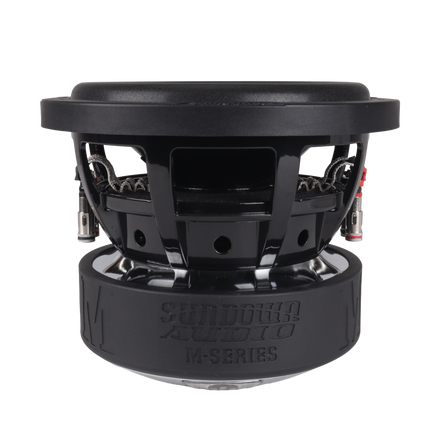

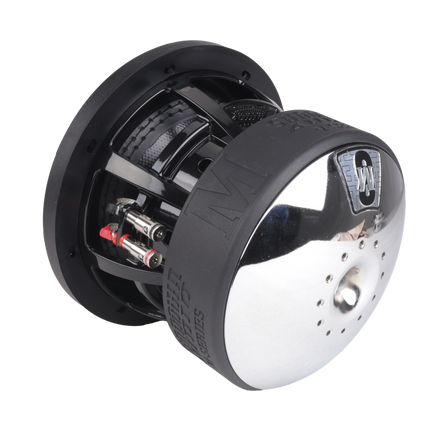

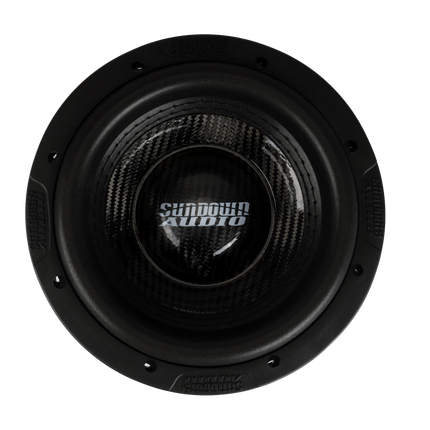

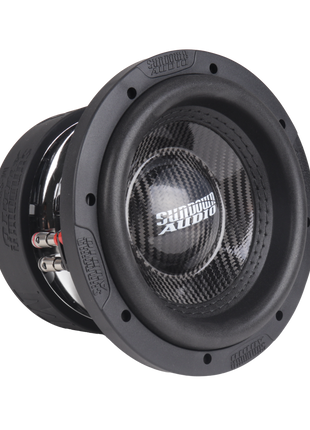

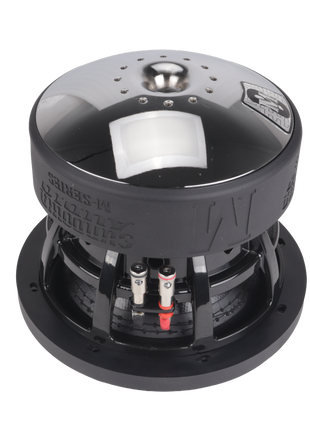

M-Series M8 1600W Subwoofer
- Sundown Audio

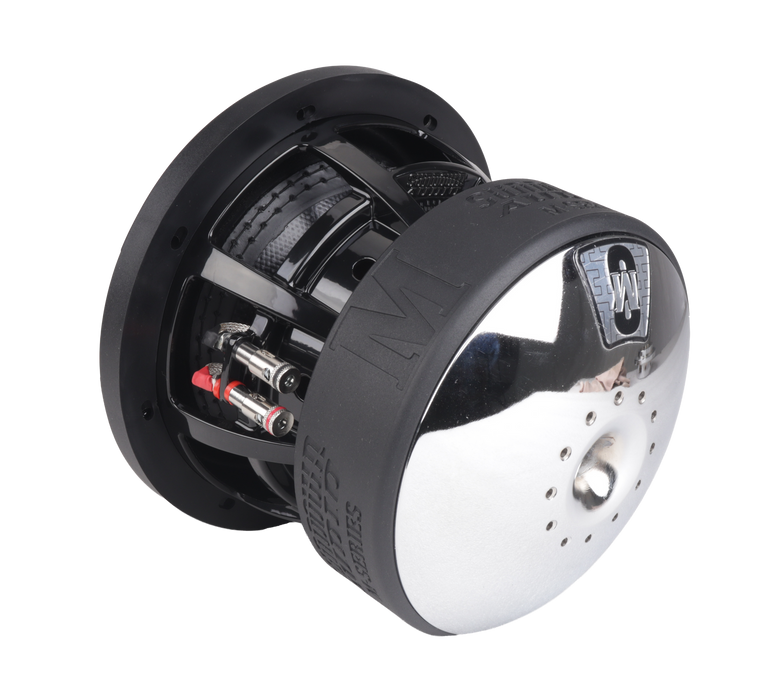

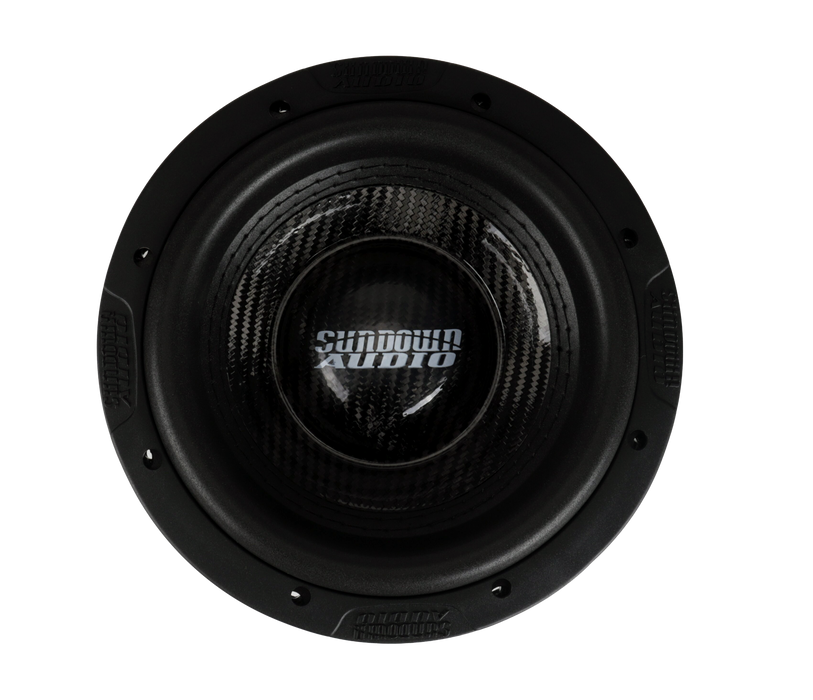

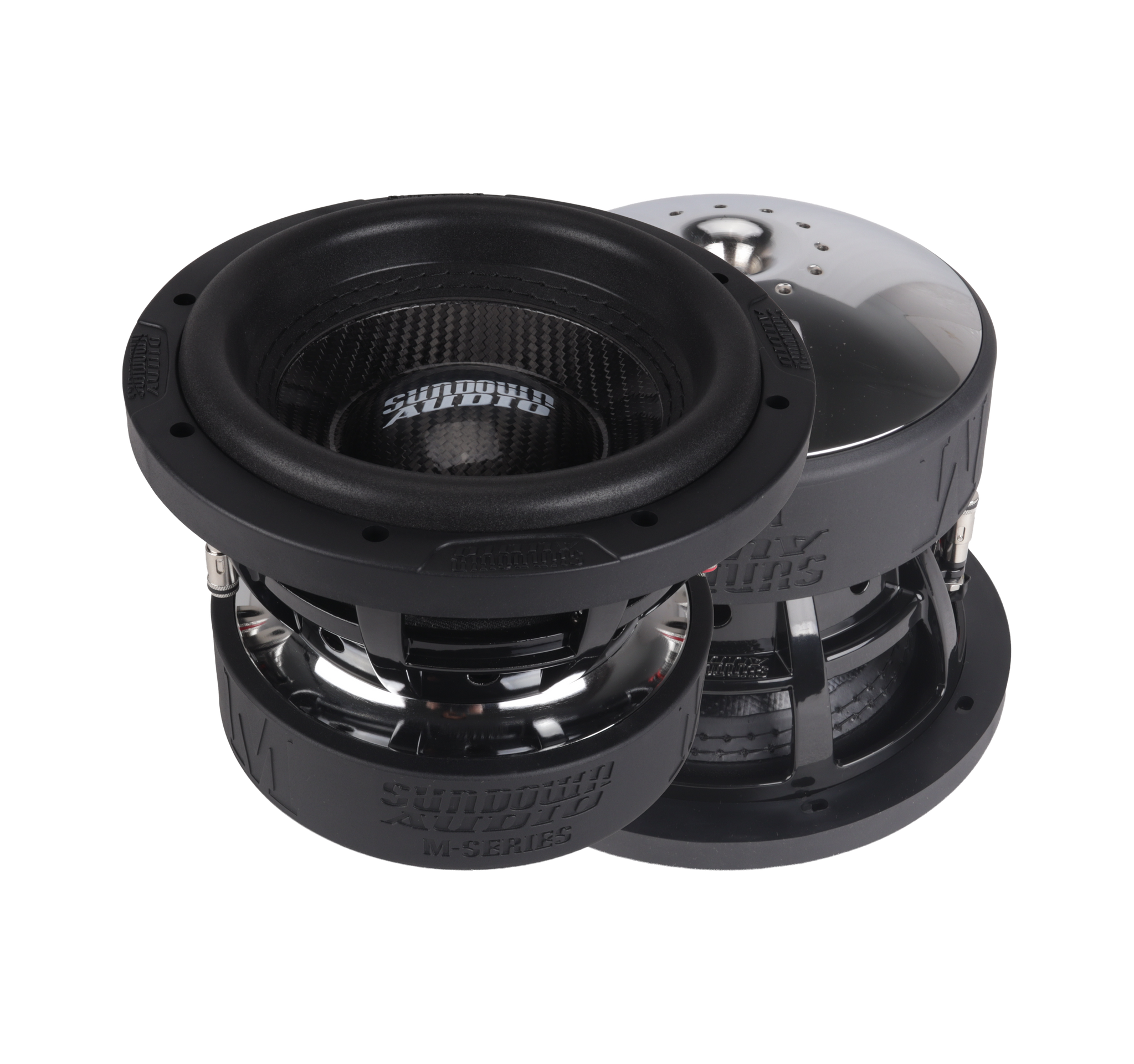

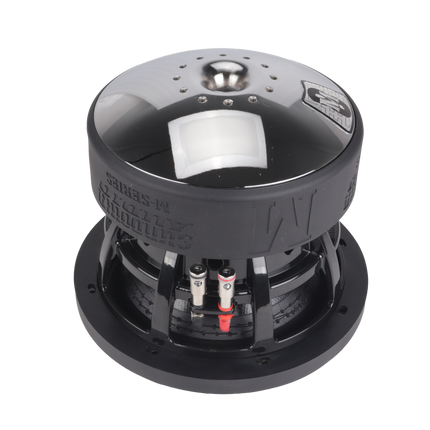

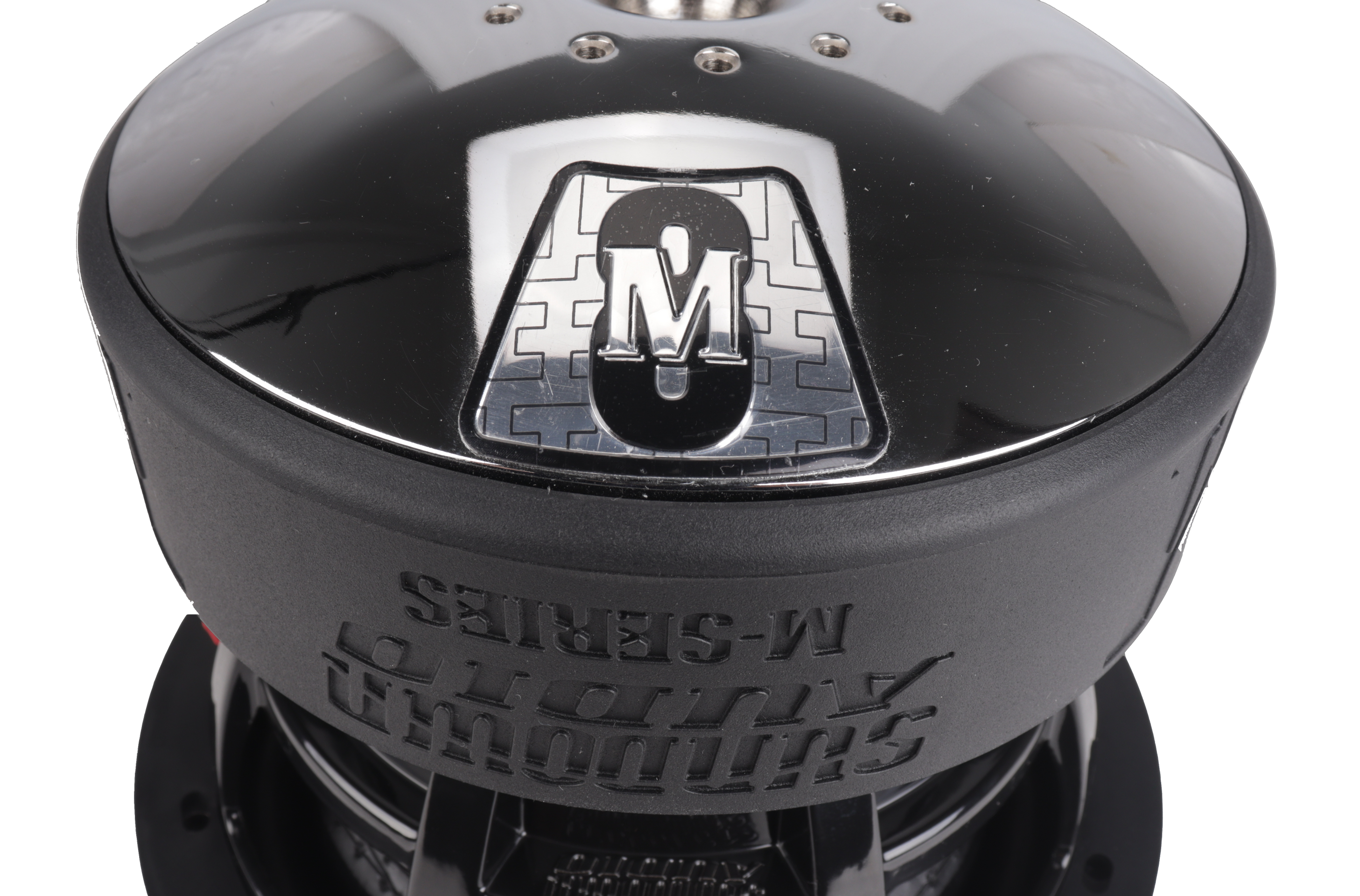

M-Series M8 1600W Subwoofer
- Sundown Audio
800W Watts RMS / 1600 Watts Peak Dual 2 or 4 ohm voice coils Optimized for small ported enclosures Aluminum... Read more
$349.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specification | M8 D2 | M8 D4 |
|---|---|---|
| Fs | 43.95 Hz | 45.45 Hz |
| Re | 3.80 Ω | 6.34 Ω |
| Qms | 3.5890 | 3.0670 |
| Qes | 0.4730 | 0.5240 |
| Qts | 0.4180 | 0.4480 |
| Mms | 247.12 g | 252.42 g |
| Cms | 53.06 µm/N | 46.56 µm/N |
| Sd | 141.3 cm² | 141.3 cm² |
| Vas | 3.62 L | 3.31 L |
| SPL (1w/1m) | 80.0 dB | 79.6 dB |
| BL | 23.410 | 29.546 |
| X-Max | 18 mm | 18 mm |
| Power (RMS) | 800W | 800W |
| Power (Peak) | 1600W | 1600W |
| Specification | M8 D2 | M8 D4 |
|---|---|---|
| Overall Diameter | 8.72" | 8.72" |
| Cutout Diameter | 7.32" | 7.32" |
| Motor Diameter | 7.12" | 7.12" |
| Mounting Depth | 6.33" | 6.33" |
| Displacement | 0.09 Cu. Ft. | 0.09 Cu. Ft. |
| Sealed | 0.25-0.35 cu ft | 0.25-0.35 cu ft |
| Ported | 0.65 cu ft | 0.65 cu ft |
| Port Tuning | 35 Hz | 35 Hz |
| Port Area | 9 sq in | 9 sq in |
| 4th Order Sealed | 0.20 cu ft | 0.20 cu ft |
| 4th Order Ported | 0.80 cu ft | 0.80 cu ft |
| 4th Order Port Area | 16 sq in | 16 sq in |
| 4th Order Port Length | 6" | 6" |
