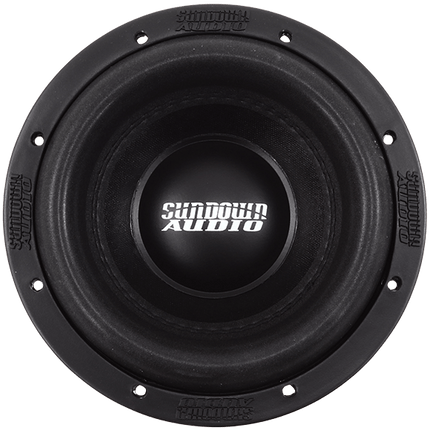

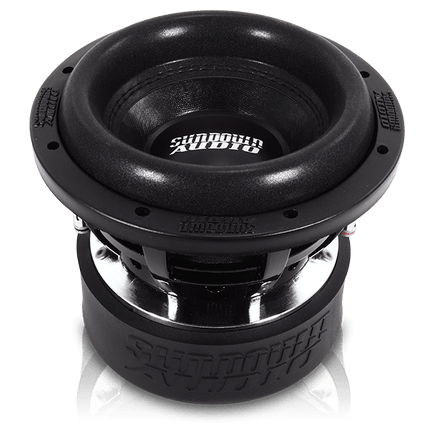

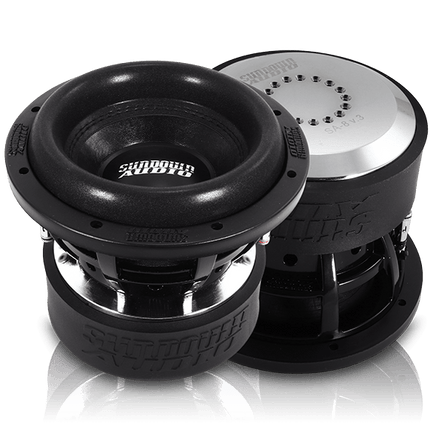

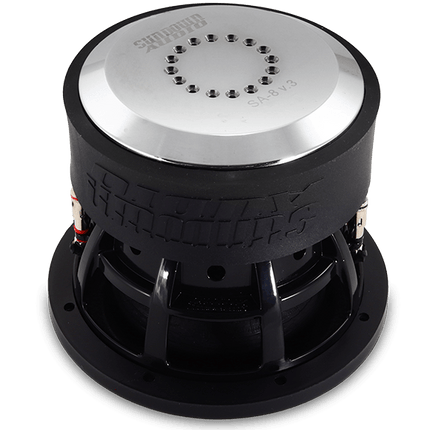

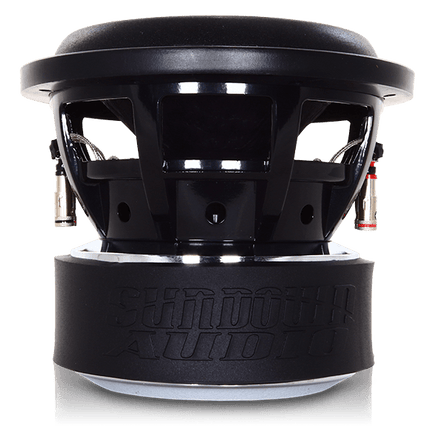

Sundown Audio SA-Series v.3 8" Subwoofer
- Sundown Audio
Sundown Audio SA-Series v.3 8" Subwoofer
- Sundown Audio
600 Watts RMS/1200 Watts Peak Dual 2 or 4 ohm voice coils Vented magnetic gap with 16 chamfered vents Large... Read more
$299.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D2 Model | D4 Model |
|---|---|---|
| Re | 3.36 Ω | 6.00 Ω |
| Fs | 38.3 Hz | 40 Hz |
| Qms | 6.3100 | 4.3100 |
| Qes | 0.3240 | 0.3920 |
| Qts | 0.3090 | 0.3600 |
| Vas | 6.880 L | 7.170 L |
| Mms | 144.00 g | 126.60 g |
| Cms | 0.12 mm/N | 0.12 mm/N |
| BL | 18.940 T·m | 22.060 T·m |
| Le | 2.08 mH | 3.32 mH |
| Sd | 344.8 cm² | 344.8 cm² |
| Xmax | 16mm | 16mm |
| SPL (1W/1m) | 82.8 dB | 82.7 dB |
| Specification | D2 Model | D4 Model |
|---|---|---|
| RMS Power | 600 W | 600 W |
| Peak Power | 1200 W | 1200 W |
| Displacement | 0.08 cu ft | 0.08 cu ft |
| Mounting Depth | 6.625" | 6.625" |
| Outside Diameter | 8.375" | 8.375" |
| Cutout Diameter | 7.375" | 7.375" |
| Motor Diameter | - | 6.88 |
| Sealed Enclosure | .25-.35 cu ft | .25-.35 cu ft |
| Ported Enclosure | 0.65 cu ft | 0.65 cu ft |
| Recommended Port Tuning | 35hz | 35hz |
| Recommended Port Area | 9 sq in | 9 sq in |
| Xmax | 16mm | 16mm |
| 4th Order Sealed | .25cu ft | .25cu ft |
| 4th Order Ported | .75cu ft | .75cu ft |
| 4th Order Port Area | 15sq in | 15sq in |
| 4th Order Port Length | 6" | 6" |
