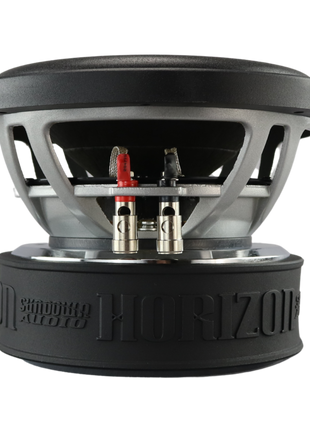

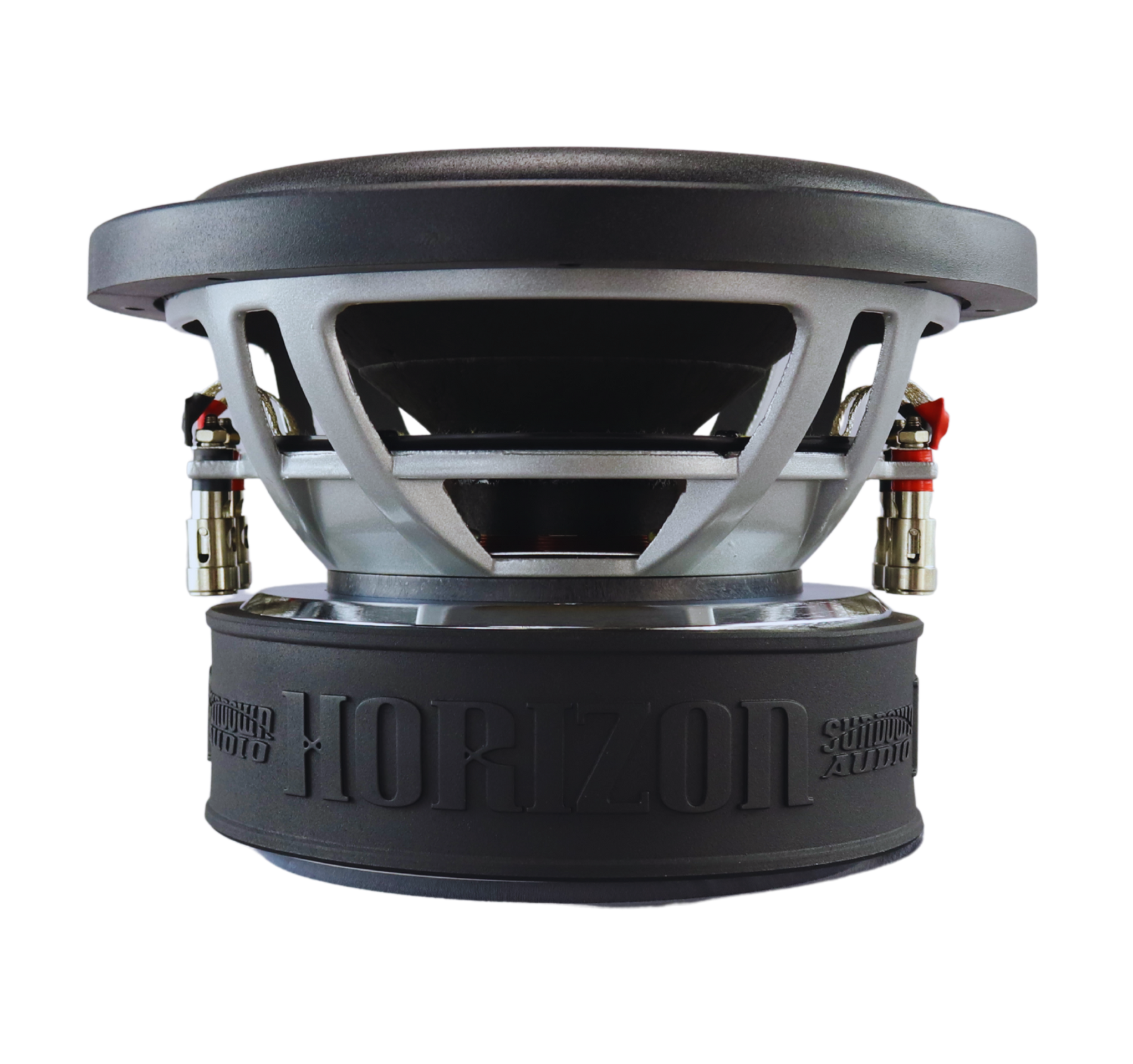

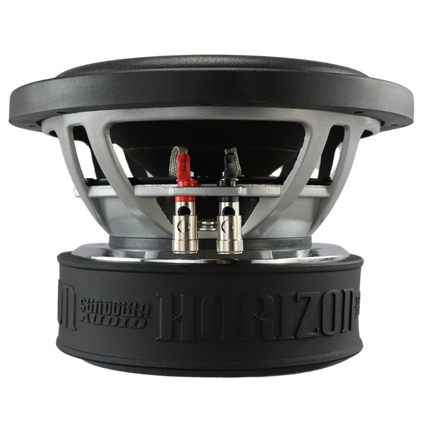

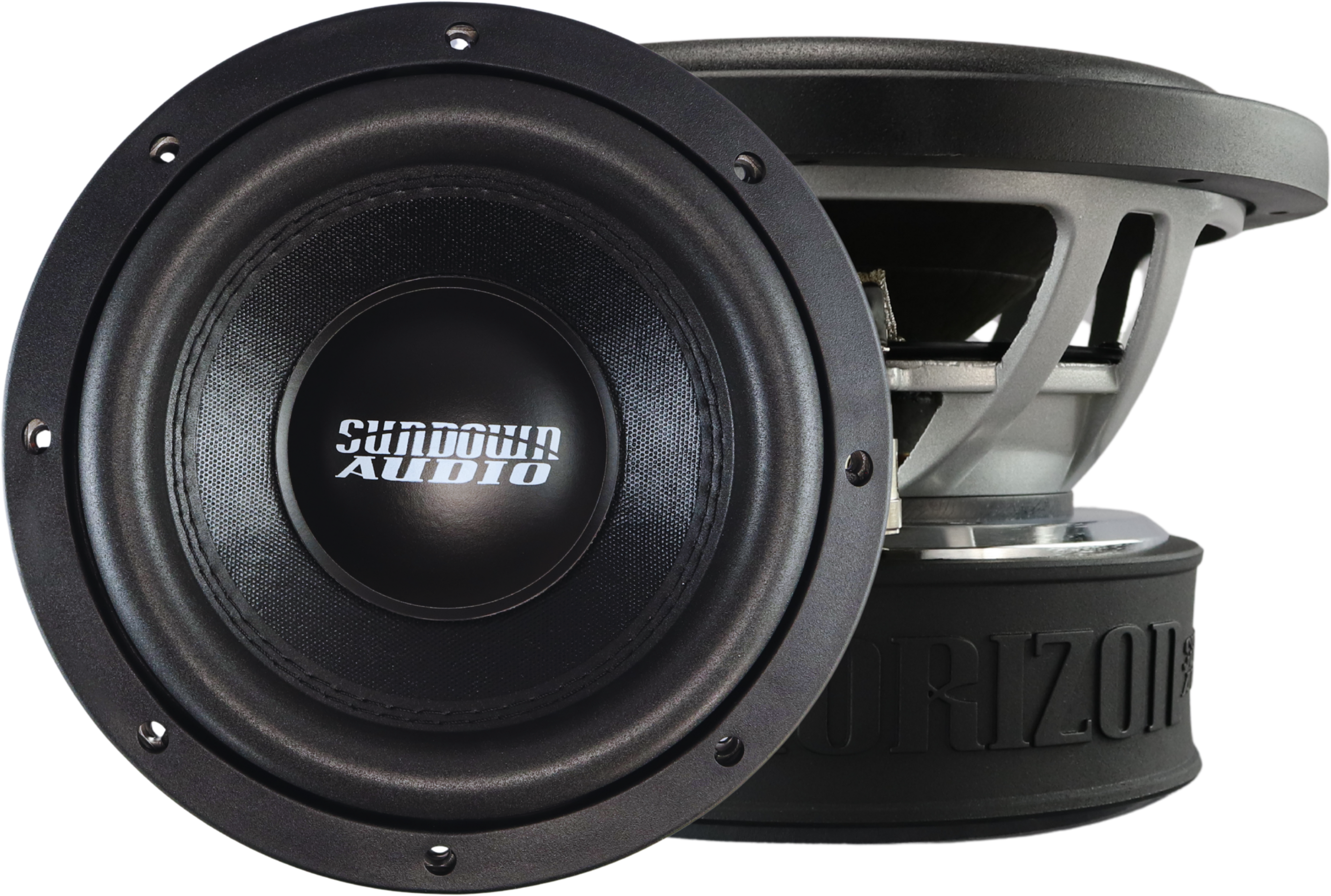

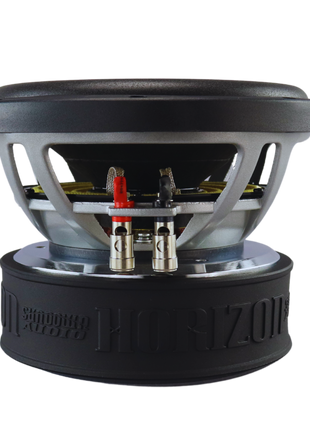

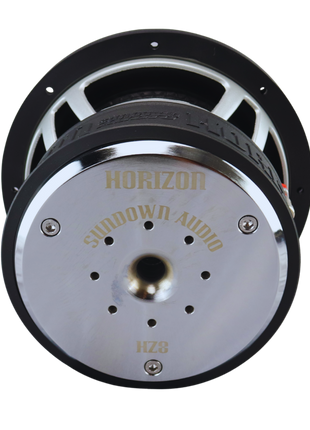

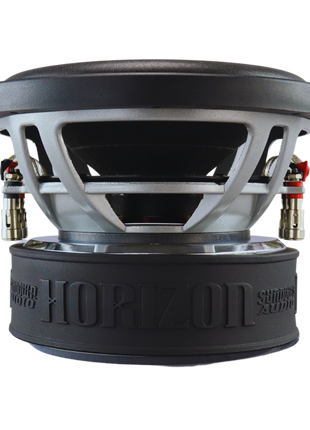

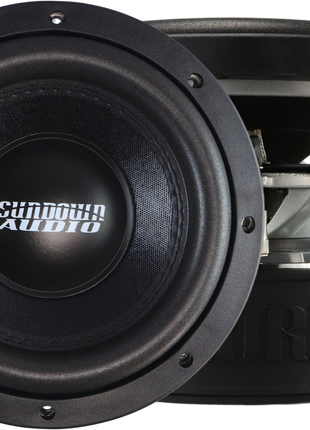

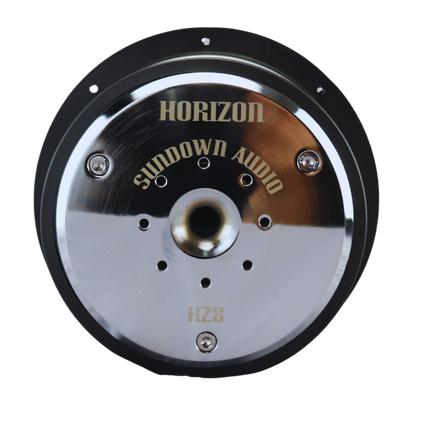

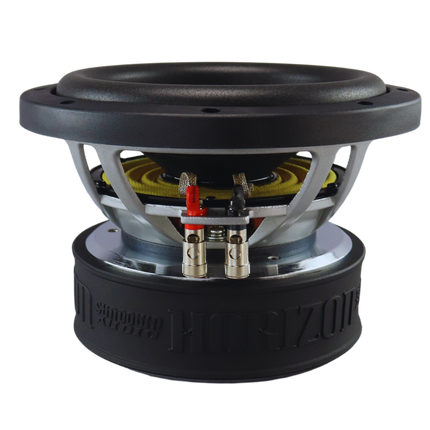

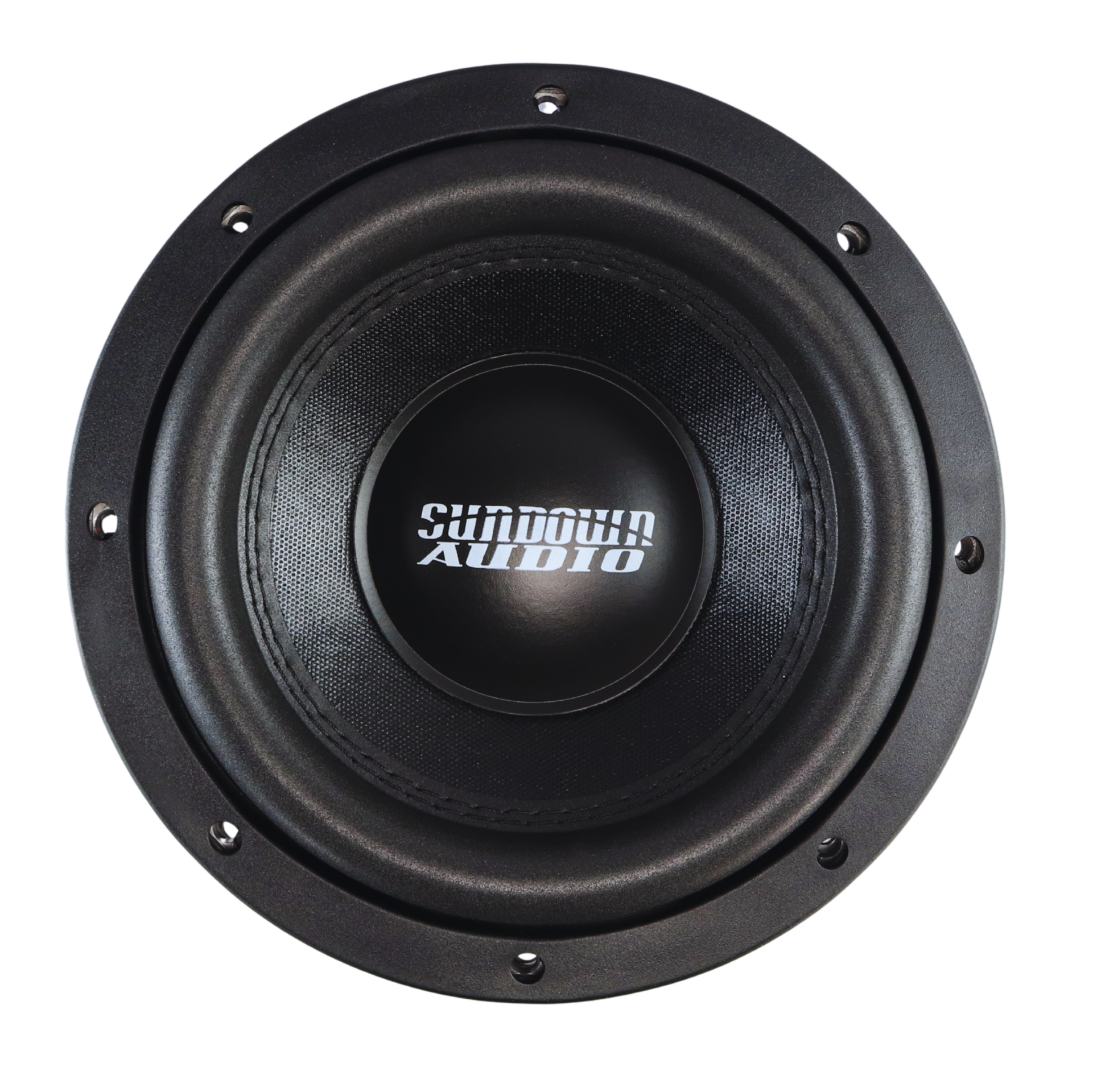

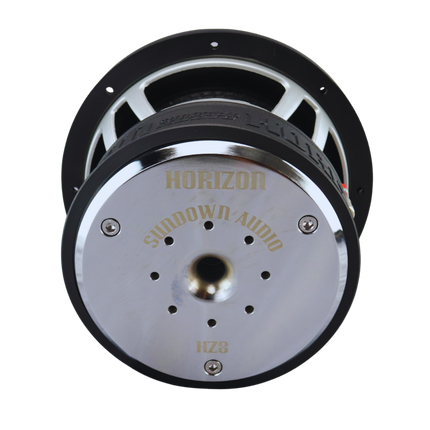

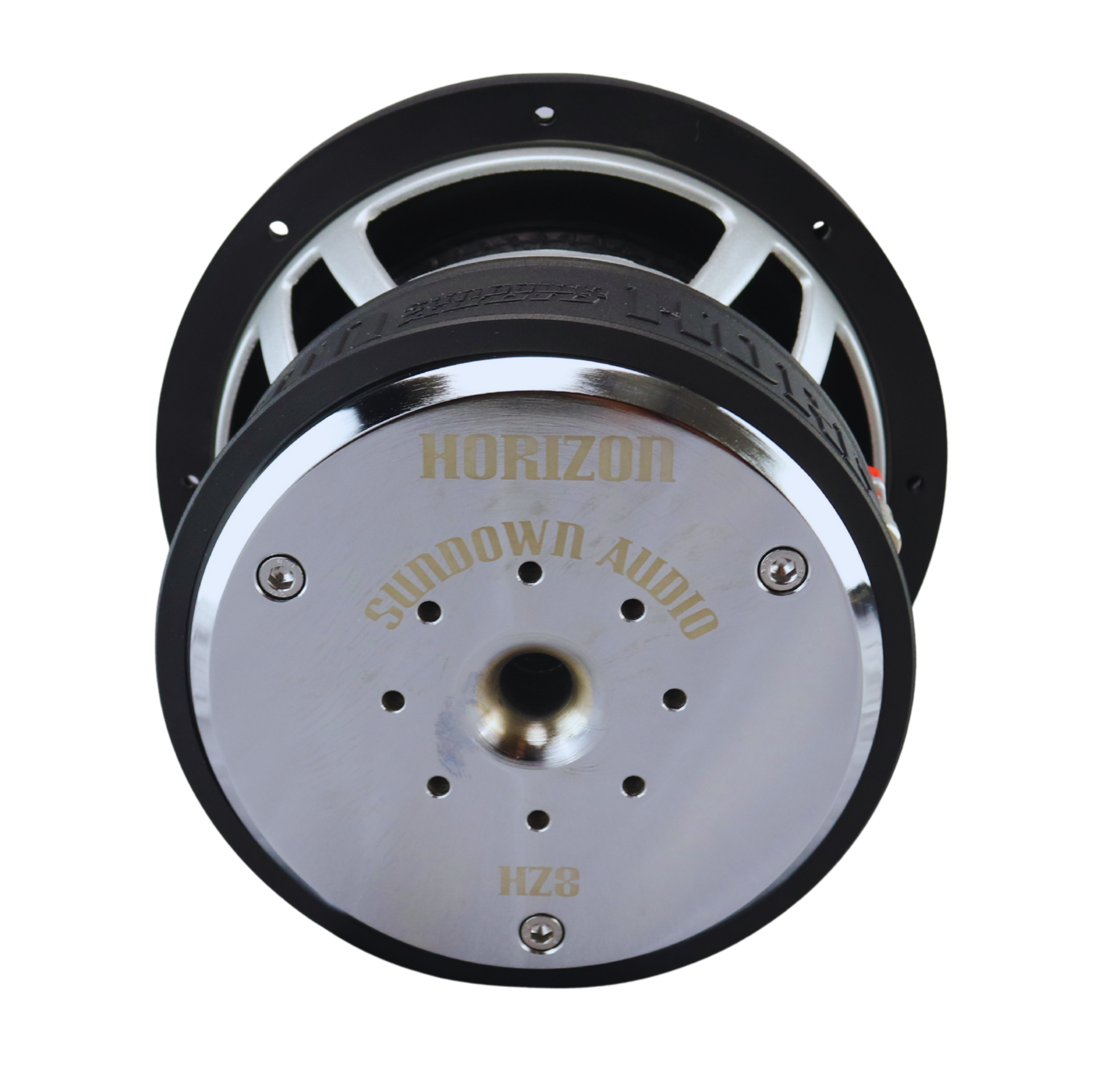

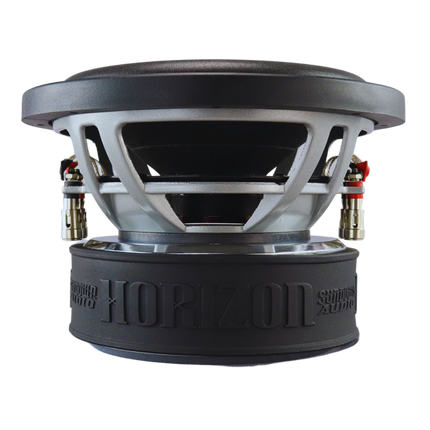

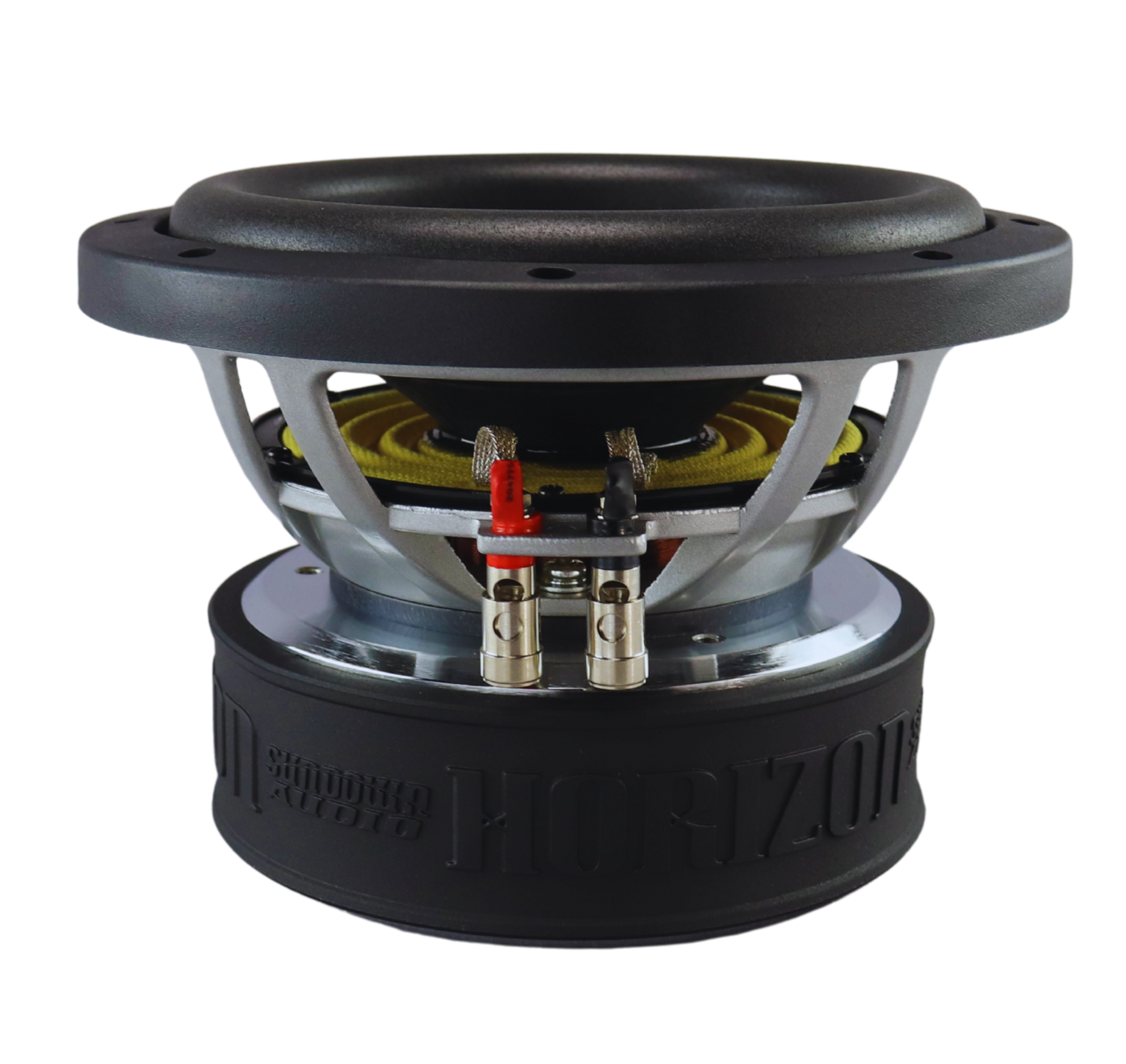

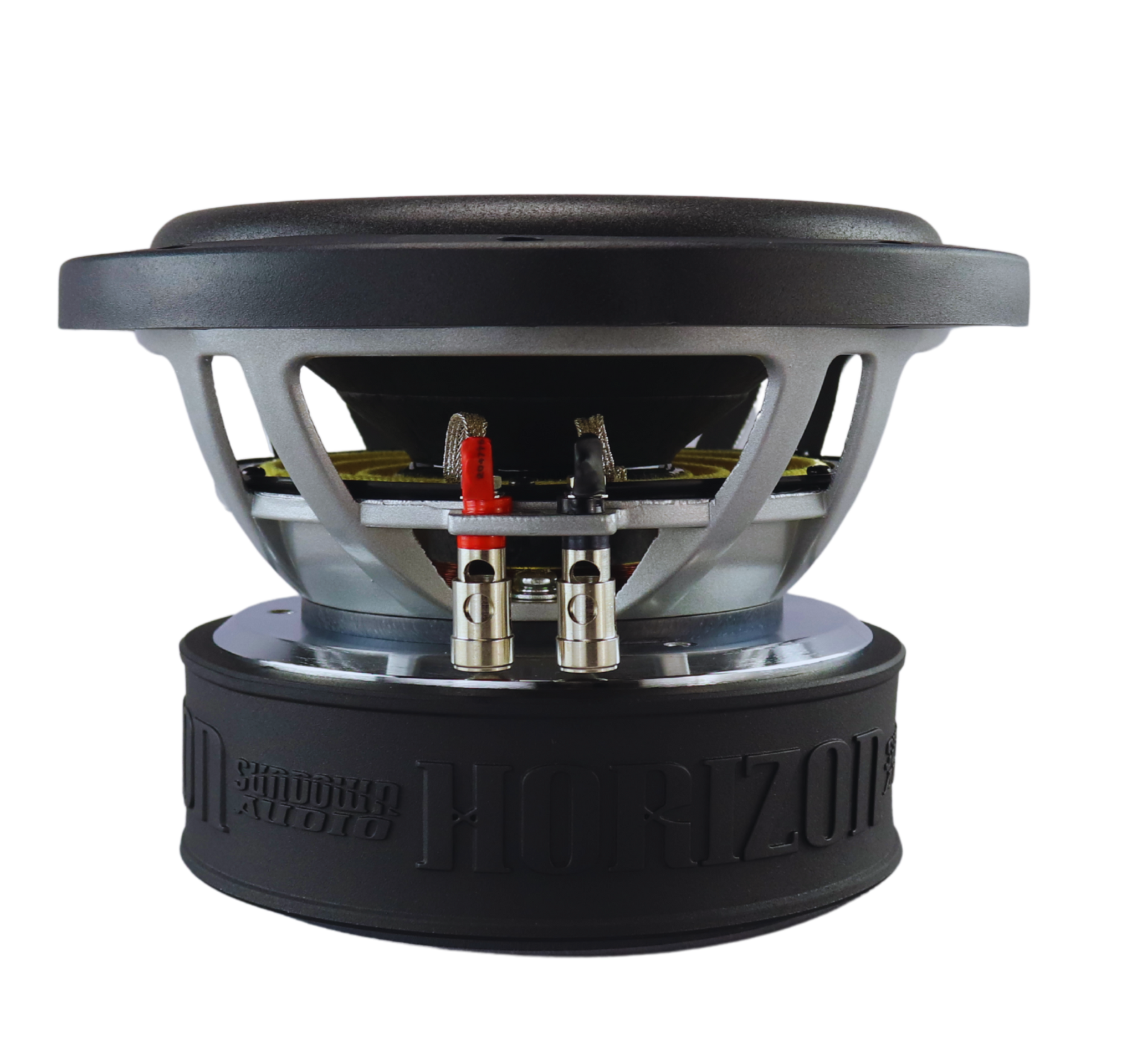

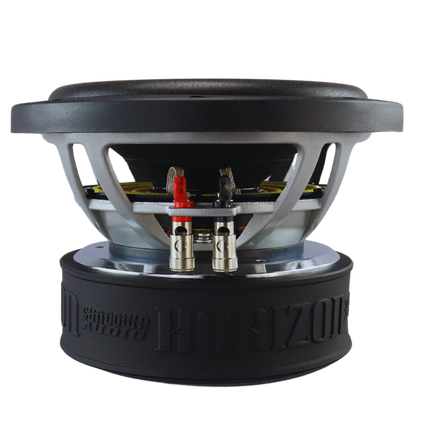

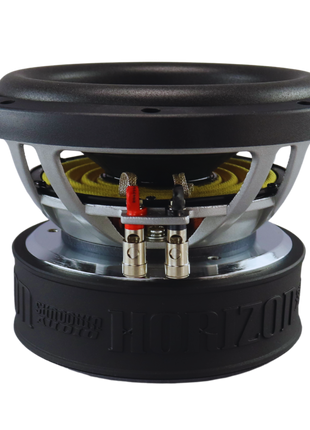

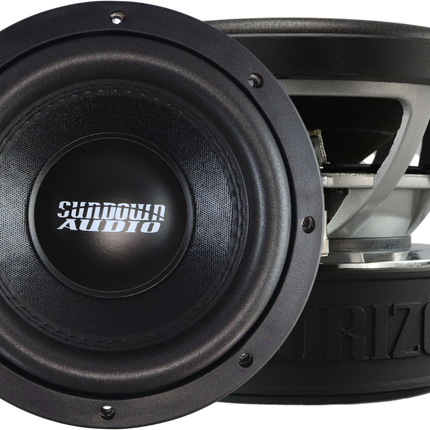

Horizon HZ 8"
- Sundown Audio

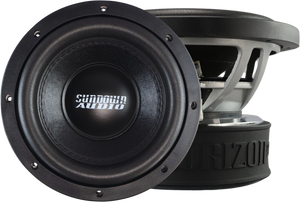

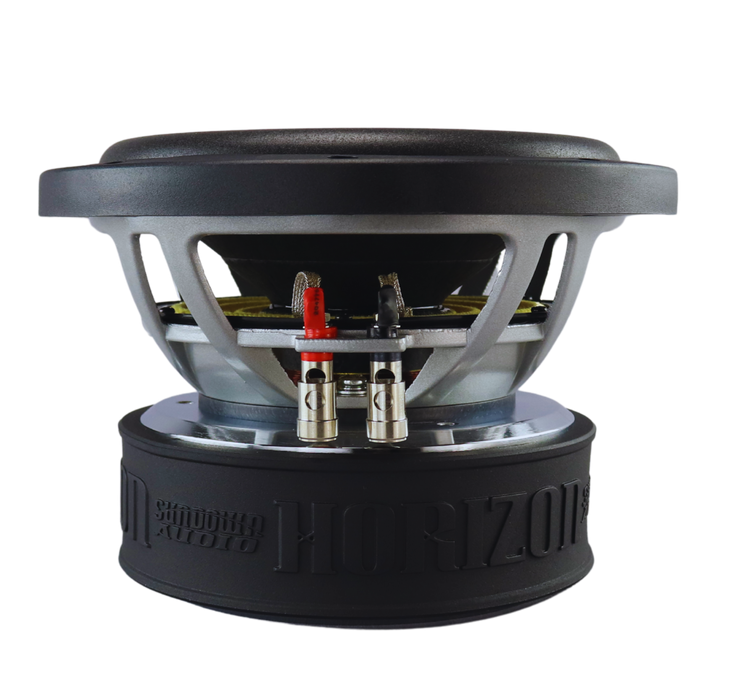

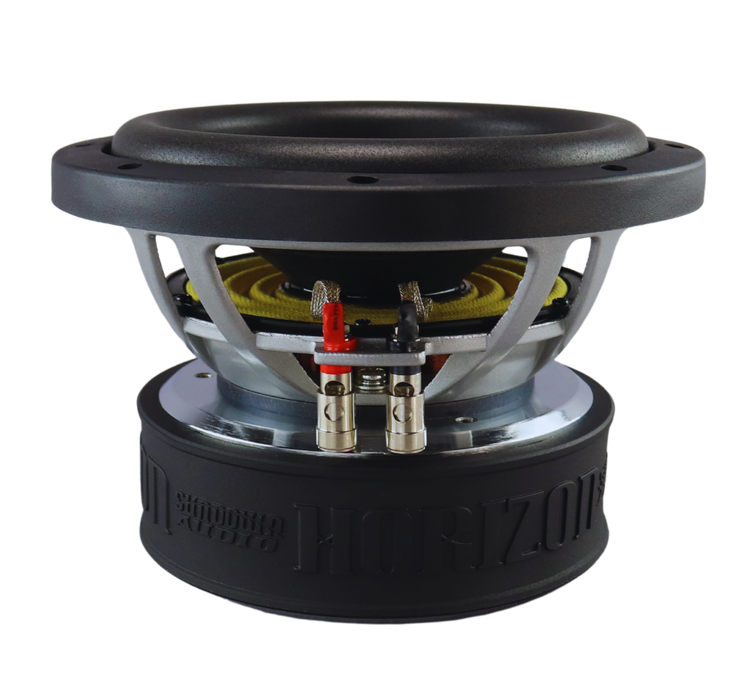

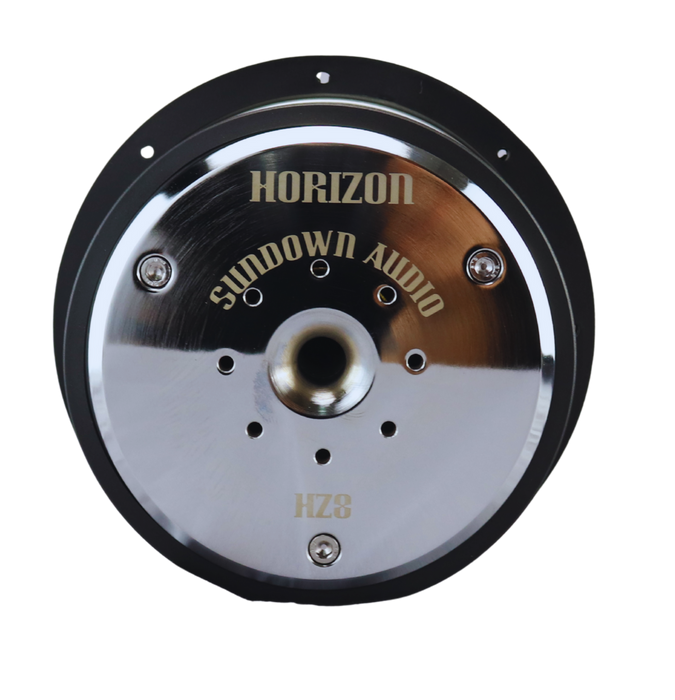

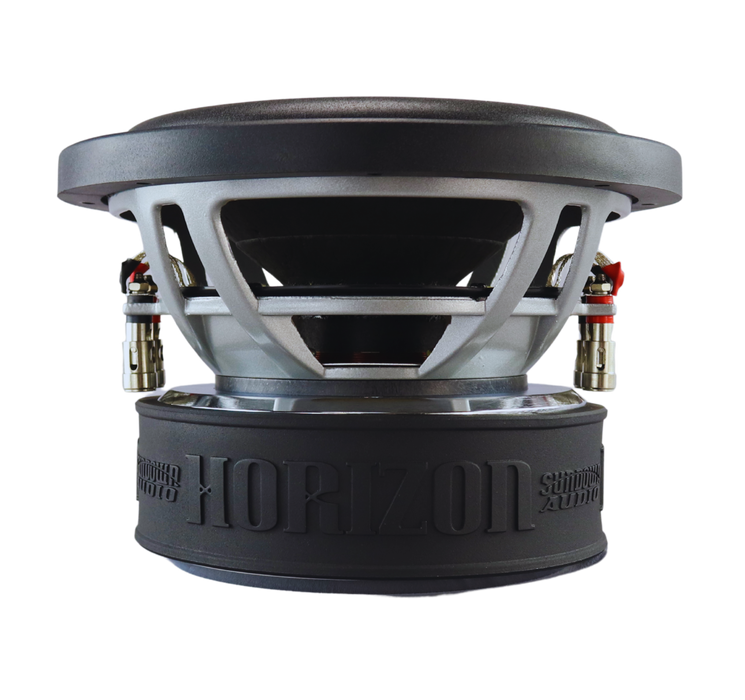

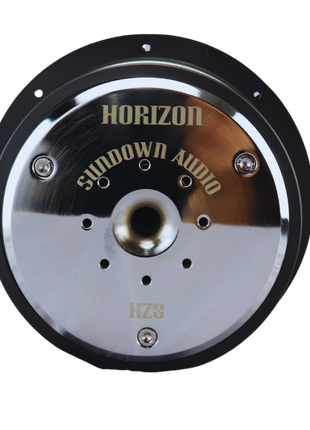

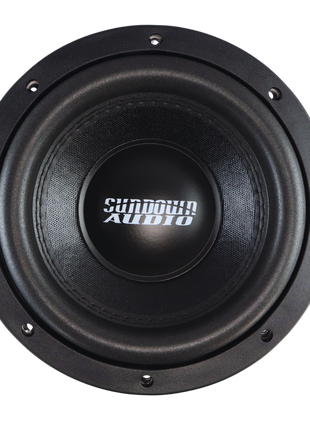

Horizon HZ 8"
- Sundown Audio
HZ Series Key Features: RMS Power: 8" – 500W RMS / 2" Voice Coil Voice Coil Options: Dual 4Ω -... Read more
$239.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Parameter | D4 Model |
|---|---|
| Re | 5.80 Ω |
| Fs | 41.3 Hz |
| Qms | 2.9970 |
| Qes | 0.5490 |
| Qts | 0.4640 |
| Vas | 7.520 L |
| Mms | 113.09 g |
| Cms | 0.13 mm/N |
| BL | 17.610 T·m |
| Sd | 344.8 cm² |
| Xmax | 14mm |
| SPL (1W/1m) | 81.7 dB |
| Specification | D4 Model |
|---|---|
| RMS Power | 300 W |
| Peak Power | 600 W |
| Displacement | .07 cu ft |
| Mounting Depth | 5.28" |
| Outside Diameter | 8.6" |
| Cutout Diameter | 7.25" |
| Motor Diameter | 6.15" |
| Sealed Enclosure | .25-.35 cu ft |
| Ported Enclosure | 0.65 cu ft |
| Recommended Port Tuning | 35hz |
| Recommended Port Area | 9 sq in |
| Xmax | 14mm |
| 4th Order Sealed | .225cu ft |
| 4th Order Ported | .675cu ft |
| 4th Order Port Area | 10sq in |
| 4th Order Port Length | 6" |
