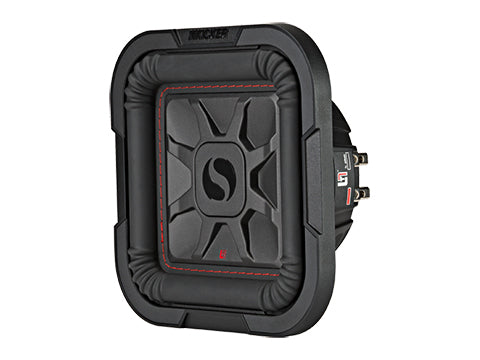

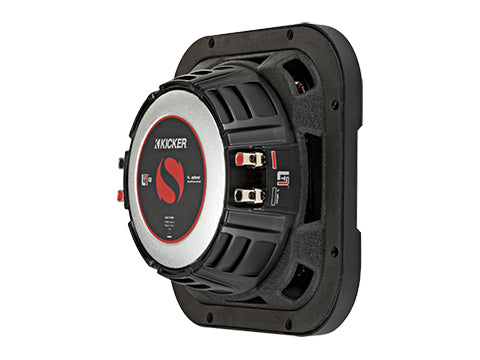

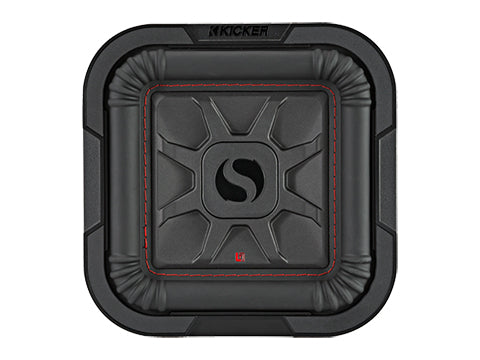

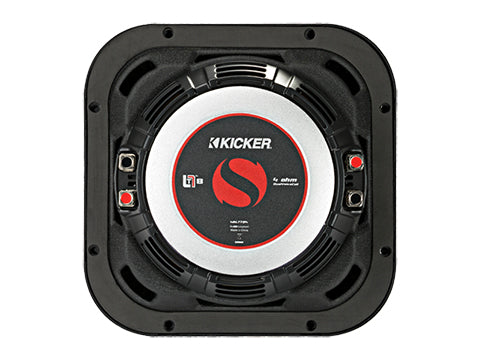

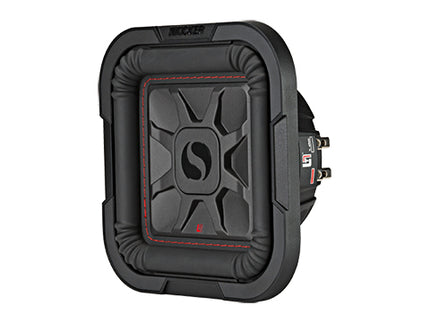

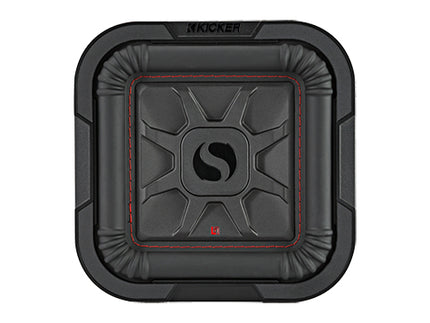

Kicker 46L7T84 8" 700W Dual 4 Ohm Car Audio Subwoofer

Description

8" L7T 4 Ohm

The L7T 8-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.

Features:

  • Uses a Sealed or Ported Enclosure
  • Square Sub Design Moves 20% More Air Than Round Subwoofers
  • Easily Mounts Under or Behind a Seat
  • Dual Voice Coil Design
  • Ribbed Santoprene Surround Resists Heat And Degrading
  • Bumped Top Plate For More Excursion & Smoother Performance
  • SoloKon™ Cone With 360-Degree Back Bracing
  • UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
  • Durable Steel Basket
Specifications
Thiele/Small Parameters
46L7T84 T/S Parameters
Product Dimension Sheet
46L7T8 Dimensions
CNC Software
L7T.DXF - for subwoofer hole cutouts
3D Printing Software
L7T.SLDPRT - 3D-printing of grille spacers
Size (IN.,CM)
8, 20
Impedance (OHMS)
4 DVC
Recommended Amplifier Power (watts RMS)
350
Peak Power (watts, per ANSI/CTA-2031-A)
700
Sensitivity (dB 1w/1m)
84.835
Frequency Response (Hz)
30-100
Mounting Depth (IN.,CM)
2-3/4, 7
Mounting Cutout, Square (IN.,CM)
7-3/8, 18.8
Min Rec Sealed Box Volume (CU. FT., Liters)
0.2, 5.66
Max Rec Sealed Box Volume (CU. FT., Liters)
.75, 21.2
Min Rec Vented Box Volume (CU. Ft., Liters)**
.8, 22.7
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.2, 34
What's in the box?
one 8-inch subwoofer, one owner's manual, two stickers
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase.



Kicker 46L7T84 8" 700W Dual 4 Ohm Car Audio Subwoofer

Product form

8" L7T 4 Ohm The L7T 8-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.... Read more

$219.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationsKicker 46L7T84 L7T 8" D4
    Sensitivity84.835 dB 1W/1m
    Woofer Size8 in
    Nominal ImpedanceDual 4 Ω
    Mounting Depth2-3/4 in
    Cutout Diameter7-3/8 (square) in
    Frame / BasketSteel
    ConeSoloKon with 360° back bracing
    SurroundRibbed Santoprene
    Peak Power Handling700 W
    Recommended Amplifier Power350 W
    Frequency Response30 – 100 Hz
    Enclosure SpecsKicker 46L7T84 L7T 8" D4
    Min Sealed Volume0.2 ft³
    Max Sealed Volume.75 ft³
    Min Vented Volume.8 ft³
    Max Vented Volume1.2 ft³

    Description

    8" L7T 4 Ohm

    The L7T 8-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.

    Features:

    • Uses a Sealed or Ported Enclosure
    • Square Sub Design Moves 20% More Air Than Round Subwoofers
    • Easily Mounts Under or Behind a Seat
    • Dual Voice Coil Design
    • Ribbed Santoprene Surround Resists Heat And Degrading
    • Bumped Top Plate For More Excursion & Smoother Performance
    • SoloKon™ Cone With 360-Degree Back Bracing
    • UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
    • Durable Steel Basket
    Specifications
    Thiele/Small Parameters
    46L7T84 T/S Parameters
    Product Dimension Sheet
    46L7T8 Dimensions
    CNC Software
    L7T.DXF - for subwoofer hole cutouts
    3D Printing Software
    L7T.SLDPRT - 3D-printing of grille spacers
    Size (IN.,CM)
    8, 20
    Impedance (OHMS)
    4 DVC
    Recommended Amplifier Power (watts RMS)
    350
    Peak Power (watts, per ANSI/CTA-2031-A)
    700
    Sensitivity (dB 1w/1m)
    84.835
    Frequency Response (Hz)
    30-100
    Mounting Depth (IN.,CM)
    2-3/4, 7
    Mounting Cutout, Square (IN.,CM)
    7-3/8, 18.8
    Min Rec Sealed Box Volume (CU. FT., Liters)
    0.2, 5.66
    Max Rec Sealed Box Volume (CU. FT., Liters)
    .75, 21.2
    Min Rec Vented Box Volume (CU. Ft., Liters)**
    .8, 22.7
    Max Rec Vented Box Volume (CU. Ft., Liters)**
    1.2, 34
    What's in the box?
    one 8-inch subwoofer, one owner's manual, two stickers
    Warranty
    When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase.
