Super Horns
-

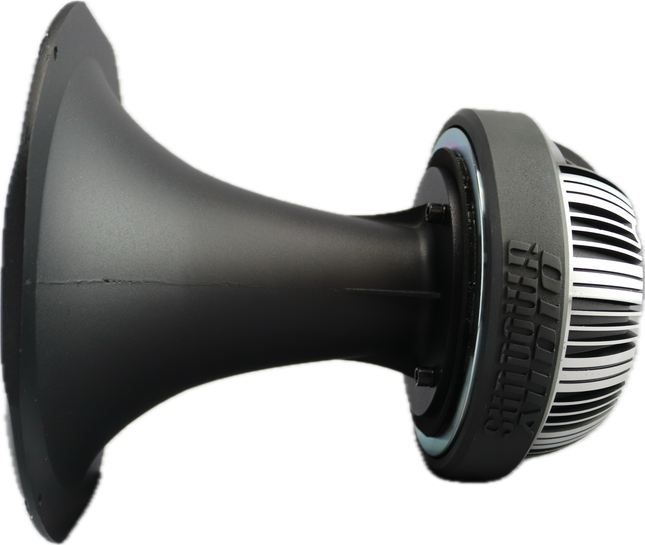

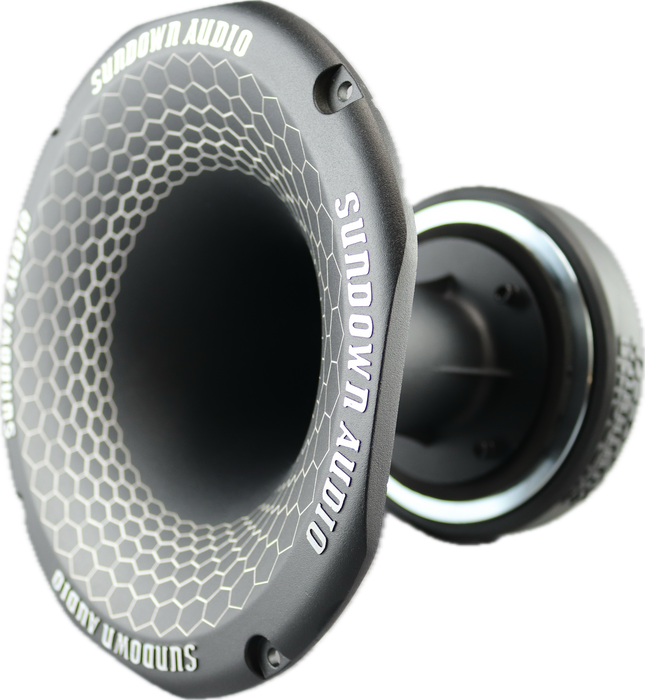

Sundown Audio Sundown Audio SHFTL 2" Throat Super Horn With Ferrite Magnet
3in Horn driver Strontium Ferrite Magnet Die-cast Aluminium Cover Die-cast Aluminium Horn Titanium Diaphragm 4 Ohm 110 Wrms Exit Throat Diameter @ inch – 2 Rated Impedance @Ohm – 4 Power Handling Capacity @ Watt – 110 Program Power @Watt – 220 Sensitivity(1W/1m) @ Hz – 118 Frequency Range @ Hz - 600-20,000 Voice Coil Diameter @ inch - 3 Voice Coil Material - CCAW Voice Coil Former Material - Kapton Voice Coil Winding Depth @ mm - 3 Cutout – 6.75” Mounting Depth – 9.65” Gap Height @ mm – 3.5 Driver Size @ in 6.7*3” Back Cover Material – Die-cast Aluminium Diaphragm Material - Titanium Horn Material – Die-cast Aluminium Product Dimension @ in – L9.5*W9.5*H10” Key Features: Powerful Performance: Rated at 110W RMS and 220W program power, it handles demanding audio requirements with ease. Wide Frequency Range: Covers 600Hz to 20,000Hz, providing crisp, detailed sound reproduction across mid-to-high frequencies. Exceptional Sensitivity: Sensitivity of 118 dB (1W/1m @ Hz) ensures efficient sound output with reduced power consumption. Robust Construction: Durable Materials: Titanium diaphragm for precision and long-lasting performance. Voice Coil Design: Equipped with a 3-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former for excellent thermal resistance and durability. High-Quality Build: Die-cast aluminum cover and horn provide lightweight durability and efficient sound dispersion. Magnet: Strontium ferrite magnet ensures strong magnetic flux for reliable operation. Specifications: Exit Throat Diameter: 2 inches Impedance: 4 Ohms Cutout Size: 6.75 inches Mounting Depth: 9.65 inches Driver Size: 6.7 x 3 inches Product Dimensions: 9.5 x 9.5 x 10 inches (L x W x H) Additional Details: Voice Coil Winding Depth: 3 mm Gap Height: 3.5 mm Materials: Titanium diaphragm, Kapton former, and die-cast aluminum construction for maximum durability and performance.
$149.99
-

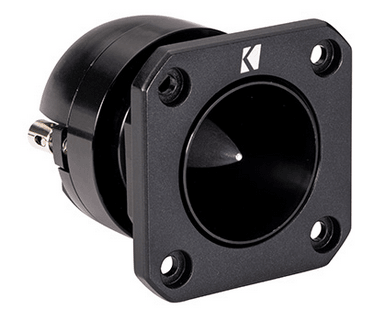

Kicker Kicker Street Series ST3TW 1" 50W RMS Tweeter 4 Ohm 49ST3TW
Kicker Street Series 1" Tweeter PA Style, High Output Extremely efficient, horn-loaded aluminum diaphragm for extreme output Single-unit, PA-style tweeter perfect for competition-level SPL systems Voiced for clear vocals to match with high-output bass Includes front or rear mount options, in addition to trim bezel options Spring-loaded terminals accept 16 AWG wire In-line 6dB crossover Field-replaceable voice-coil assembly available (ST3RK/ST4RK) Model 49ST3TW Sold Individually Specifications SingleTweeter [in, mm] 1, 25 Dome Material aluminum Design bullet Impedance [Ohms] 4 Recommended Amp Power [watts RMS] 15-50 Peak Power Handling [watts] 100 Frequency Response [Hz] 3.5k-20k Sensitivity [1W, 1m] 106 In-Line Crossover [dB] 6, high-pass Mounting Depth [in, mm] 1-3/16, 30 Mounting Diameter [in, mm] 2-5/16, 58 Thread Length [in, mm] 1-1/16, 27 Thread Diameter [in, mm] 1-11/16, 43
$89.99 $79.99
-

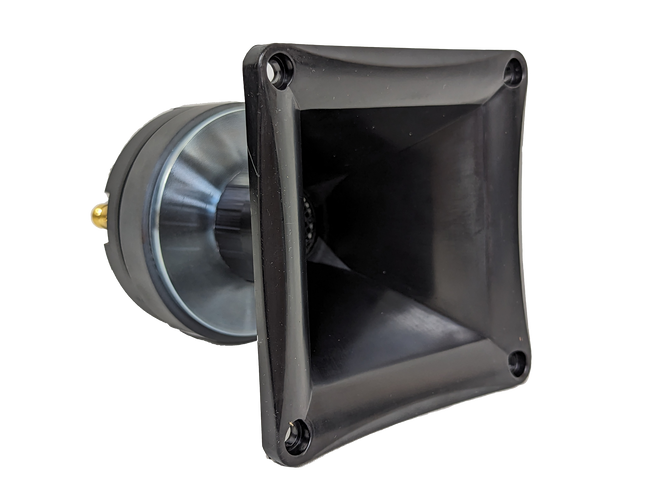

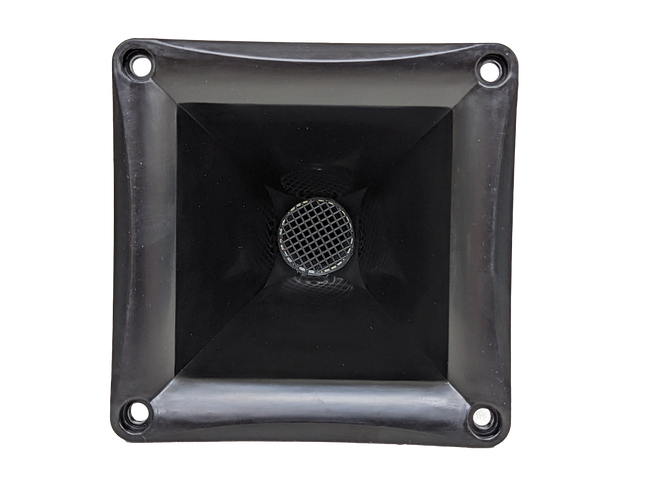

Sundown Audio Sundown Audio SDEH-04 Horn Driver
100W Watts RMS Mounting depth: 4.7" Diagonal measurement: 6.25" Motor diameter: 3.5" Frequency response: 4khz-20khz Sensitivity: 105dB Impedance: 4 ohms Ferrite motor Sold individually Nothing says “loud” like horns in a PA system. Handling 100 watts, the SDEH-04 allows you to place the music right where you want it. Extremely efficient and with incredibly low distortion, Sundown horn drivers don’t just play loud – they project, so you’re heard over everyone else. Dimensions Cut-Out 4" x 4" Frame Outer Diameter 4.5" x 4.5" Mounting Depth 4.7" Frequency Response
$39.99
-

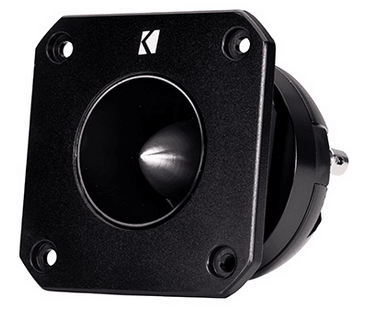

Kicker Kicker Street Series ST4TW 1.5" 50W RMS Tweeter 4 Ohm 49ST4TW
Kicker Street Series 1.5" Tweeter PA Style, High Output Extremely efficient, horn-loaded aluminum diaphragm for extreme output Single-unit, PA-style tweeter perfect for competition-level SPL systems Voiced for clear vocals to match with high-output bass Includes front or rear mount options, in addition to trim bezel options Spring-loaded terminals accept 16 AWG wire In-line 6dB crossover Field-replaceable voice-coil assembly available (ST3RK/ST4RK) Model 49ST4TW Sold Individually Specifications SingleTweeter [in, mm] 1.5, 38 Dome Material aluminum Design bullet Impedance [Ohms] 4 Recommended Amp Power [watts RMS] 15-50 Peak Power Handling [watts] 100 Frequency Response [Hz] 3k-20k Sensitivity [1W, 1m] 108 In-Line Crossover [dB] 6, high-pass Mounting Depth [in, mm] 1-1/4, 31 Mounting Diameter [in, mm] 2-7/8, 73 Thread Length [in, mm] 1-3/16, 30 Thread Diameter [in, mm] 1-7/8, 48
$119.99 $99.99
-

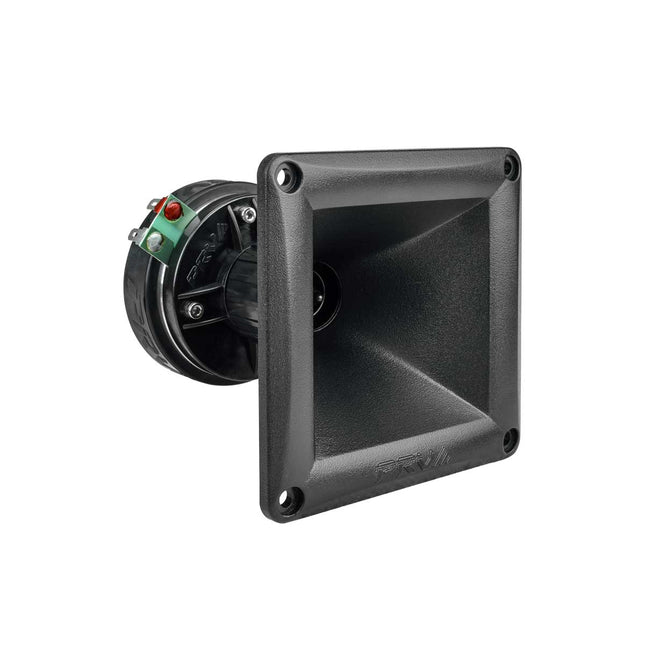

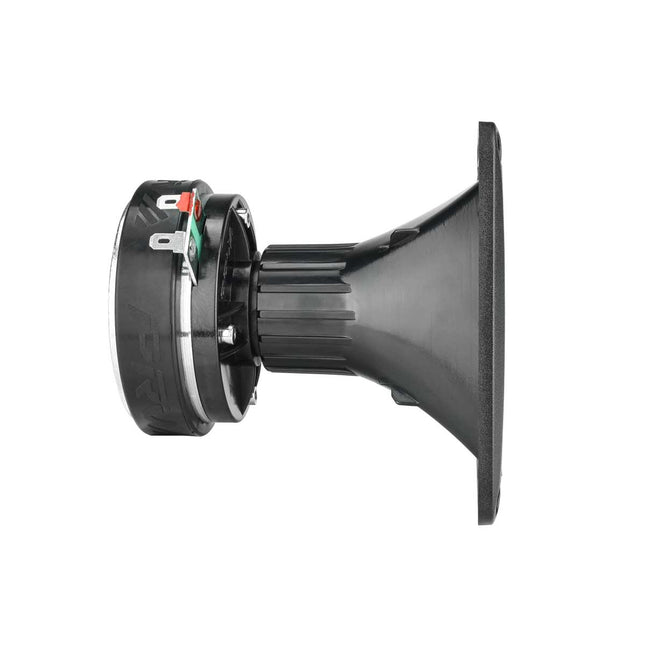

PRV Audio PRV Audio WG175Ph 1" Exit 150W Phenolic Compression Driver+Horn Combo
The WG175Ph compression driver combo is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn. The WG175Ph is a lightweight driver that weighs just 1.92 lbs, and yet offers you outstanding response through 19kHz. Highlights Throat Diameter: 1″ Type: Combo Nominal Impedance: 8 Ohms Rated AES Power Handling (RMS): 75 Watts Program Power: 150 Watts GENERAL SPECIFICATIONS Exit Throat Diameter 1” (25.4mm) Nominal impedance 8 Ohms Rated AES Power Handling (RMS) 75 Watts Program Power 150 Watts Sensitivity 2.83V at 1m 108 dB Recommended Hi Pass Crossover****For Full Power Handling 3000 Hz** **12db Per Octave Crossover Frequency Response at -10dB 1,300 – 19,000 Hz Voice Coil Diameter 1″ (25.4 mm) Voice Coil Wire CCAW Voice Coil Former Material Kapton Diaphragm Material Phenolic Resin Flux Density 1.02 T Magnet Material Ferrite EXTRA INFO Overall Depth 4.59” (116.7 mm) Mounting Depth 4.33” (110 mm) Overall Width 4.53” (115 mm) Overall Height 4.53” (115 mm) Net Weight 1.89 lbs (0.86 kg) Shipping Weight 2.09 lbs (0.95 kg) Carton Dimensions W x L x H 4.72” x 4.72” x 5.31” (120 x 120 x 135 mm)
$26.91
-

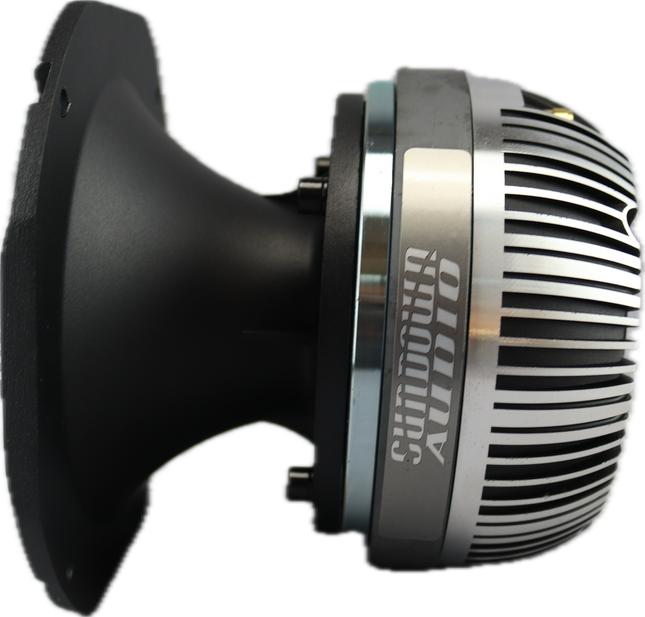

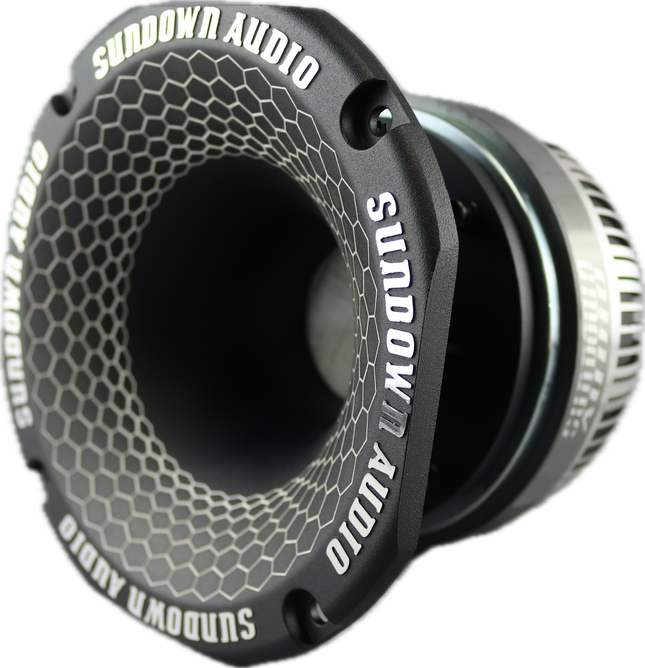

Sundown Audio Sundown Audio SHFST 2" Throat Super Horn With Ferrite Magnet
2in Horn driver Strontium Ferrite Magnet Die-cast Aluminium Cover Die-cast Aluminium Horn Titanium Diaphragm 4 Ohm 80 Wrms Exit Throat Diameter @ inch – 2 Rated Impedance @Ohm – 4 Power Handling Capacity @ Watt – 80 Program Power @Watt – 160 Sensitivity(1W/1m) @ Hz – 115 Frequency Range @ Hz – 1,000-20,000 Voice Coil Diameter @ inch - 2 Voice Coil Material - CCAW Voice Coil Former Material - Kapton Voice Coil Winding Depth @ mm - 2 Cutout – 5.5” Mounting Depth – 5.15” Gap Height @ mm – 2.5 Driver Size @ in 5.28*2.5” Back Cover Material – Die-cast Aluminium Diaphragm Material - Titanium Horn Material – Die-cast Aluminium Product Dimension @ in – L6.75*W6.75*H5.5” Key Features: Efficient Power Handling: Rated at 80W RMS and 160W program power, this driver offers a balance of power and performance for demanding setups. Wide Frequency Range: Covers frequencies from 1,000Hz to 20,000Hz, ensuring crisp and detailed sound. High Sensitivity: A sensitivity of 115 dB (1W/1m @ Hz) delivers excellent output with minimal power consumption. Durable Construction: Diaphragm Material: Titanium diaphragm for reliable performance and precise audio reproduction. Voice Coil Design: 2-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former provides thermal stability and durability. Robust Build: Die-cast aluminum cover and horn for lightweight strength and effective sound dispersion. Magnet: Strontium ferrite magnet ensures high magnetic flux and long-lasting reliability. Specifications: Exit Throat Diameter: 2 inches Impedance: 4 Ohms Cutout Size: 5.5 inches Mounting Depth: 5.15 inches Driver Size: 5.28 x 2.5 inches Product Dimensions: 6.75 x 6.75 x 5.5 inches (L x W x H) Additional Details: Voice Coil Winding Depth: 2 mm Gap Height: 2.5 mm Materials: Titanium diaphragm, Kapton former, and die-cast aluminum components provide durability and optimized performance.
$99.99
-

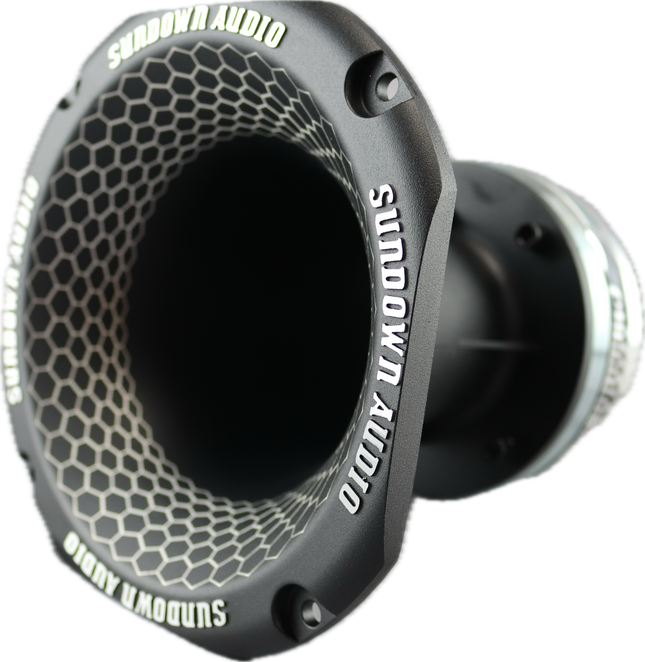

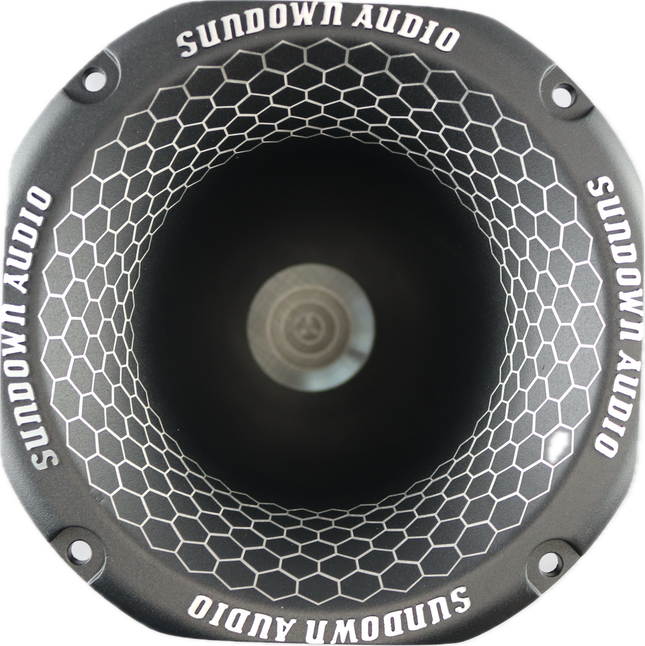

Sundown Audio Sundown Audio SHNMD 2" Throat NEO Super Horn
SHNMD 2" Throat Super Horn With NEO Magnet 2in Horn driver NEO Magnet Die-cast Aluminium Cover Die-cast Aluminium Horn Titanium Diaphragm 4 Ohm 110 Wrms Exit Throat Diameter @ inch – 2 Rated Impedance @Ohm – 4 Power Handling Capacity @ Watt – 110 Program Power @Watt – 220 Sensitivity(1W/1m) @ Hz – 120 Frequency Range @ Hz - 600-20,000 Voice Coil Diameter @ inch - 3 Voice Coil Material - CCAR Voice Coil Former Material - Kapton Voice Coil Winding Depth @ mm - 3 Cutout – 6” Mounting Depth – 6.8” Gap Height @ mm – 3.5 Magnet Type - Neodymium Driver Size @ in 4.9*2.18” Back Cover Material – Die-cast Aluminium Diaphragm Material - Titanium Horn Material – Die-cast Aluminium Product Dimension @ in - L7.25*W7.25*H7.19” Key Features: Powerful Output: Rated at 110W RMS and 220W program power, this driver provides robust sound performance suitable for demanding audio setups. Wide Frequency Range: Operates efficiently across 600Hz to 20,000Hz, ensuring clear and dynamic audio reproduction from mid to high frequencies. High Sensitivity: With a sensitivity of 120 dB (1W/1m @ Hz), it minimizes power consumption while delivering maximum sound output. Premium Build: Diaphragm Material: Titanium diaphragm ensures durability and accurate sound reproduction. Voice Coil: Features a 3-inch CCAR (Copper Clad Aluminum Ribbon) voice coil on a Kapton former for excellent thermal and mechanical stability. Horn and Back Cover: Constructed with die-cast aluminum for lightweight strength and enhanced sound dispersion. Magnet Type: Equipped with a Neodymium magnet for high magnetic flux and reduced weight. Specifications: Exit Throat Diameter: 2 inches Impedance: 4 Ohms Cutout Size: 6 inches Mounting Depth: 6.8 inches Driver Size: 4.9 x 2.18 inches Product Dimensions: 7.25 x 7.25 x 7.19 inches (L x W x H) Additional Details: Voice Coil Winding Depth: 3 mm Gap Height: 3.5 mm Materials: Die-cast aluminum components, Kapton former, and titanium diaphragm for a robust and reliable build.
$199.99
