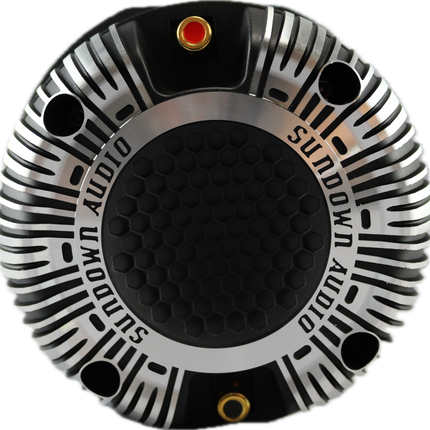

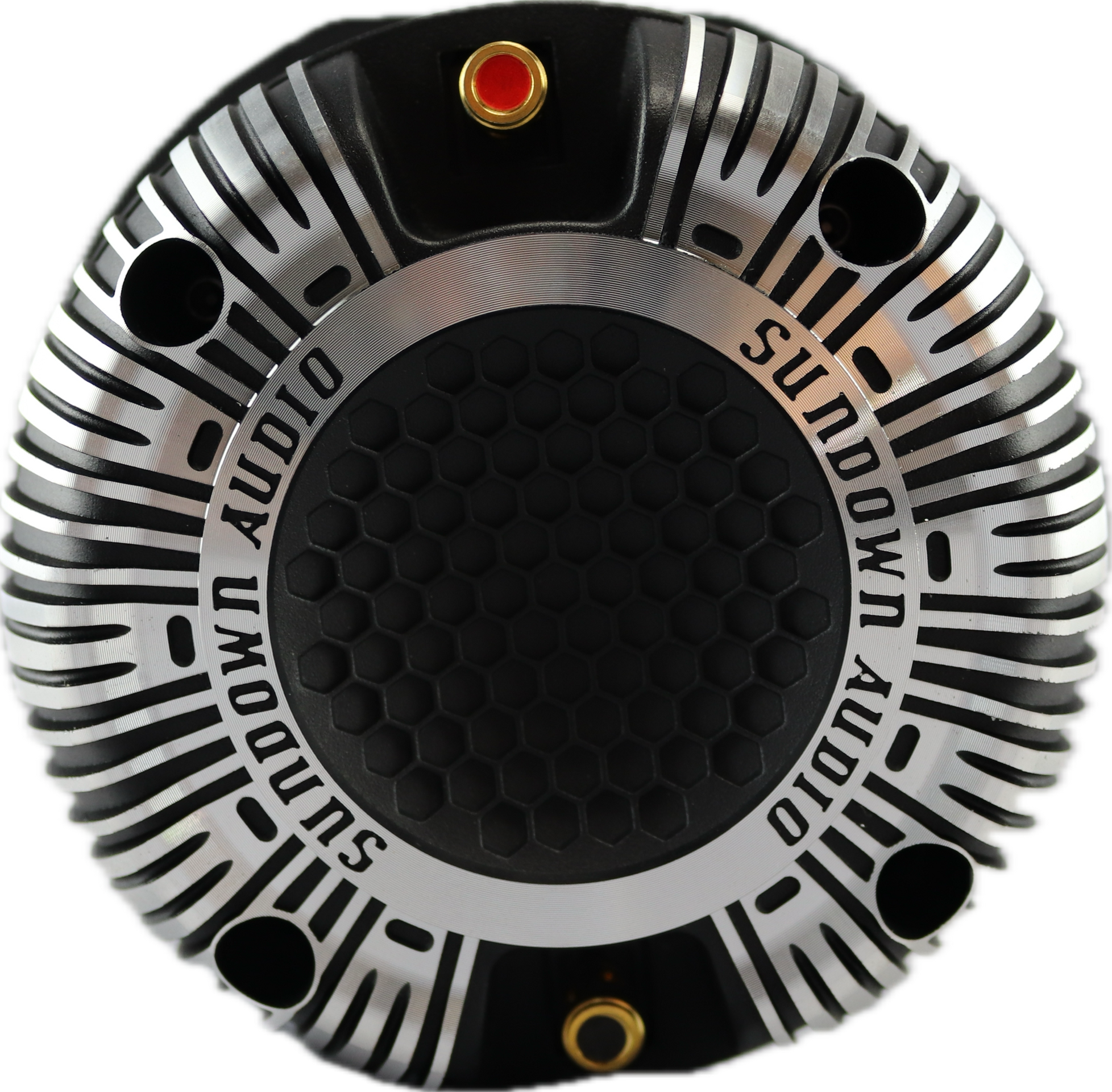

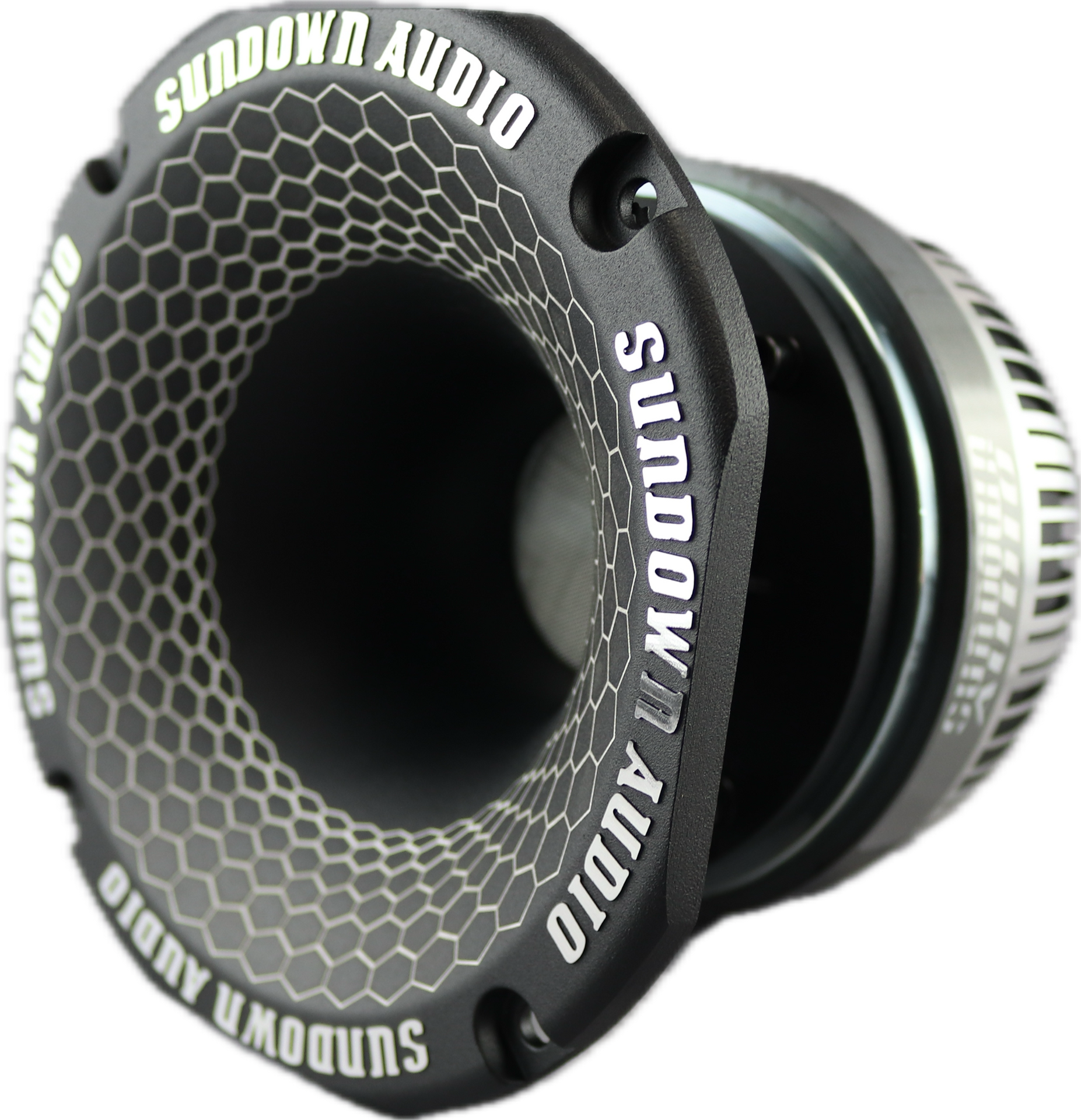

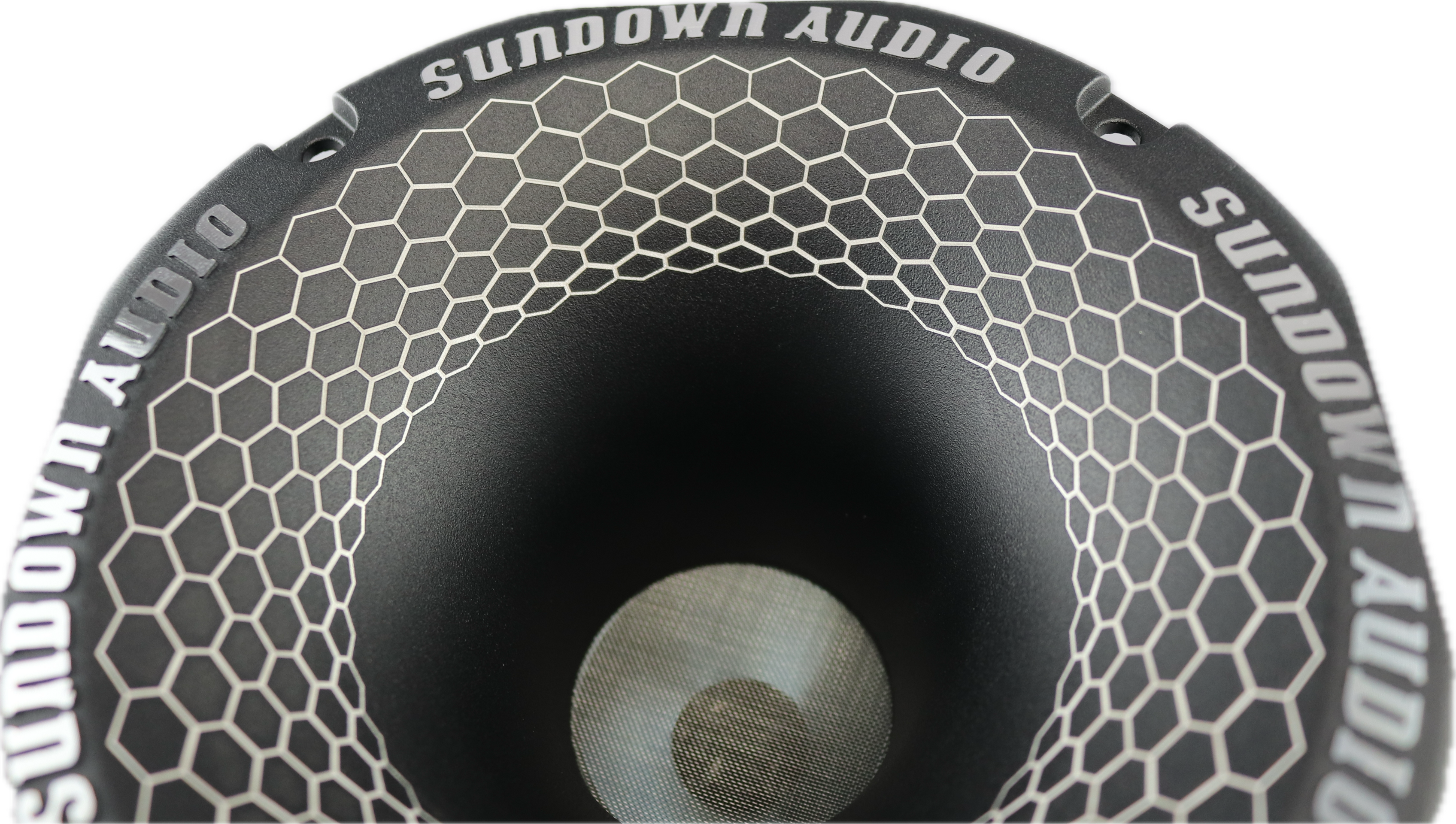

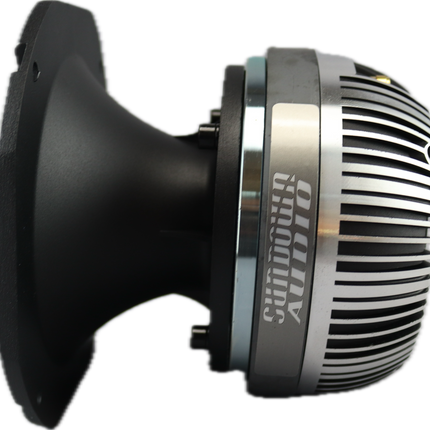

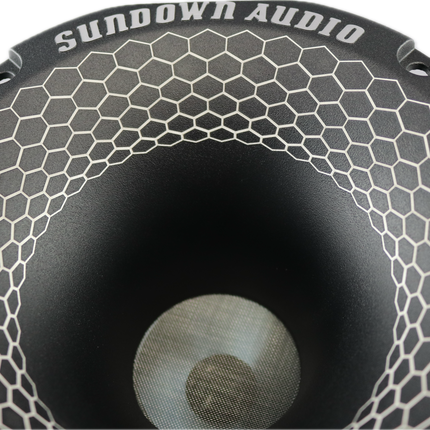

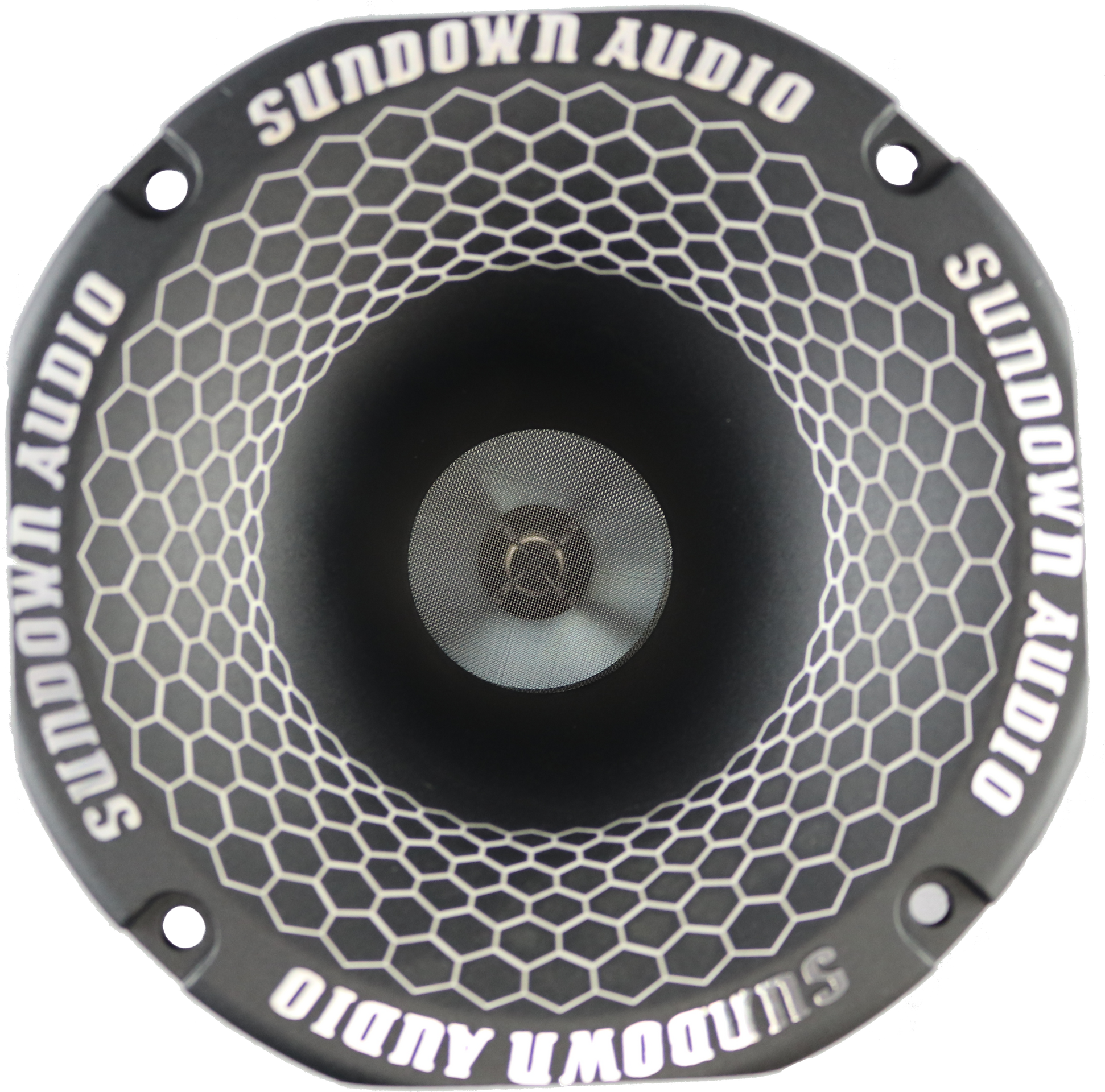

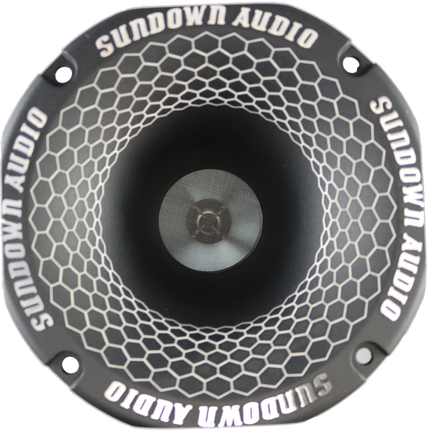

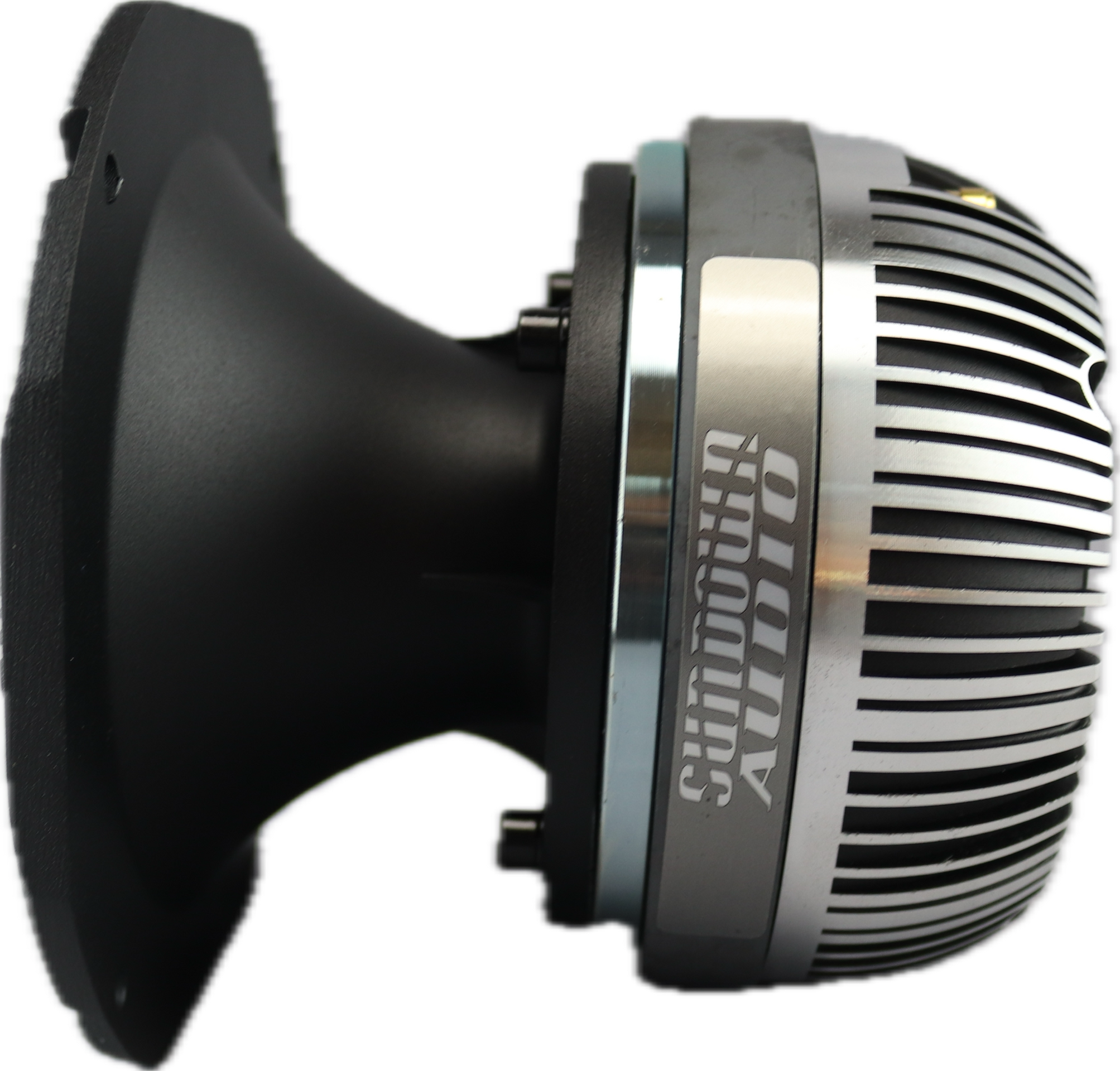

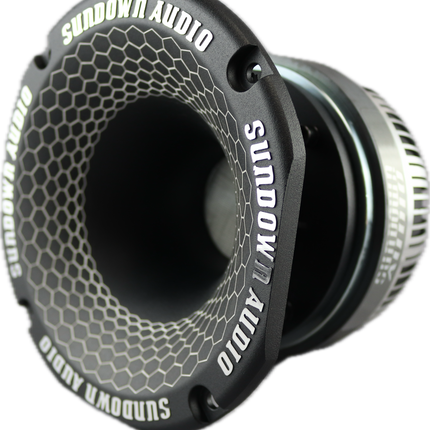

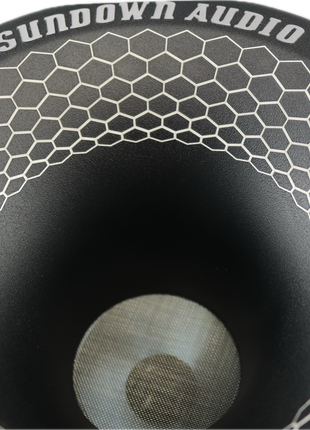

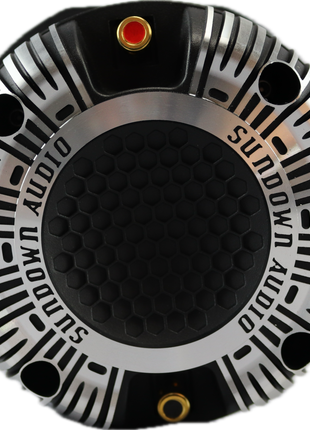

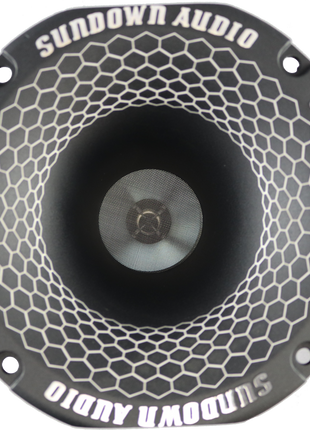

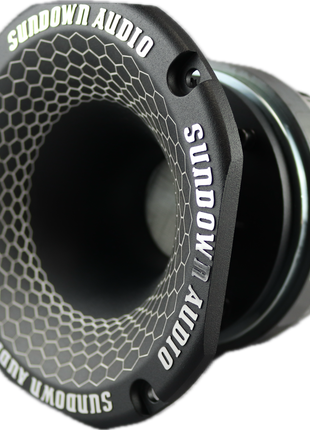

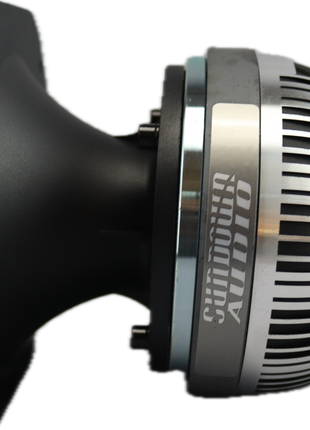

Sundown Audio SHFST 2" Throat Super Horn With Ferrite Magnet

Description

  • 2in Horn driver
  • Strontium Ferrite Magnet
  • Die-cast Aluminium Cover
  • Die-cast Aluminium Horn
  • Titanium Diaphragm
  • 4 Ohm
  • 80 Wrms
  • Exit Throat Diameter @ inch – 2
  • Rated Impedance @Ohm – 4
  • Power Handling Capacity @ Watt – 80
  • Program Power @Watt – 160
  • Sensitivity(1W/1m) @ Hz – 115
  • Frequency Range @ Hz – 1,000-20,000
  • Voice Coil Diameter @ inch - 2
  • Voice Coil Material - CCAW
  • Voice Coil Former Material - Kapton
  • Voice Coil Winding Depth @ mm - 2
  • Cutout – 5.5”
  • Mounting Depth – 5.15”
  • Gap Height @ mm – 2.5
  • Driver Size @ in 5.28*2.5”
  • Back Cover Material – Die-cast Aluminium
  • Diaphragm Material - Titanium
  • Horn Material – Die-cast Aluminium
  • Product Dimension @ in – L6.75*W6.75*H5.5”

Key Features:

  • Efficient Power Handling: Rated at 80W RMS and 160W program power, this driver offers a balance of power and performance for demanding setups.
  • Wide Frequency Range: Covers frequencies from 1,000Hz to 20,000Hz, ensuring crisp and detailed sound.
  • High Sensitivity: A sensitivity of 115 dB (1W/1m @ Hz) delivers excellent output with minimal power consumption.

Durable Construction:

  • Diaphragm Material: Titanium diaphragm for reliable performance and precise audio reproduction.
  • Voice Coil Design: 2-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former provides thermal stability and durability.
  • Robust Build: Die-cast aluminum cover and horn for lightweight strength and effective sound dispersion.
  • Magnet: Strontium ferrite magnet ensures high magnetic flux and long-lasting reliability.

Specifications:

  • Exit Throat Diameter: 2 inches
  • Impedance: 4 Ohms
  • Cutout Size: 5.5 inches
  • Mounting Depth: 5.15 inches
  • Driver Size: 5.28 x 2.5 inches
  • Product Dimensions: 6.75 x 6.75 x 5.5 inches (L x W x H)

Additional Details:

  • Voice Coil Winding Depth: 2 mm
  • Gap Height: 2.5 mm
  • Materials: Titanium diaphragm, Kapton former, and die-cast aluminum components provide durability and optimized performance.

Sundown Audio SHFST 2" Throat Super Horn With Ferrite Magnet

Product form

2in Horn driver Strontium Ferrite Magnet Die-cast Aluminium Cover Die-cast Aluminium Horn Titanium Diaphragm 4 Ohm 80 Wrms Exit Throat... Read more

$99.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationSHFST
    Outer Diameter6.75"x6.75"
    Cutout Diameter5.5"
    Mounting Depth5.15"
    Voice Coil Diameter2"
    Nominal Impedance4 Ω
    Sensitivity115 dB
    Frequency Range1 kHz – 20 kHz
    Cone MaterialTitanium
    Basket MaterialAluminum
    Magnet MaterialFerrite
    Voice Coil FormerKapton
    Voice Coil WindingCopper / Aluminum
    Power (RMS)80W
    Power (Peak)160W

    Description

    • 2in Horn driver
    • Strontium Ferrite Magnet
    • Die-cast Aluminium Cover
    • Die-cast Aluminium Horn
    • Titanium Diaphragm
    • 4 Ohm
    • 80 Wrms
    • Exit Throat Diameter @ inch – 2
    • Rated Impedance @Ohm – 4
    • Power Handling Capacity @ Watt – 80
    • Program Power @Watt – 160
    • Sensitivity(1W/1m) @ Hz – 115
    • Frequency Range @ Hz – 1,000-20,000
    • Voice Coil Diameter @ inch - 2
    • Voice Coil Material - CCAW
    • Voice Coil Former Material - Kapton
    • Voice Coil Winding Depth @ mm - 2
    • Cutout – 5.5”
    • Mounting Depth – 5.15”
    • Gap Height @ mm – 2.5
    • Driver Size @ in 5.28*2.5”
    • Back Cover Material – Die-cast Aluminium
    • Diaphragm Material - Titanium
    • Horn Material – Die-cast Aluminium
    • Product Dimension @ in – L6.75*W6.75*H5.5”

    Key Features:

    • Efficient Power Handling: Rated at 80W RMS and 160W program power, this driver offers a balance of power and performance for demanding setups.
    • Wide Frequency Range: Covers frequencies from 1,000Hz to 20,000Hz, ensuring crisp and detailed sound.
    • High Sensitivity: A sensitivity of 115 dB (1W/1m @ Hz) delivers excellent output with minimal power consumption.

    Durable Construction:

    • Diaphragm Material: Titanium diaphragm for reliable performance and precise audio reproduction.
    • Voice Coil Design: 2-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former provides thermal stability and durability.
    • Robust Build: Die-cast aluminum cover and horn for lightweight strength and effective sound dispersion.
    • Magnet: Strontium ferrite magnet ensures high magnetic flux and long-lasting reliability.

    Specifications:

    • Exit Throat Diameter: 2 inches
    • Impedance: 4 Ohms
    • Cutout Size: 5.5 inches
    • Mounting Depth: 5.15 inches
    • Driver Size: 5.28 x 2.5 inches
    • Product Dimensions: 6.75 x 6.75 x 5.5 inches (L x W x H)

    Additional Details:

    • Voice Coil Winding Depth: 2 mm
    • Gap Height: 2.5 mm
    • Materials: Titanium diaphragm, Kapton former, and die-cast aluminum components provide durability and optimized performance.
