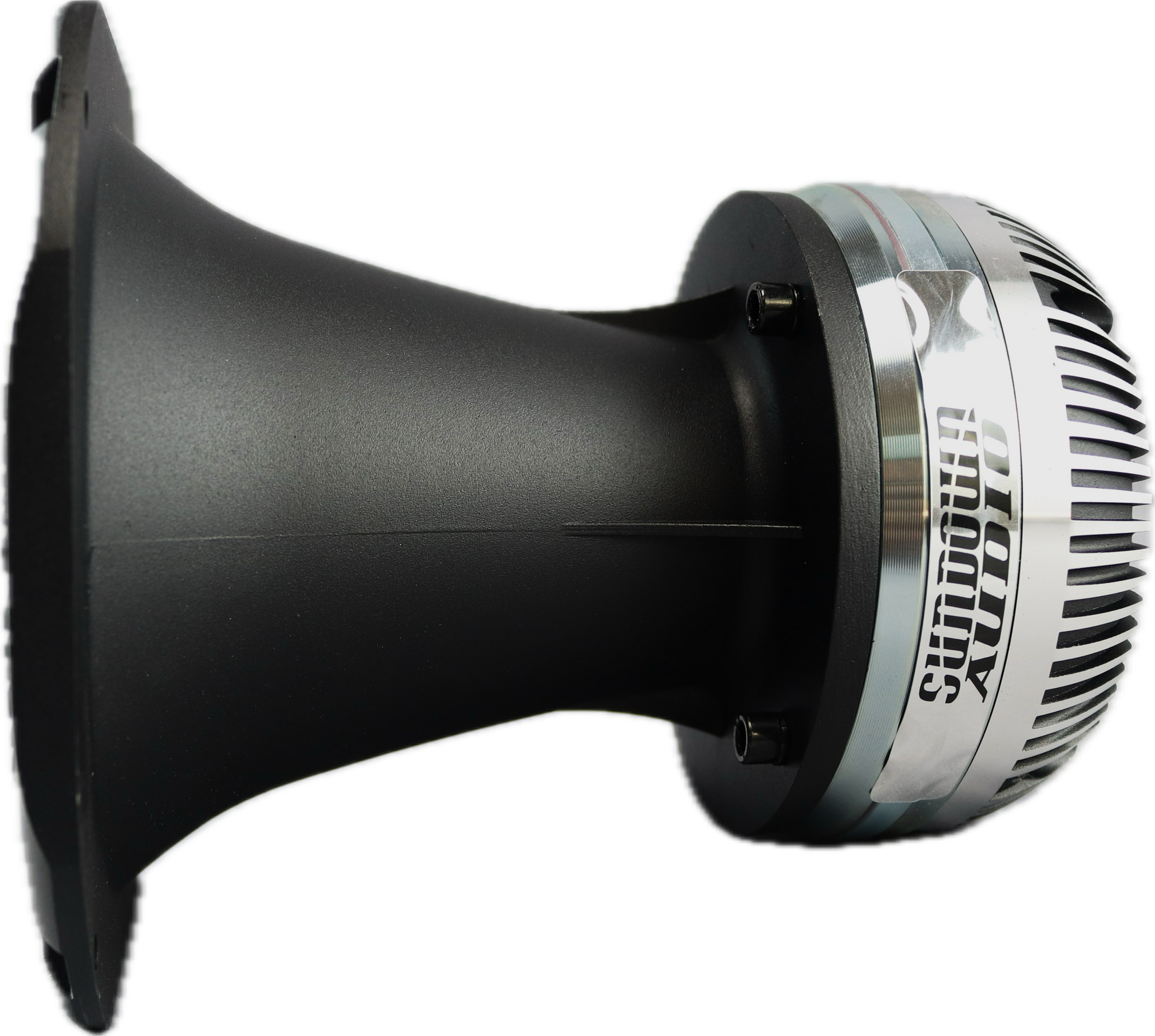

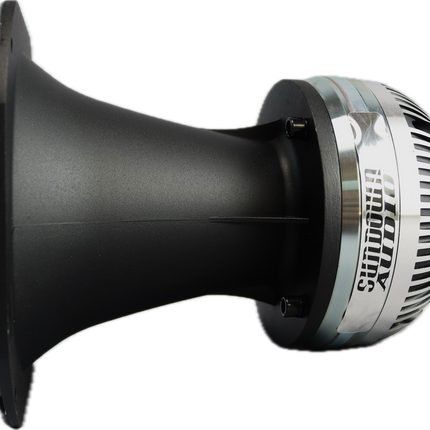

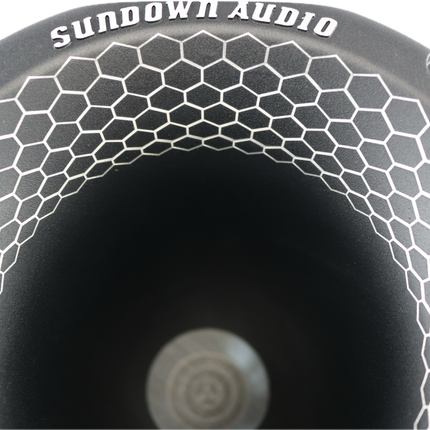

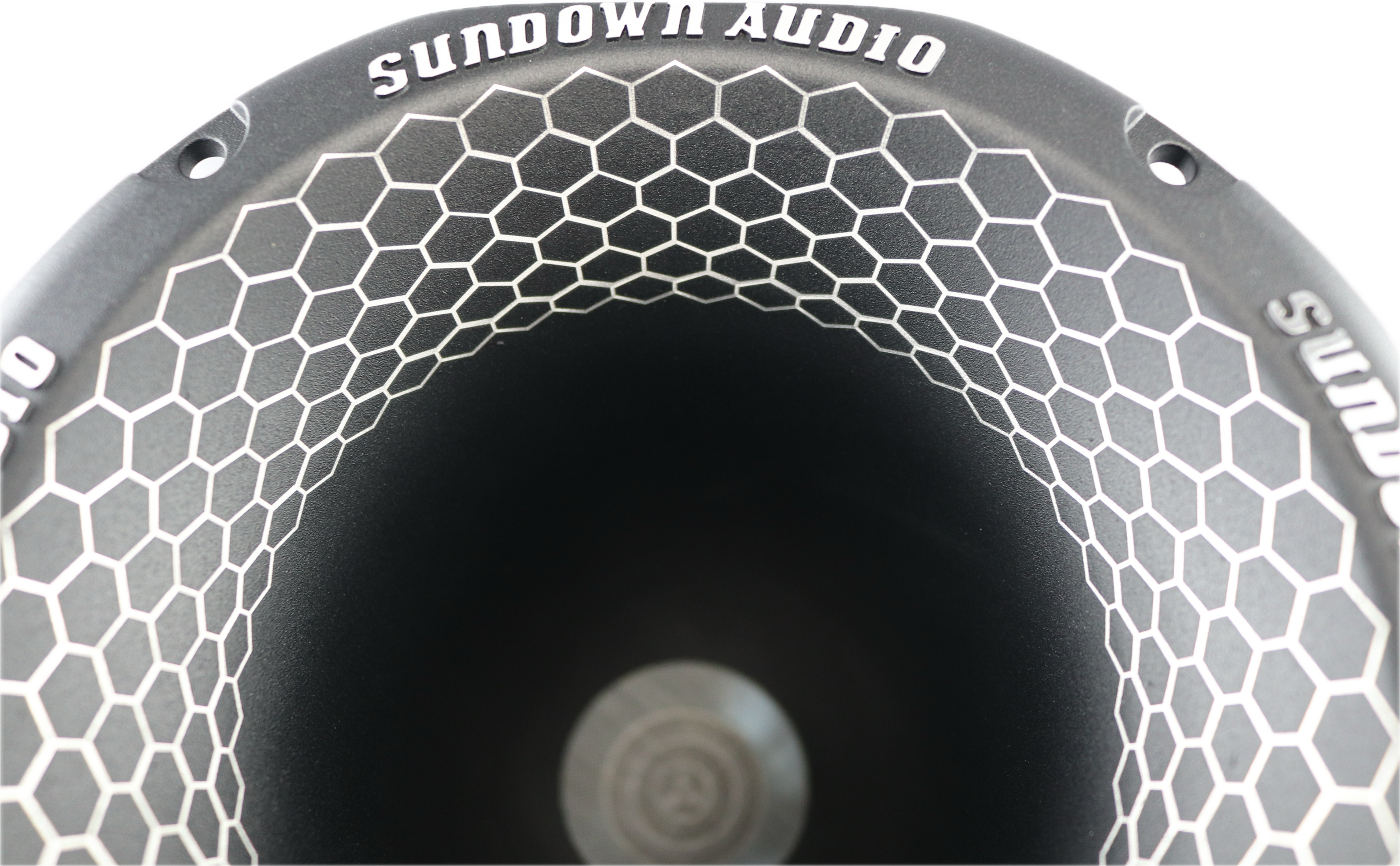

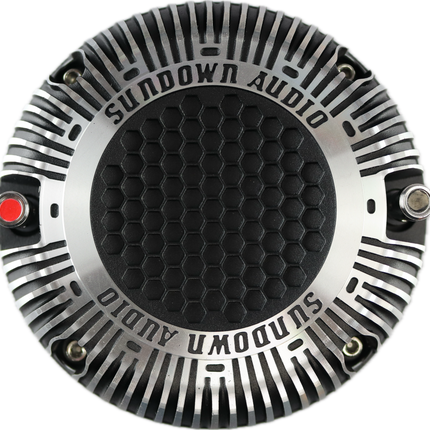

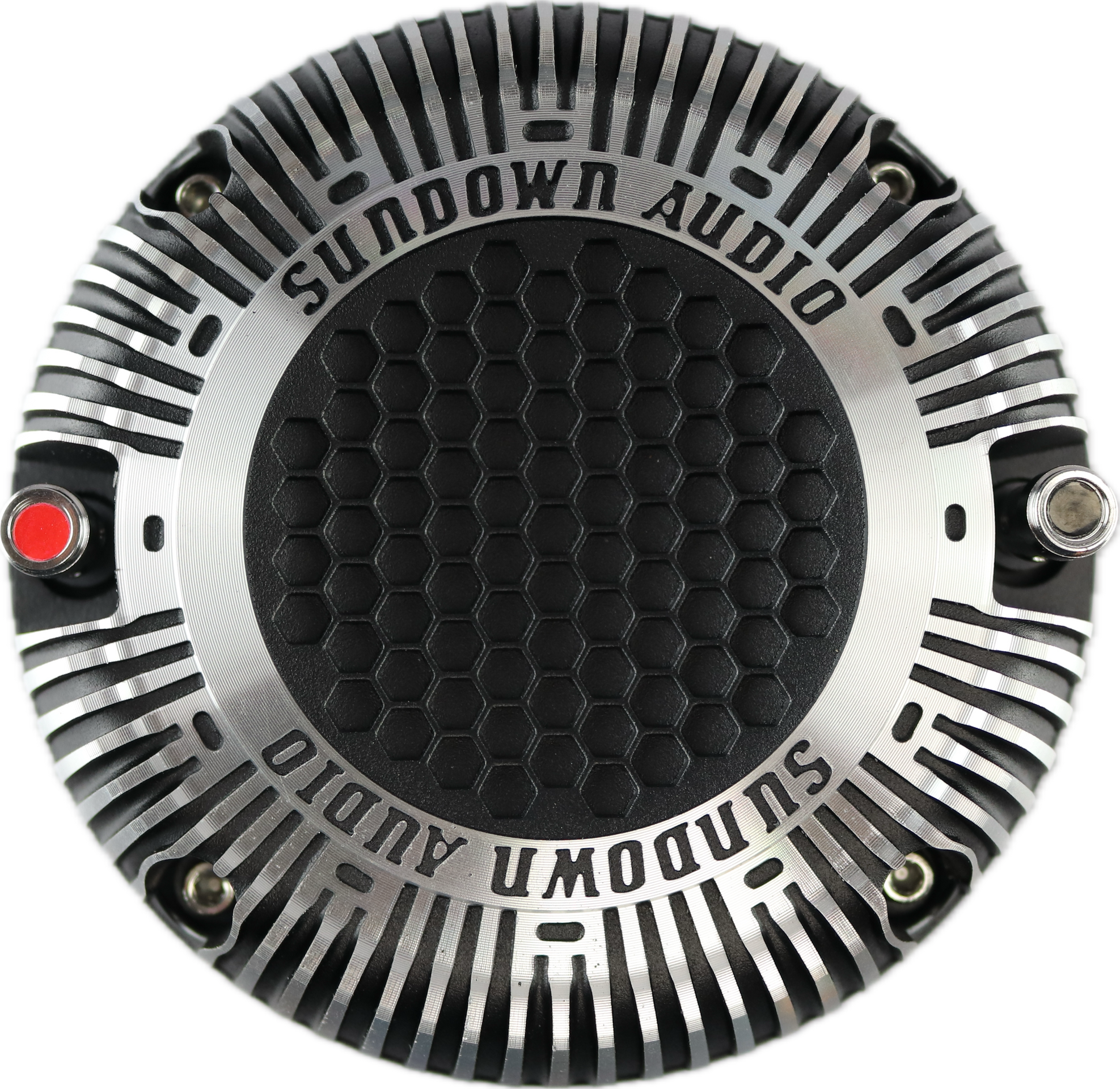

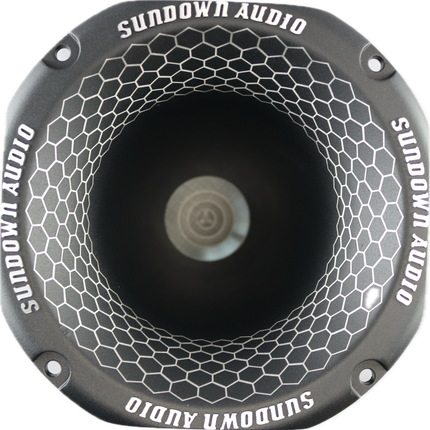

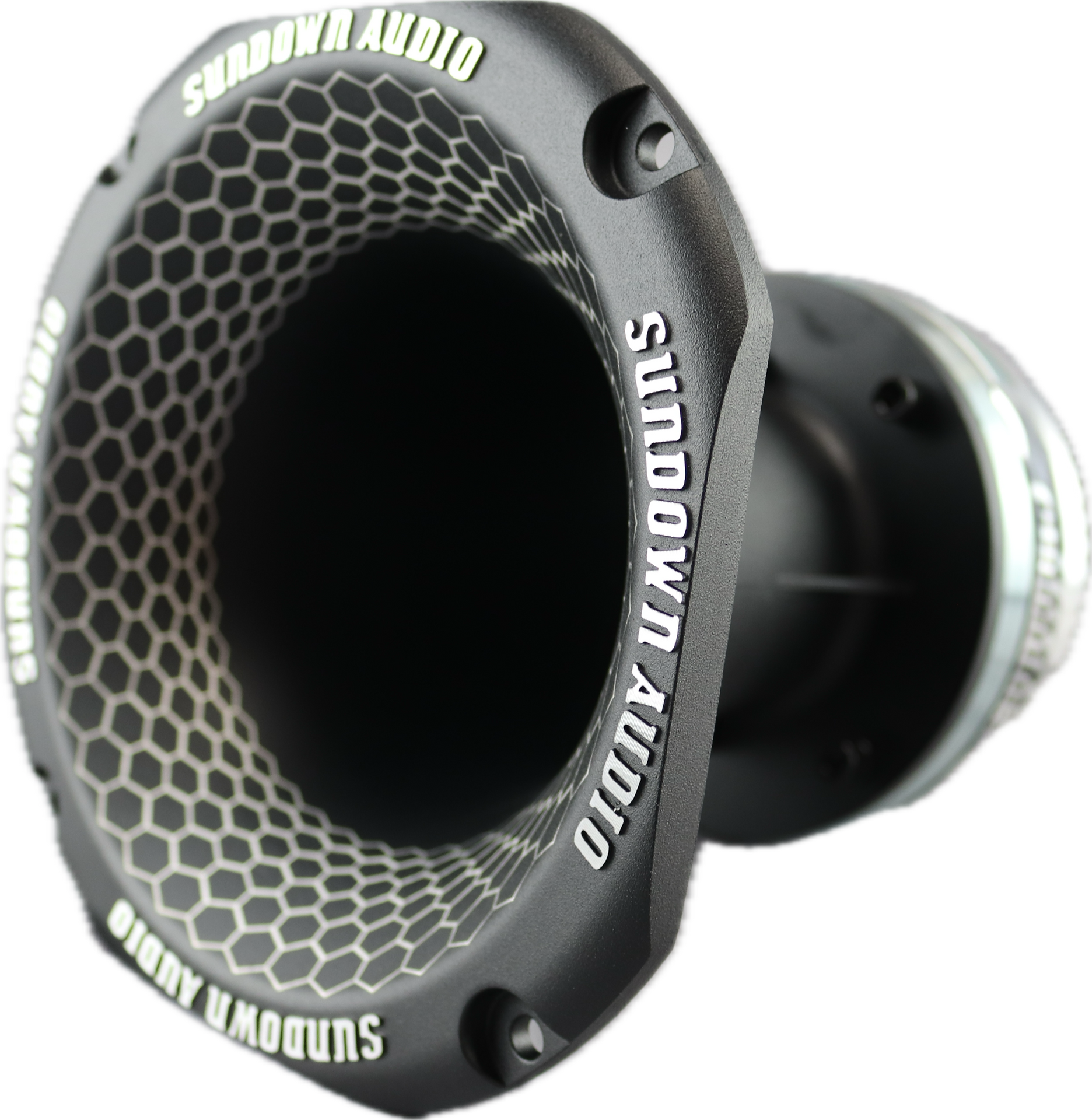

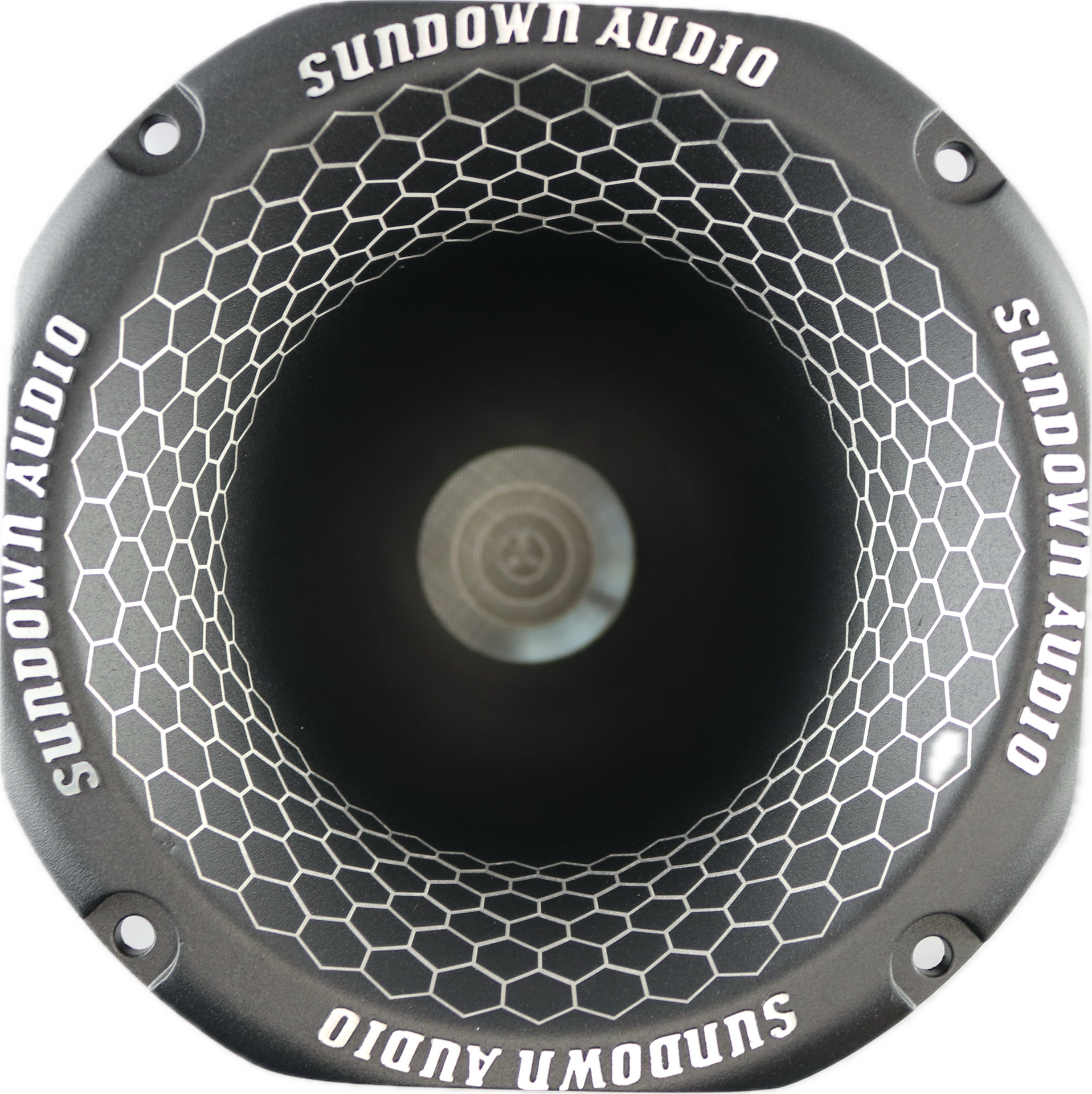

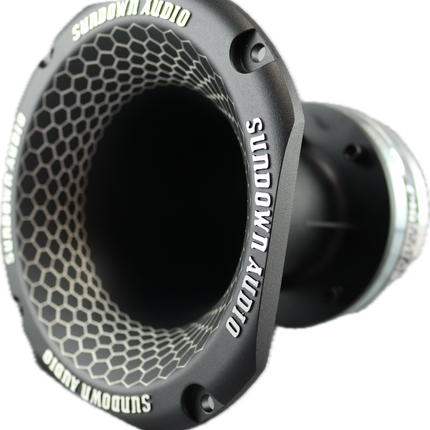

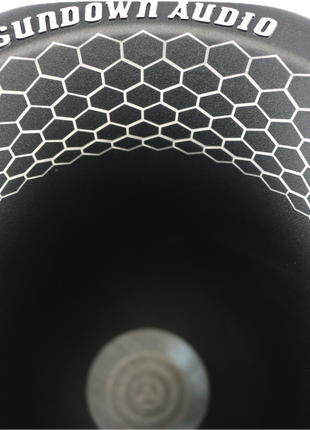

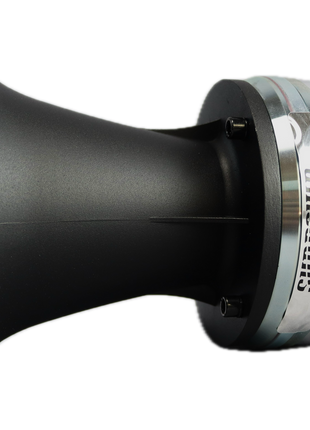

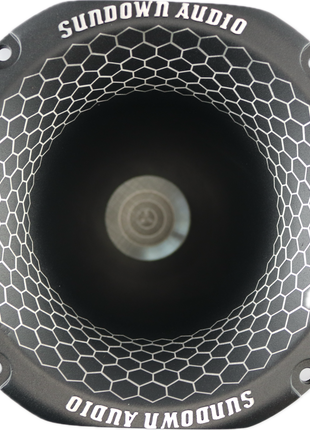

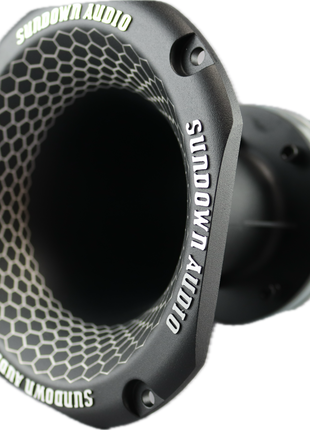

Sundown Audio SHNMD 2" Throat NEO Super Horn

Description

SHNMD 2" Throat Super Horn With NEO Magnet

  • 2in Horn driver
  • NEO Magnet
  • Die-cast Aluminium Cover
  • Die-cast Aluminium Horn
  • Titanium Diaphragm
  • 4 Ohm
  • 110 Wrms
  •  Exit Throat Diameter @ inch – 2
  • Rated Impedance @Ohm – 4
  • Power Handling Capacity @ Watt – 110
  • Program Power @Watt – 220
  • Sensitivity(1W/1m) @ Hz – 120
  • Frequency Range @ Hz - 600-20,000
  • Voice Coil Diameter @ inch - 3
  • Voice Coil Material - CCAR
  • Voice Coil Former Material - Kapton
  • Voice Coil Winding Depth @ mm - 3
  • Cutout – 6”
  • Mounting Depth – 6.8”
  • Gap Height @ mm – 3.5
  • Magnet Type - Neodymium
  • Driver Size @ in 4.9*2.18”

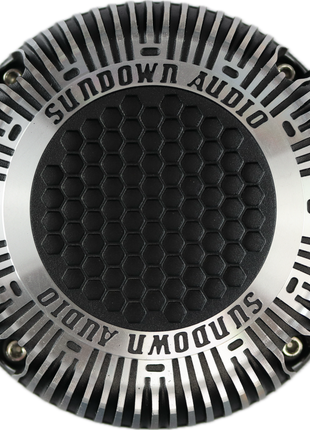

  • Back Cover Material – Die-cast Aluminium
  • Diaphragm Material - Titanium
  • Horn Material – Die-cast Aluminium
  • Product Dimension @ in - L7.25*W7.25*H7.19”

Key Features:

  • Powerful Output: Rated at 110W RMS and 220W program power, this driver provides robust sound performance suitable for demanding audio setups.
  • Wide Frequency Range: Operates efficiently across 600Hz to 20,000Hz, ensuring clear and dynamic audio reproduction from mid to high frequencies.
  • High Sensitivity: With a sensitivity of 120 dB (1W/1m @ Hz), it minimizes power consumption while delivering maximum sound output.

Premium Build:

  • Diaphragm Material: Titanium diaphragm ensures durability and accurate sound reproduction.
  • Voice Coil: Features a 3-inch CCAR (Copper Clad Aluminum Ribbon) voice coil on a Kapton former for excellent thermal and mechanical stability.
  • Horn and Back Cover: Constructed with die-cast aluminum for lightweight strength and enhanced sound dispersion.
  • Magnet Type: Equipped with a Neodymium magnet for high magnetic flux and reduced weight.

Specifications:

  • Exit Throat Diameter: 2 inches
  • Impedance: 4 Ohms
  • Cutout Size: 6 inches
  • Mounting Depth: 6.8 inches
  • Driver Size: 4.9 x 2.18 inches
  • Product Dimensions: 7.25 x 7.25 x 7.19 inches (L x W x H)

Additional Details:

  • Voice Coil Winding Depth: 3 mm
  • Gap Height: 3.5 mm
  • Materials: Die-cast aluminum components, Kapton former, and titanium diaphragm for a robust and reliable build.

Sundown Audio SHNMD 2" Throat NEO Super Horn

Product form

SHNMD 2" Throat Super Horn With NEO Magnet 2in Horn driver NEO Magnet Die-cast Aluminium Cover Die-cast Aluminium Horn Titanium... Read more

$199.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationSHNMD
    Outer Diameter7.25"x7.25"
    Cutout Diameter6"
    Mounting Depth6.8"
    Voice Coil Diameter3"
    Nominal Impedance4 Ω
    Sensitivity120 dB
    Frequency Range600 Hz – 20 kHz
    Cone MaterialTitanium
    Basket MaterialAluminum
    Magnet MaterialNeodymium
    Voice Coil FormerKapton
    Voice Coil WindingCopper / Aluminum
    Power (RMS)110W
    Power (Peak)220W

    Description

    SHNMD 2" Throat Super Horn With NEO Magnet

    • 2in Horn driver
    • NEO Magnet
    • Die-cast Aluminium Cover
    • Die-cast Aluminium Horn
    • Titanium Diaphragm
    • 4 Ohm
    • 110 Wrms
    •  Exit Throat Diameter @ inch – 2
    • Rated Impedance @Ohm – 4
    • Power Handling Capacity @ Watt – 110
    • Program Power @Watt – 220
    • Sensitivity(1W/1m) @ Hz – 120
    • Frequency Range @ Hz - 600-20,000
    • Voice Coil Diameter @ inch - 3
    • Voice Coil Material - CCAR
    • Voice Coil Former Material - Kapton
    • Voice Coil Winding Depth @ mm - 3
    • Cutout – 6”
    • Mounting Depth – 6.8”
    • Gap Height @ mm – 3.5
    • Magnet Type - Neodymium
    • Driver Size @ in 4.9*2.18”
    • Back Cover Material – Die-cast Aluminium
    • Diaphragm Material - Titanium
    • Horn Material – Die-cast Aluminium
    • Product Dimension @ in - L7.25*W7.25*H7.19”

    Key Features:

    • Powerful Output: Rated at 110W RMS and 220W program power, this driver provides robust sound performance suitable for demanding audio setups.
    • Wide Frequency Range: Operates efficiently across 600Hz to 20,000Hz, ensuring clear and dynamic audio reproduction from mid to high frequencies.
    • High Sensitivity: With a sensitivity of 120 dB (1W/1m @ Hz), it minimizes power consumption while delivering maximum sound output.

    Premium Build:

    • Diaphragm Material: Titanium diaphragm ensures durability and accurate sound reproduction.
    • Voice Coil: Features a 3-inch CCAR (Copper Clad Aluminum Ribbon) voice coil on a Kapton former for excellent thermal and mechanical stability.
    • Horn and Back Cover: Constructed with die-cast aluminum for lightweight strength and enhanced sound dispersion.
    • Magnet Type: Equipped with a Neodymium magnet for high magnetic flux and reduced weight.

    Specifications:

    • Exit Throat Diameter: 2 inches
    • Impedance: 4 Ohms
    • Cutout Size: 6 inches
    • Mounting Depth: 6.8 inches
    • Driver Size: 4.9 x 2.18 inches
    • Product Dimensions: 7.25 x 7.25 x 7.19 inches (L x W x H)

    Additional Details:

    • Voice Coil Winding Depth: 3 mm
    • Gap Height: 3.5 mm
    • Materials: Die-cast aluminum components, Kapton former, and titanium diaphragm for a robust and reliable build.
