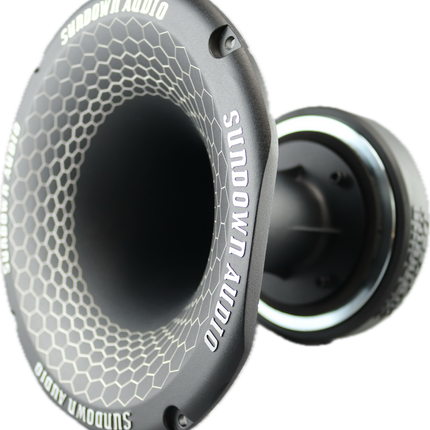

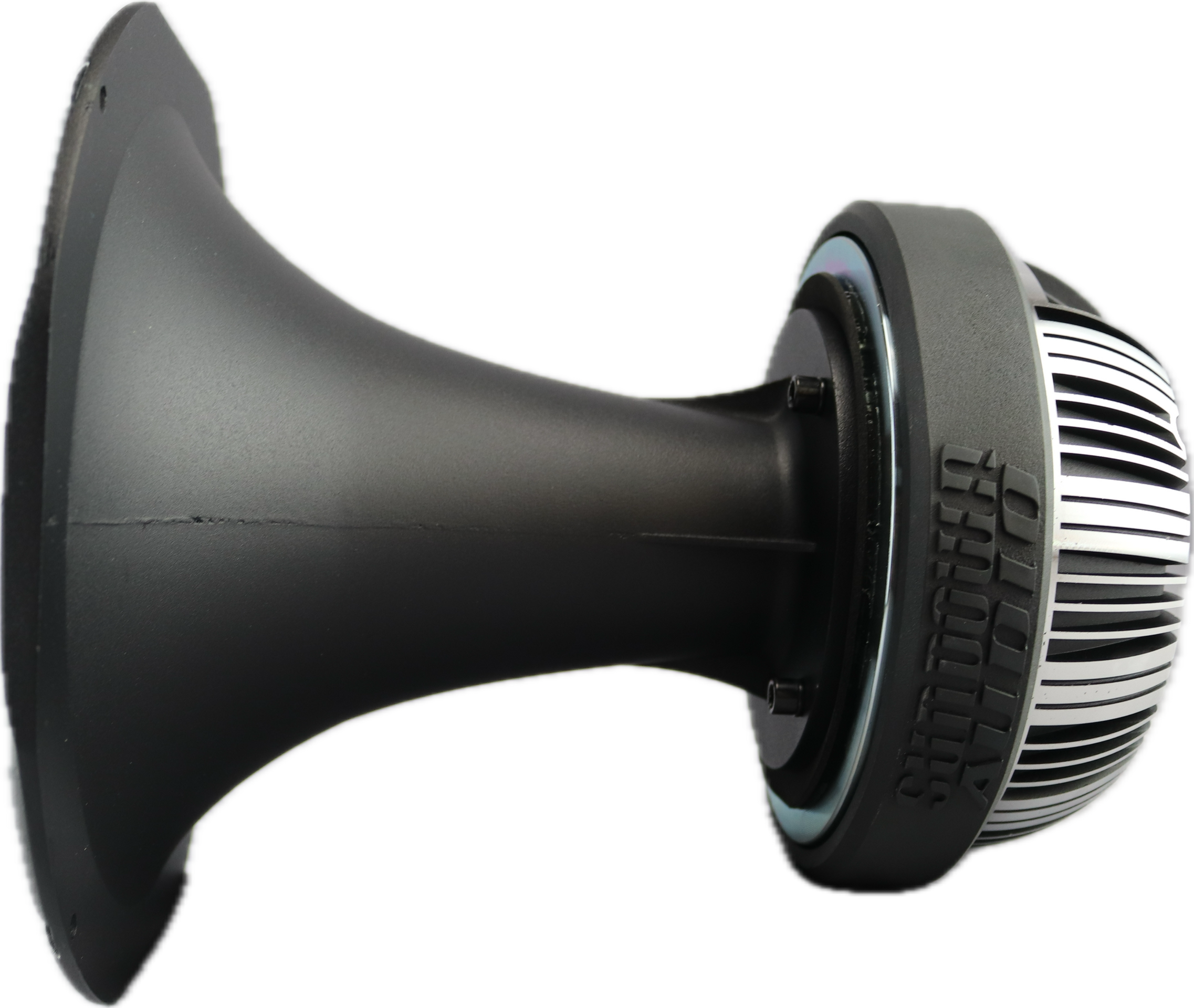

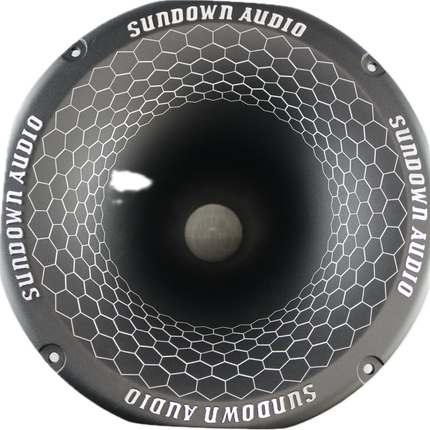

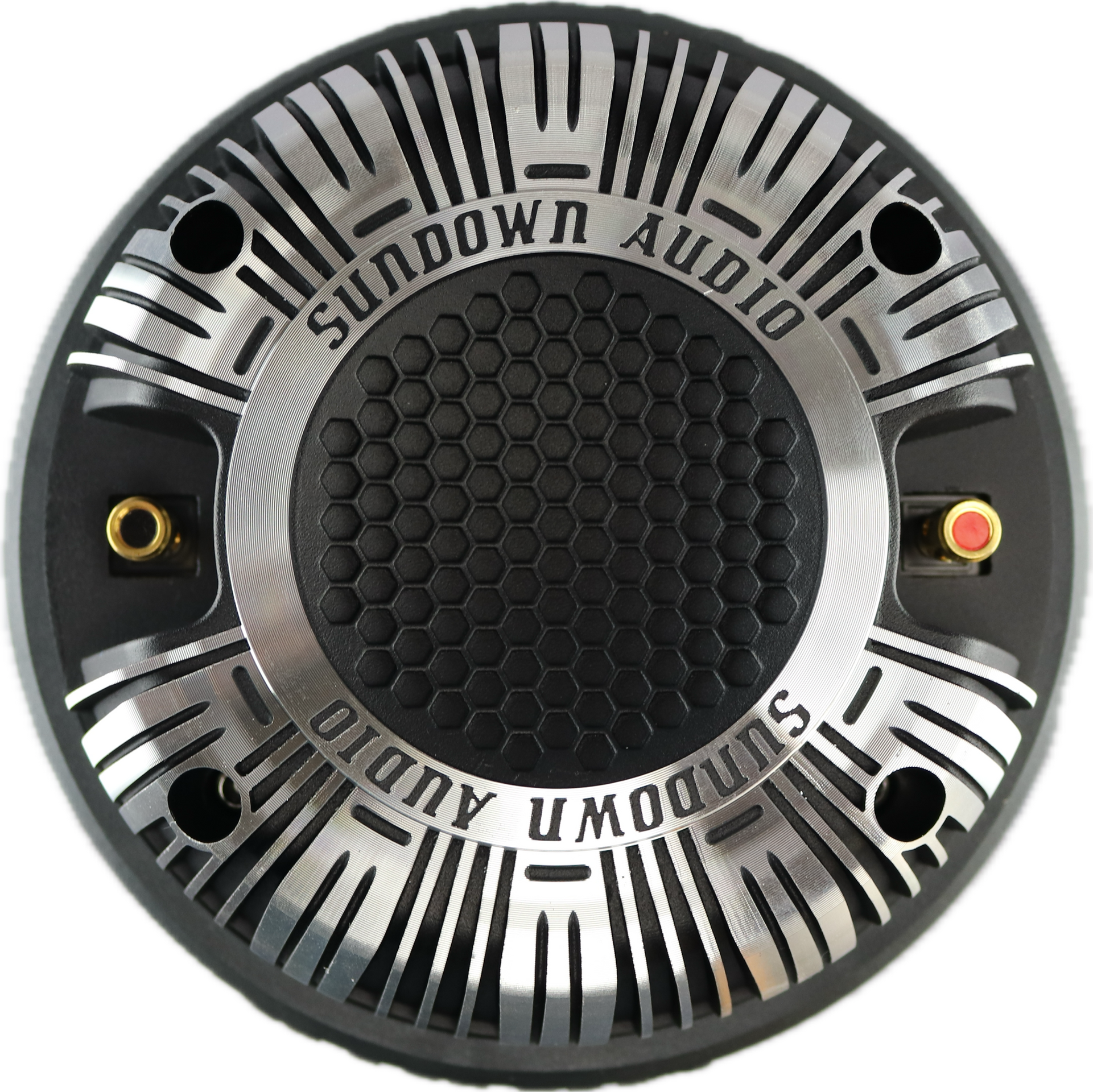

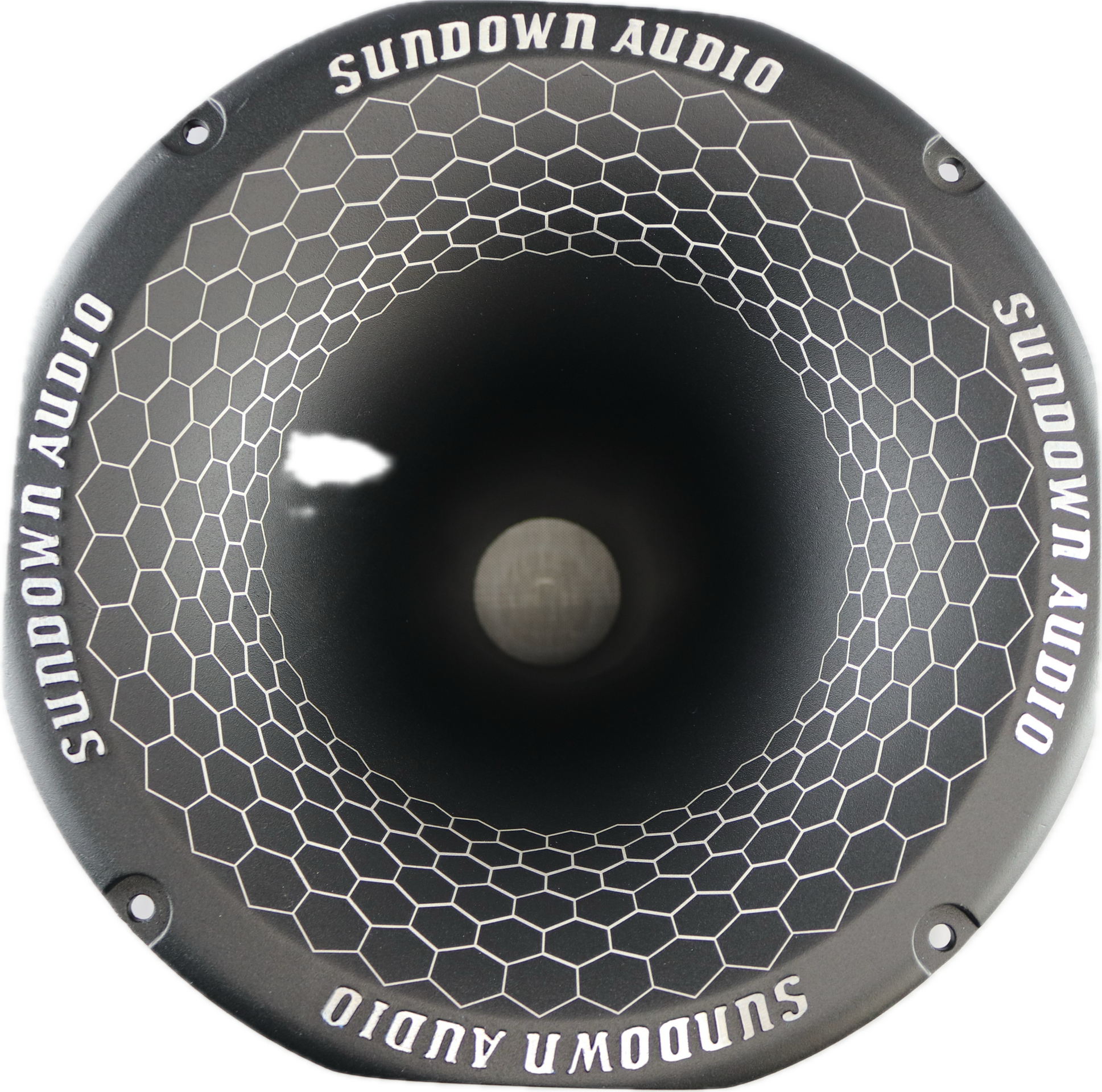

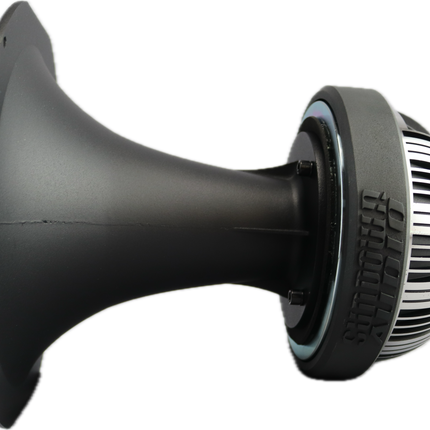

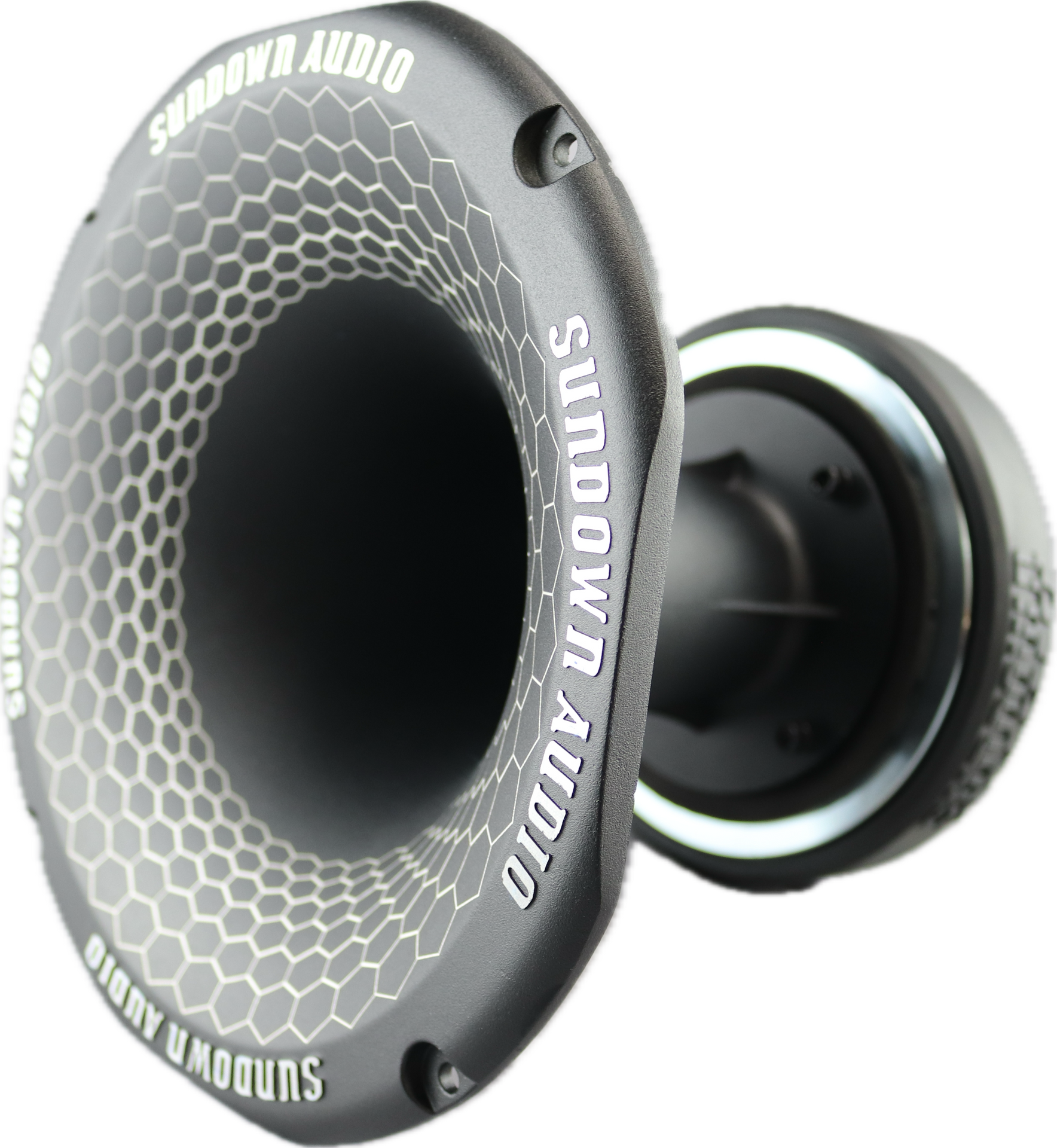

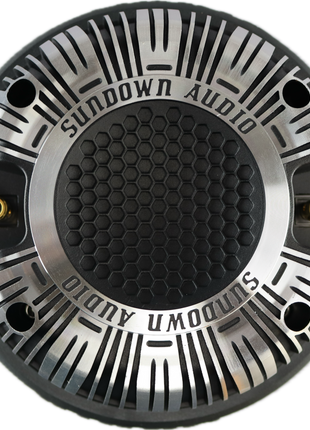

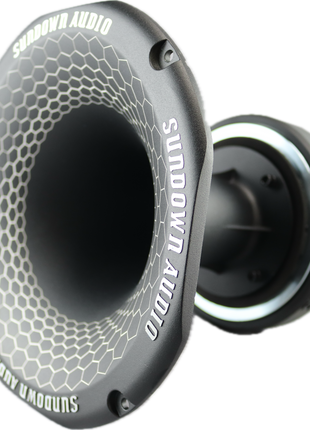

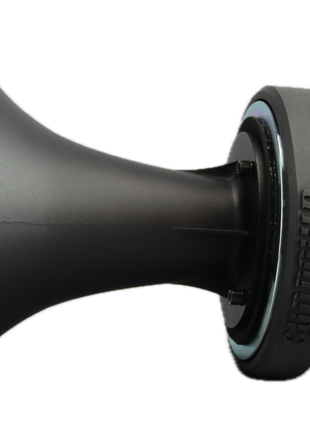

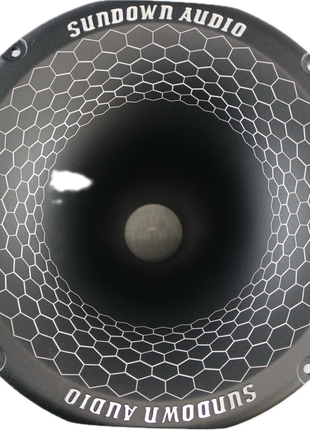

Sundown Audio SHFTL 2" Throat Super Horn With Ferrite Magnet

Description

  • 3in Horn driver
  • Strontium Ferrite Magnet
  • Die-cast Aluminium Cover
  • Die-cast Aluminium Horn
  • Titanium Diaphragm
  • 4 Ohm
  • 110 Wrms
  •  Exit Throat Diameter @ inch – 2
  • Rated Impedance @Ohm – 4
  • Power Handling Capacity @ Watt – 110
  • Program Power @Watt – 220
  • Sensitivity(1W/1m) @ Hz – 118
  • Frequency Range @ Hz - 600-20,000
  • Voice Coil Diameter @ inch - 3
  • Voice Coil Material - CCAW
  • Voice Coil Former Material - Kapton
  • Voice Coil Winding Depth @ mm - 3
  • Cutout – 6.75”
  • Mounting Depth – 9.65”
  • Gap Height @ mm – 3.5
  • Driver Size @ in 6.7*3”
  • Back Cover Material – Die-cast Aluminium
  • Diaphragm Material - Titanium
  • Horn Material – Die-cast Aluminium
  • Product Dimension @ in – L9.5*W9.5*H10”

Key Features:

  • Powerful Performance: Rated at 110W RMS and 220W program power, it handles demanding audio requirements with ease.
  • Wide Frequency Range: Covers 600Hz to 20,000Hz, providing crisp, detailed sound reproduction across mid-to-high frequencies.
  • Exceptional Sensitivity: Sensitivity of 118 dB (1W/1m @ Hz) ensures efficient sound output with reduced power consumption.

Robust Construction:

  • Durable Materials: Titanium diaphragm for precision and long-lasting performance.
  • Voice Coil Design: Equipped with a 3-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former for excellent thermal resistance and durability.
  • High-Quality Build: Die-cast aluminum cover and horn provide lightweight durability and efficient sound dispersion.
  • Magnet: Strontium ferrite magnet ensures strong magnetic flux for reliable operation.

Specifications:

  • Exit Throat Diameter: 2 inches
  • Impedance: 4 Ohms
  • Cutout Size: 6.75 inches
  • Mounting Depth: 9.65 inches
  • Driver Size: 6.7 x 3 inches
  • Product Dimensions: 9.5 x 9.5 x 10 inches (L x W x H)

Additional Details:

  • Voice Coil Winding Depth: 3 mm
  • Gap Height: 3.5 mm
  • Materials: Titanium diaphragm, Kapton former, and die-cast aluminum construction for maximum durability and performance.

Sundown Audio SHFTL 2" Throat Super Horn With Ferrite Magnet

Product form

3in Horn driver Strontium Ferrite Magnet Die-cast Aluminium Cover Die-cast Aluminium Horn Titanium Diaphragm 4 Ohm 110 Wrms  Exit Throat... Read more

$149.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationSHFTL
    Outer Diameter9.5"x9.5"
    Cutout Diameter6.75"
    Mounting Depth9.65"
    Voice Coil Diameter3"
    Nominal Impedance4 Ω
    Sensitivity118 dB
    Frequency Range600 Hz – 20 kHz
    Cone MaterialTitanium
    Basket MaterialAluminum
    Magnet MaterialFerrite
    Voice Coil FormerKapton
    Voice Coil WindingCopper / Aluminum
    Power (RMS)110W
    Power (Peak)220W

    Description

    • 3in Horn driver
    • Strontium Ferrite Magnet
    • Die-cast Aluminium Cover
    • Die-cast Aluminium Horn
    • Titanium Diaphragm
    • 4 Ohm
    • 110 Wrms
    •  Exit Throat Diameter @ inch – 2
    • Rated Impedance @Ohm – 4
    • Power Handling Capacity @ Watt – 110
    • Program Power @Watt – 220
    • Sensitivity(1W/1m) @ Hz – 118
    • Frequency Range @ Hz - 600-20,000
    • Voice Coil Diameter @ inch - 3
    • Voice Coil Material - CCAW
    • Voice Coil Former Material - Kapton
    • Voice Coil Winding Depth @ mm - 3
    • Cutout – 6.75”
    • Mounting Depth – 9.65”
    • Gap Height @ mm – 3.5
    • Driver Size @ in 6.7*3”
    • Back Cover Material – Die-cast Aluminium
    • Diaphragm Material - Titanium
    • Horn Material – Die-cast Aluminium
    • Product Dimension @ in – L9.5*W9.5*H10”

    Key Features:

    • Powerful Performance: Rated at 110W RMS and 220W program power, it handles demanding audio requirements with ease.
    • Wide Frequency Range: Covers 600Hz to 20,000Hz, providing crisp, detailed sound reproduction across mid-to-high frequencies.
    • Exceptional Sensitivity: Sensitivity of 118 dB (1W/1m @ Hz) ensures efficient sound output with reduced power consumption.

    Robust Construction:

    • Durable Materials: Titanium diaphragm for precision and long-lasting performance.
    • Voice Coil Design: Equipped with a 3-inch CCAW (Copper Clad Aluminum Wire) voice coil on a Kapton former for excellent thermal resistance and durability.
    • High-Quality Build: Die-cast aluminum cover and horn provide lightweight durability and efficient sound dispersion.
    • Magnet: Strontium ferrite magnet ensures strong magnetic flux for reliable operation.

    Specifications:

    • Exit Throat Diameter: 2 inches
    • Impedance: 4 Ohms
    • Cutout Size: 6.75 inches
    • Mounting Depth: 9.65 inches
    • Driver Size: 6.7 x 3 inches
    • Product Dimensions: 9.5 x 9.5 x 10 inches (L x W x H)

    Additional Details:

    • Voice Coil Winding Depth: 3 mm
    • Gap Height: 3.5 mm
    • Materials: Titanium diaphragm, Kapton former, and die-cast aluminum construction for maximum durability and performance.
