10" Speakers

The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohm or 4 ohm impedance; these are only the basic components, the rest is pure DS18 technology.   Model: PRO-EXL104 Type: Midbass Loudspeaker Size: 10" RMS Power: 600W MAX Power: 1000W Frequency Response: 72Hz-8KHz Impedance: 4 ohm Sensitivity: 96dB Materials Surround: Cloth Edge Frame: Red Aluminum Basket Cone: Non-Pressed Paper Cone Magnet: Ferrite Voice Coil Wire: KCCAW Diameters Voice Coil Size: 3" Magnet Size: 80 oz Mounting Depth: 4.68" (119mm) Cut-Out Dimension: 9.21" (234mm) Net Weight: 6.9 kg

Read more less

Power Handling: 500 Watts RMS Impedance: 4/8-ohm SVC Vented cast frame 3-inch voice coil X-Max: 9mm Carbon fiber cone Excellent for Mid-bass High strength ferrite motor Dual shorting rings for smooth response Mounting depth : 5.2" Rear Vented Spring Loaded Terminals With an enormous 2.5” voice coil and a super-efficient cooling system, the VEX handles 300 watts of power with ease. We went with real carbon-fiber cone to handle high SPL systems without breakup, and achieved a 94.3dB sensitivity by combining a large diameter, high strength ferrite motor with a neodymium pole-cap magnet! A sturdy cast-aluminum frame features extensive spider cavity vents to further increase thermal power handling. The Sundown Audio VEX is one of the loudest, best sounding high-efficiency midrange drivers in existence. Frequency Response

Read more less

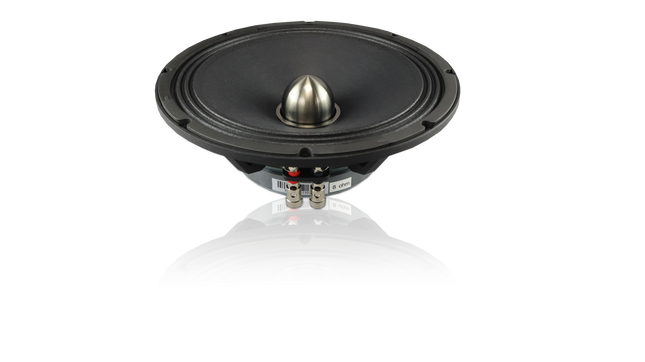

  Features Sold Individually Power Handling: 120 Watts RMS Impedance: 4/8 Ohm Frequency Range: 20Hz - 10kHz Phase Plug Outside Diameter: 10.23" Cutout Diameter: 9.17" Mounting Depth: 3.25" Effective surface area,Sd: 12.469Mm*

Read more less

Ciare PW257 Professional 10" Low Frequency Driver: Precision Meets Power   The PW257 is a professional-grade 10-inch low-frequency driver engineered for high-impact sonic performance without compromising clarity. Designed for high-output mid-bass arrays or compact low-frequency systems, it is rated at 400 W AES continuous power handling with 800 W program capability. With a sensitivity of 96 dB, the PW257 efficiently converts power into clean, undistorted output, making it well suited for touring rigs, club installs, and demanding pro-audio environments. At its core is a massive 3-inch (75 mm) voice coil wound on an aluminum former for efficient heat dissipation. Combined with a Nomex fabric surround and a rigid aluminum basket, this construction ensures excellent thermal control, mechanical stability, and tight, punchy low-end performance defined by an Fs of 57 Hz and an Xmax of 5.5 mm. Optimized for vented enclosures, the PW257 delivers a wide frequency range from 50 Hz to 3000 Hz, making it an excellent choice for high-performance 2-way systems or dedicated mid-bass applications with a distinctly professional sound signature. Data Sheet PW257 PROFESSIONAL 10" DRIVER SPECIFICATIONS Nominal Diameter 250 mm (10 in) Nominal Power Handling (AES) 400 W Program Power 800 W Sensitivity (2.83V/1m) 96 dB Frequency Range 50 Hz – 3000 Hz Nominal Impedance 8 ohms Voice Coil Diameter 75 mm (3 in) Winding Material / Former Aluminum Basket Material Aluminum Net Weight 5 kg (11.01 lb) THIELE-SMALL PARAMETERS ELECTRO-ACOUSTIC PARAMETERS Fs (Resonant Frequency) 57 Hz Qes / Qms / Qts 0.33 / 3.2 / 0.3 Vas (Equivalent Volume) 31 dm³ (1.09 ft³) Xmax (Linear Excursion) 5.5 mm (0.22 in) Bl (Force Factor) 15.86 Tm Sd (Effective Cone Area) 353 cm² (54.72 in²) EBP (Efficiency Bandwidth Product) 173 MOUNTING & ENCLOSURE MOUNTING & ENCLOSURE INFO Overall Diameter 268 mm (10.55 in) Baffle Cutout Diameter 235 mm (9.25 in) Depth 120 mm (4.72 in) Recommended Enclosure Vented Box / 14 dm³ (0.494 ft³) Surround Material Nomex Fabric

Read more less

Product Overview: Pro Audio Power for Your Vehicle The Audio Ace Diamond CB10 mid-range speaker is specifically engineered to bridge the gap between powerful Pro Audio sound and the constraints of a car audio environment. Sold as a pair, the CB10 is designed for high efficiency and volume, capable of handling 250W RMS and boasting a high 95 dB sensitivity to play louder than most competitors in its class. Featuring a custom-tooled basket with the Audio Ace logo, a 2-inch voice coil, and a robust 40 oz motor, this 10-inch loudspeaker delivers a wide and clear frequency response from 80 Hz to 12 kHz. It is the ideal choice for enthusiasts looking for a dynamic and dominant mid-high frequency presence.   AUDIO ACE DIAMOND CB10 MID RANGE SPECIFICATIONS (PAIR) Size 10 Inches RMS Power Handling 250 Watts Nominal Impedance 4 Ohm Voice Coil 2 Inch Motor Weight 40 oz Sensitivity 95 dB Frequency Response 80 - 12k Hz Maximum Excursion (Xmax) 2.5 Mounting Depth 3.89 inches THIELE-SMALL PARAMETERS Electrical Q (Qes) 0.669 Mechanical Q (Qms) 5.041 Total Q (Qts) 0.590 Resonance Frequency (Fs) 69 Hz Effective Piston Area (SD) 356.33 DC Resistance (Re) 4 Ohms BL Factor (BL) 8.318

Read more less

The Ciare CME250 is a high-SPL, 10″ midbass / low frequency driver engineered for serious sound systems. Designed to handle high power with reliable linearity, it delivers authoritative midbass and excels in applications where depth, dynamics, and clarity are critical — be it compact PA systems, high-powered car audio, or custom high-fidelity enclosures. With a robust 50 mm copper voice coil wound on a glass fiber former, a deep 12.5 mm winding, and a powerful ferrite magnet system featuring an 8 mm magnetic gap, the CME-250 is built to maintain control even under demanding excursion. Its stiff, doped cellulose cone and cloth surround ensure precise response across the midband while resisting distortion. The steel basket provides mechanical integrity and sturdy support for heavy duty use. Audio system designers and builders will favor the CME-250 for its combination of extended excursion (±4.5 mm), strong force factor (Bl ≈ 7.5 T·m), and well-balanced Thiele–Small parameters for sealed or compact enclosures. Whether used in sealed midbass chambers or as a component in multi-way systems, its 97 dB sensitivity and robust structure make it ideal for both high output rig builds and refined installations. Specifications Product Type / Category: 10″ Midbass / Low-Frequency Driver Nominal Diameter: 250 mm (10″) Nominal Impedance: 4 Ω Power Handling: • Nominal / “Rated”: 220 W • Program / Peak Capability: 450 W Sensitivity: 97 dB (1W @ 1m) Frequency Range: 70 – 3000 Hz Resonance (Fs): 48 Hz Qes: 0.53 Qms: 5.7 Qts: 0.48 Vas: 74 liters Bl (Force Factor): 7.5 T·m Sd (Effective Piston Area): 380 cm² Xmax (Linear Excursion): ± 4.5 mm Re (DC Resistance): 3.0 Ω Le (Inductance): 0.4 mH Voice Coil: 50 mm (2″) copper, winding depth 12.5 mm, glass fiber former Magnet / Motor System: Ferrite with 8 mm magnetic gap Cone Material: Doped cellulose fiber Surround / Suspension: Cotton fabric cloth Basket / Frame: Steel Mounting / Dimensions: • Overall Diameter: 265 mm • Baffle Cutout: 238 mm • Depth: 114 mm • Mounting Depth (behind front): 105 mm • Flange Thickness: 9 mm • Bolt Circle Diameter: 253 mm • Number of Mounting Holes: 8 (bolt holes 4.5 mm) Net Weight: ~2.7 kg

Read more less

McLaren 10"MIDRANGE,2"VC,500W MAX 8ohm
