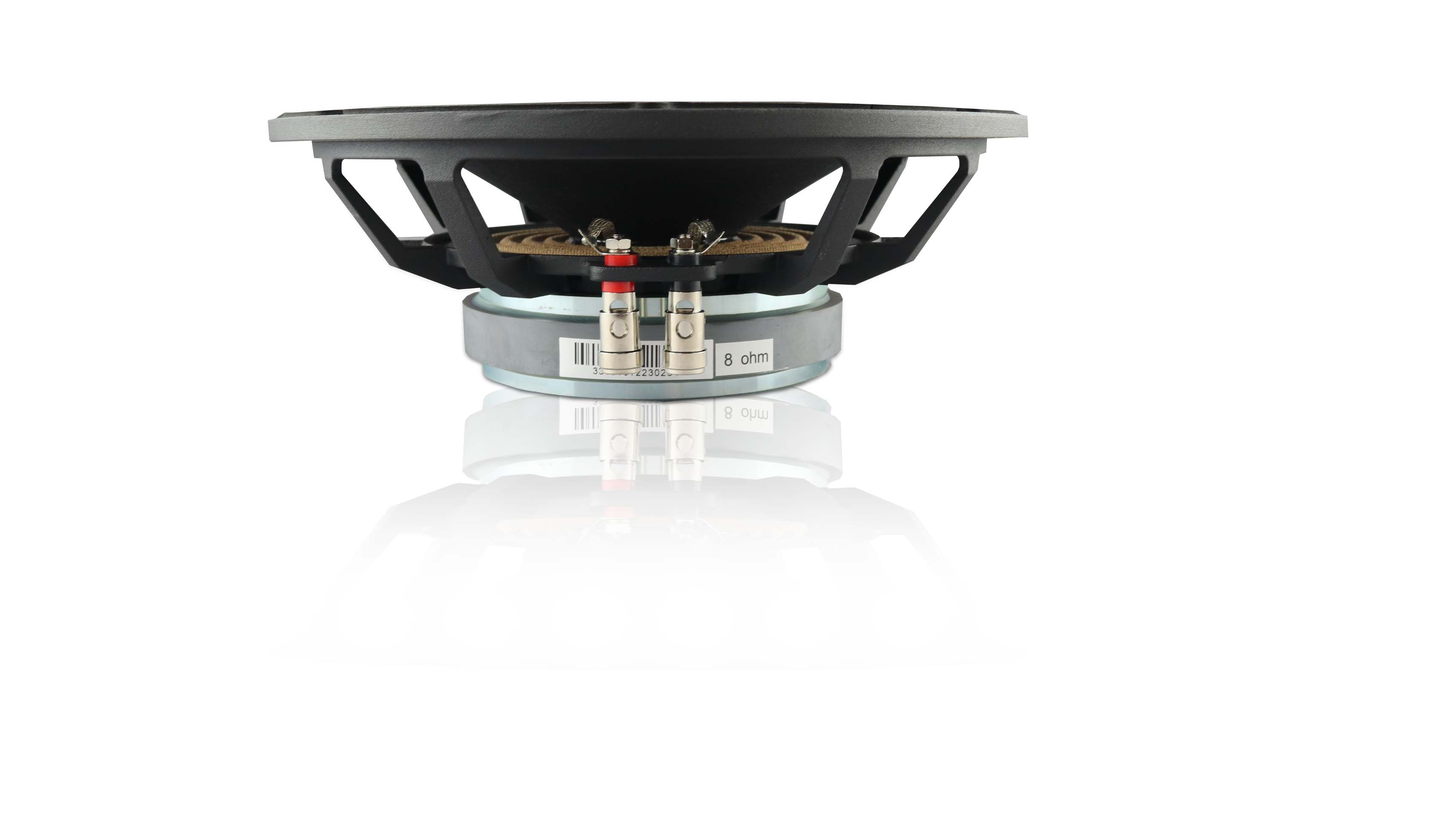

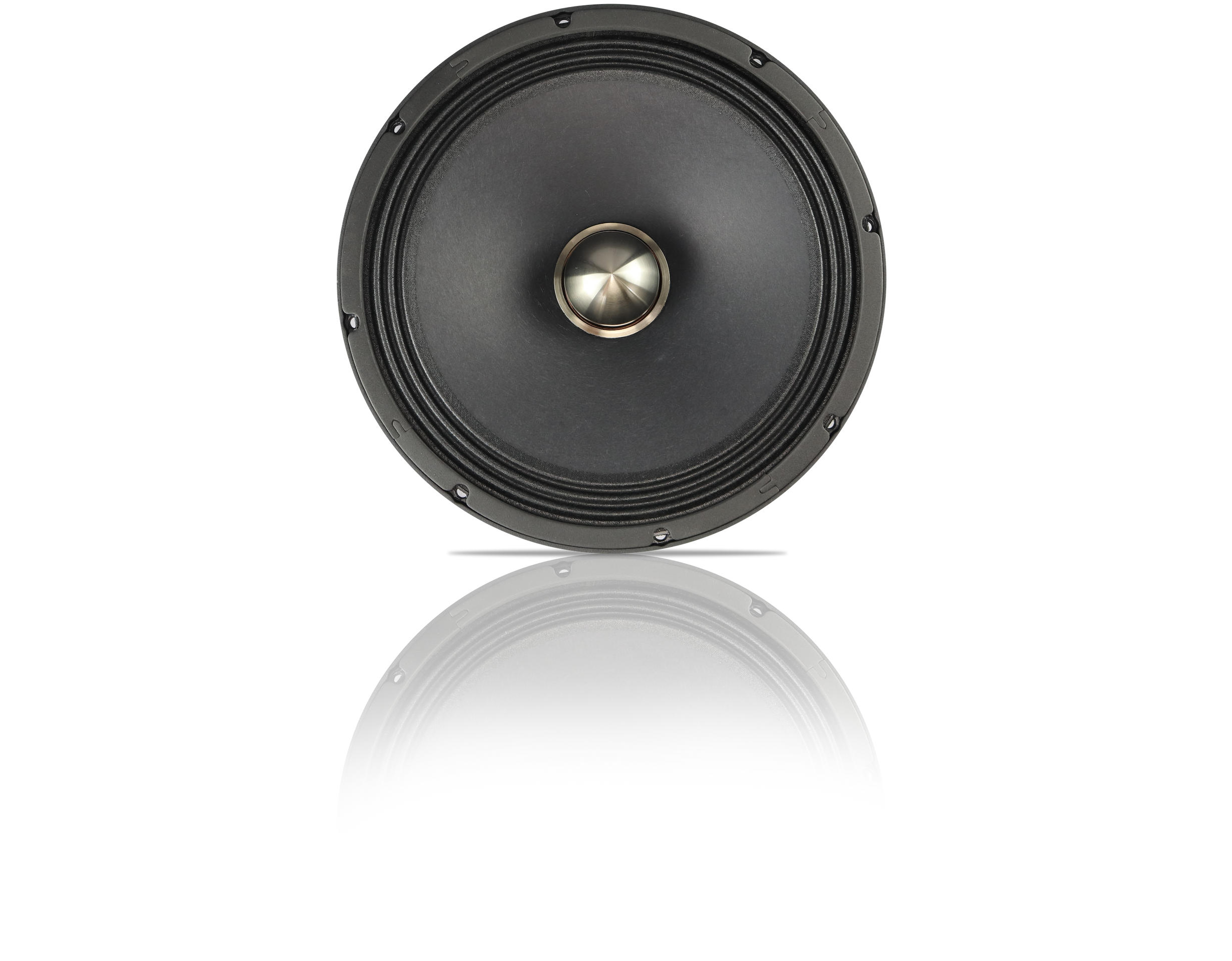

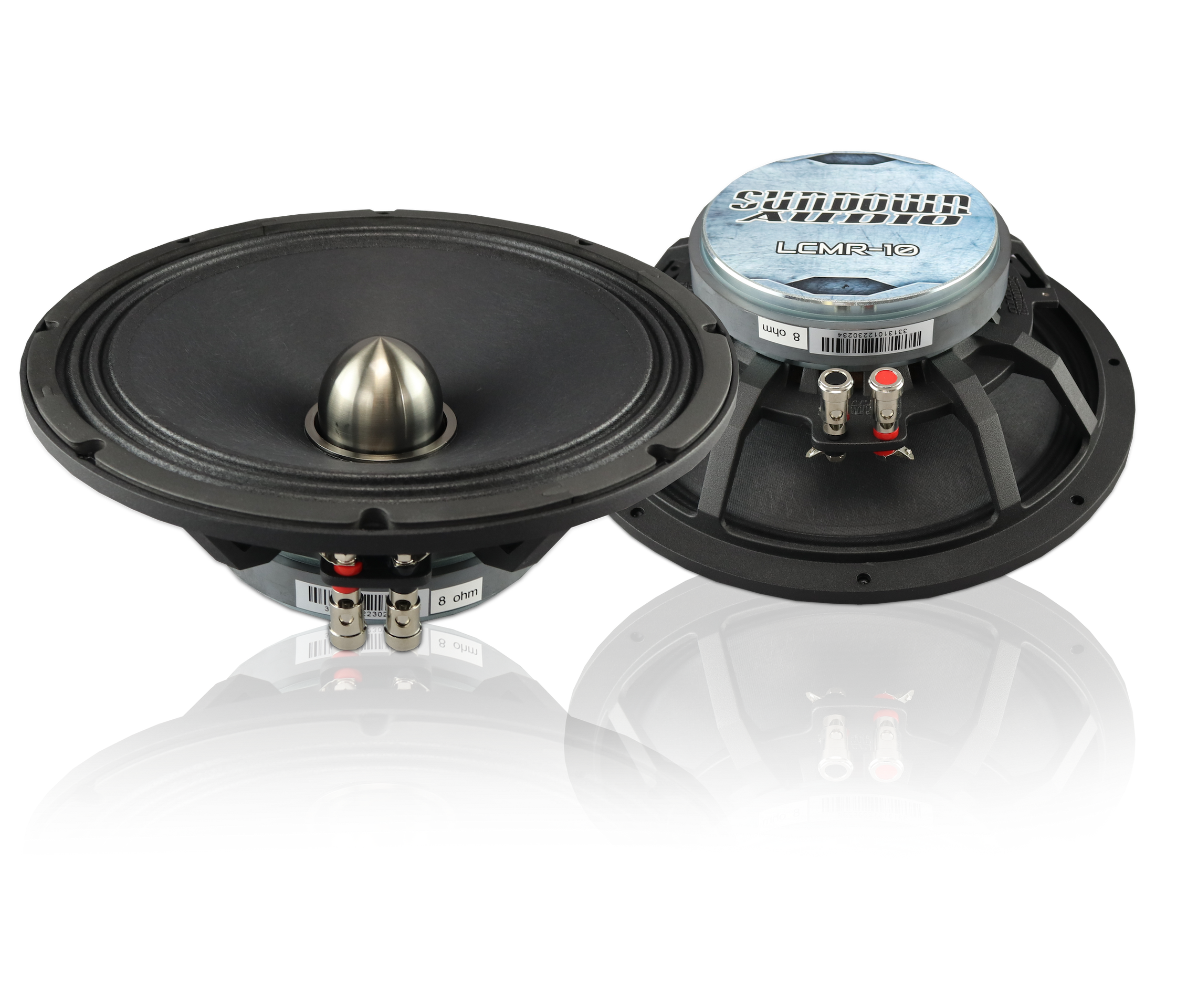

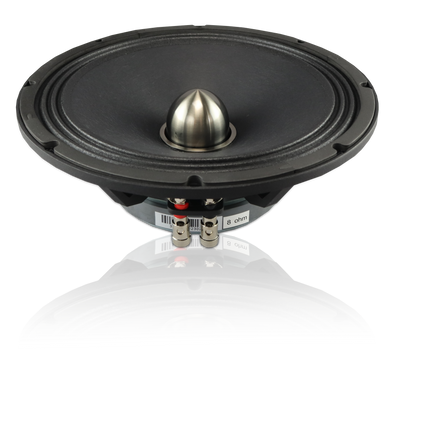

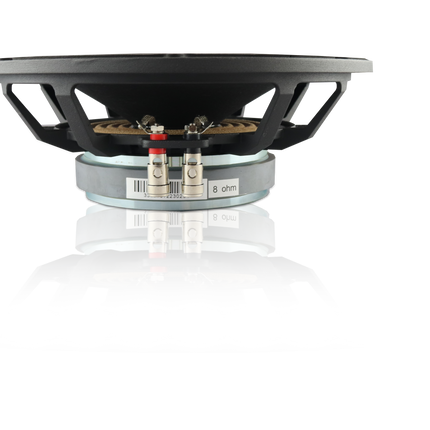

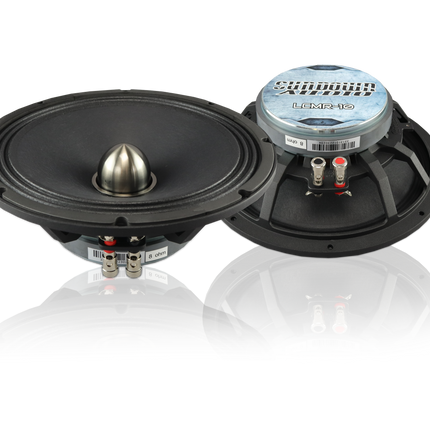

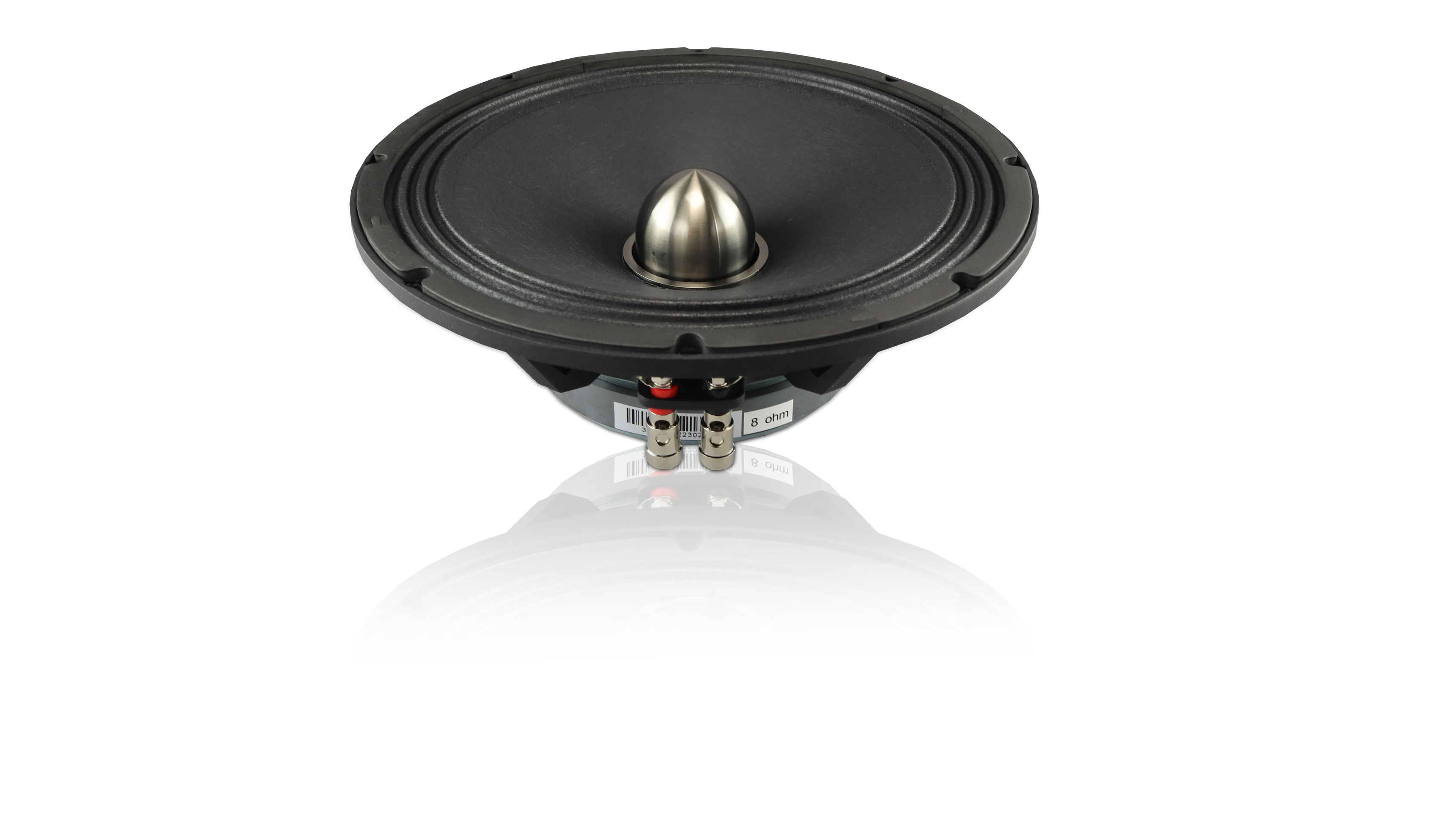

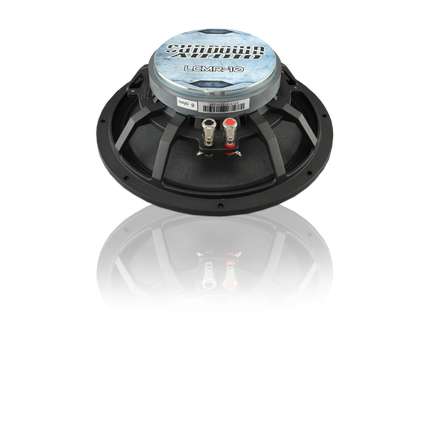

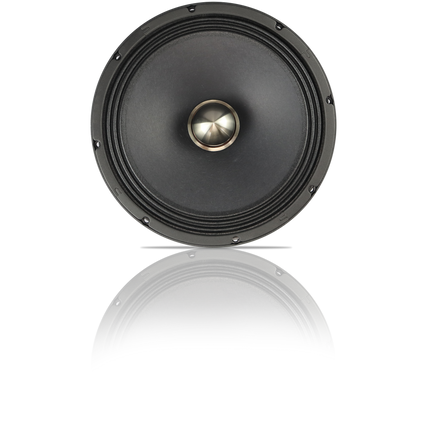

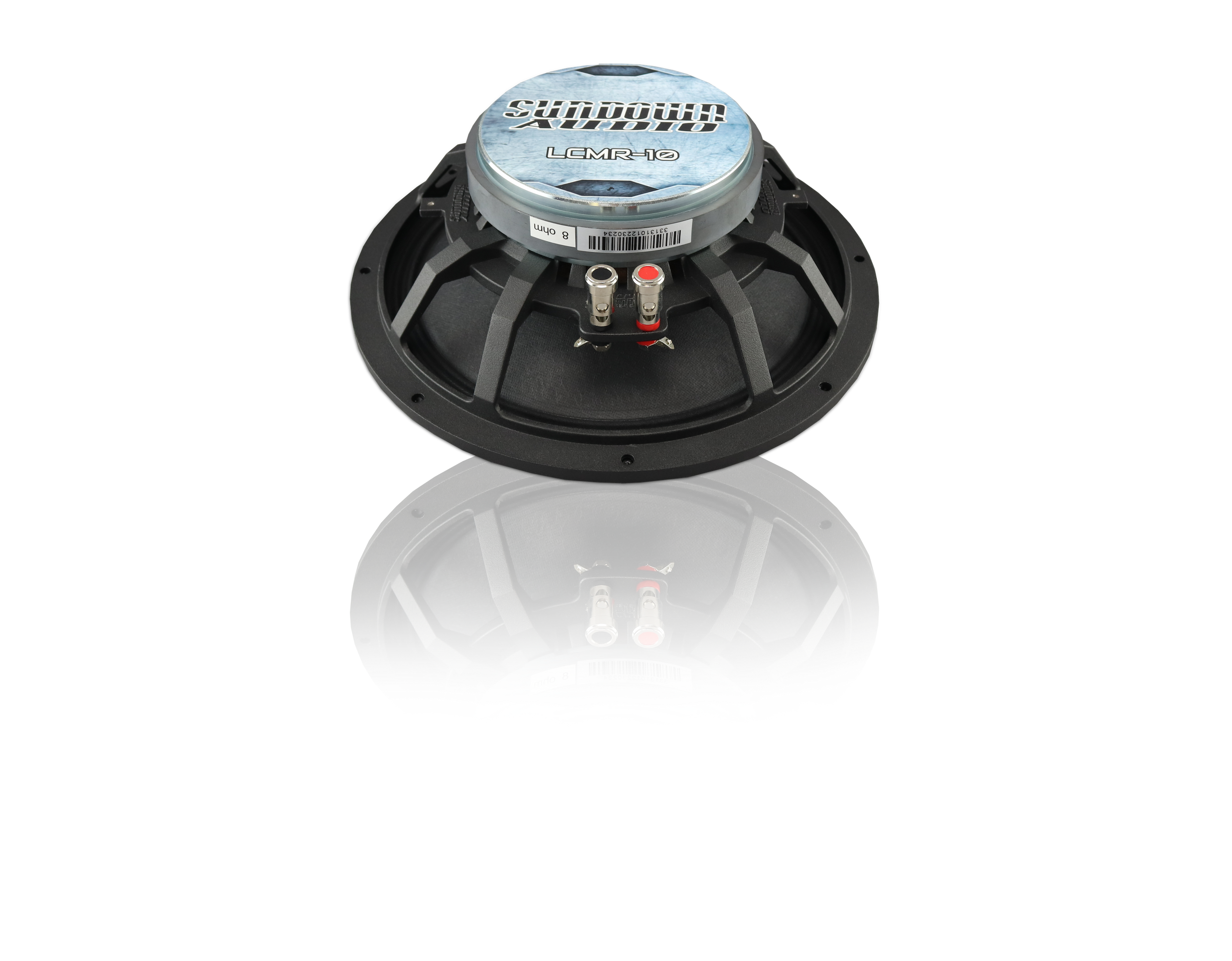

Sundown Audio LCMR-10 120 Watt Pro Audio Midrange Speaker
- Sundown Audio
Sundown Audio LCMR-10 120 Watt Pro Audio Midrange Speaker
- Sundown Audio
Features Sold Individually Power Handling: 120 Watts RMS Impedance: 4/8 Ohm Frequency Range: 20Hz - 10kHz Phase Plug Outside... Read more
$79.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specification | LCMR-10 4 Ω | LCMR-10 8 Ω |
|---|---|---|
| Fs | 69.45 Hz | — |
| Re | 3.3 Ω | — |
| Qms | 13.22 | — |
| Qes | 0.44 | — |
| Qts | 0.42 | — |
| Vas | 49.14 L | — |
| Outer Diameter | 10.23" | 10.23" |
| Cutout Diameter | 9.17" | 9.17" |
| Mounting Depth | 3.25" | 3.25" |
| Nominal Impedance | 4 Ω | 8 Ω |
| Sensitivity | 96.18 dB | 96.18 dB |
| Frequency Range | 20 Hz – 10 kHz | 20 Hz – 10 kHz |
| Cone Material | Paper | Paper |
| Surround Material | Cloth | Cloth |
| Basket Material | Die Alum. | Die Alum. |
| Magnet Material | Ferrite | Ferrite |
| Voice Coil Former | Kapton | Kapton |
| Voice Coil Winding | Copper | Copper |
| Power (RMS) | 120W | 120W |
