Description

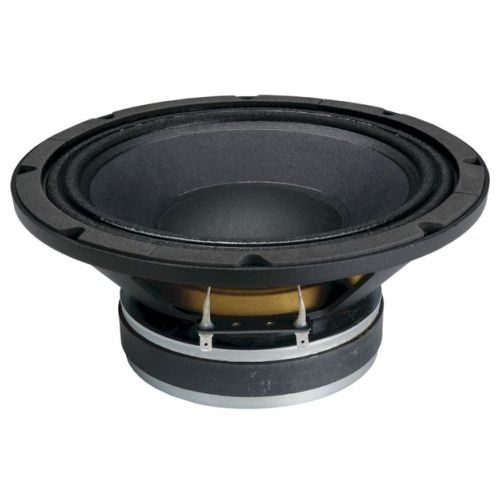

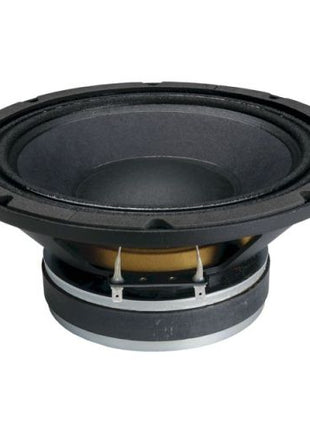

Ciare PW257 Professional 10" Low Frequency Driver: Precision Meets Power
The PW257 is a professional-grade 10-inch low-frequency driver engineered for high-impact sonic performance without compromising clarity. Designed for high-output mid-bass arrays or compact low-frequency systems, it is rated at 400 W AES continuous power handling with 800 W program capability. With a sensitivity of 96 dB, the PW257 efficiently converts power into clean, undistorted output, making it well suited for touring rigs, club installs, and demanding pro-audio environments.
At its core is a massive 3-inch (75 mm) voice coil wound on an aluminum former for efficient heat dissipation. Combined with a Nomex fabric surround and a rigid aluminum basket, this construction ensures excellent thermal control, mechanical stability, and tight, punchy low-end performance defined by an Fs of 57 Hz and an Xmax of 5.5 mm.

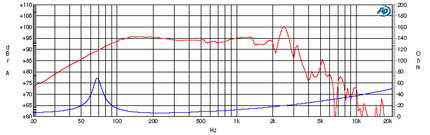

Optimized for vented enclosures, the PW257 delivers a wide frequency range from 50 Hz to 3000 Hz, making it an excellent choice for high-performance 2-way systems or dedicated mid-bass applications with a distinctly professional sound signature.
Data Sheet
PW257 PROFESSIONAL 10" DRIVER SPECIFICATIONS
|
| Nominal Diameter |
250 mm (10 in) |
| Nominal Power Handling (AES) |
400 W |
| Program Power |
800 W |
| Sensitivity (2.83V/1m) |
96 dB |
| Frequency Range |
50 Hz – 3000 Hz |
| Nominal Impedance |
8 ohms |
| Voice Coil Diameter |
75 mm (3 in) |
| Winding Material / Former |
Aluminum |
| Basket Material |
Aluminum |
| Net Weight |
5 kg (11.01 lb) |
THIELE-SMALL PARAMETERS
| ELECTRO-ACOUSTIC PARAMETERS |
| Fs (Resonant Frequency) |
57 Hz |
| Qes / Qms / Qts |
0.33 / 3.2 / 0.3 |
| Vas (Equivalent Volume) |
31 dm³ (1.09 ft³) |
| Xmax (Linear Excursion) |
5.5 mm (0.22 in) |
| Bl (Force Factor) |
15.86 Tm |
| Sd (Effective Cone Area) |
353 cm² (54.72 in²) |
| EBP (Efficiency Bandwidth Product) |
173 |

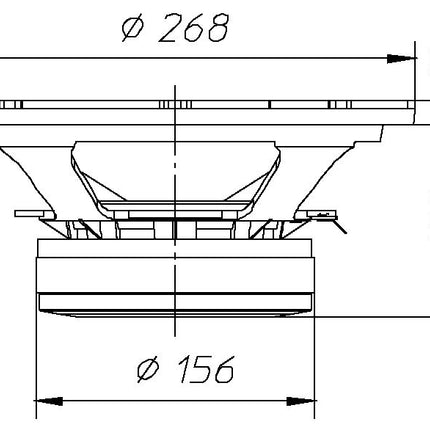

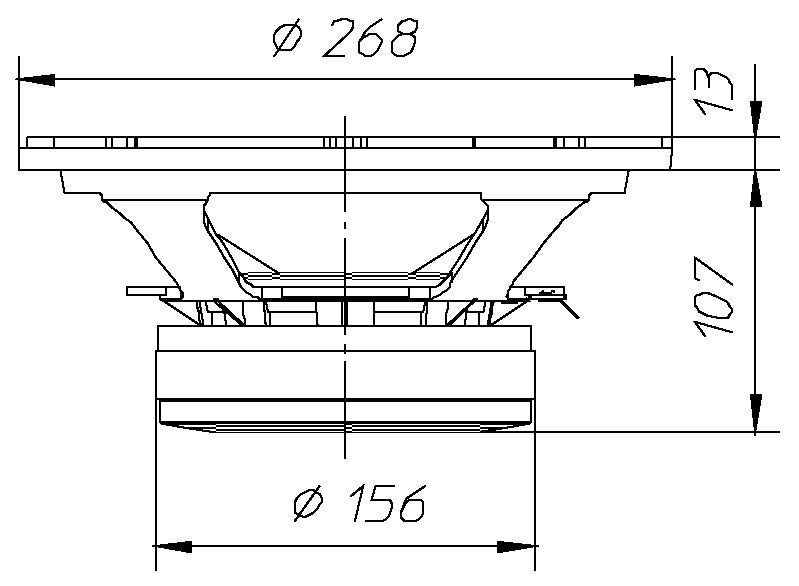

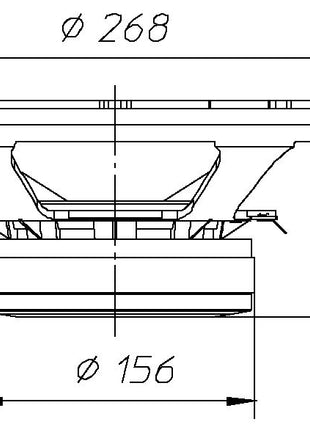

MOUNTING & ENCLOSURE
| MOUNTING & ENCLOSURE INFO |
| Overall Diameter |
268 mm (10.55 in) |
| Baffle Cutout Diameter |
235 mm (9.25 in) |
| Depth |
120 mm (4.72 in) |
| Recommended Enclosure |
Vented Box / 14 dm³ (0.494 ft³) |
| Surround Material |
Nomex Fabric |
