Product Overview: Pro Audio Power for Your Vehicle

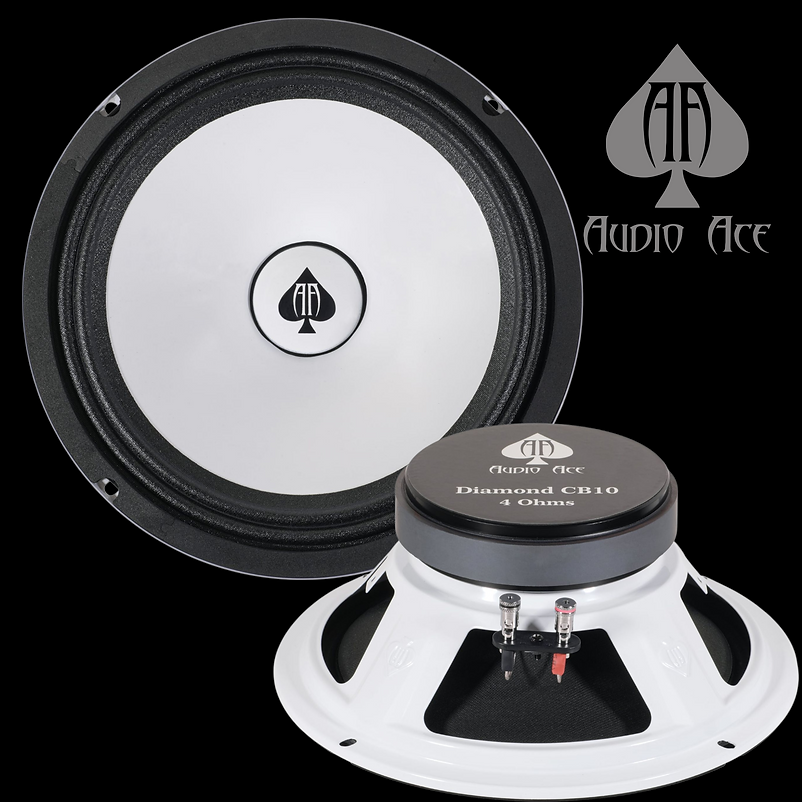

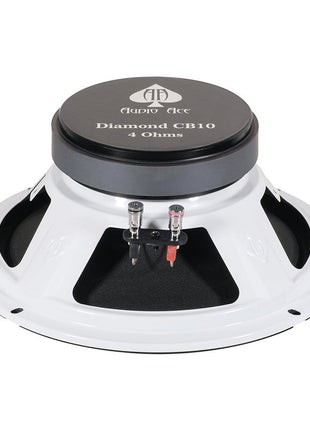

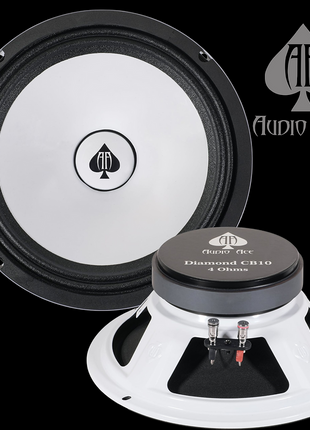

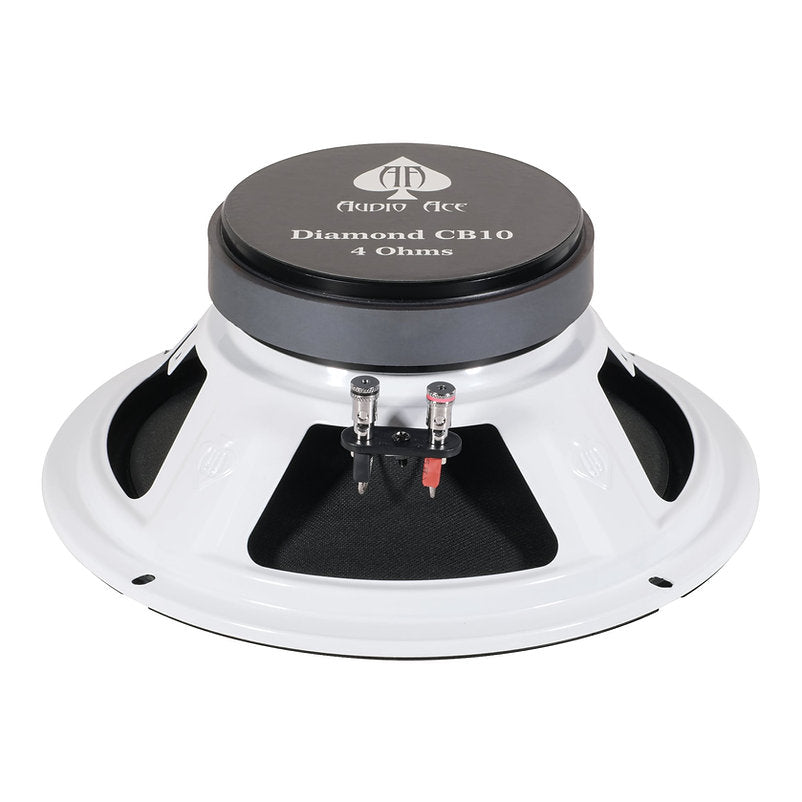

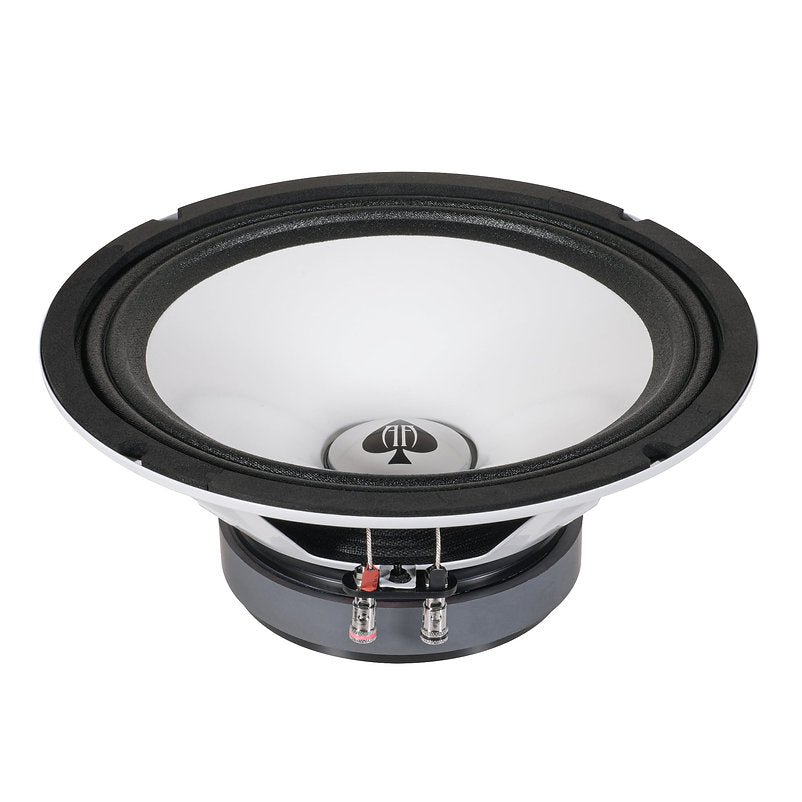

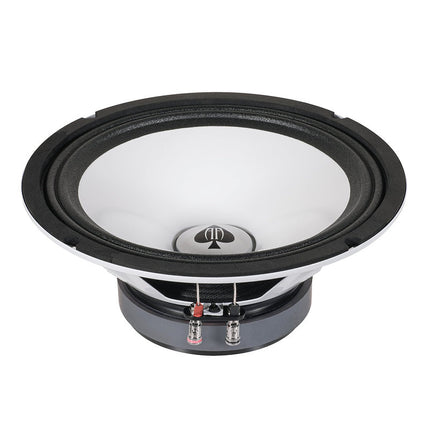

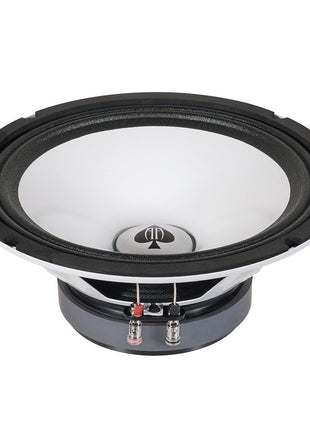

The Audio Ace Diamond CB10 mid-range speaker is specifically engineered to bridge the gap between powerful Pro Audio sound and the constraints of a car audio environment. Sold as a pair, the CB10 is designed for high efficiency and volume, capable of handling 250W RMS and boasting a high 95 dB sensitivity to play louder than most competitors in its class. Featuring a custom-tooled basket with the Audio Ace logo, a 2-inch voice coil, and a robust 40 oz motor, this 10-inch loudspeaker delivers a wide and clear frequency response from 80 Hz to 12 kHz. It is the ideal choice for enthusiasts looking for a dynamic and dominant mid-high frequency presence.
AUDIO ACE DIAMOND CB10 MID RANGE SPECIFICATIONS (PAIR)
|
| Size |
10 Inches |
| RMS Power Handling |
250 Watts |
| Nominal Impedance |
4 Ohm |
| Voice Coil |
2 Inch |
| Motor Weight |
40 oz |
| Sensitivity |
95 dB |
| Frequency Response |
80 - 12k Hz |
| Maximum Excursion (Xmax) |
2.5 |
| Mounting Depth |
3.89 inches |

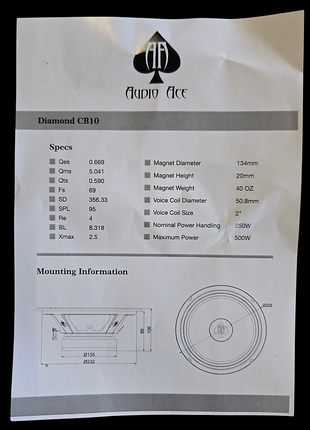

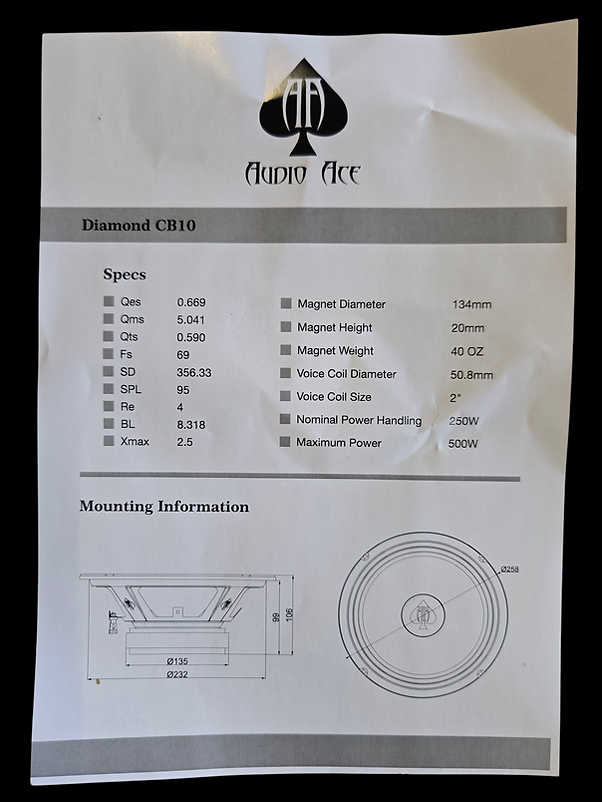

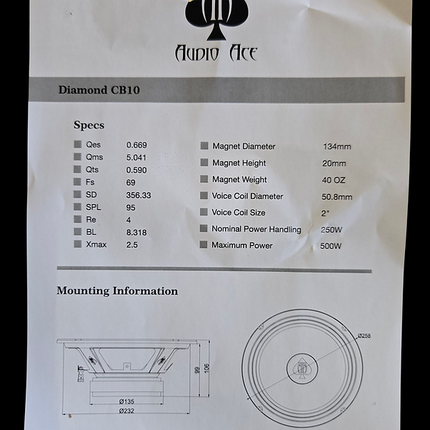

| THIELE-SMALL PARAMETERS |
| Electrical Q (Qes) |
0.669 |
| Mechanical Q (Qms) |
5.041 |
| Total Q (Qts) |
0.590 |
| Resonance Frequency (Fs) |
69 Hz |
| Effective Piston Area (SD) |
356.33 |
| DC Resistance (Re) |
4 Ohms |
| BL Factor (BL) |
8.318 |
