Sundown Audio Subwoofers
-
Sundown Audio Sundown Audio SA-Series v.2 15" Subwoofer
1250 Watts RMS / 2500 Watts Peak Dual 2 or 4 ohm voice coils Vented magnetic gap & pole piece Aluminum 2.75” voice coil former for superior heat dissipation Innovative high velocity, cast aluminum vented frame spacer ring Magnet ID faraday ring for smooth acoustic response High-temperature copper voice coil wire Spring-loaded terminals Stitched-on double “XL” tinsel leads This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level.The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless."The 18" model features a larger diameter motor to drive the higher mass. Enclosure Designs .Zip File
$409.99
-
Sundown Audio Sundown Audio SDDN 12" Limited Edition Competition Subwoofer
3,500 watts RMS Available in 10 through 18-inch versions Dual 1 ohm coils Mega V2 Cone Aluminum 3.3” x 80mm coil Dual 8 AWG terminals with dual-layer tinsel leads Custom cross-cut pole piece with Neodymium cap for increased output and thermal control 5-layer spider 1,336 oz (83.5 lbs) magnet with integrated thermal ventilation Optimized for Ported & 6th order enclosures Carbon cone upgrade available Designed in-house by Sundown Founder Jacob Fuller, the 3,500-watt RMS SDDN is available in 10, 12, 15, and 18-inch models. Each unit boasts a massive 83-pound motor with integrated thermal ventilation, featuring a custom cross-cut pole piece with a Neodymium cap for increased output and thermal control. Sundown’s signature Mega V2 cone is paired with a five-layer spider, a 3.3” x 80mm aluminum voice coil (dual 1-ohm), and dual tinsel leads per eight-gauge terminal.
$1,349.99
-
Sundown Audio Sundown Audio X-Series v.3 10" Subwoofer
2500 Watts RMS / 5000 Watts Peak Dual 1 or 2 ohm voice coil Made for extremely deep bass Triple-stacked magnet 3” voice coil Hyper-extended pole Built to order Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
$649.99
-

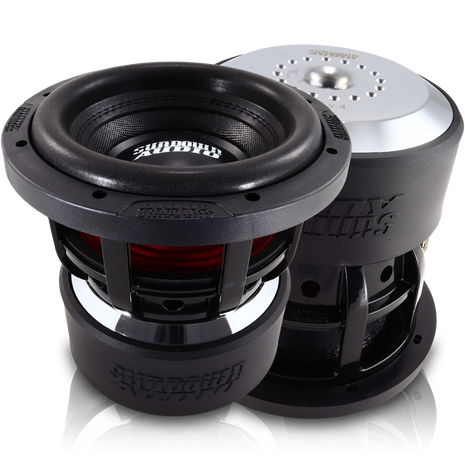

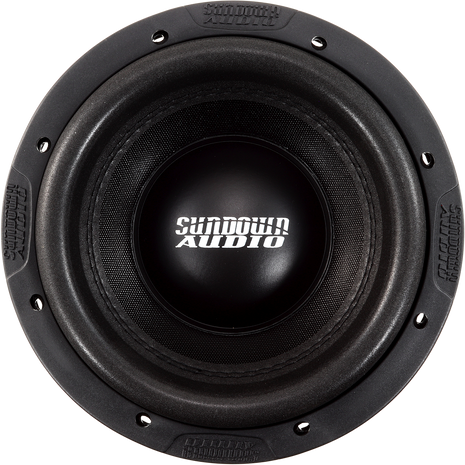

Sundown Audio Sundown Audio X-Series v.4 8" Subwoofer | Dual 2 & 4 Ohm | 2500W Peak Power
The Sundown Audio X-Series v.4 8" Subwoofer delivers unmatched low-end performance in a compact size. Built for enthusiasts who demand real power and precision, this subwoofer combines innovative engineering with the proven reliability of the X-Series lineup.With up to 1250W RMS and 2500W peak power, the Xv4-8 pushes limits while maintaining crystal-clear sound. Its optimized motor structure and high-excursion design provide deep, distortion-free bass that hits hard and stays clean even at high volumes.The X-Series v.4 offers flexibility for any setup, available in Dual 2 Ohm (XV48D2) and Dual 4 Ohm (XV48D4) configurations. Whether you prefer sealed or ported enclosures, it’s tuned for outstanding performance with a recommended port tuning of 32Hz for powerful, accurate bass response.Precision-built from premium materials, this 8" subwoofer is the perfect choice for audiophiles and competitors seeking compact power with uncompromising sound.Key Features: Available in Dual 2Ω (XV48D2) and Dual 4Ω (XV48D4) versions 1250W RMS / 2500W Peak Power handling Optimized for both sealed and ported enclosures High-excursion design (19mm Xmax) for deep, clean bass Compact depth (7.56") for versatile installations Heavy-duty motor (6.88" diameter) for improved cooling and control Recommended port tuning: 32Hz for balanced output Durable construction ensures long-term reliability Technical Specifications : Specification XV48D2 XV48D4 RMS Power 1250W 1250W Peak Power 2500W 2500W Displacement 0.13 cu ft 0.13 cu ft Mounting Depth 7.56" 7.56" Outside Diameter 8.71" 8.71" Cutout Diameter 7.375" 7.375" Motor Diameter 6.88" 6.88" Sealed Enclosure 0.3–0.4 cu ft 0.3–0.4 cu ft Ported Enclosure 0.75–1.0 cu ft 0.75–1.0 cu ft Recommended Port Tuning 32Hz 32Hz Recommended Port Area 12–16 sq in 12–16 sq in Xmax 19mm 19mm RE (ohms) 3.6 6 FS (Hz) 41.29 41.29 QES 0.436 0.497 QMS 1.941 2.3 QTS 0.356 0.409 Sensitivity 80.1 dB 79.8 dB
$399.99
-
Sundown Audio Refurbished Sundown Audio U-Series v.1 12" Subwoofer
The Sundown U Series is our premier “standard suspension” woofer series. It is the most direct replacement for the world famous Z v.3 woofer line which we produced from 2011 to 2016 before launching the “new platform” Z v.4 series. Due to numerous advancements in our design process the U Series is able to deliver performance on-par with the Z v.3 series but at a much lower cost. We start with a double-stacked / 8.66” wide Y35 grade ferrite magnet system coupled to a one-piece, bumped T-Yoke and a 0.6” thick top-plate. Just as with the Z v.3 before it and our other high-end subwoofers we also add a very thick (5mm thickness) aluminum shorting ring inside the magnets to reduce static inductance and level out inductance over stroke. The U series motor also features a 0.6” long pole-extension to keep the coil under control at high levels of excursion. The voice coil is a 2.36” long / 3” diameter 4-layer aluminum winding / aluminum former unit – which is the same coil we use in our X v.2 series and, thus, the U series has the same 1500-watt RMS ratings. The coil temperature is kept in check by a heavily smoothed / high-velocity pole-vent and a series of ten direct air-gap vents in the back plate. The U series also features newly tooled cast aluminum vent rings in between the frame and top plate to effectively exchange air at a high velocity over the voice coil beneath the spider landing. The U series features an all-new cast aluminum frame series to the Sundown line which allows for taller cones than the older frames used on the Z v.3 series. The taller cones provide enhanced coil stability and increased mechanical excursion capability. We also tooled matching cast-aluminum surround clamps for the U series to ensure durability in the most demanding situations. The surrounds and cone bodies have been fully custom tooled especially for the U series and are stronger / support more excursion than the Z v.3 series cones and surrounds. The new cone bodies also feature an indentation for the same wide-flange, ultra-strong dust caps as our new platform subwoofers. If you are looking for a woofer that sounds similar to the SA series but handles significantly more power… the U series is exactly what you need. It has been designed to live up to the reputation earned by our Z v.3 series both in terms of every-day music enjoyment and SPL competition. Specifications Black Aluminum 3” voice coil former for superior heat dissipation High Temperature Round-Wire CCAW voice coil with high-temp black adhesive Double stitched surround Heavy duty cast basket Spring loaded terminals accept up to 8 gauge Stitched-on double-XL tinsel leads Rear vented pole piece Rear drilled gap-venting Innovative high-velocity cast aluminum vented frame spacer ring Magnet ID shorting ring Top-Plate Cooling Channels Cast Aluminum surround bolt-on rings Optimized for small ported or bandpass enclosures Specifications T/S SPECS U 12" D2 U 12" D4 RE (Ohms) 3.8 6.1 FS (Hz) 42.2 40.0 VAS (L) 17.9 12.3 Qes 0.30 0.38 Qms 2.67 2.93 Qts 0.27 0.34 Le (mH) 2.41 3.67 BL (NA) 31.2 33.7 Mms (Grams) 290.2 284.5 Cms (uM/N) 0.05 0.06 Sens (dB @ 1w/1m) 88.4db 85.0db Suggested SD-2 10" Sealed 0.5 ft^3 Ported 1.0 ft^3 Displacement 0.11 ft^3 Depth 4.75" Outside Diameter 10 1/2" Cut-Out 9 1/4" Recommended Tuning 32hz Recommended Port Area 16 in^2
$369.99 $204.99
-
Sundown Audio Sundown Power Sports PSE-6.5 6.5" 250W Subwoofer
COMBO DEAL INCLUDES:4 x BPS-8 8" Pro Sound Co-Axial Speakers1 x SAM-100.4 400w 4 Channel Micro Amplifier-----------------------BPS-8 8" Pro Sound Co-Axial Speaker Information: Frequency Range 100hz - 18khz 4 Ohm 150w RMS 94dB Sensitivity [1W/1M] Cutout Diameter: 7.32" Mounting Depth: 4.25" SAM-100.4 400w 4 Channel Micro Amplifier Information:Our SAMv.2 amplifiers are ideal for all your powersports needs. It is a micro amplifier to fit in tight spaces but don’t let its size fool you, they pack some big power. It is rated IP67 waterproof to withstand full submersion when getting wild off-road or when its time to clean up when the fun is done. The multi-channel amps have built in Bluetooth so a source unit is not needed just sync to your phone and enjoy. When your ready to get serious and add subwoofers the mono-block amplifiers link right to your multi-channel RCA for an easy install.
$149.99
-
Sundown Audio Sundown Audio U-Series 8" Subwoofer D2/D4
750W Watts RMS / 1500 Watts Peak Dual 2 or 4 ohm voice coils Optimized for small ported enclosures Aluminum 2.25” voice coil former for superior heat dissipation High-temperature copper voice coil Double stitched surround Heavy-duty cast basket Spring-loaded terminals accept up to 8-gauge wire Stitched-on heavy-duty tinsel leads Solid pole with vent channels and aluminum shorting ring cap Rear gap-venting Top-Plate Cooling Channels The U-8 can be thought of as an SA-8 v3 on performance boosters. Everything there is to love about the SA-8 v3 just with more power handling, more x-max, and more output potential.The specially designed motor is mated to a custom tooled and patented (US Patent D691595) frame which allows for a larger spider and superior clearances to nearly any other 8" woofer on the market today. The U-8 features a full 18mm of one-way linear excursion and mechanical capacity in excess of double the linear limits (around 2.5” peak-to-peak) to ensure that mechanical failures are nearly impossible. As with the SA-8 v.3 it features a surround that mimics the geometry of our large Mega-Roll v.2 surrounds for incredible linearity.
$349.99
-
Sundown Audio Sundown Audio SDDN 10" Limited Edition Competition Subwoofer
3,500 watts RMS Available in 10 through 18-inch versions Dual 1 ohm coils Mega V2 Cone Aluminum 3.3” x 80mm coil Dual 8 AWG terminals with dual-layer tinsel leads Custom cross-cut pole piece with Neodymium cap for increased output and thermal control 5-layer spider 1,336 oz (83.5 lbs) magnet with integrated thermal ventilation Optimized for Ported & 6th order enclosures Carbon cone upgrade available Designed in-house by Sundown Founder Jacob Fuller, the 3,500-watt RMS SDDN is available in 10, 12, 15, and 18-inch models. Each unit boasts a massive 83-pound motor with integrated thermal ventilation, featuring a custom cross-cut pole piece with a Neodymium cap for increased output and thermal control. Sundown’s signature Mega V2 cone is paired with a five-layer spider, a 3.3” x 80mm aluminum voice coil (dual 1-ohm), and dual tinsel leads per eight-gauge terminal.
$1,299.99
-
Sundown Audio Sundown Audio SDDN 15" Limited Edition Competition Subwoofer
3,500 watts RMS Available in 10 through 18-inch versions Dual 1 ohm coils Mega V2 Cone Aluminum 3.3” x 80mm coil Dual 8 AWG terminals with dual-layer tinsel leads Custom cross-cut pole piece with Neodymium cap for increased output and thermal control 5-layer spider 1,336 oz (83.5 lbs) magnet with integrated thermal ventilation Optimized for Ported & 6th order enclosures Carbon cone upgrade available Designed in-house by Sundown Founder Jacob Fuller, the 3,500-watt RMS SDDN is available in 10, 12, 15, and 18-inch models. Each unit boasts a massive 83-pound motor with integrated thermal ventilation, featuring a custom cross-cut pole piece with a Neodymium cap for increased output and thermal control. Sundown’s signature Mega V2 cone is paired with a five-layer spider, a 3.3” x 80mm aluminum voice coil (dual 1-ohm), and dual tinsel leads per eight-gauge terminal.
$1,399.99
