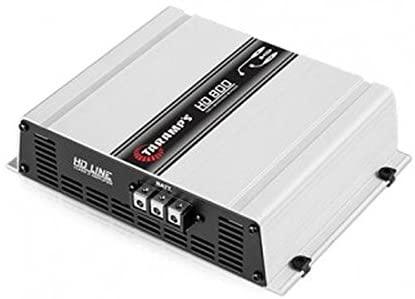

Taramps HD800 HD Compact 800 Watt 1-Ohm Mono Class-D Car Audio Amplifier/Amp

by Taramps
Original price $299.95 - Original price $299.95
Original price
$299.95
$299.95 - $299.95
Current price $299.95

The launch of Taramp's comes down to a sophisticated amplifier with modern design, able to run a complete sound system with top quality sound and high definition, giving the user the perception of minute details present in the music.
The HD 800 has 1 crossover that provides the freedom to work independently adjustments High Pass (HPF) ranging from 10 to 50 Hz and low pass (LPF) with a range of 50 Hz to 22 KHz, providing more quality acute and high frequencies, and keeps the Bass Boost function, highlighting the frequency of severe sub 0-10 dB at 50 KHz. The new model amplifier Taramp's can be found in versions 1 ohm and 2 ohms, both with 1 channel LED monitor with clip indicators and distortion, and security systems that act as output protection (short) and low and high strain.
Using digital technology (Class D) and all the features of the HD line, while running the sound system, the HD 800 model demonstrates its efficiency with less heat, taking much of the energy to achieve superior performance and sonic performance.

Number of Channels: 1
Power 13.8 VDC - 2 ohm: 959W RMS
Power 13.8 VDC - 4 ohm: 547W RMS
Power 13.8 VDC - 8 ohm: 297W RMS
Power 12.6 VDC - 2 ohm: 800W RMS
Power 12.6 VDC - 4 ohm: 456W RMS
Power 12.6 VDC - 8 ohm: 248W RMS
Input Sensitivity: 250mV @ (-9.78 dBm)
Total Harmonic Distortion ( THD): 0.3%
Frequency Response: 10Hz to 15KHz
Crossover: -
HPF (High Pass Filter): 10Hz to 50Hz (-12dB / 8th) Variable
LPF (Low Pass Filter): 50Hz to 15KHz (-12dB / 8th) Variable
Bass Boost:0-10 dB (50Hz)
Input Impedance: 18K OHMS
System Protection: Short on Output Voltage / High Power / Low
Voltage Low Power: 10.5 VDC
Voltage Maximum Supply: 16VDC
Consumption at Rest: 1.10 Amp
Maximal Musical @ 12.6 VDC: 38.5 Amp
Maximum Consumption in sinusoidal signal (1kHz) @ 12.6 VDC: 77 Amp
Dimensions (WxHxD): 226 X 55 X 187mm
Weight: 1.46 kg
