Taramps

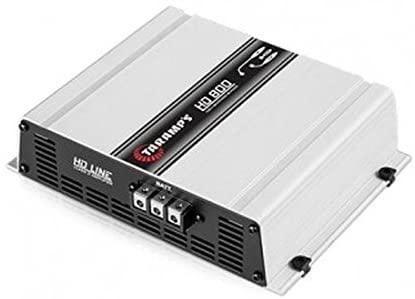

The launch of Taramp's comes down to a sophisticated amplifier with modern design, able to run a complete sound system with top quality sound and high definition, giving the user the perception of minute details present in the music.The HD 800 has 1 crossover that provides the freedom to work independently adjustments High Pass (HPF) ranging from 10 to 50 Hz and low pass (LPF) with a range of 50 Hz to 22 KHz, providing more quality acute and high frequencies, and keeps the Bass Boost function, highlighting the frequency of severe sub 0-10 dB at 50 KHz. The new model amplifier Taramp's can be found in versions 1 ohm and 2 ohms, both with 1 channel LED monitor with clip indicators and distortion, and security systems that act as output protection (short) and low and high strain.Using digital technology (Class D) and all the features of the HD line, while running the sound system, the HD 800 model demonstrates its efficiency with less heat, taking much of the energy to achieve superior performance and sonic performance. Number of Channels: 1Power 13.8 VDC - 2 ohm: 959W RMSPower 13.8 VDC - 4 ohm: 547W RMSPower 13.8 VDC - 8 ohm: 297W RMSPower 12.6 VDC - 2 ohm: 800W RMSPower 12.6 VDC - 4 ohm: 456W RMSPower 12.6 VDC - 8 ohm: 248W RMSInput Sensitivity: 250mV @ (-9.78 dBm)Total Harmonic Distortion ( THD): 0.3%Frequency Response: 10Hz to 15KHzCrossover: -HPF (High Pass Filter): 10Hz to 50Hz (-12dB / 8th) VariableLPF (Low Pass Filter): 50Hz to 15KHz (-12dB / 8th) VariableBass Boost:0-10 dB (50Hz)Input Impedance: 18K OHMSSystem Protection: Short on Output Voltage / High Power / LowVoltage Low Power: 10.5 VDCVoltage Maximum Supply: 16VDCConsumption at Rest: 1.10 AmpMaximal Musical @ 12.6 VDC: 38.5 AmpMaximum Consumption in sinusoidal signal (1kHz) @ 12.6 VDC: 77 AmpDimensions (WxHxD): 226 X 55 X 187mmWeight: 1.46 kg
