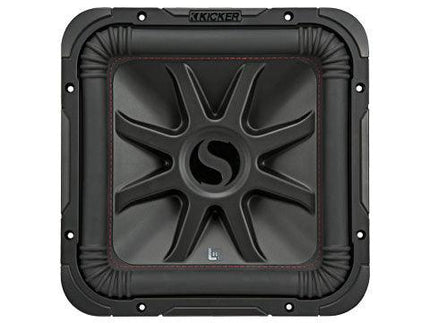

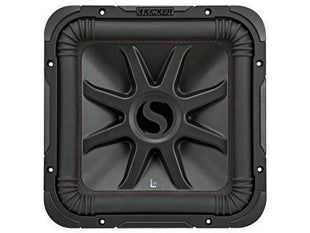

Kicker 45L7R124 1200W Dual 4 Ohm 12" Subwoofer/Sub Solobaric L7R L7 L7R124

Description

The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every watt!

The Original

Originator, n. (əˈrijəˌnādər): see KICKER

The engineers at KICKER invented the original square sub right here in Stillwater, Oklahaoma. Designed to give you more bass, yet take up no more air space than a standard round sub. Welcome to the incredible world of the L7R!

  • Dual Four-Ohm Voice Coil
  • Wrap Around Gasketing
  • Patented Ribbed Corners
  • Injection-Molded SoloKon™ Woofer
  • 360-Degree Back Bracing
  • UniPlate™ Back Plate And Pole Piece
  • Bumped Back Plate
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Steel Basket With Spoke Design
  • Nickel Plated Speaker Terminals

The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.

Specifications

SIZE [in, cm]:
12, 30

IMPEDANCE [Ohms]:
4 DVC

p>POWER WATTS [peak/RMS]:
1200/600

SENSITIVITY [dB 1w/1m]:
86.7

MOUNTING DEPTH [in, cm]:
6-7/8, 17.4

MOUNTING DIAMETER [in, cm]:
11-1/16, 28.1

MIN SEALED BOX VOL [cu. ft, L]:
.88, 24.92

MAX SEALED BOX VOL [cu. ft, L]:
2, 56.64

MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6

MAX VENTED BOX VOL [cu. ft, L]:
3.25, 92

What's in the Box:
1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers

Kicker 45L7R124 1200W Dual 4 Ohm 12" Subwoofer/Sub Solobaric L7R L7 L7R124

Product form

The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every... Read more

$299.99  $269.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationsKicker 45L7R124 Solo-Baric L7R 12" D4
    Sensitivity86.7 dB 1W/1m
    Woofer Size12 in
    Nominal ImpedanceDual 4 Ω
    Mounting Depth6-7/8 in
    Mounting Diameter11-1/16 in
    Peak Power Handling1200 W
    Recommended Amplifier Power600 W
    Enclosure SpecsKicker 45L7R124 Solo-Baric L7R 12" D4
    Min Sealed Volume.88 ft³
    Max Sealed Volume2.0 ft³
    Min Vented Volume1.75 ft³
    Max Vented Volume3.25 ft³

    Description

    The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every watt!

    The Original

    Originator, n. (əˈrijəˌnādər): see KICKER

    The engineers at KICKER invented the original square sub right here in Stillwater, Oklahaoma. Designed to give you more bass, yet take up no more air space than a standard round sub. Welcome to the incredible world of the L7R!

    • Dual Four-Ohm Voice Coil
    • Wrap Around Gasketing
    • Patented Ribbed Corners
    • Injection-Molded SoloKon™ Woofer
    • 360-Degree Back Bracing
    • UniPlate™ Back Plate And Pole Piece
    • Bumped Back Plate
    • Thick Tinsel Leads
    • Large Ceramic Magnet
    • Steel Basket With Spoke Design
    • Nickel Plated Speaker Terminals

    The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.

    Specifications

    SIZE [in, cm]:
    12, 30

    IMPEDANCE [Ohms]:
    4 DVC

    p>POWER WATTS [peak/RMS]:
    1200/600

    SENSITIVITY [dB 1w/1m]:
    86.7

    MOUNTING DEPTH [in, cm]:
    6-7/8, 17.4

    MOUNTING DIAMETER [in, cm]:
    11-1/16, 28.1

    MIN SEALED BOX VOL [cu. ft, L]:
    .88, 24.92

    MAX SEALED BOX VOL [cu. ft, L]:
    2, 56.64

    MIN VENTED BOX VOL [cu. ft, L]:
    1.75, 49.6

    MAX VENTED BOX VOL [cu. ft, L]:
    3.25, 92

    What's in the Box:
    1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers
