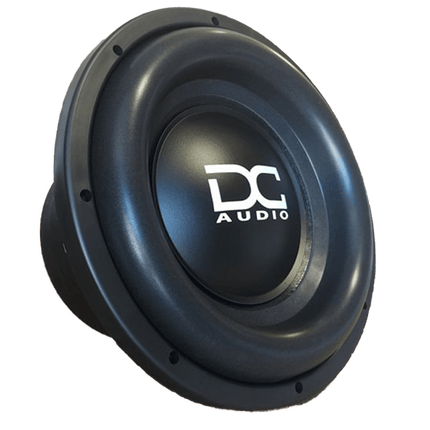

DC Audio Level 4 12" Dual-2-Ohm 1500W RMS / 3000W Peak Car Audio Subwoofer/Sub

$649.99 USD
$649.99 USD
Sale Sold out
Shipping calculated at checkout.

Free Lanyard and Stickers With Every Purchase

Full Manufacturer Warranty On All Products

Almost Out Of Stock, Order Now!
  • Multiple Financing Options
  • Expert Support Before and After Purchase
  • Free Shipping On Orders $75+
  • Full Warranty On Every Product

About the Product

The Level 4 m3 was designed to take even more power and get even louder than the m2. With fantastic power handling and smashing lows its hard to beat.

The Level 4 sub is a large triple stacked motor with a chrome top plate and T yoke yielding 23.5mm of X-Max.

Furthermore, you get the upgraded triple progressive spiders, cone, surround, 3" coil, cast basket, push terminals and upgraded lead wire sewn to the spider. This sub is rated at 1500w RMS and 3000w peak.

Sub Size 10" 12" 15" 18"
Mounting Depth 6.25" 6.75" 8" 9.5"
Mounting Hole Diameter 9.25" 11" 14" 16.75"
Outside Driver Diameter 11.0" 12.5" 15.7" 18.5"
Motor Width 7.75" 7.75" 7.75" 7.75"
Weight 32lbs 33lbs 33.5lbs 36lbs
VC Diameter 3" 3" 3" 3"
Displacement .16³ ft .18³ ft .21³ ft .26³ ft
Magnet Weight 29lbs 29lbs 29lbs 29lbs
Power Handling RMS/Peak 1500 / 3000 1500 / 3000 1500 / 3000 1500 / 3000
Impedance (Ohm) D1 or D2 D1 or D2 D1 or D2 D1 or D2
Sd 324cm² 481cm² 823cm² 1217cm²
Vas 12.42 liters 27.38 liters 80.16 liters 175.29 liters
Cms .085 mm/N .085 mm/N .085 mm/N .085 mm/N
Mms 184.5 g 207.53 g 318.5 g 427.53 g
Fs 40.2 Hz 37.9 Hz 30.6 Hz 26.4 Hz
BL 19.18 NA 19.18 NA 19.18 NA 19.18 NA
Re 3.82 Ohm 3.82 Ohm 3.82 Ohm 3.82 Ohm
Le 3.78 mH 3.78 mH 3.78 mH 3.78 mH
Qms 7.77 8.24 10.2 11.82
Qes .49 .52 .644 .746
Qts .461 .489 .60 .701
Xmax 23.5 mm 23.5 mm 23.5 mm 23.5 mm
Ref SPL @ 1 watt 84 dB 86.4 dB 87.4 dB 88.2 dB
Suggested Sealed .75³ ft 1³ ft 2.75³ ft 4³ ft
Suggested Ported 1.0³ ft 1.5³ ft 3.0³ ft 5.5³ ft

Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Triple 8” OD semi cup progressive roll spider

• Extra heavy duty interweaved tinsel lead wire sewn to spider

• Cast aluminum black frame

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• Chrome spring loaded push terminals

• 3” Hi-temp Aluminum voice coil wound on black anodized voice coil former
