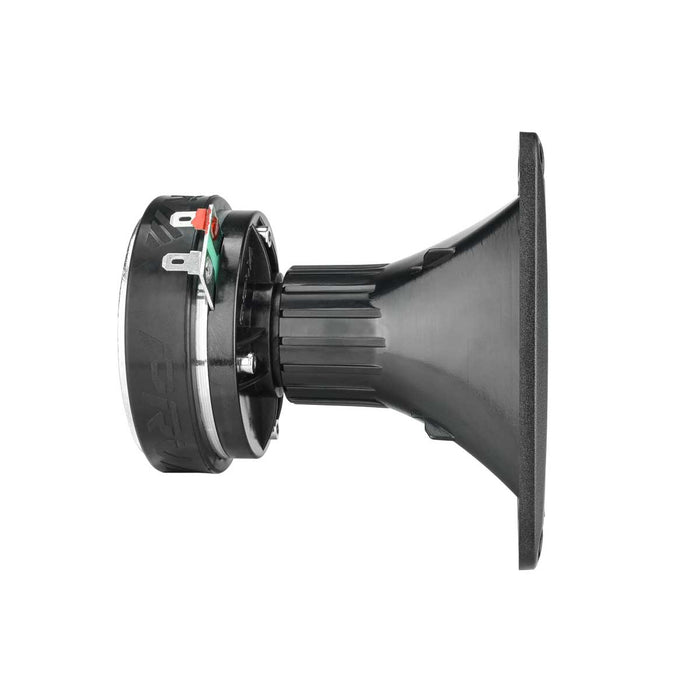

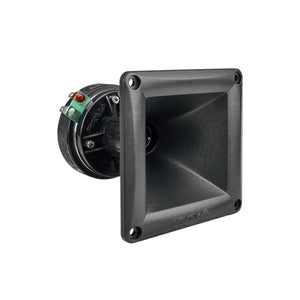

PRV Audio WG175Ph 1" Exit 150W Phenolic Compression Driver+Horn Combo
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
The WG175Ph compression driver combo is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn. The WG175Ph is a lightweight driver that weighs just 1.92 lbs, and yet offers you outstanding response through 19kHz.
Highlights
- Throat Diameter: 1″
- Type: Combo
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 75 Watts
- Program Power: 150 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1” (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 75 Watts |
| Program Power | 150 Watts |
| Sensitivity 2.83V at 1m | 108 dB |
| Recommended Hi Pass Crossover****For Full Power Handling | 3000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 – 19,000 Hz |
| Voice Coil Diameter | 1″ (25.4 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic Resin |
| Flux Density | 1.02 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Depth | 4.59” (116.7 mm) |
| Mounting Depth | 4.33” (110 mm) |
| Overall Width | 4.53” (115 mm) |
| Overall Height | 4.53” (115 mm) |
| Net Weight | 1.89 lbs (0.86 kg) |
| Shipping Weight | 2.09 lbs (0.95 kg) |
| Carton Dimensions W x L x H | 4.72” x 4.72” x 5.31” (120 x 120 x 135 mm) |
