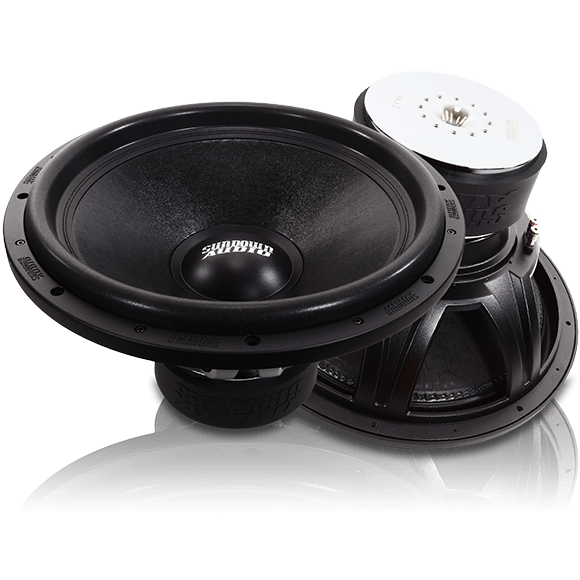

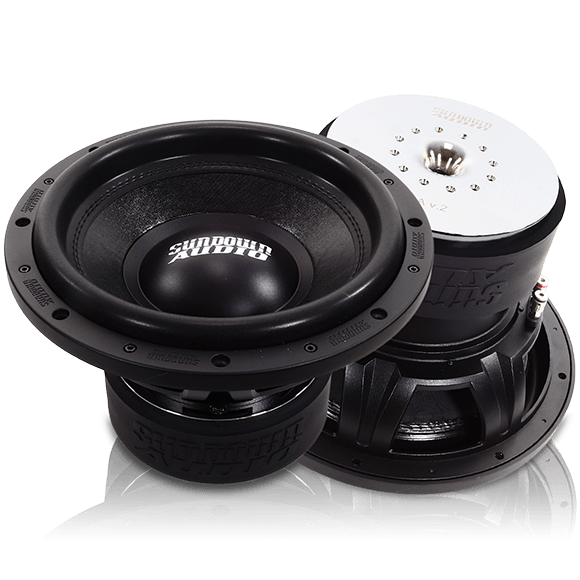

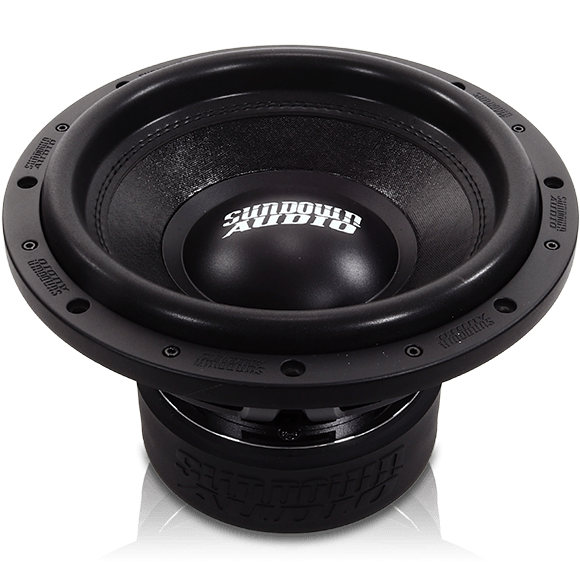

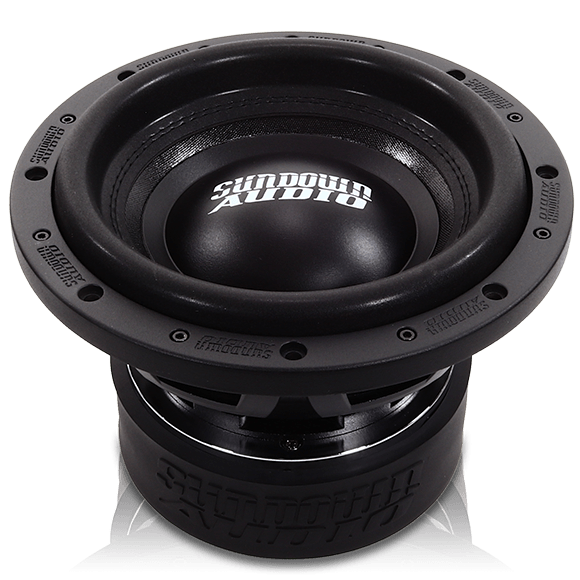

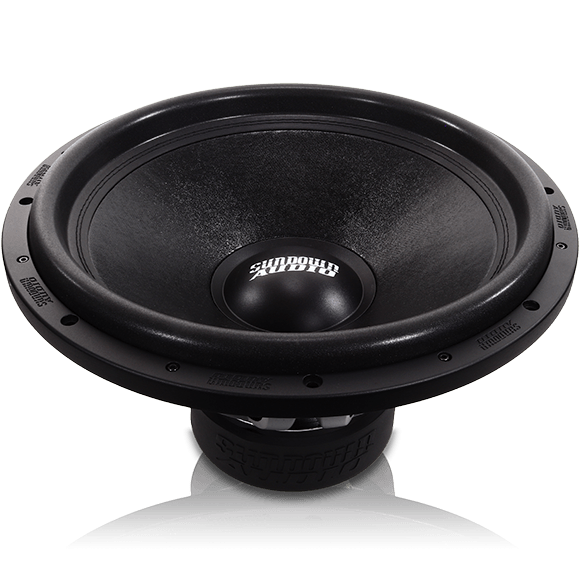

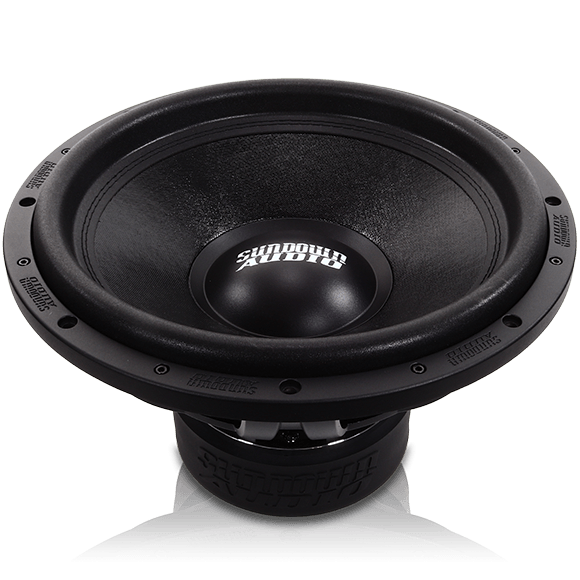

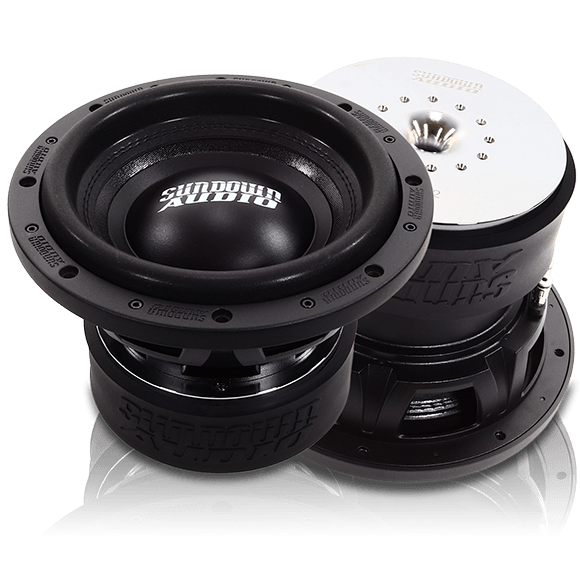

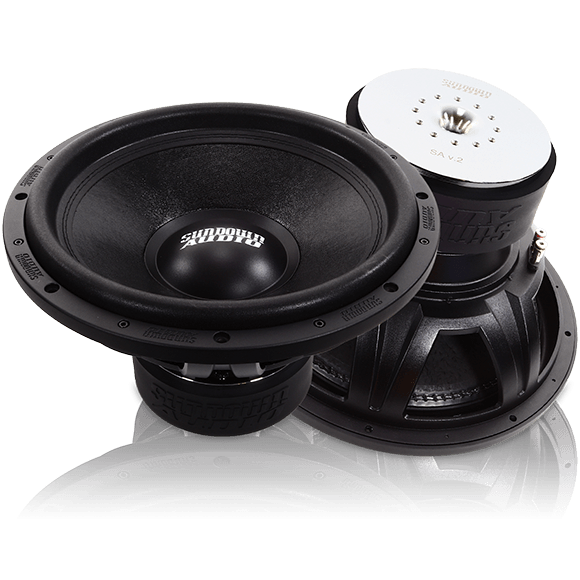

SA-Series v2 Subwoofers

  1250 Watts RMS / 2500 Watts Peak Dual 2 or 4 ohm voice coils Vented magnetic gap & pole piece Aluminum 2.75” voice coil former for superior heat dissipation Innovative high velocity, cast aluminum vented frame spacer ring Magnet ID faraday ring for smooth acoustic response High-temperature copper voice coil wire Spring-loaded terminals Stitched-on double “XL” tinsel leads This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level. The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless." The 18" model features a larger diameter motor to drive the higher mass. Enclosure Designs .Zip File

Read more less
