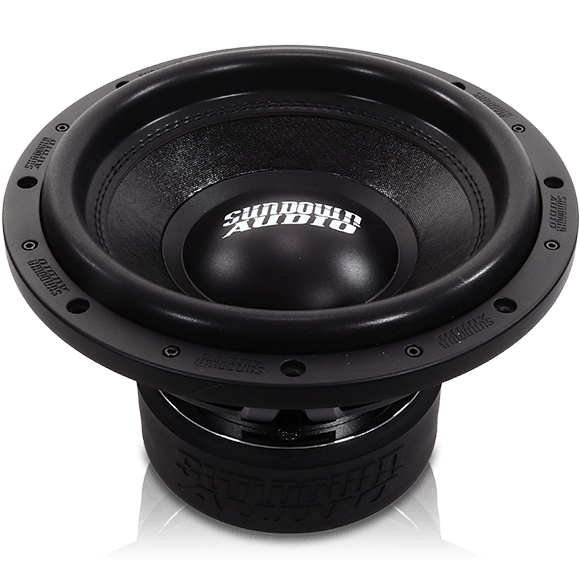

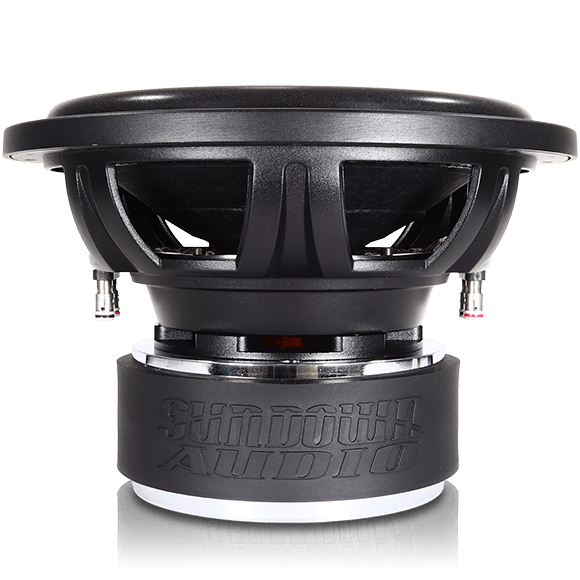

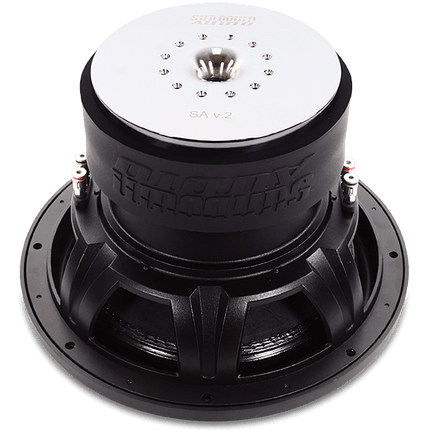

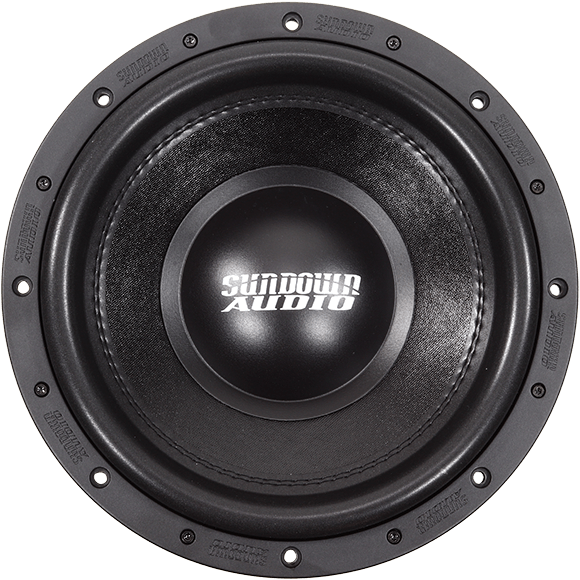

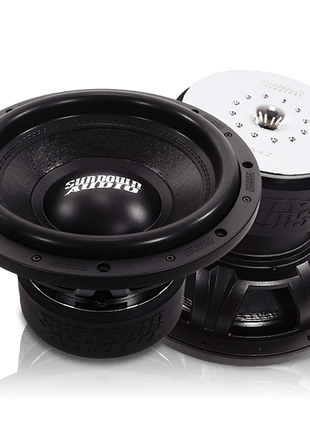

SA-Series v.2 12" Subwoofer
- Sundown Audio

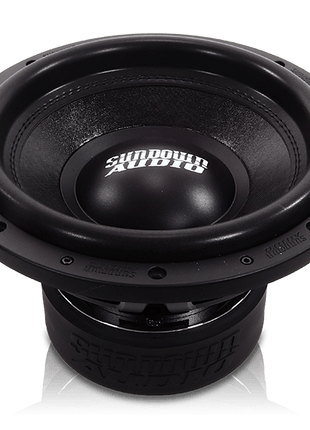

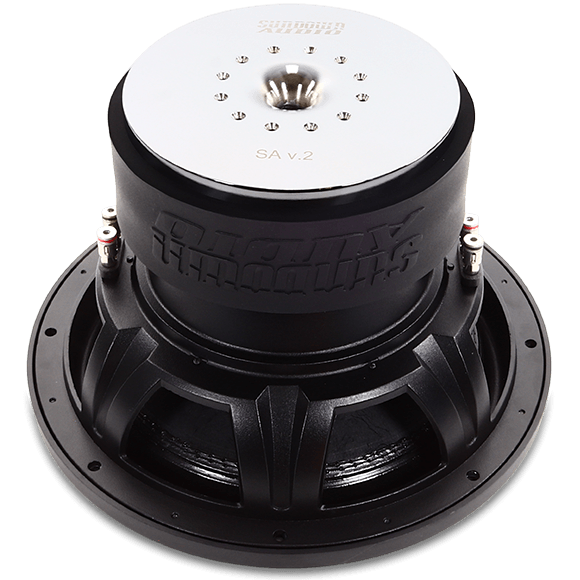

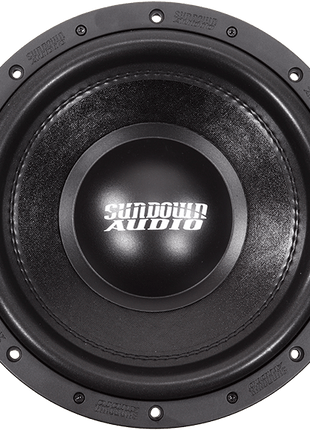

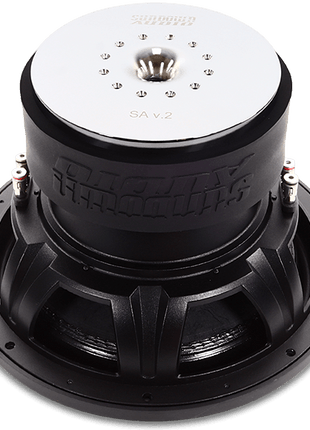

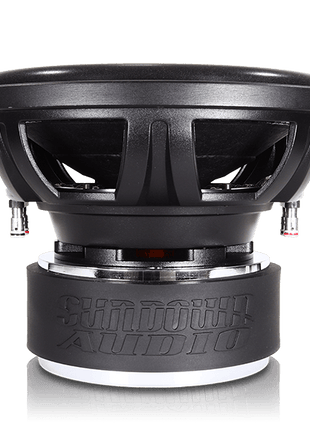

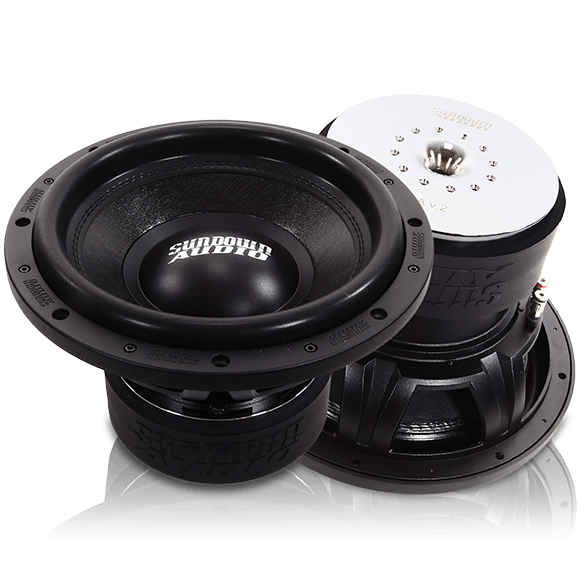

SA-Series v.2 12" Subwoofer
- Sundown Audio
1250 Watts RMS / 2500 Watts Peak Dual 2 or 4 ohm voice coils Vented magnetic gap & pole... Read more
$409.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specification | SA-12v2 D2 | SA-12v2 D4 |
|---|---|---|
| Fs | 38.89 Hz | 33.60 Hz |
| Re | 3.91 Ω | 6.35 Ω |
| Qms | 4.5133 | 4.0178 |
| Qes | 0.5070 | 0.4996 |
| Qts | 0.4558 | 0.4443 |
| Mms | 256.55 g | 321.84 g |
| Cms | 65.29 µm/N | 69.70 µm/N |
| Sd | 735.5 cm² | 735.5 cm² |
| Vas | 26.29 L | 28.06 L |
| Sensitivity | 86.59 dB | 85.03 dB |
| BL | 21.990 T·m | 29.390 T·m |
| Le | 3.18 mH | 4.64 mH |
| X-Max | 19 mm | 19 mm |
| RMS Power | 1250 W | 1250 W |
| Peak Power | 2500 W | 2500 W |
| Specification | SA-12v2 D2/D4 |
|---|---|
| Overall Diameter | 12.83" |
| Cutout Diameter | 11.01" |
| Motor Diameter | 9.68" |
| Mounting Depth | 7.50" |
| Displacement | 0.11 Cu. Ft. |
| Sealed Volume | 1.0 cu ft |
| Ported Volume | 1.75 cu ft |
| Port Tuning | 35 Hz |
| Port Area | 26 sq in |
| 4th Order Sealed | 0.75 cu ft |
| 4th Order Ported | 2.25 cu ft |
| 4th Order Port Area | 15 sq in |
| 4th Order Port Length | 6" |
