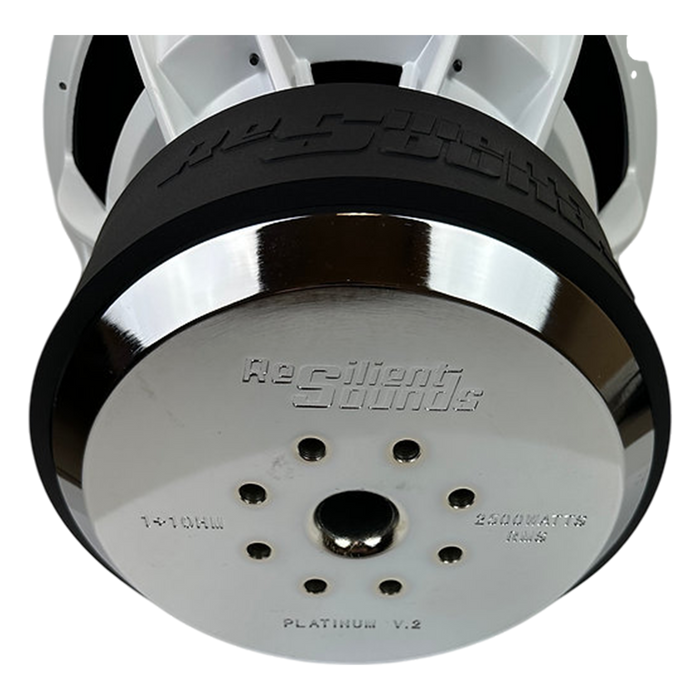

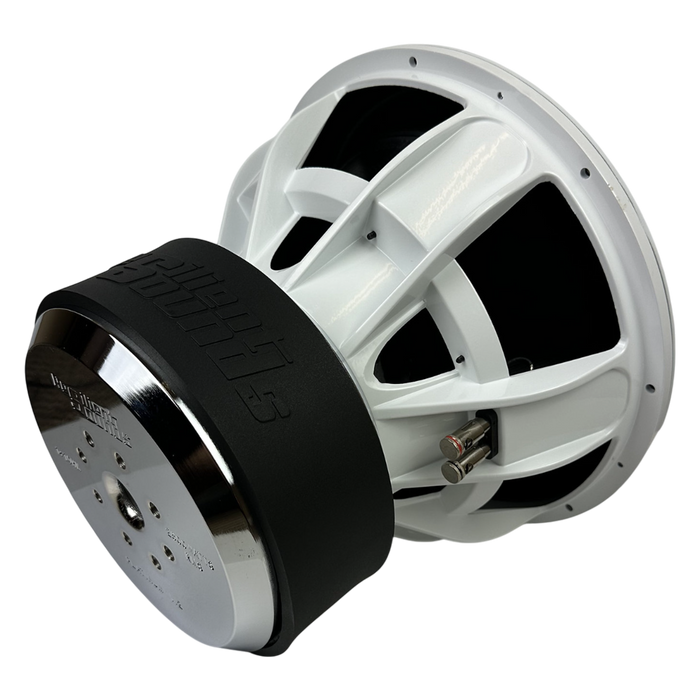

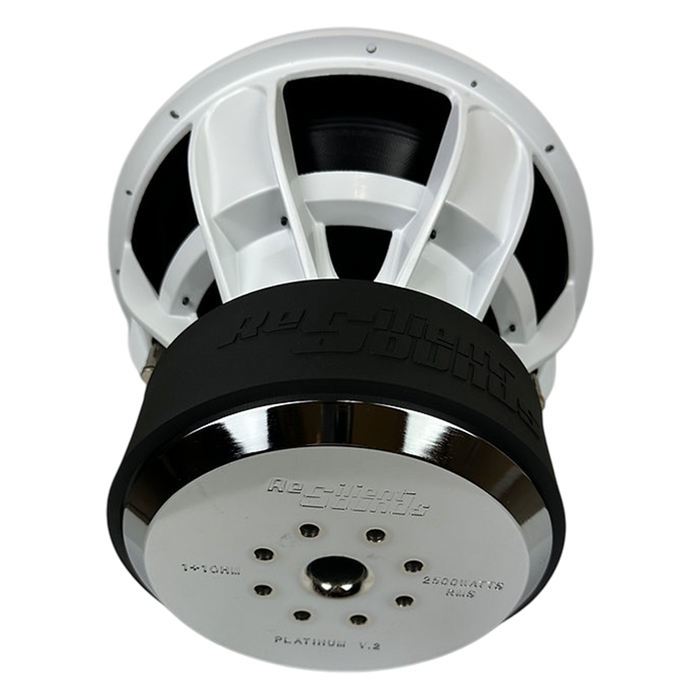

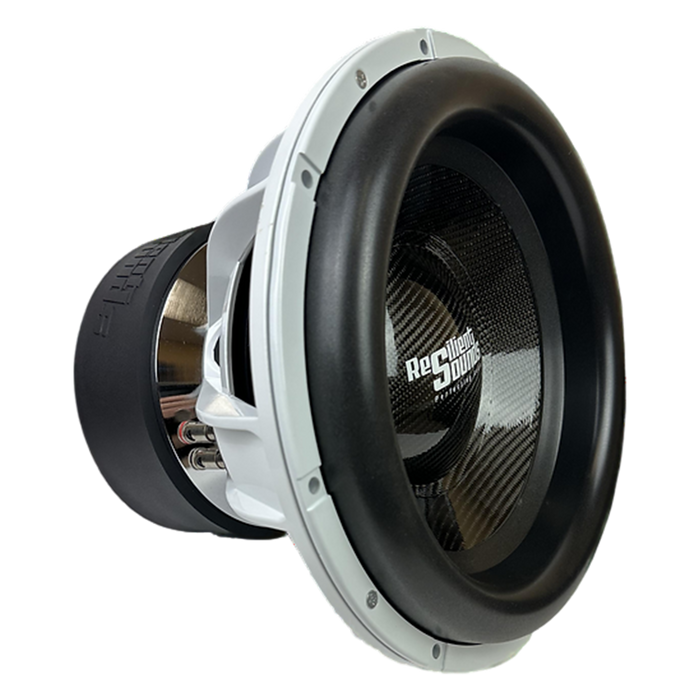

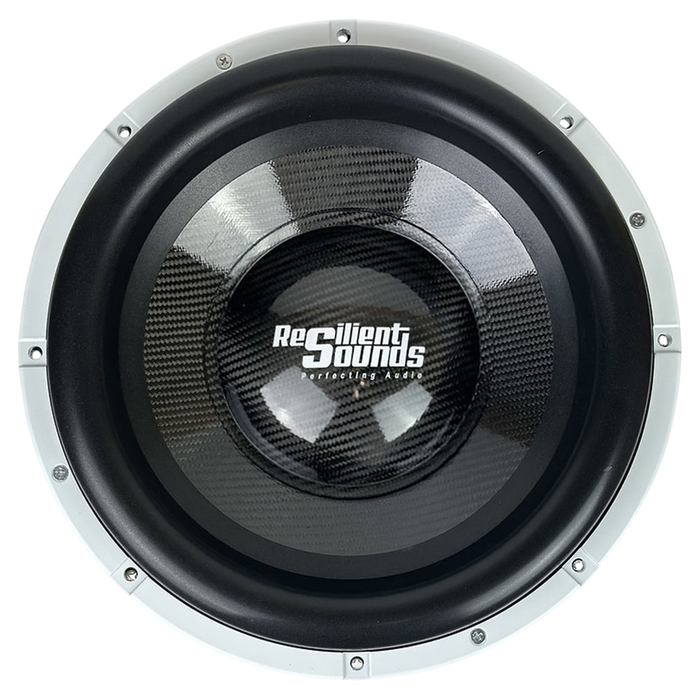

RESILIENT SOUNDS PLATINUM V2 15" DUAL 1 OHM (D1) SUBWOOFER
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
The Ultimate Low-Impedance Subwoofer for Extreme Systems
The Resilient Sounds PLATINUM V2 15" D1 is the choice for serious bass enthusiasts and competitors seeking to run ultra-low impedance loads. Built to handle a conservative 2,500W RMS, this 15-inch driver is optimized for maximum thermal and magnetic performance with its 13% larger motor and 20% longer 3-inch 8-layer voice coil. The Dual 1 Ohm impedance allows for wiring in parallel to achieve an extremely low 0.5 Ohm final load, unlocking the full potential of 0.5 Ohm-stable competition-grade amplifiers. The combination of 35mm XMAX, carbon fiber cone, and heavy-duty suspension ensures this subwoofer moves huge amounts of air with unmatched authority and control.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Platinum 15 V2 |
| Nominal Impedance | Dual 1 Ohm (D1) |
| RMS Power Handling (Conservative) | 2,500 Watts |
| Peak Power Handling | 5,000 Watts |
| Maximum Excursion (XMAX) | 35MM |
| Voice Coil | 3-inch 8 Layer (20% Longer than V1) |
| Motor Structure | 13% Larger Motor, XL Triple Stacked |
| Cone / Dust Cap | Carbon Fiber |
| Surround | New High Roll Tooled Surround |

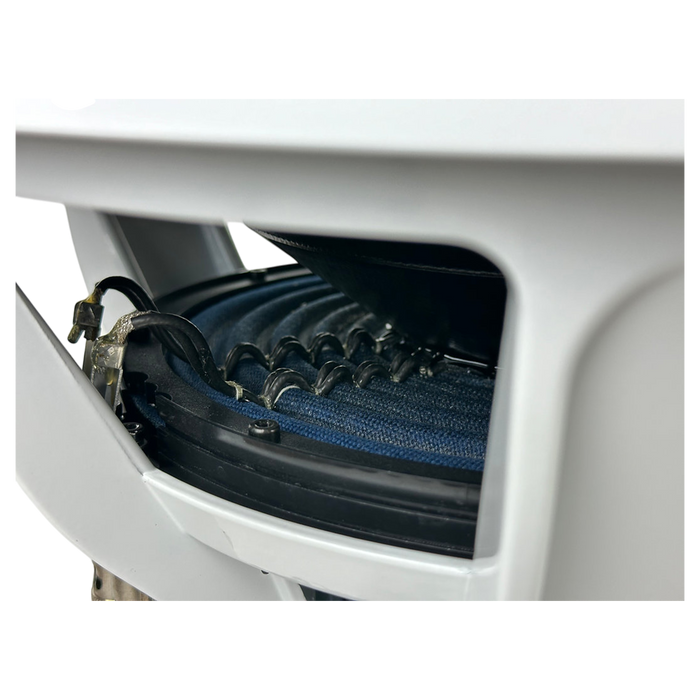

| Spider / Leads | 10" Spider Pack with Insulated Dual Leads |
| Frame/Basket | Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 2.5 - 3.5 CU FT |
| Tuning Frequency | 28 - 33 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 11.25 INCHES |
| Cutout Diameter | 14.2363 INCHES |
| Displacement | 0.28 CUBIC FT |
