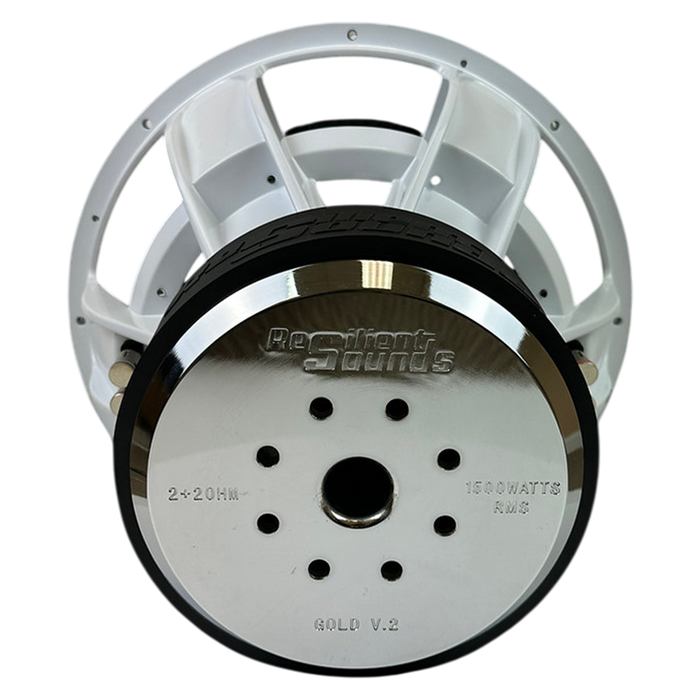

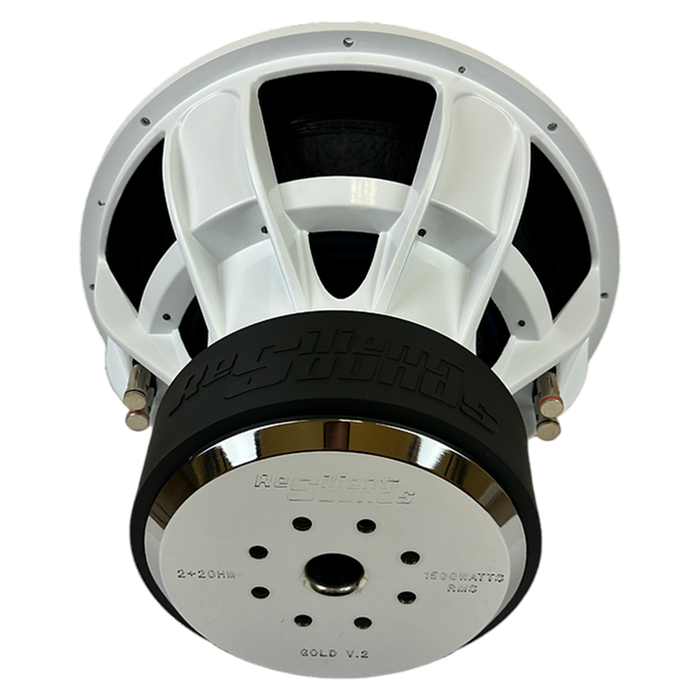

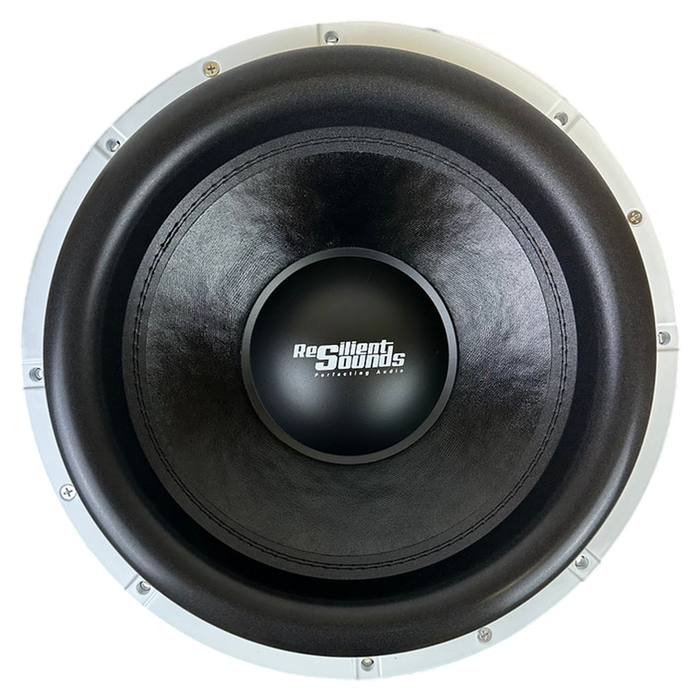

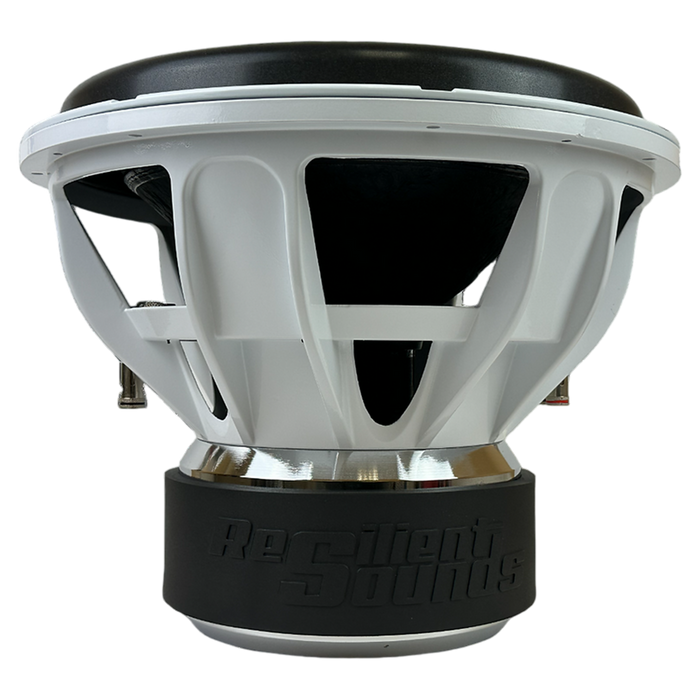

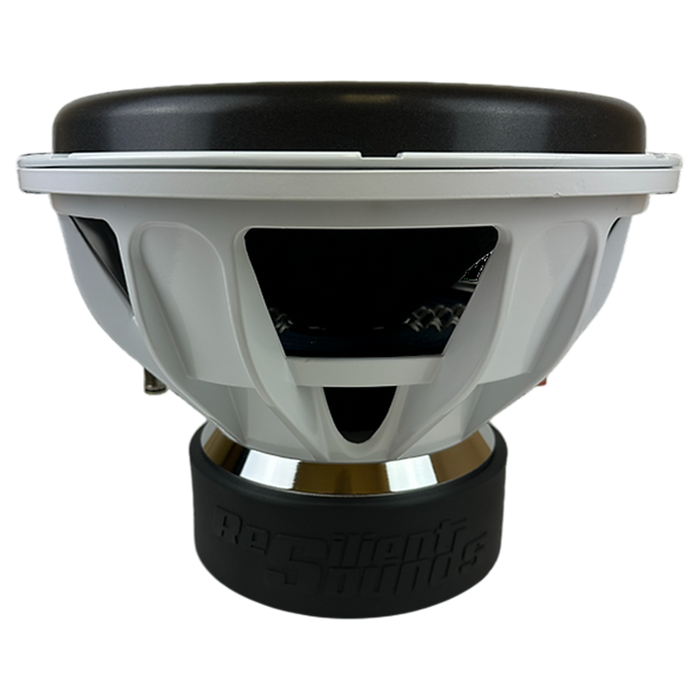

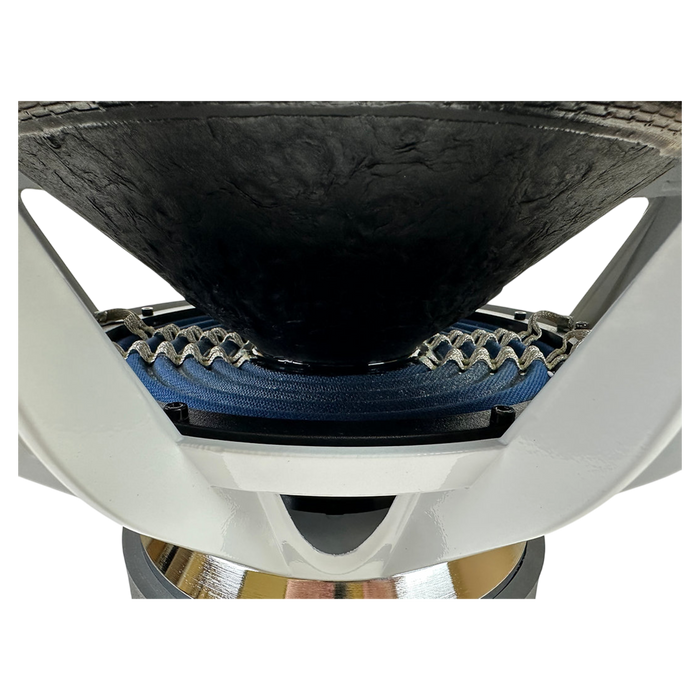

RESILIENT SOUNDS GOLD V2 15" DUAL 4 OHM (D4) SUBWOOFER
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Compact Power with Uncompromised Performance
The Resilient Sounds GOLD V2 15" D4 subwoofer delivers the same legendary power handling and excursion capabilities of its larger sibling in a more compact size, making it perfect for tighter installations. Conservatively rated at 1500W RMS, this woofer features a robust, triple-stacked 220mm motor structure and an extended 3-inch 4-layer voice coil, ensuring durability and high output under extreme demand. The Dual 4 Ohm voice coil allows for versatile system wiring to achieve a final 2 Ohm or 8 Ohm load, providing excellent flexibility for high-current mono amplifiers. With 31mm of XMAX and a high-roll surround, the GOLD V2 15" is built to move massive amounts of air with precision.
TECHNICAL SPECIFICATIONS
| Specification | Detail |
| Model | Gold V2 15" |
| Nominal Impedance | Dual 4 Ohm (D4) |
| RMS Power Handling (Conservative) | 1500 Watts |
| Maximum Excursion (XMAX) | 31MM |
| Voice Coil | 3-inch 4 Layer (25% Longer than V1) |
| Motor Structure | Triple Stack 220mm Motor with Venting (15% Larger than V1), Engraved Bottom Plate, Molded Motor Boot |
| Surround / Spider | NEW High Roll Tooled Surround, 10" Spider Pack with Dual Sewn Leads |
| Frame/Basket | Cast Aluminum Frame |

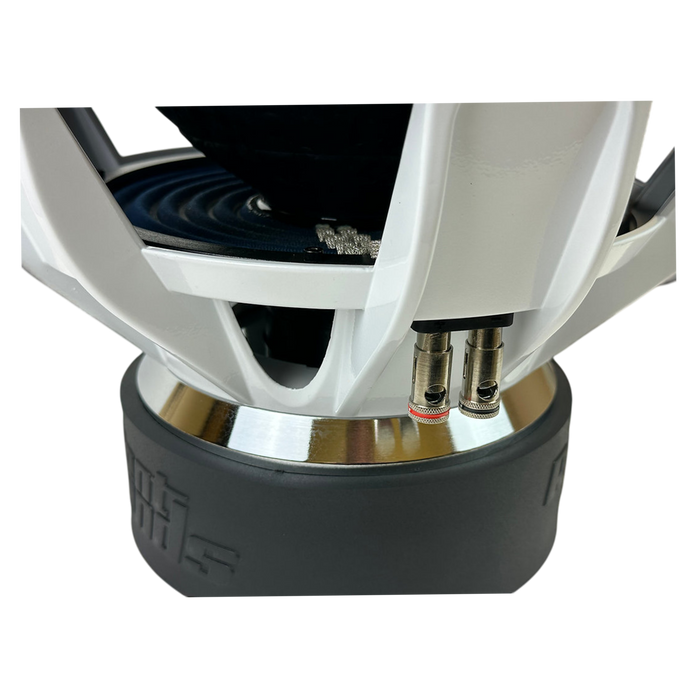

| Terminals | 4 Ga Push Terminals |
| Gasket | Aluminum Gasket |
| Shorting Ring | Aluminum |
| Available Sizes | 10", 12", 15", and 18" |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) | 2.25 - 3.25 CU FT |
| Tuning Frequency | 28 - 32 HERTZ |
| Port Area | 12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth | 10.375 INCHES |
| Cutout Diameter | 14.2363 INCHES |
| Displacement | 0.24 CU FT |
| Outside Diameter | 15 7/32 INCHES |
