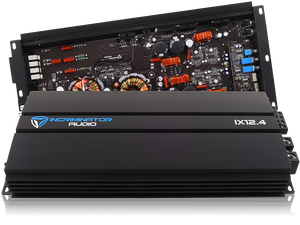

Incriminator Audio IX12.4



Please Note- This amplifier ships directly from Incriminator Audio, please allow 1-2 day processing.

·         Features

  • Full Range Class D Amplifier
  • Dual MOS-FET Pulse Width Modulation Power Supply
  • 2 Ohm Stable Stereo / 4 Ohm Mono Topology
  • 12 dB/octave - Variable State Subsonic Filter
  • 12 dB/octave - Variable State Low / High Pass Filter
  • Flexible Crossover Multipliers X1 / X10
  • Heavy Duty Copper Layer Double Sided Epoxy PCB
  • Mirror Techology (Channel 1/2 to 3/4 with Individual Clipping Indicators)
  • Multi-Layer Bullet Proof Protection Circuit
  • Wired Remote Control with Clipping Indicator

·         Specifications

  • Rated Power ( 14.4V at 1% THD )
  • RMS Power - 2 Ohm Mono : 1000W x 2CH Bridged
  • RMS Power - 2 Ohm Stereo : 500W x 4CH
  • RMS Power - 4 Ohm Stereo : 300W x 4CH
  • Low Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz ( X1, X10 )
  • High Pass Filter ( 12dB/Oct. ) : 50Hz - 5000Hz ( X1, X10 )
  • Subsonic Filter ( 12dB/Oct. ) : 10Hz - 500Hz
  • Frequency Response ( +/-1dB ) : 20Hz - 28,000Hz
  • Channel Separation : 55dB
  • Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V
  • Signal / Noise Ratio : 92dB
  • Dampening Factor ( 4 Ohm ) : 100 +
  • Operation Mode : Mirror CH1/2 > CH3/4
  • Power Efficiency ( 4 Ohm ) : 90%
  • Fuse Rating ( 14.4V ) : 160A
  • Power Input Connection : 0 Gauge
  • Operation Voltage : 8.5V - 16.0V
  • Speaker Output Connection : 8 Gauge
  • Dimensions ( Inches ) : 7.48 W x 2.24 H x 14.96 L
  • Dimensions (Millimeters) : 190 W x 57 H x 380 L
