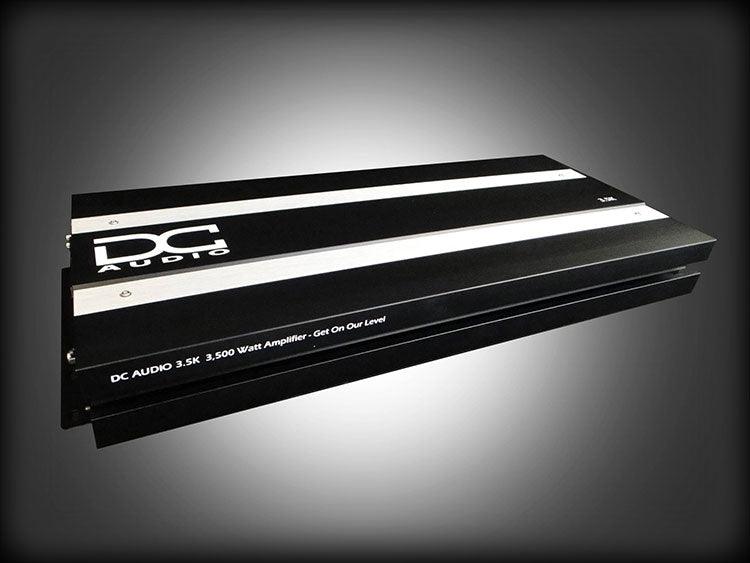

DC Audio A3 3.5K 3500 Watt Mono Block Car Audio Class D Amplifier/Amp+Bass Knob

Original price $1,386.00 - Original price $1,386.00
Original price
$1,386.00
$1,386.00 - $1,386.00
Current price $1,386.00

FREE LANYARD OR STICKERS WITH EVERY PURCHASE AUTOMATICALLY ADDED TO CART!

The 3.5kw competition series amplifier is a 3,500 watt mono block. It is capable of running up to 18 volts for up to 5,100 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped. It comes with a bass knob and a clipping indicator. For power inputs it will accept 0 awg for power and 0 awg for ground.

Key Features • 1 ohm stable • Variable low pass filter • Variable subsonic filter • Variable bass boost • Wired remote control • Clipping indicator

We recommend for installation • 1 upgraded battery under the hood • 1 extra battery in the rear • Minimum of one 0 awg ran from the front battery to the rear battery • Upgraded aftermarket alternator • Dash mounted voltage meter

Specifications
  Features Voltage 3.5kw
Output Power (RMS) 4 ohm 14.4V 750W x 1
  2 ohm   1,800W x 1
  1 ohm   3,500W x 1
  1 ohm 16V 4,000W x 1
  1 ohm 18V 5,100Wx1
Input Sensitivity     6V~0.2V
Low Pass Filter Switchable
( @ 24 dB Slope) Variable Hz 35~250
Subsonic Filter Switchable
( @ 24dB slope ) Variable Hz 10~50
Bass Boost Variable dB 0-9dB
Frequency Response   Hz 15-270
Signal to Noise Ratio   dB 100
Damping factor     150<
Efficiency @ 4ohm   % Over 90%
THD @ 4ohms     Less than 0.1%
Fuse Rating     300 Amps
Linked Fuse Rating     600 Amps
Indicator Power   Yes
  Protection   Yes
  Clip   Yes
Speaker & Power terminal Mold Type   Yes
  Power Gauge 0Ga
Heatsink Length inch/mm   21.26"/540mm
Heatsink Width inch/mm   9.38"/238mm
Heatsink Height inch/mm   2.35"/59.6mm

Key Features

• 1 ohm stable

• Variable low pass filter

• Variable subsonic filter

• Variable bass boost

• Wired remote control

• Clipping indicator
