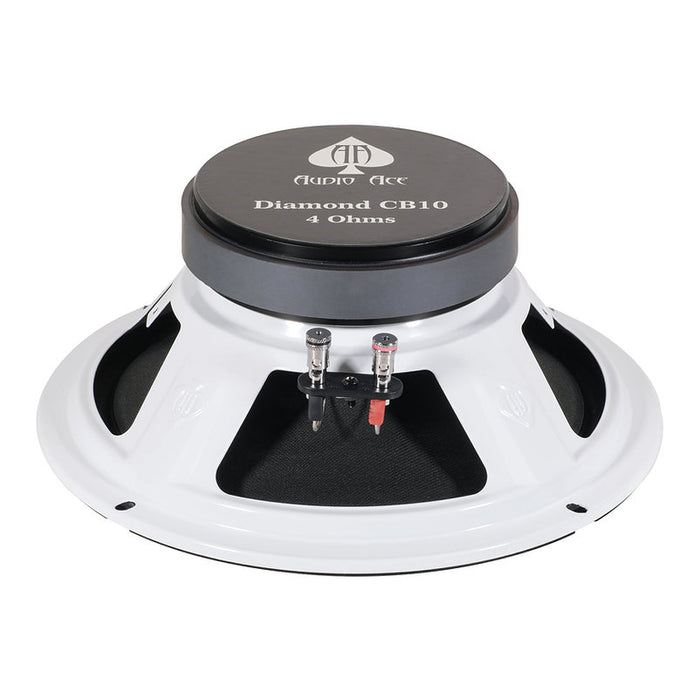

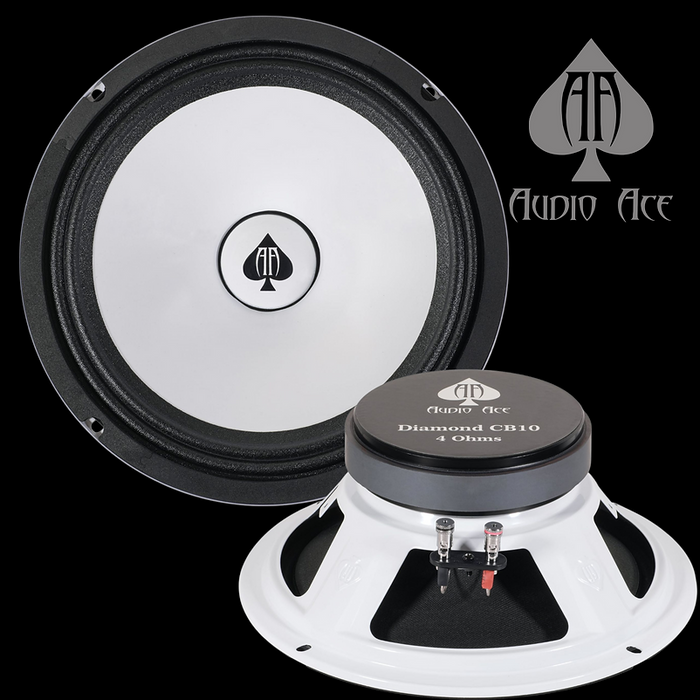

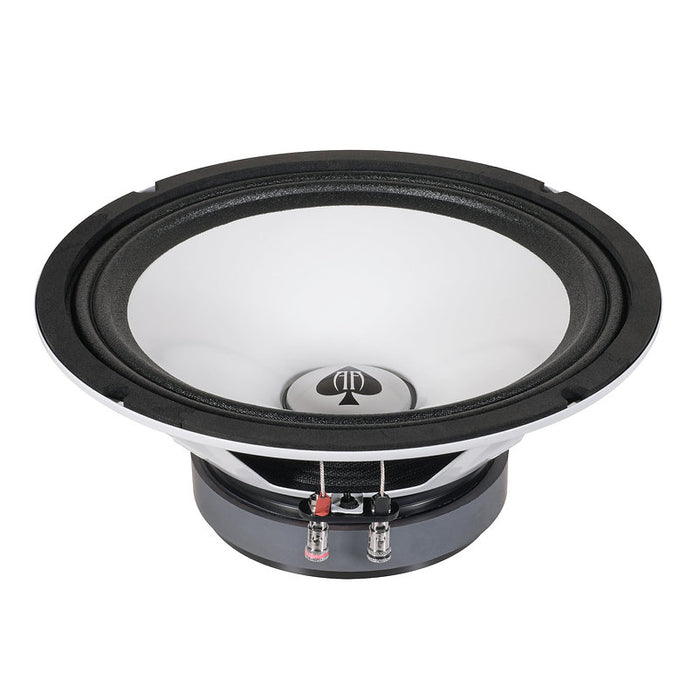

AUDIO ACE DIAMOND CB10 10" MID-RANGE CAR AUDIO SPEAKER
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Product Overview: Pro Audio Power for Your Vehicle
The Audio Ace Diamond CB10 mid-range speaker is specifically engineered to bridge the gap between powerful Pro Audio sound and the constraints of a car audio environment. Sold as a pair, the CB10 is designed for high efficiency and volume, capable of handling 250W RMS and boasting a high 95 dB sensitivity to play louder than most competitors in its class. Featuring a custom-tooled basket with the Audio Ace logo, a 2-inch voice coil, and a robust 40 oz motor, this 10-inch loudspeaker delivers a wide and clear frequency response from 80 Hz to 12 kHz. It is the ideal choice for enthusiasts looking for a dynamic and dominant mid-high frequency presence.

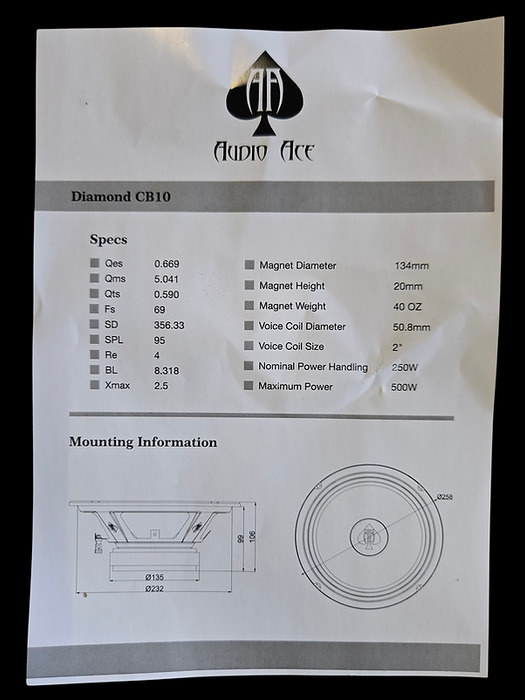

AUDIO ACE DIAMOND CB10 MID RANGE SPECIFICATIONS (PAIR) |
|
|---|---|
| Size | 10 Inches |
| RMS Power Handling | 250 Watts |
| Nominal Impedance | 4 Ohm |
| Voice Coil | 2 Inch |
| Motor Weight | 40 oz |
| Sensitivity | 95 dB |
| Frequency Response | 80 - 12k Hz |
| Maximum Excursion (Xmax) | 2.5 |
| Mounting Depth | 3.89 inches |
| THIELE-SMALL PARAMETERS | |
| Electrical Q (Qes) | 0.669 |
| Mechanical Q (Qms) | 5.041 |
| Total Q (Qts) | 0.590 |
| Resonance Frequency (Fs) | 69 Hz |
| Effective Piston Area (SD) | 356.33 |
| DC Resistance (Re) | 4 Ohms |
| BL Factor (BL) | 8.318 |
