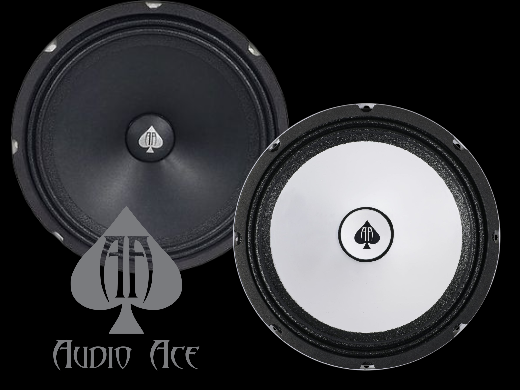

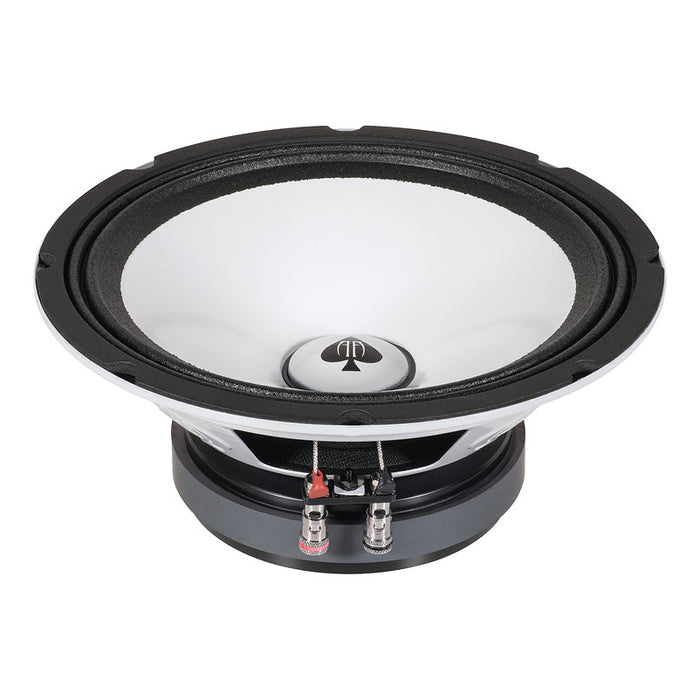

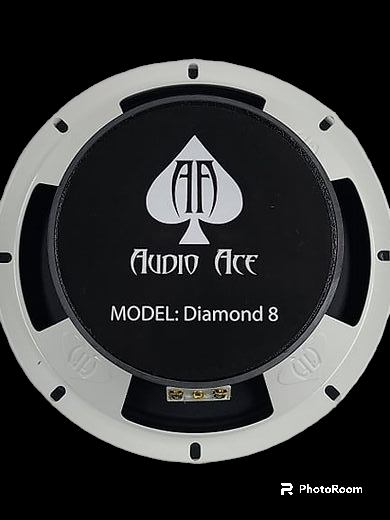

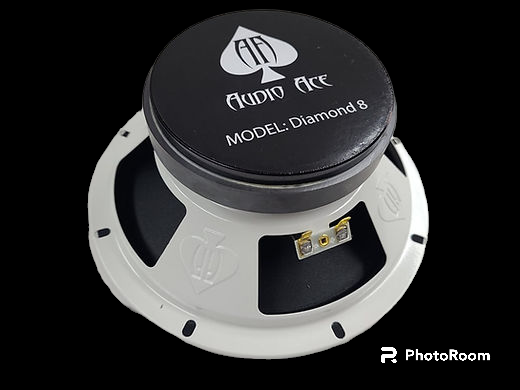

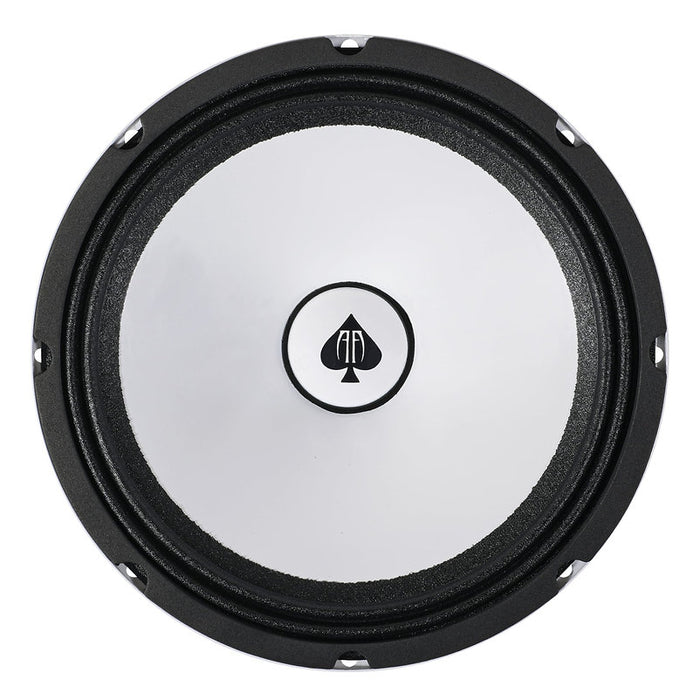

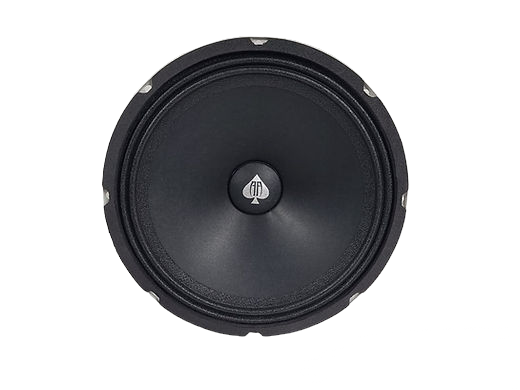

Audio Ace Diamond 8″ Mid‑Range Pro Audio Car Speaker - 180 W RMS, 4Ω
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Product Overview: High-Sensitivity Pro Audio Performance
The Audio Ace Diamond 8" mid-range driver is designed to deliver the high-volume characteristics of a professional audio speaker within a car audio environment. This 8-inch driver is conservatively rated at 180W RMS and is built to play louder than most mid-range speakers in its class, boasting a high 94 dB sensitivity. It features a 1.52-inch voice coil, a 26 Oz magnet motor, and a custom-tooled basket with the Audio Ace logo, ensuring durability and style. With a frequency range of 80 Hz to 13 kHz and a nominal 4 Ohm impedance, the Diamond 8" provides a powerful and clear mid-frequency anchor for your system.
| AUDIO ACE DIAMOND 8" MID RANGE SPECIFICATIONS | |
|---|---|
| Size | 8 Inches |
| RMS Power Handling | 180 Watts |
| Nominal Impedance | 4 Ohm |
| Voice Coil | 1.52 Inch |
| Magnet Weight | 26 Oz |
| Sensitivity | 94 dB |
| Frequency Range | 80 - 13k Hz |
| Mounting Depth | 3 1/4 Inches |
| Overall Diameter | 8 1/4 Inches |
| Maximum Excursion (Xmax) | 1.75 |
| THIELE-SMALL PARAMETERS | |
| Sensitivity (SPL) | 96 dB |
| Electrical Q (Qes) | 0.809 |
| Mechanical Q (Qms) | 4.589 |
| Total Q (Qts) | 0.688 |
| Resonance Frequency (Fs) | 113 Hz |
| Effective Piston Area (SD) | 240.5 |
| DC Resistance (Re) | 4 Ohms |
| BL Factor (BL) | 7.176 |
