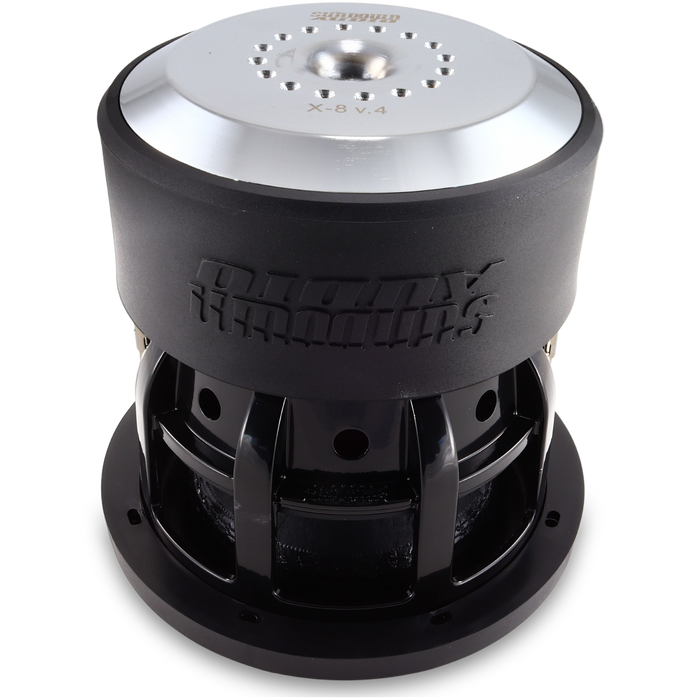

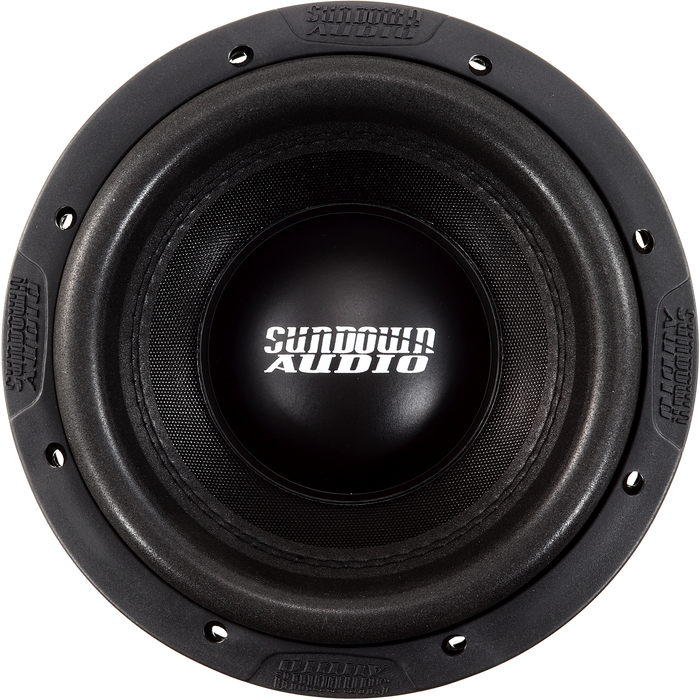

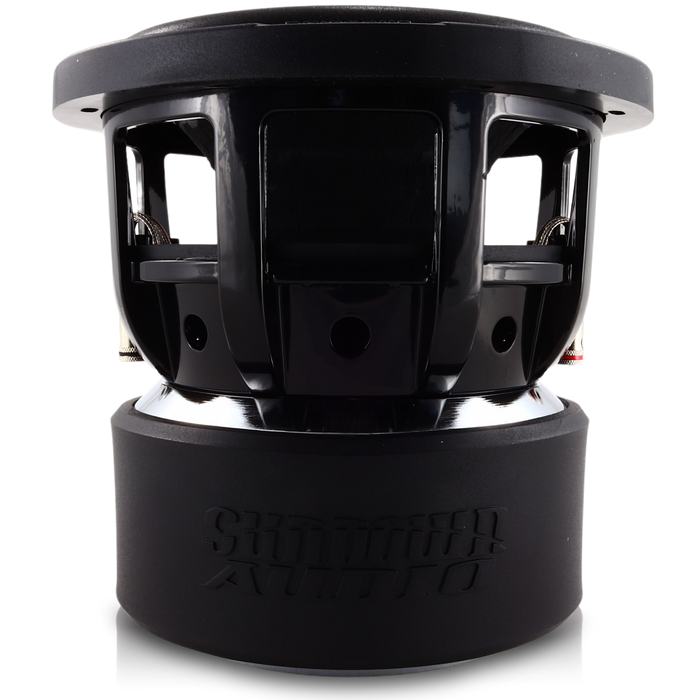

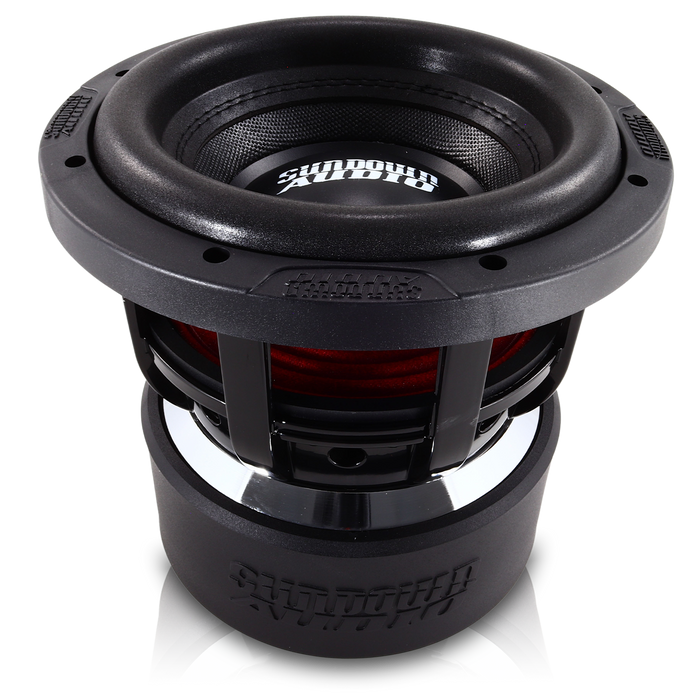

Sundown Audio X-Series v.4 8" Subwoofer
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
- 1250 Watts RMS / 2500 Watts Peak
- Dual 2 or 4 ohm voice coil
- Triple-stacked magnet
- 2.5” voice coil
- Hyper-extended pole
The X-8 v.4 is THE KING of standard cut-out size 8" subwoofers and it sets the standard for others to follow.
It builds on the legacy of the v1, v2, and v3 models but definitively out-performs all previous generations. The secret sauce is largely in the painstakingly FEA optimized spider and surround. It's hard to overstate the impact of proper suspension design on a subwoofer but anyone who has used the X-8 v.4 can attest that we've nailed it here.
Beyond the suspension - the X-8 v.4 is built on a newly revised version of our classic custom-tooled 8" frame. It represents the absolute maximum performance possible on this frame platform. The motor and coil are capable of ~20mm of linear x-max one-way and around 2.4" p-p before the coil leaves the gap (with a little beyond that before any physical bottom is reached).
As with most of our subs it also features an aluminum magnet ID shorting ring for reduced inductive distortion as well as a few other secret Sundown tricks for distortion reduction!"
Specifications
| T/S SPECS | X V.4 8″ D2 | X V.4 8″ D4 |
|---|---|---|
| RE (Ohms) | 3.6 | 6.0 |
| FS (Hz) | 41.299 | 44.150 |
| VAS (L) | 4.126 | 3.562 |
| Qes | 0.436 | 0.497 |
| Qms | 1.941 | 2.300 |
| Qts | 0.356 | 0.409 |
| Le | ||
| BL (NA) | 21.576 | 27.141 |
| Mms (Grams) | 215.153 | 220.090 |
| Cms | 68.389 | 59.044 |
| Sens (dB @ 1w/1m) | 80.1 |
79.8 |
| Xmax | 19mm |
19mm |
Enclosure Specifications
| X v.4 8 | |
| Sealed Enclosure | 0.3-.04cuft |
| Ported Enclosure | 0.75-1.0 cu ft |
| Recommended Tuning | 32hz |
| Recommended Port Area | 12-16 sq in |
| Displacement | 0.13 cu ft |
| Depth | 7.56" |
| Outside Diam. | 8.71" |
| Cutout | 7.32" |
