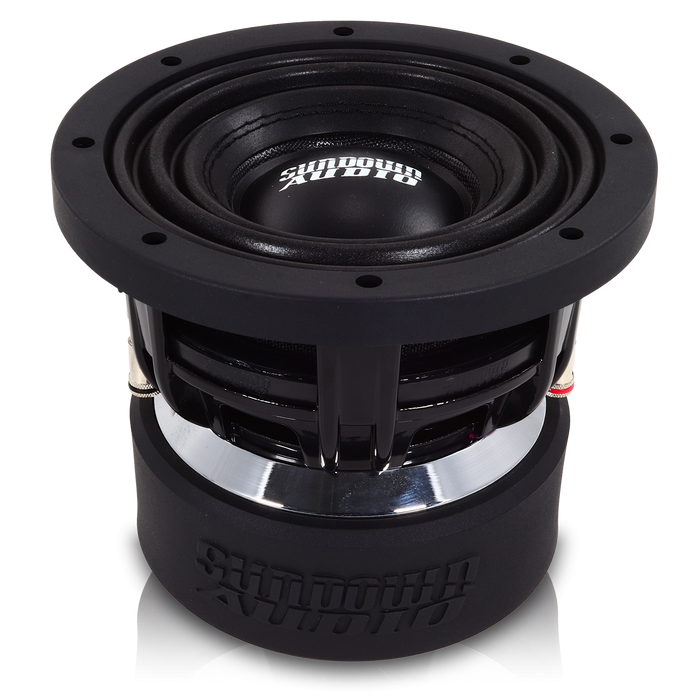

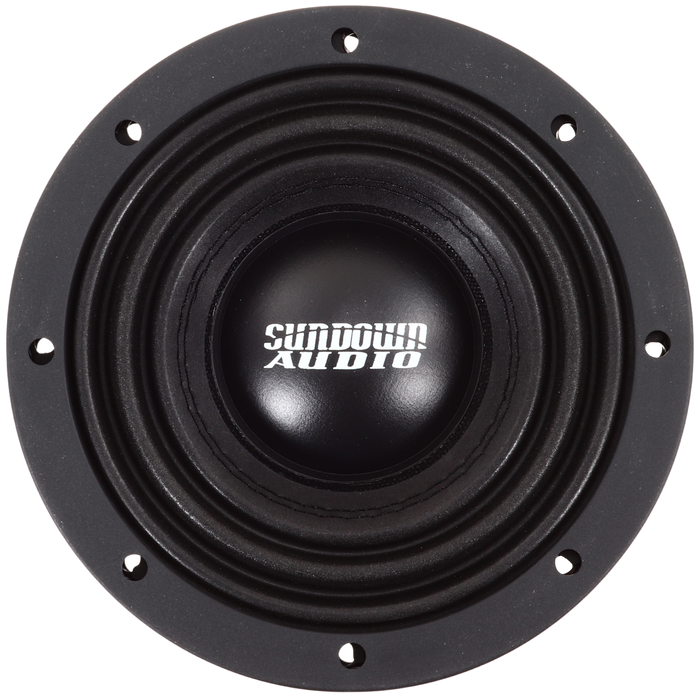

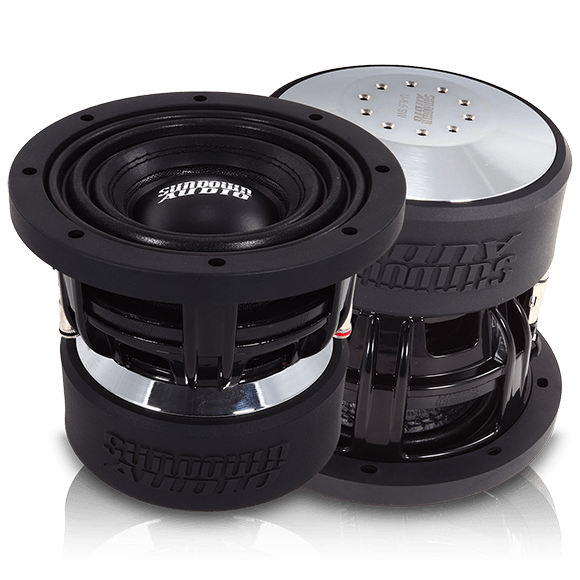

U-Series 6.5" v.1 Subwoofer
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
- 500 Watts RMS/1000 Watts Peak
- Dual 2 or 4 ohm voice coils
- Optimized for small ported enclosures
- Aluminum 1.75” voice coil former for superior heat dissipation
- High-temperature copper voice coil
- Double stitched surround
- Heavy-duty cast basket
- Spring-loaded terminals accept up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear gap-venting
- Top-Plate Cooling Channels
Specifications
| RE (Ohms) | 4.0586 | 6.6274 |
| FS (Hz) | 41.9533 | 38.6925 |
| VAS (L) | 2.9053 | 3.7701 |
| Qes | 0.5238 | 0.5005 |
| Qms | 8.5834 | 7.2470 |
| Qts | 0.4937 | 0.4681 |
| Le (mH) | 4.0112 | 5.5892 |
| BL (NA) | 16.7428 | 20.0082 |
| Mms (Grams) | 137.2546 | 124.3518 |
| Cms (uM/N) | 104.8528 | 136.0613 |
| Sens (dB @ 1w/1m) | 77.8706 | 78.1460 |
| Xmax | 19mm | 19mm |
| T/S SPECS | U-6.5SW" D2 | U-6.5SW" D4 |
|---|
Enclosure Specifications
-
Ported Enclosure
-
Size: .25-.35 cu. ft. net
-
Port Area: 4-5 sq. in.
-
Port Tuning: 35hz -40hz
-
Size: .25-.35 cu. ft. net
-
Sealed Enclosure
-
Size: 0.125-0.2 cu. ft. net
-
Displacement: .04 cu. ft.
-
Size: 0.125-0.2 cu. ft. net
-
Depth: 5.71"
-
Outside Diameter: 7.17"
- Cutout: 5.94"
