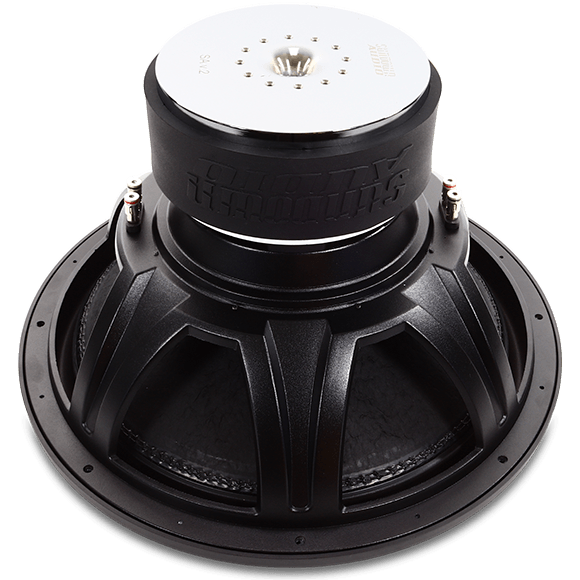

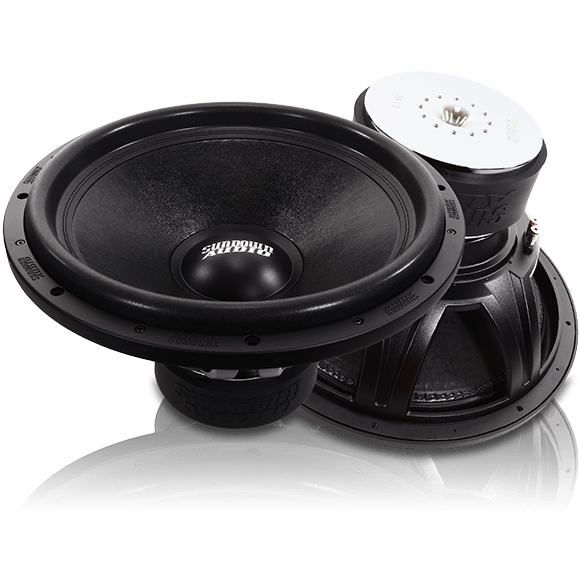

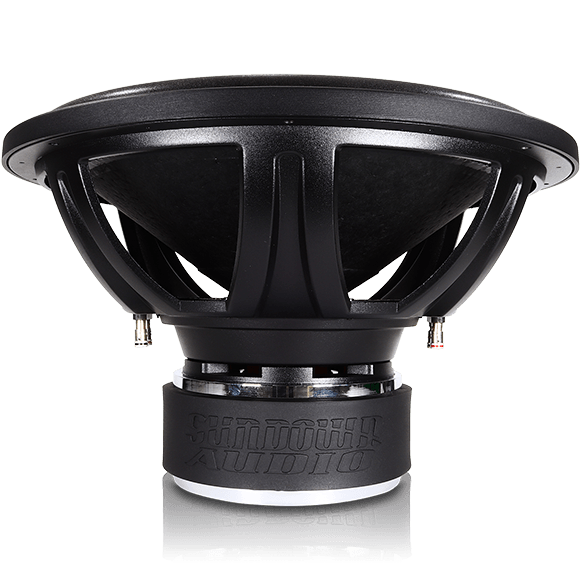

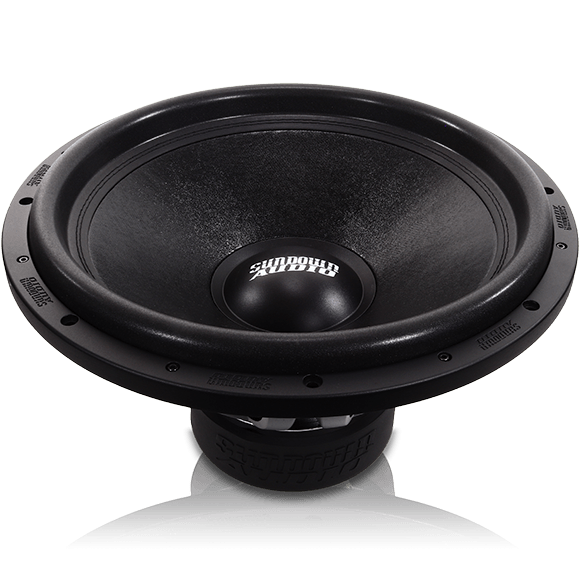

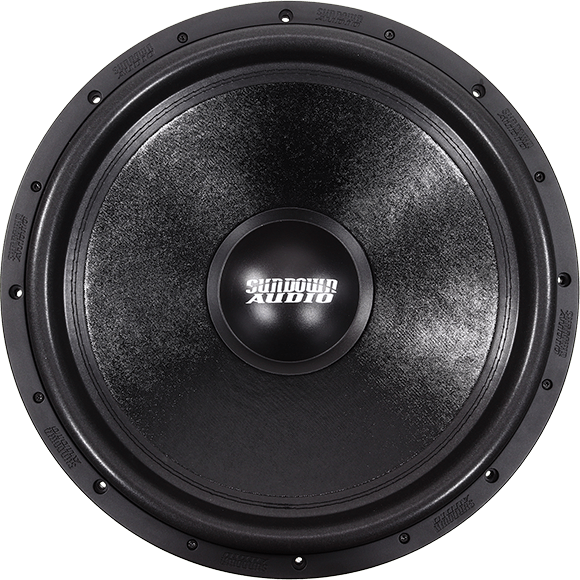

SA-Series v.2 18" Subwoofer
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
- 1250 Watts RMS / 2500 Watts Peak
- Dual 2 or 4 ohm voice coils
- Vented magnetic gap & pole piece
- Aluminum 2.75” voice coil former for superior heat dissipation
-
Innovative high velocity, cast aluminum vented frame spacer ring
- Magnet ID faraday ring for smooth acoustic response
- High-temperature copper voice coil wire

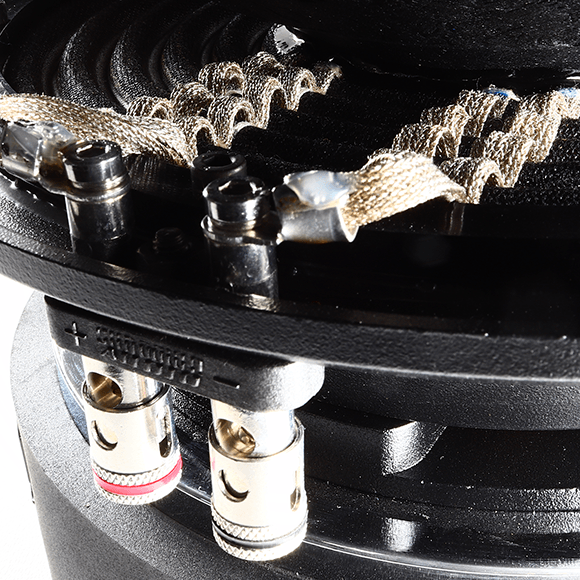

- Spring-loaded terminals
-
Stitched-on double “XL” tinsel leads
Specifications
| T/S SPECS | SAV2 18″ D2 | SAV2 18″ D4 |
|---|---|---|
| RE (Ohms) | 3.97 | 6.06 |
| FS (Hz) | 29.051 | 31.868 |
| VAS (L) | 114.234 | 106.964 |
| Qes | 0.424 | 0.458 |
| Qms | 3.052 | 2.853 |
| Qts | 0.372 | 0.395 |
| Le (mH) | 3.6326 | 4.7903 |
| BL (NA) | 32.523 | 38.159 |
| Mms (Grams) | 619.174 | 549.519 |
| Cms (uM/N) | 48.474 | 45.389 |
| Sens (dB @ 1w/1m) | 90.1 | 90.7 |
| Xmax | 19mm | 19mm |
Enclosure Specifications
| Sealed Enclosure | 3.5 cu ft |
| Ported Enclosure | 4.5 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 64 sq in |
| Displacement | 0.2 cu ft |
| Depth | 10.125" |
| Outside Diameter | 18.62" |
| Cut-Out | 16.69″ |
| Physical Dimensions | Download |
