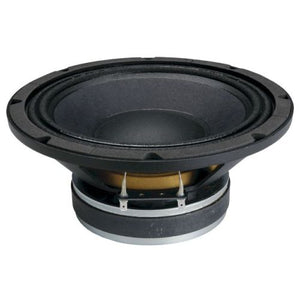

Ciare PW257 Professional 10" Low Frequency Driver
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
Ciare PW257 Professional 10" Low Frequency Driver: Precision Meets Power
The PW257 is a professional-grade 10-inch low-frequency driver engineered for high-impact sonic performance without compromising clarity. Designed for high-output mid-bass arrays or compact low-frequency systems, it is rated at 400 W AES continuous power handling with 800 W program capability. With a sensitivity of 96 dB, the PW257 efficiently converts power into clean, undistorted output, making it well suited for touring rigs, club installs, and demanding pro-audio environments.
At its core is a massive 3-inch (75 mm) voice coil wound on an aluminum former for efficient heat dissipation. Combined with a Nomex fabric surround and a rigid aluminum basket, this construction ensures excellent thermal control, mechanical stability, and tight, punchy low-end performance defined by an Fs of 57 Hz and an Xmax of 5.5 mm.
Optimized for vented enclosures, the PW257 delivers a wide frequency range from 50 Hz to 3000 Hz, making it an excellent choice for high-performance 2-way systems or dedicated mid-bass applications with a distinctly professional sound signature.
PW257 PROFESSIONAL 10" DRIVER SPECIFICATIONS
| Nominal Diameter | 250 mm (10 in) |
| Nominal Power Handling (AES) | 400 W |
| Program Power | 800 W |
| Sensitivity (2.83V/1m) | 96 dB |
| Frequency Range | 50 Hz – 3000 Hz |
| Nominal Impedance | 8 ohms |
| Voice Coil Diameter | 75 mm (3 in) |
| Winding Material / Former | Aluminum |
| Basket Material | Aluminum |
| Net Weight | 5 kg (11.01 lb) |
THIELE-SMALL PARAMETERS
| ELECTRO-ACOUSTIC PARAMETERS | |
|---|---|
| Fs (Resonant Frequency) | 57 Hz |
| Qes / Qms / Qts | 0.33 / 3.2 / 0.3 |
| Vas (Equivalent Volume) | 31 dm³ (1.09 ft³) |
| Xmax (Linear Excursion) | 5.5 mm (0.22 in) |
| Bl (Force Factor) | 15.86 Tm |
| Sd (Effective Cone Area) | 353 cm² (54.72 in²) |
| EBP (Efficiency Bandwidth Product) | 173 |

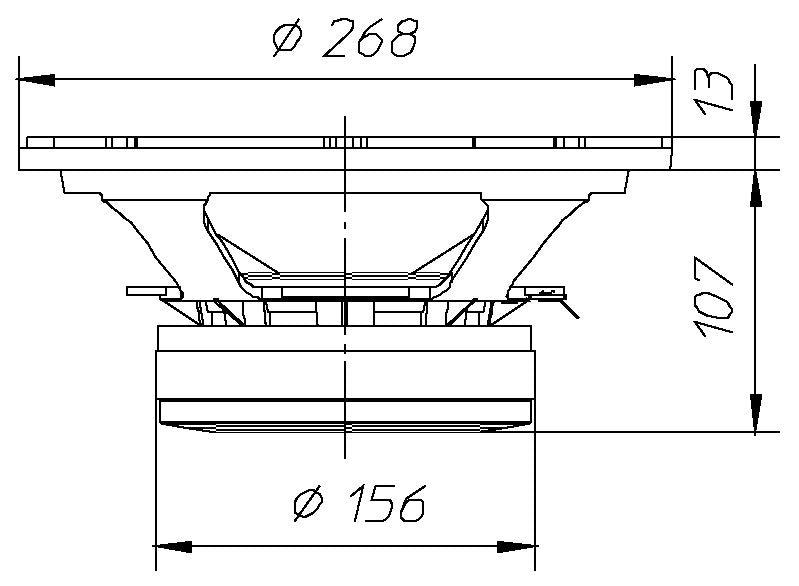

MOUNTING & ENCLOSURE
| MOUNTING & ENCLOSURE INFO | |
|---|---|
| Overall Diameter | 268 mm (10.55 in) |
| Baffle Cutout Diameter | 235 mm (9.25 in) |
| Depth | 120 mm (4.72 in) |
| Recommended Enclosure | Vented Box / 14 dm³ (0.494 ft³) |
| Surround Material | Nomex Fabric |
