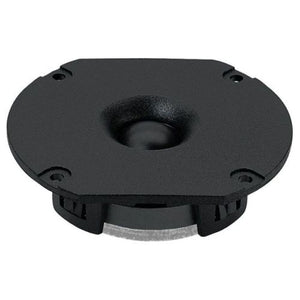

Ciare | CT200 | 0.75″ Silk / Polyamide Dome Tweeter (60 W / 4 Ω)

Introduce clarity and finesse to your high-frequency stage with the Ciare CT200 dome tweeter. Engineered to produce transparent, smooth, and extended treble, this 0.75″ silk / polyamide dome design is ideal for 2-way or multiway speaker systems, studio monitors, or high-fidelity audio builds. Whether you're designing bookshelf speakers, home theater satellites, or custom installations, the CT200 brings rich detail to voices, cymbals, and overtones without harshness.

Built around a 20 mm voice coil and a lightweight yet rigid polyamide dome, the CT200 sustains linear operation from 2 kHz up to 20 kHz. Its 90 dB sensitivity ensures efficient drive, while its 60 W nominal and 100 W continuous power ratings give you headroom in real-world use. The ABS housing and compact form, with a shallow 24 mm depth, make it adaptable to tight mounting spaces without compromising performance.

Choose the CT200 when you want a high-performance tweeter that blends musicality, reliability, and flexibility in fit. It's especially suited for discerning DIYers, OEMs, and audio enthusiasts seeking a premium “silk dome” character with robust technical backing.

Specifications

• Driver Type / Category: 0.75″ (20 mm) dome tweeter

• Impedance: 4 Ω

• Nominal Power (RMS): 60 W

• Continuous / Max Power: 100 W

• Sensitivity (1W/1m): 90 dB

• Frequency Range: 2,000 Hz – 20,000 Hz

• Voice Coil Diameter: 20 mm (0.78 in)

• Dome Material: Polyamide (silk / polymer dome)

• Basket / Frame Material: ABS / plastic housing

• Overall Diameter: 78 mm

• Baffle Cut-out Diameter: ~70 mm

• Mounting Depth: 24 mm

• Bolt Pattern: 4 bolts, B.C.D. 81 mm

• Thiele-Small / Motor Data:
   • Fs: 1000 Hz
   • Qts: 0.9
   • Qes: 1.1
   • Qms: 4.7
   • Mms: 0.28 g
   • Le: 0.02 mH
   • Re: 3 Ω
   • Bl: 2.17 T·m
   • Sd: 4 cm²
   • Dome diameter “d”: 23 mm
