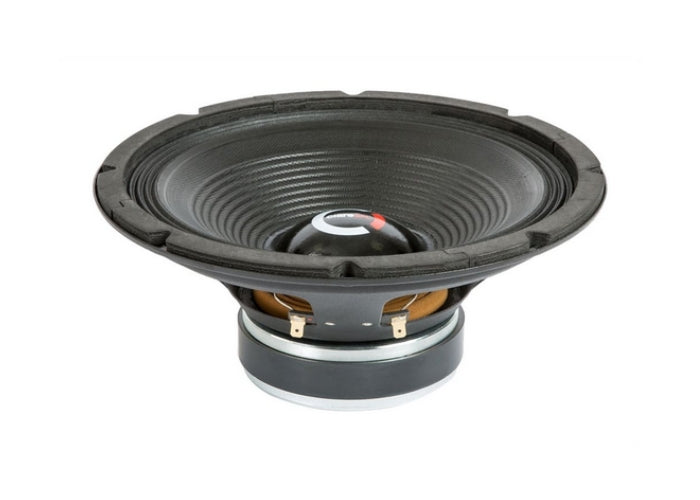

Ciare | CME-250 | 10″ Midbass (220 W / 450 W Program, 97 dB, 4 Ω)

The Ciare CME-250 is a high-SPL, 10″ midbass / low frequency driver engineered for serious sound systems. Designed to handle high power with reliable linearity, it delivers authoritative midbass and excels in applications where depth, dynamics, and clarity are critical — be it compact PA systems, high-powered car audio, or custom high-fidelity enclosures.

With a robust 50 mm copper voice coil wound on a glass fiber former, a deep 12.5 mm winding, and a powerful ferrite magnet system featuring an 8 mm magnetic gap, the CME-250 is built to maintain control even under demanding excursion. Its stiff, doped cellulose cone and cloth surround ensure precise response across the midband while resisting distortion. The steel basket provides mechanical integrity and sturdy support for heavy duty use.

Audio system designers and builders will favor the CME-250 for its combination of extended excursion (±4.5 mm), strong force factor (Bl ≈ 7.5 T·m), and well-balanced Thiele–Small parameters for sealed or compact enclosures. Whether used in sealed midbass chambers or as a component in multi-way systems, its 97 dB sensitivity and robust structure make it ideal for both high output rig builds and refined installations.

Specifications

• Product Type / Category: 10″ Midbass / Low-Frequency Driver

• Nominal Diameter: 250 mm (10″)

• Nominal Impedance: 4 Ω

• Power Handling:
   • Nominal / “Rated”: 220 W
   • Program / Peak Capability: 450 W

• Sensitivity: 97 dB (1W @ 1m)

• Frequency Range: 70 – 3000 Hz

• Resonance (Fs): 48 Hz

• Qes: 0.53

• Qms: 5.7

• Qts: 0.48

• Vas: 74 liters

• Bl (Force Factor): 7.5 T·m

• Sd (Effective Piston Area): 380 cm²

• Xmax (Linear Excursion): ± 4.5 mm

• Re (DC Resistance): 3.0 Ω

• Le (Inductance): 0.4 mH

• Voice Coil: 50 mm (2″) copper, winding depth 12.5 mm, glass fiber former

• Magnet / Motor System: Ferrite with 8 mm magnetic gap

• Cone Material: Doped cellulose fiber

• Surround / Suspension: Cotton fabric cloth

• Basket / Frame: Steel

• Mounting / Dimensions:
   • Overall Diameter: 265 mm
   • Baffle Cutout: 238 mm
   • Depth: 114 mm
   • Mounting Depth (behind front): 105 mm
   • Flange Thickness: 9 mm
   • Bolt Circle Diameter: 253 mm
   • Number of Mounting Holes: 8 (bolt holes 4.5 mm)

• Net Weight: ~2.7 kg
