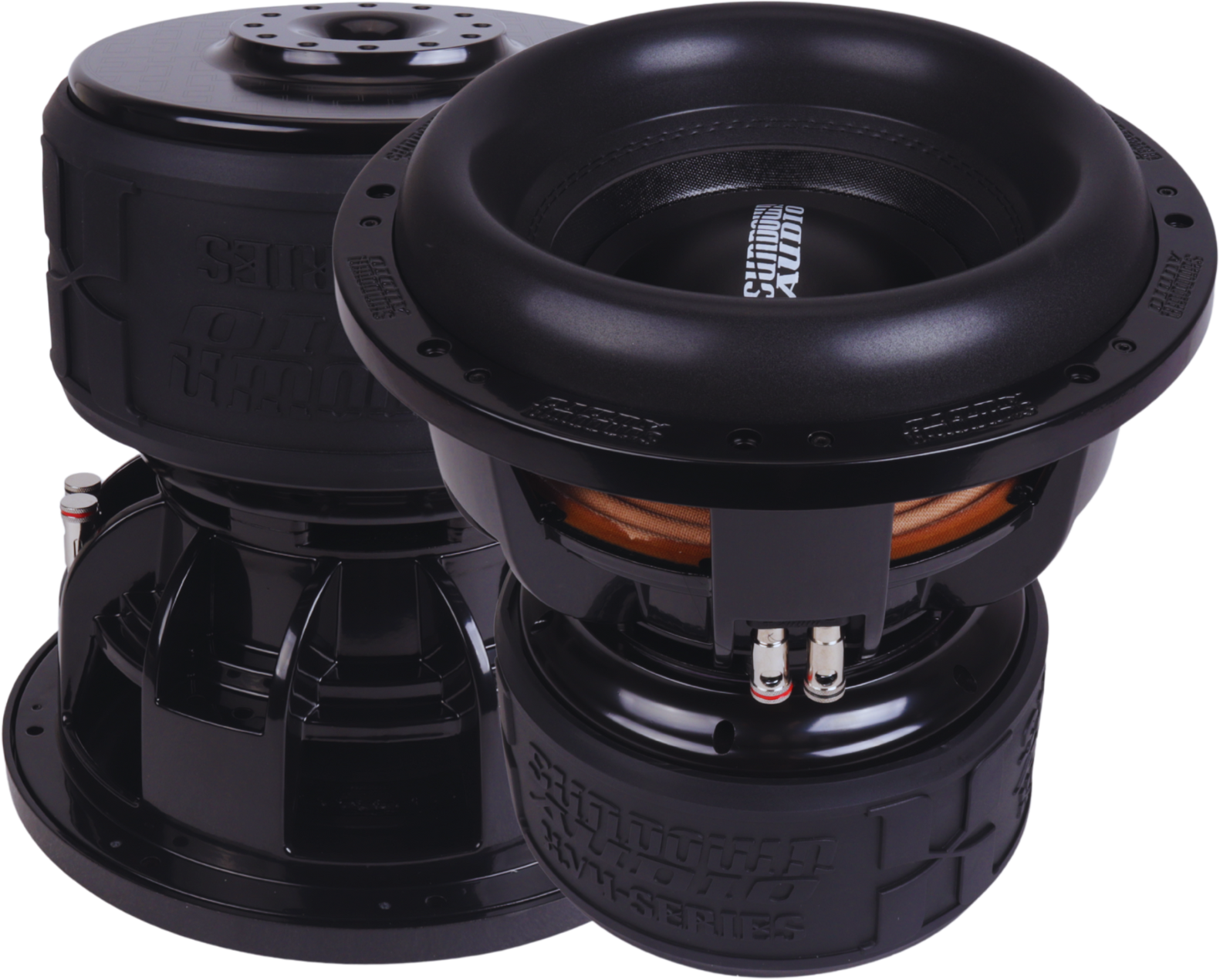

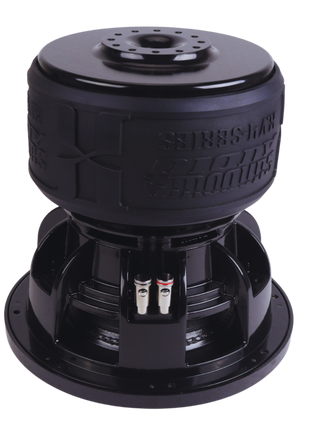

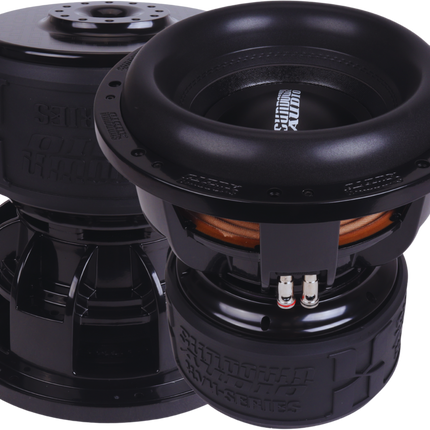

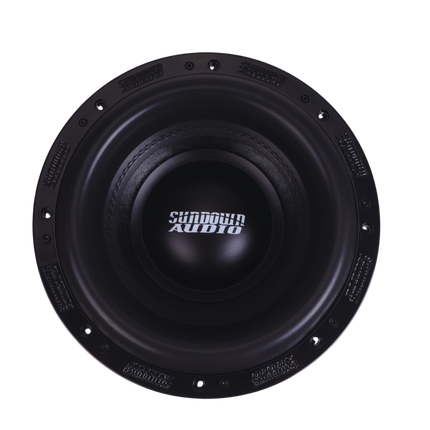

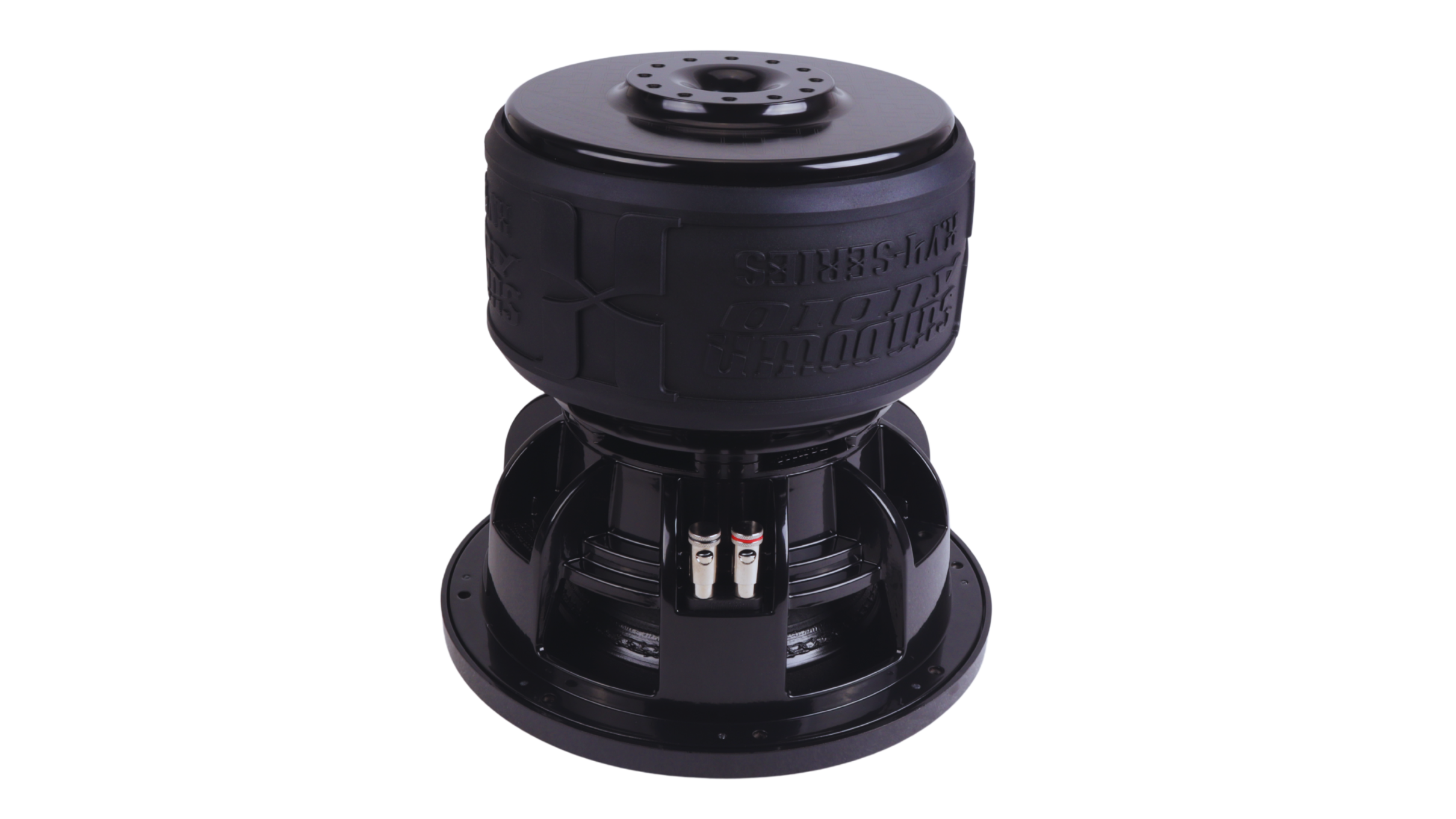

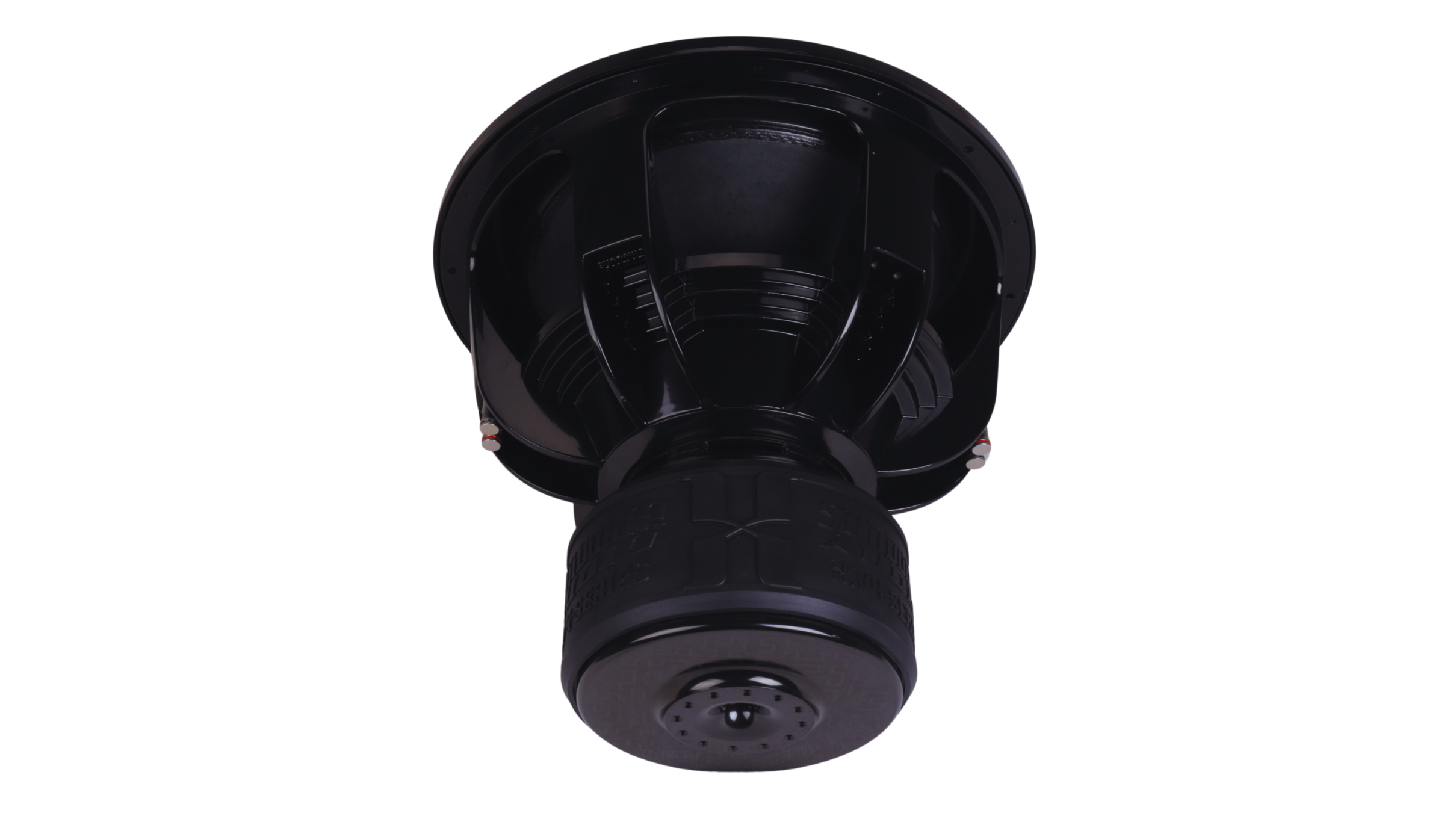

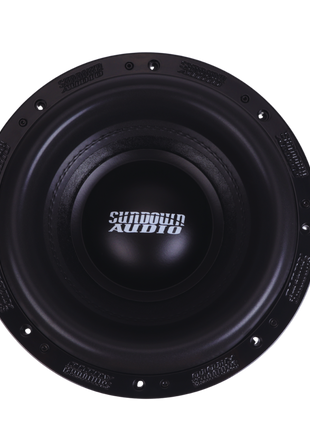

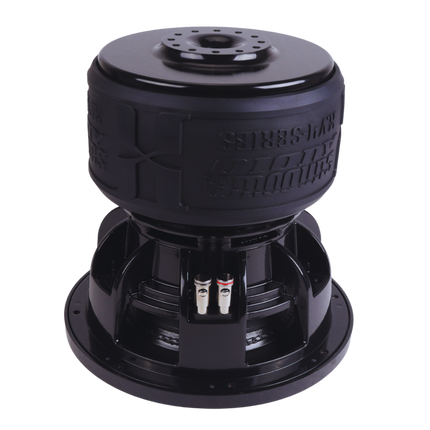

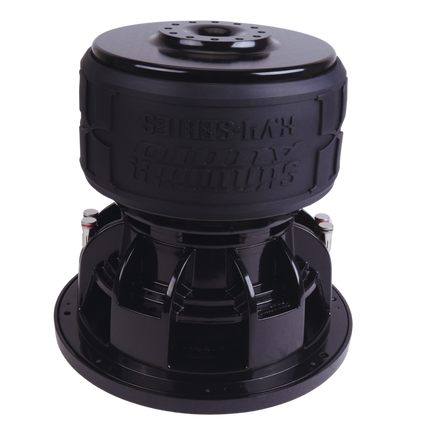

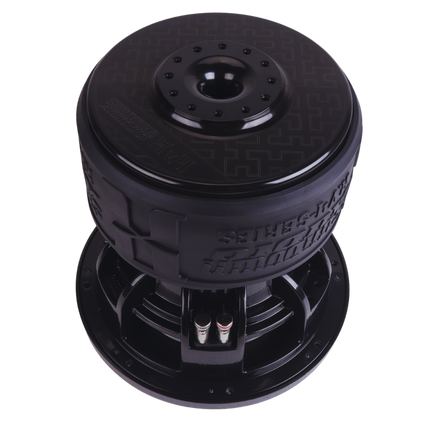

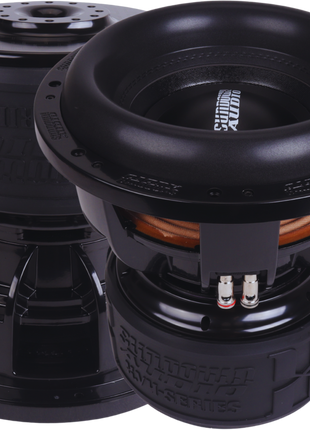

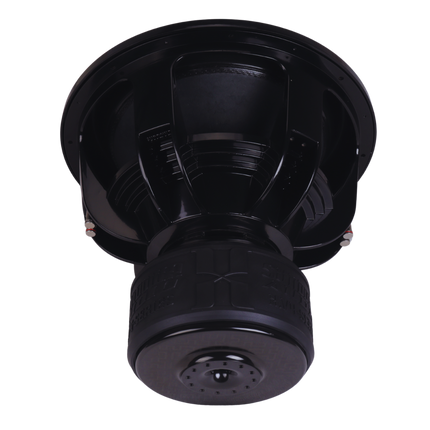

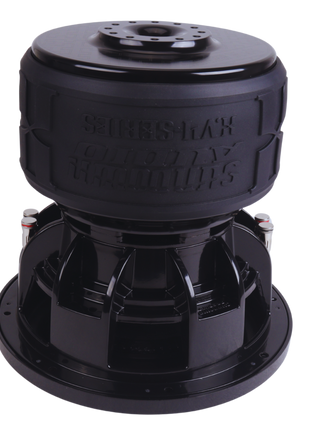

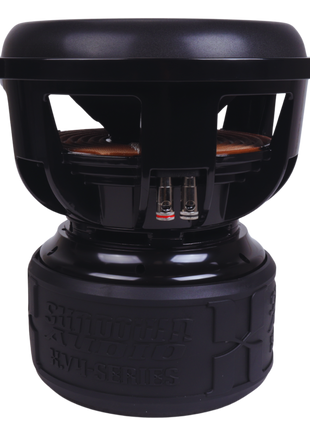

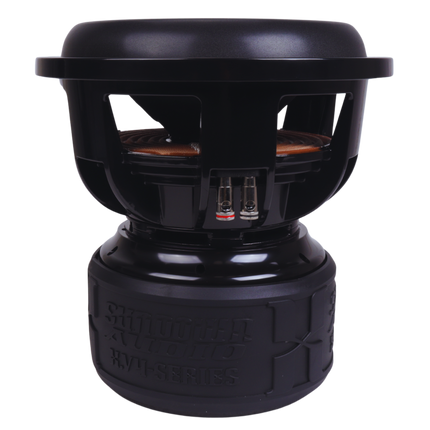

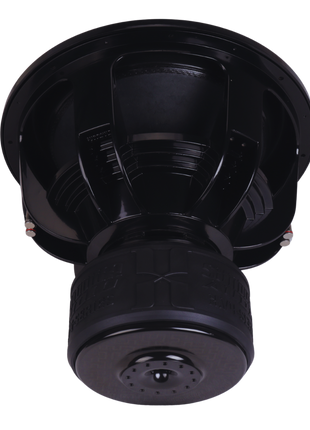

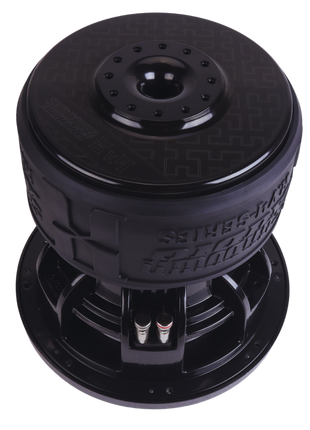

X-Series XV4 12" 3000W RMS Subwoofer
- Sundown Audio
X-Series XV4 12" 3000W RMS Subwoofer
- Sundown Audio
The Sundown Audio Xv4 12" Subwoofer is built for those who demand real power and precision in their sound system.... Read more
$799.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specification | Xv4-12 D1 | Xv4-12 D2 |
|---|---|---|
| Fs | 39.39 Hz | 36.06 Hz |
| Re | 2.05 Ω | 3.25 Ω |
| Qms | 4.9500 | 4.8200 |
| Qes | 0.5800 | 0.5400 |
| Qts | 0.5000 | 0.4900 |
| Mms | 343.14 g | 367.13 g |
| Cms | 47.56 µm/N | 53.04 µm/N |
| Sd | 735.5 cm² | 735.5 cm² |
| Vas | 14.13 L | 15.75 L |
| Sensitivity | 83.47 dB | 83.06 dB |
| BL | 24.400 T·m | 22.250 T·m |
| Le | 1.33 mH | 2.60 mH |
| X-Max | 30 mm | 30 mm |
| RMS Power | 2750 W | 2750 W |
| Peak Power | 5500 W | 5500 W |
| Specification | Xv4-12 D1/D2 |
|---|---|
| Overall Diameter | 12.81" |
| Cutout Diameter | 11.09" |
| Motor Diameter | 9.25" |
| Mounting Depth | 11.75" |
| Displacement | 0.23 Cu. Ft. |
| Sealed Volume | Not Recommended |
| Ported Volume | 2.5 cu ft |
| Port Tuning | 32 Hz |
| Port Area | 40 sq in |
| 4th Order Sealed | 1.0 cu ft |
| 4th Order Ported | 3.0 cu ft |
| 4th Order Port Area | 60 sq in |
| 4th Order Port Length | 8" |
