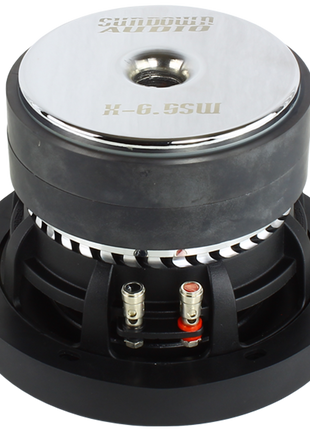

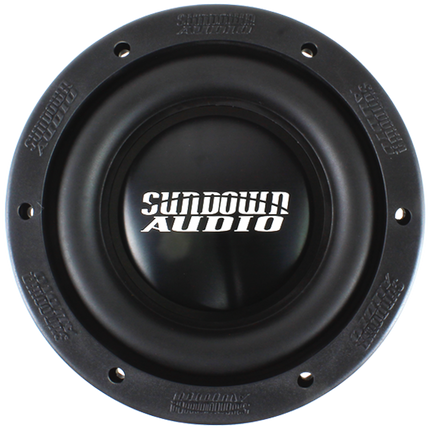

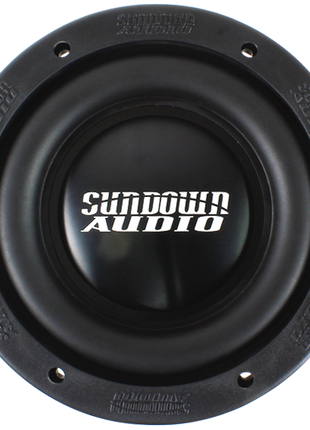

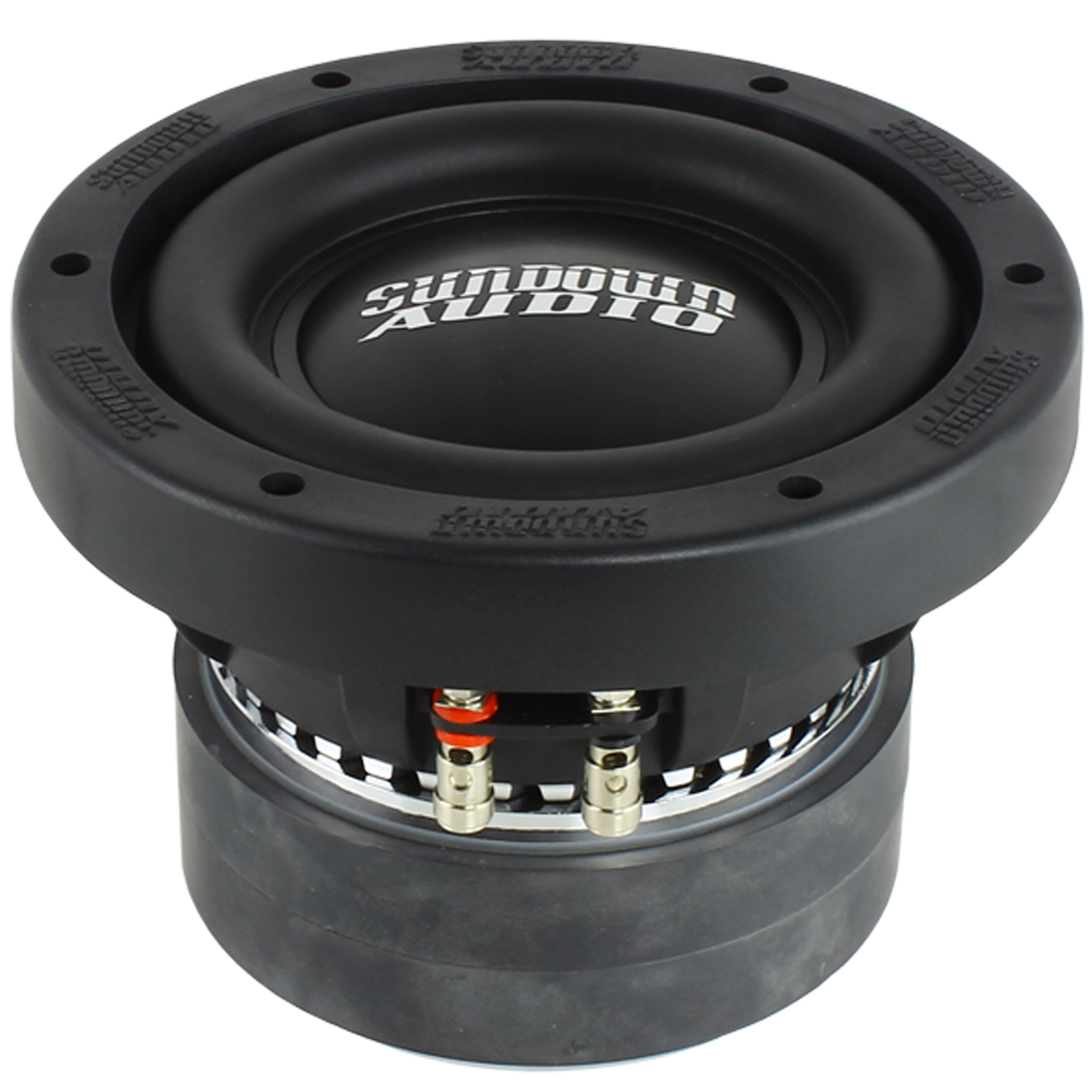

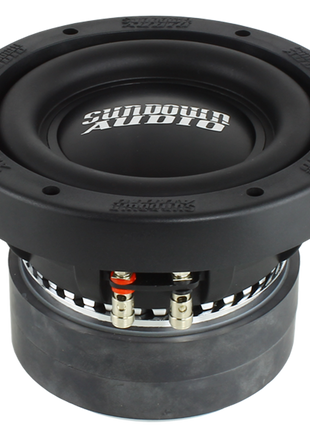

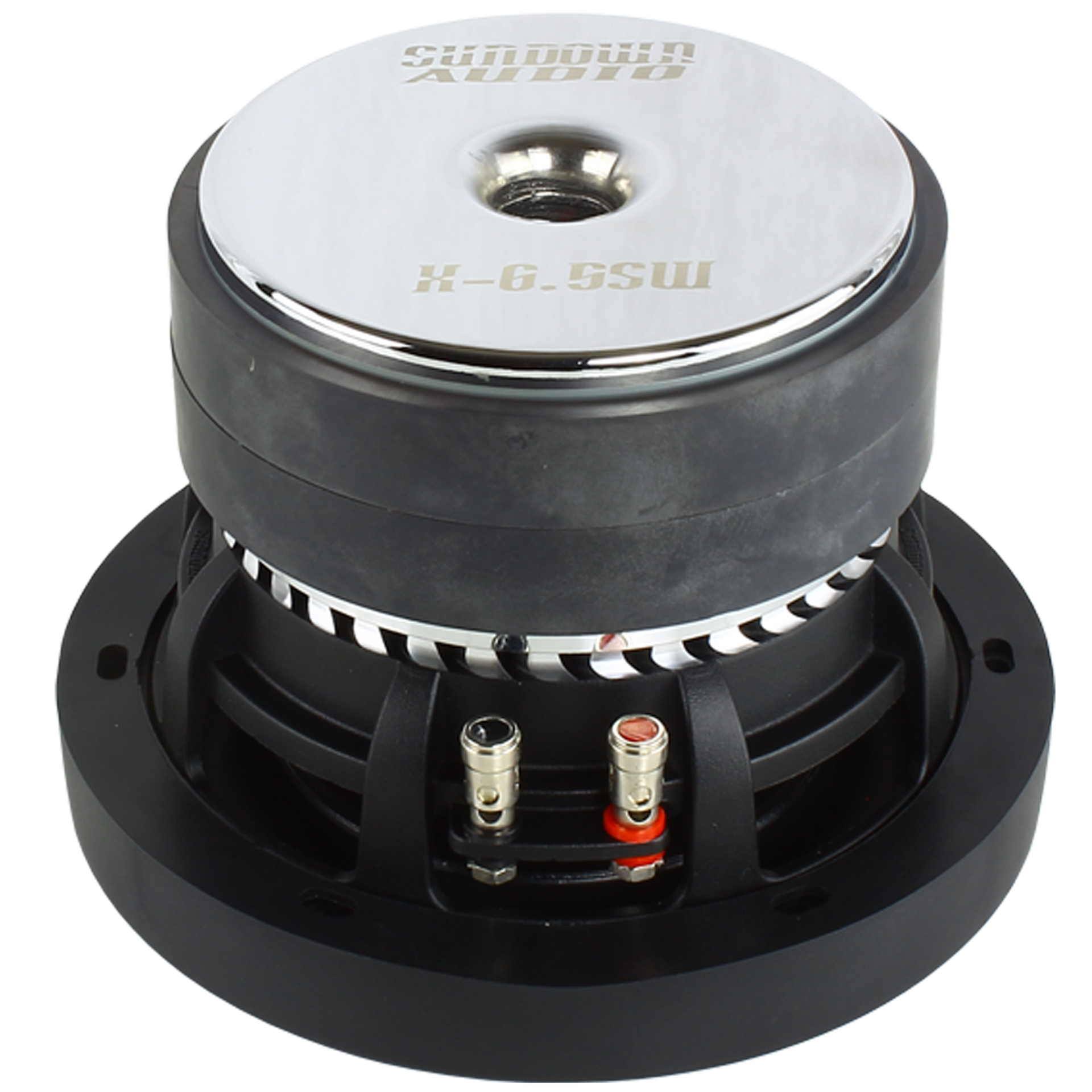

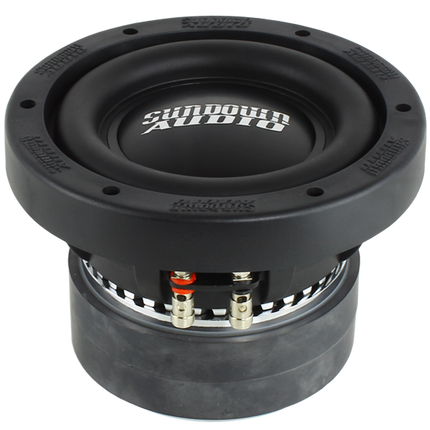

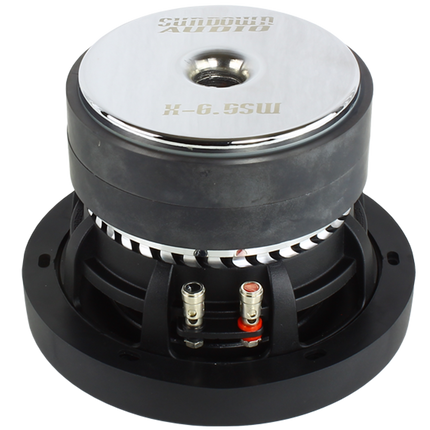

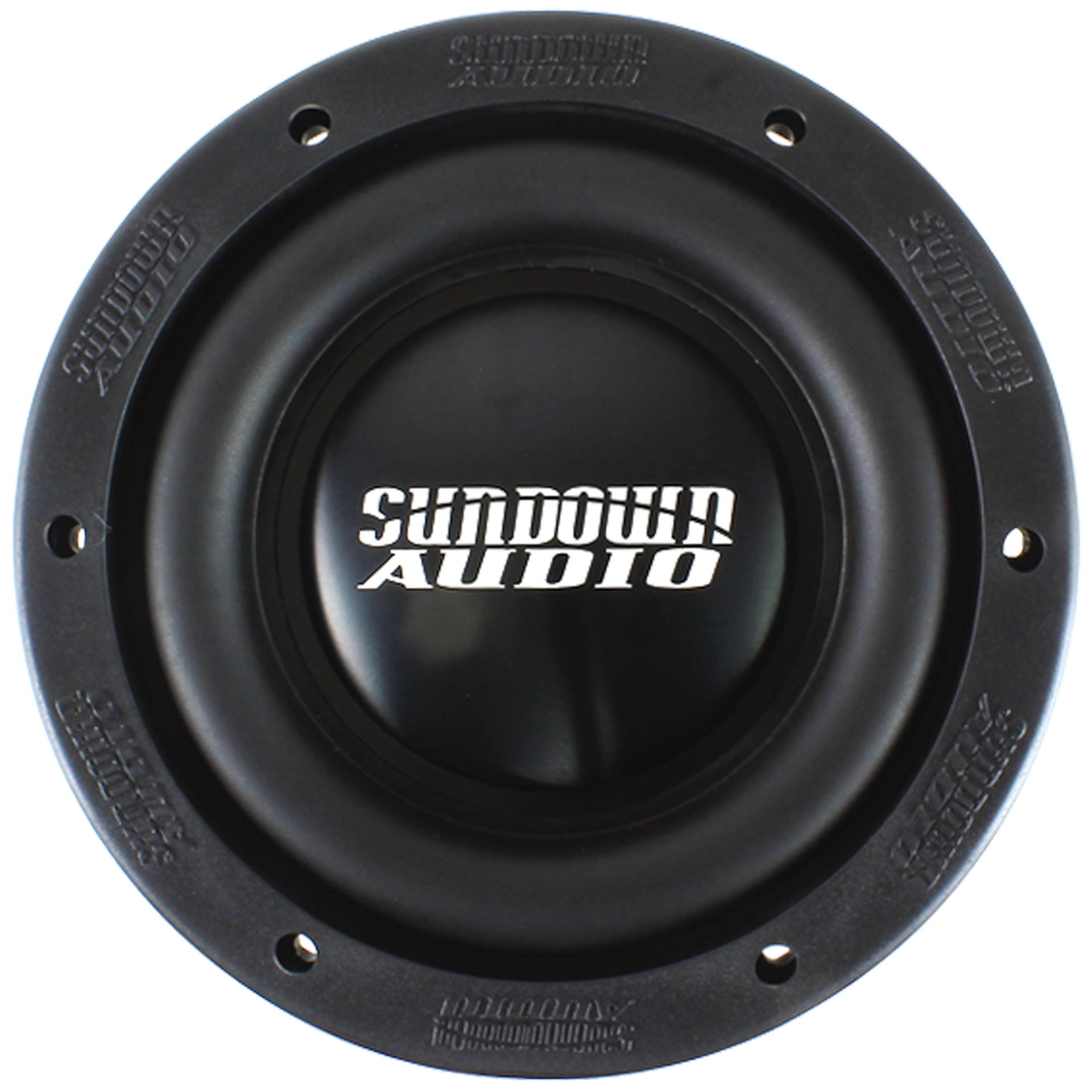

Sundown Audio X-Series v.2 6.5" Subwoofer

Description

The X-6.5SW is Sundown Audio's first true sub-woofer smaller than 8 inches in diameter. It features a voice coil identical in winding dimensions to their SA-8 v.3 subwoofer (a massive 2” diameter coil with a 1.4” winding height) so thermal power handling is absolutely massive.
Specifications:
  • Xmax: 16mm one-way by 70% BL
  • Large noise-free pole vent design
  • Specially designed spiral-cut basket venting technique (unique to this model in our line)
  • 2” diameter 4-Layer CCAW wire voice coil wound on thick Kapton former
  • Copper Pole-Cap For Reduced Inductive Distortion
  • Integrated Tinsel Leads to prevent lead slapping
  • Proprietary flat aluminum diaphragm
  • Note on Power Handling: This woofer is mechanically limited. It requires a SMALL ported enclosure. Placing it in a large or sealed enclosure will reduce mechanical power handling substantially.
    • Ported: 0.25-0.33 ft^3 volume
Box Recommendations:
  • Sealed: .15 ft^3
  • Ported: 0.3 ft^3
  • Displacement: .05 ft^3

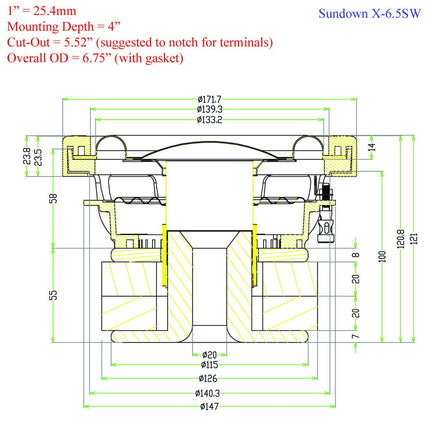

  • Depth: 4.00"
  • Outside Diameter: 6.75"
  • Cut-Out: 5.52"
  • Recommended Tuning: 32hz
  • Recommended Port Area: 4 in^2
