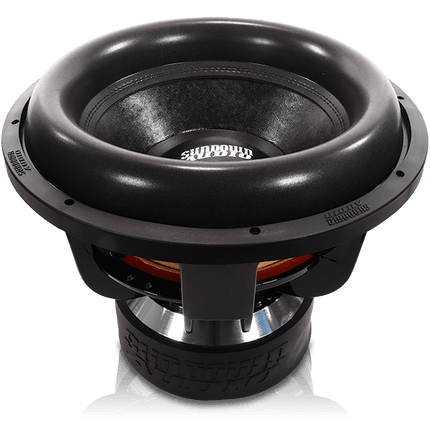

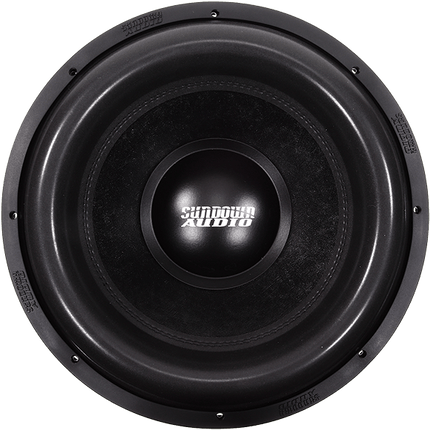

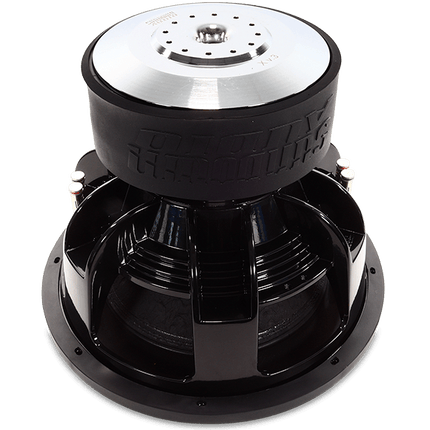

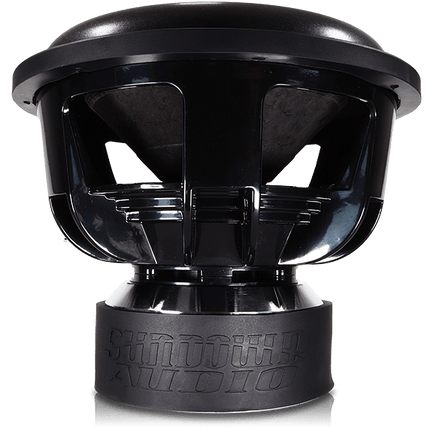

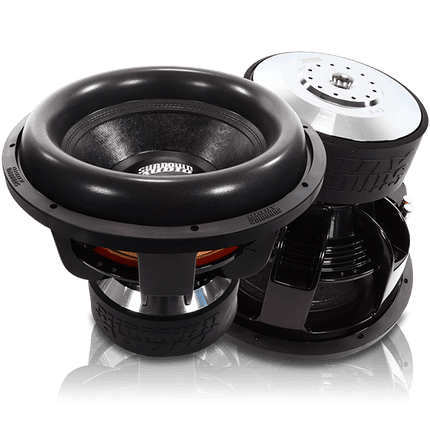

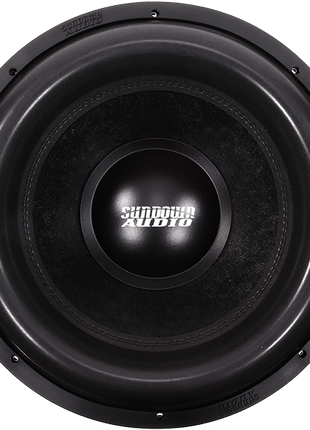

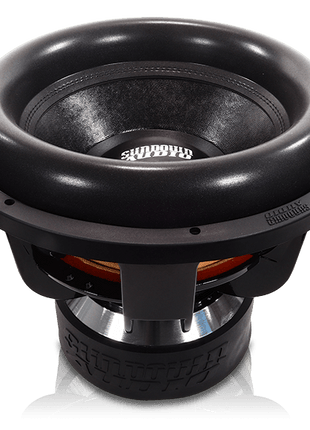

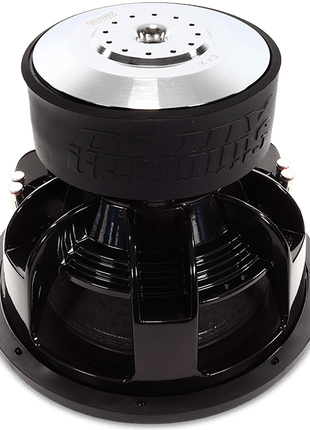

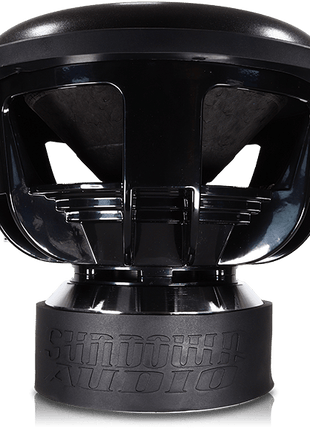

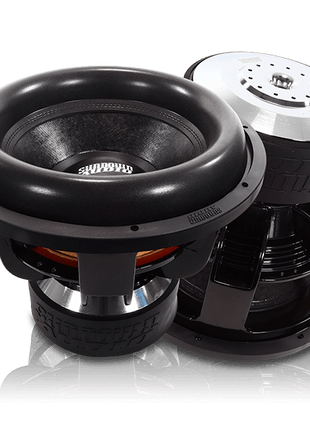

Sundown Audio X-Series v.3 15" Subwoofer
Free Lanyard and Stickers With Every Purchase
Full Manufacturer Warranty On All Products
Couldn't load pickup availability
- Multiple Financing Options
- Expert Support Before and After Purchase
- Free Shipping On Orders $75+
- Full Warranty On Every Product
About the Product
- RMS 2000 watts
- Dual 1 or 2 ohm voice coil
- Made for extremely deep bass
- Triple-stacked magnet
- 3” voice coil
- Hyper-extended pole
- Built to order
Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

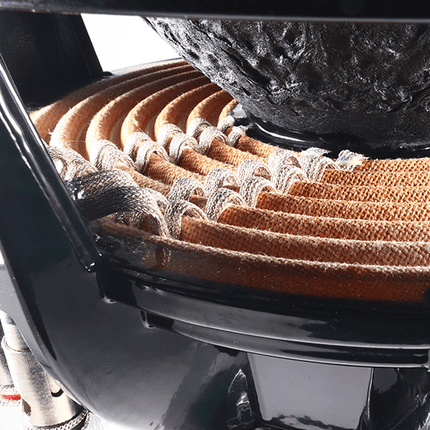

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the V.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.
Specifications
| T/S SPECS | X V.3 15″ D1 | X V.3 15″ D2 |
|---|---|---|
| RE (Ohms) | 1.4 | 3.2 |
| FS (Hz) | 31.418 | 31.423 |
| VAS (L) | 45.907 | 45.924 |
| Qes | 0.486 | 0.561 |
| Qms | 2.562 | 2.801 |
| Qts | 0.409 | 0.468 |
| Le (mH) | ||
| BL (NA) | 15.518 | 21.831 |
| Mms (Grams) | 423.721 | 423.436 |
| Cms (uM/N) | 60.563 | 60.585 |
| Sens (dB @ 1w/1m) | 86.5dB |
85.9dB |
Enclosure Specifications
| X v.3 15 | |
| Sealed Enclosure | N/A |
| Ported Enclosure | 4.25 cu ft |
| Recommended Tuning | 32hz |
| Recommended Port Area | 68 sq in |
| Displacement | 0.22 cu ft |
| Depth | 11.6" |
| Outside Diam. | 15.51" |
| Cutout | 13.83" |
| Physical Dimensions | Download |
