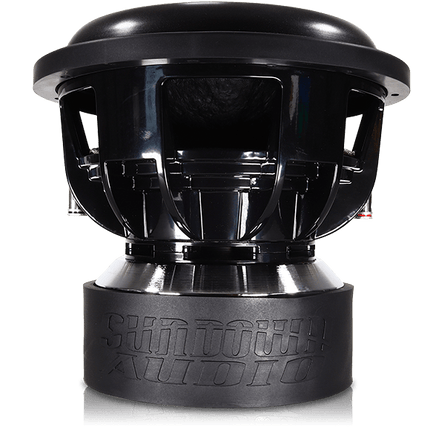

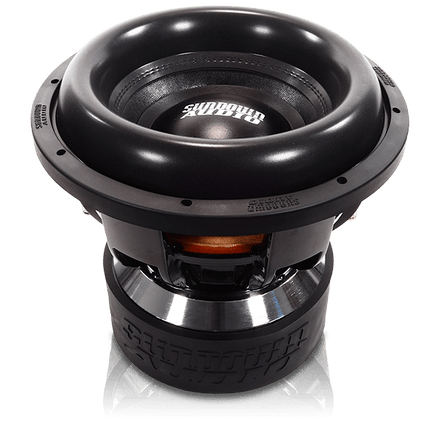

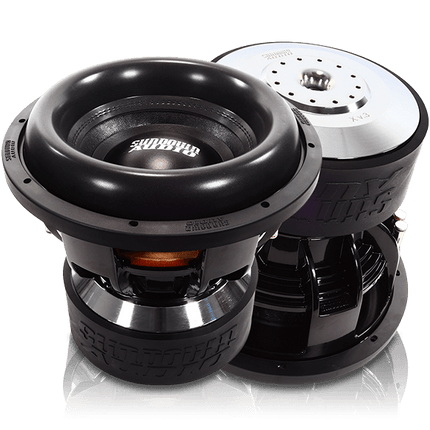

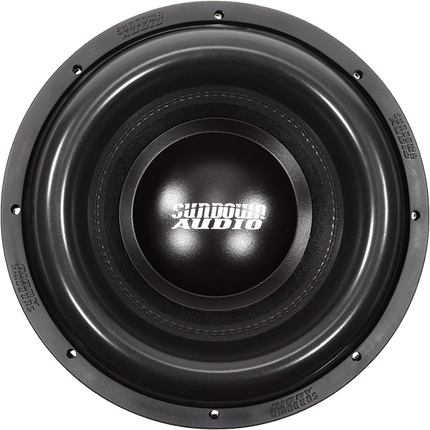

Sundown Audio X-Series v.3 12" Subwoofer

Description

  • 2500 Watts RMS / 5000 Watts Peak
  • Dual 1 or 2 ohm voice coil
  • Made for extremely deep bass

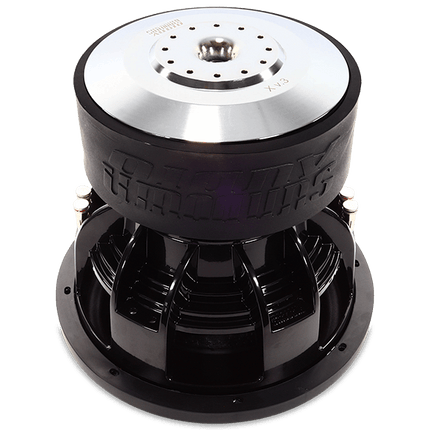

  • Triple-stacked magnet
  • 3” voice coil
  • Hyper-extended pole
  • Built to order

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

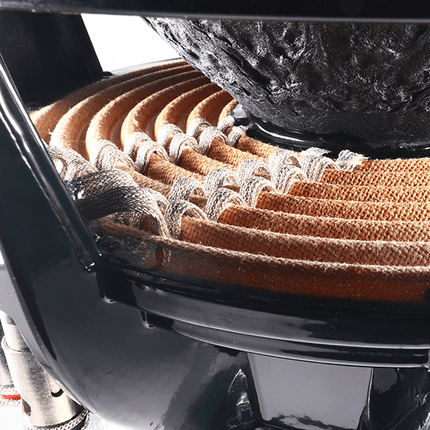

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

Enclosure Designs
.Zip File

Sundown Audio X-Series v.3 12" Subwoofer

Product form

2500 Watts RMS / 5000 Watts Peak Dual 1 or 2 ohm voice coil Made for extremely deep bass Triple-stacked... Read more

$699.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationX12-v3 D1X12-v3 D2
    Fs39.39 Hz36.06 Hz
    Re1.60 Ω3.25 Ω
    Qms4.95004.8200
    Qes0.58000.5400
    Qts0.50000.4900
    Mms343.14 g367.13 g
    Cms47.56 µm/N53.04 µm/N
    Sd735.5 cm²735.5 cm²
    Vas14.13 L15.75 L
    Sensitivity88.99 dB86.97 dB
    BL24.400 T·m22.250 T·m
    Le1.33 mH2.60 mH
    X-Max30 mm30 mm
    RMS Power2500 W2500 W
    Peak Power5000 W5000 W
    SpecificationX12-v3 D1/D2
    Overall Diameter12.68"
    Cutout Diameter11.09"
    Motor Diameter9.68"
    Mounting Depth9.67"
    Displacement0.23 Cu. Ft.
    Sealed VolumeNot Recommended
    Ported Volume2.5 cu ft
    Port Tuning32 Hz
    Port Area40 sq in
    4th Order Sealed1.0 cu ft
    4th Order Ported3.0 cu ft
    4th Order Port Area60 sq in
    4th Order Port Length8"

    Description

    • 2500 Watts RMS / 5000 Watts Peak
    • Dual 1 or 2 ohm voice coil
    • Made for extremely deep bass
    • Triple-stacked magnet
    • 3” voice coil
    • Hyper-extended pole
    • Built to order

    Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

    The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

    Enclosure Designs
    .Zip File
