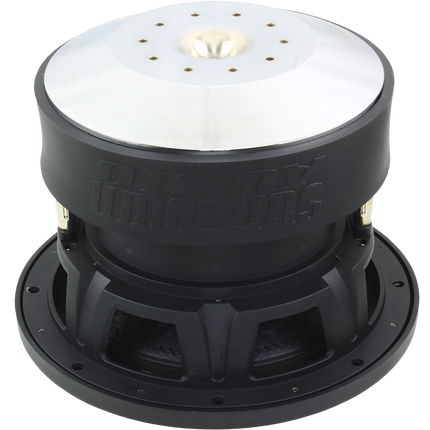

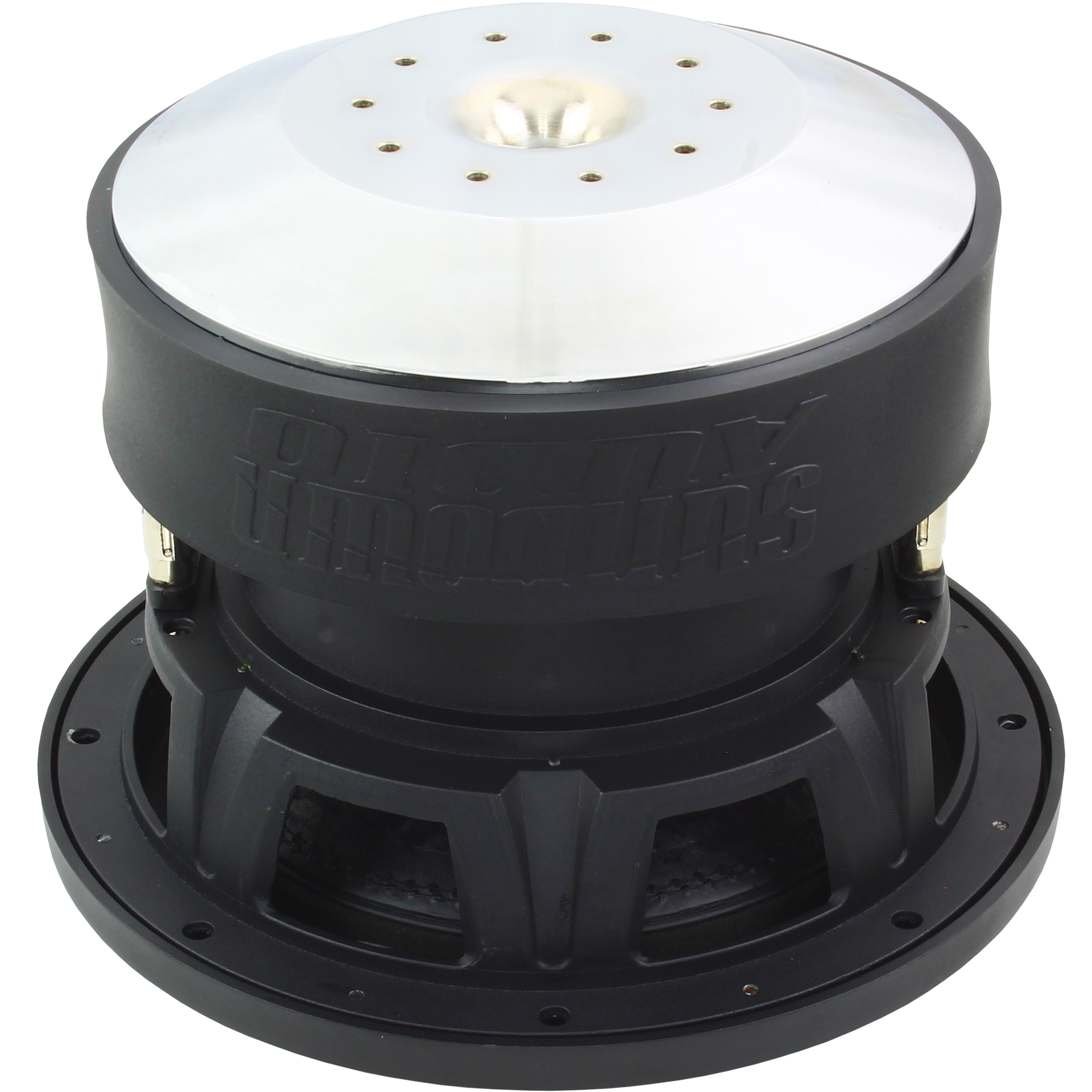

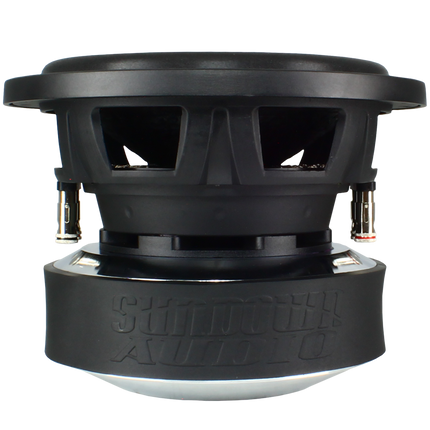

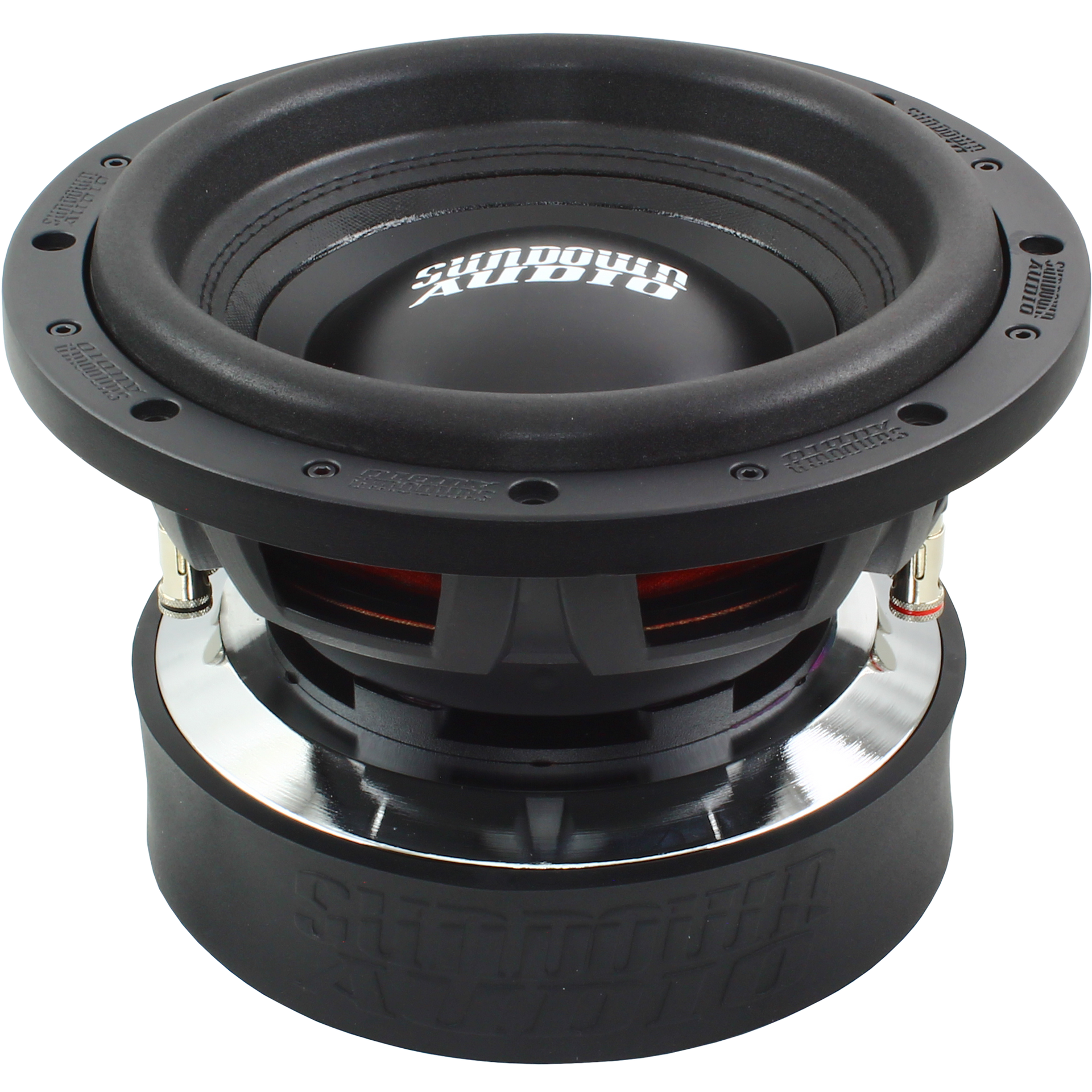

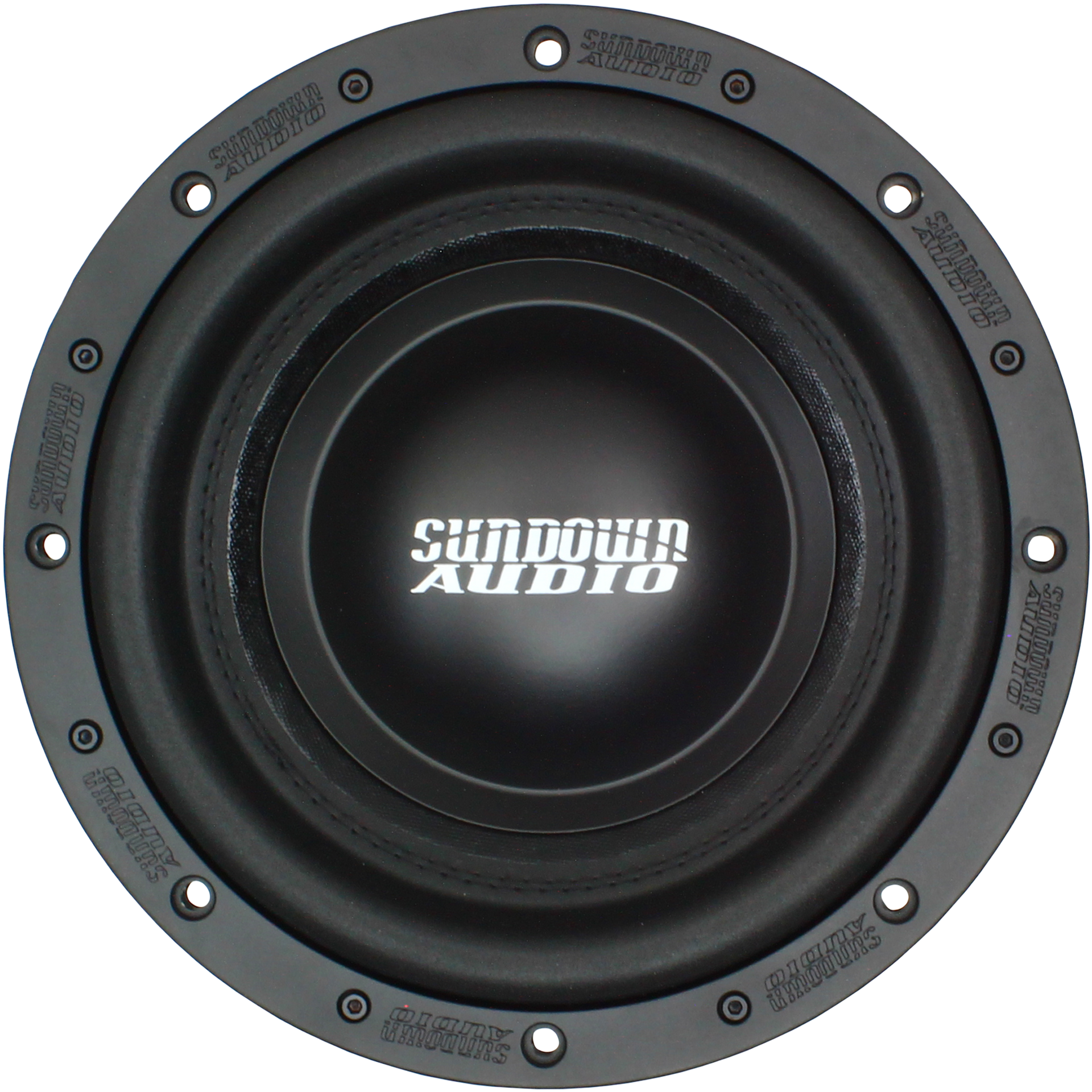

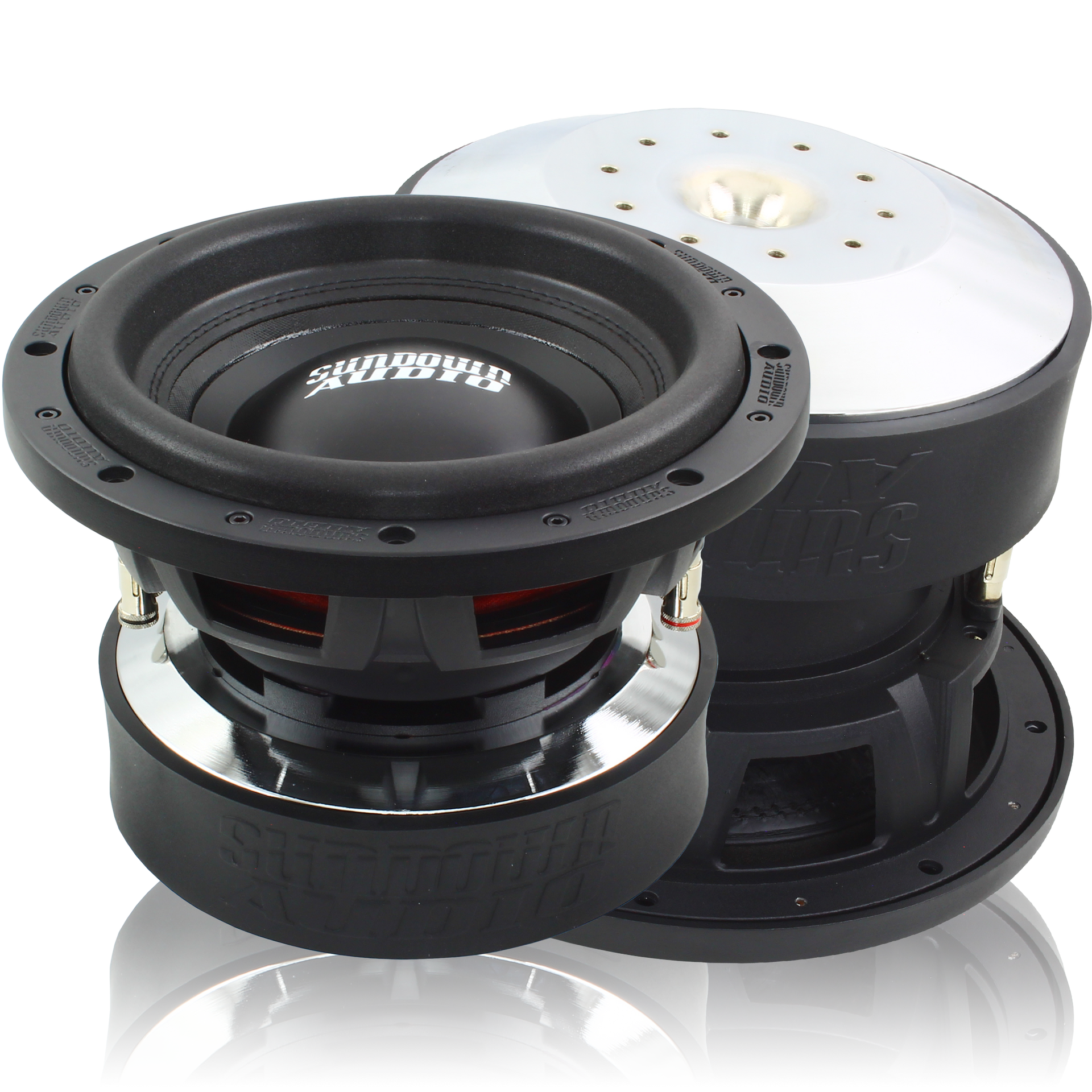

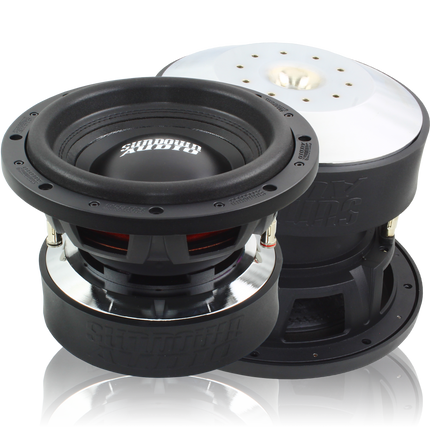

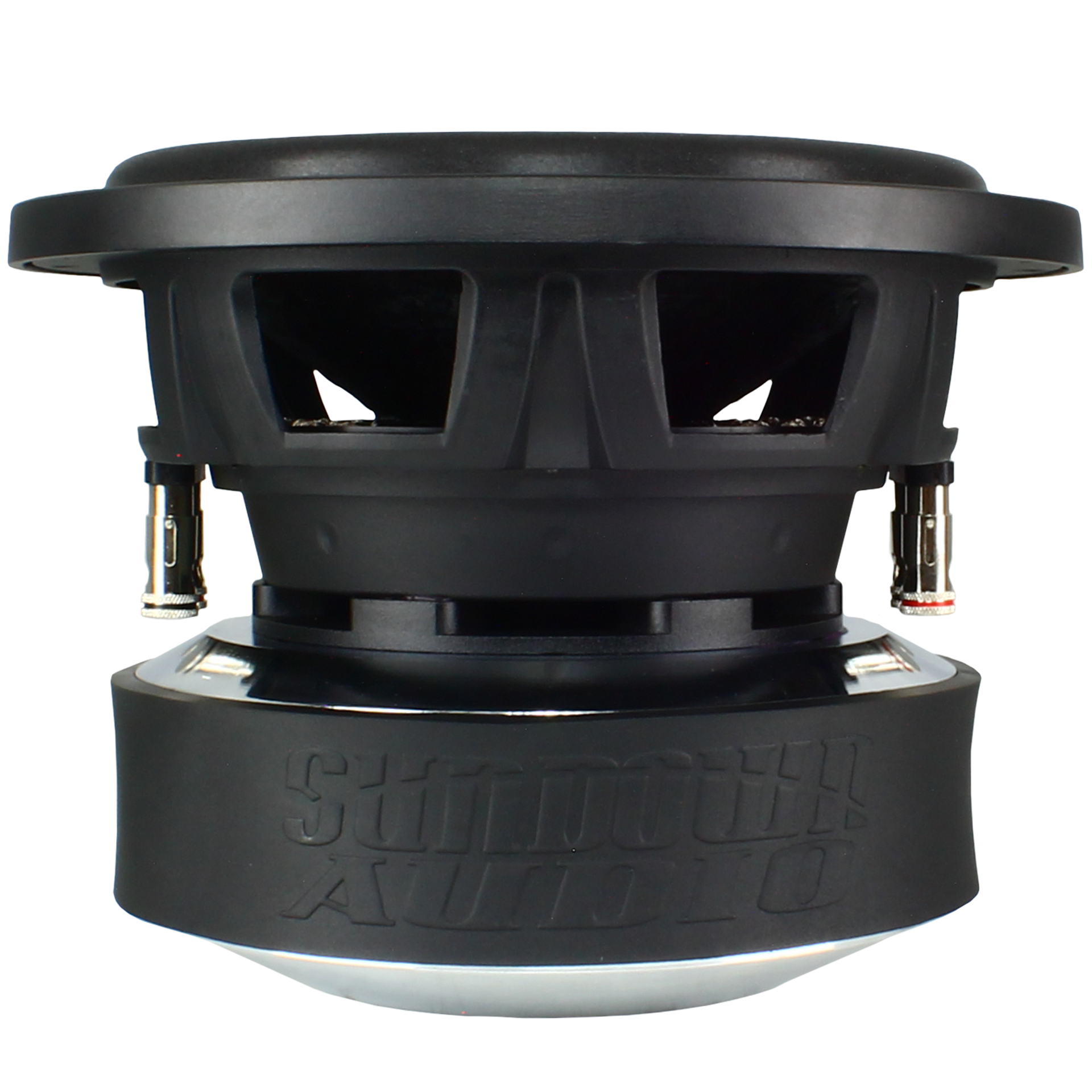

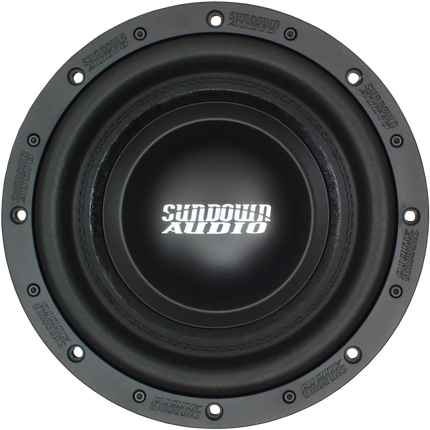

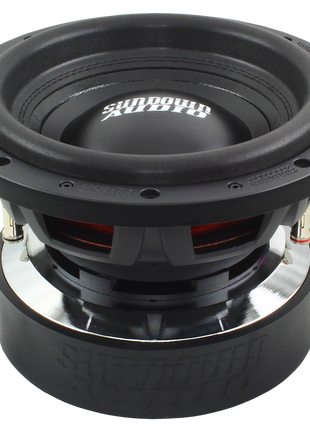

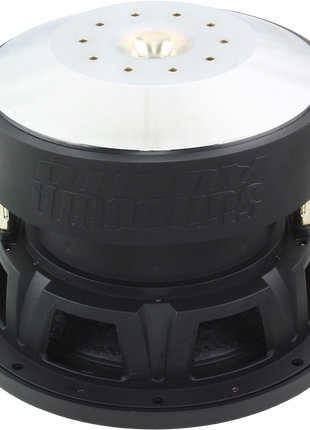

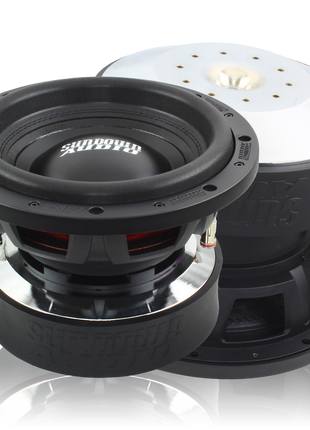

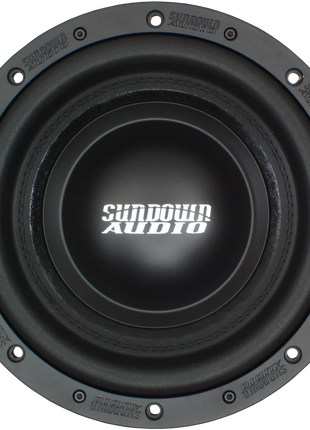

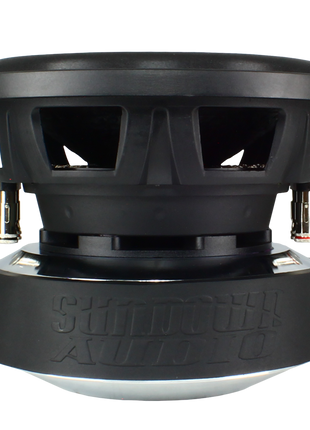

Sundown Audio U-Series v.1 10" Subwoofer

Description

The Sundown U Series is our premier “standard suspension” woofer series. It is the most direct replacement for the world famous Z v.3 woofer line which we produced from 2011 to 2016 before launching the “new platform” Z v.4 series. Due to numerous advancements in our design process the U Series is able to deliver performance on-par with the Z v.3 series but at a much lower cost.

We start with a double-stacked / 8.66” wide Y35 grade ferrite magnet system coupled to a one-piece, bumped T-Yoke and a 0.6” thick top-plate. Just as with the Z v.3 before it and our other high-end subwoofers we also add a very thick (5mm thickness) aluminum shorting ring inside the magnets to reduce static inductance and level out inductance over stroke. The U series motor also features a 0.6” long pole-extension to keep the coil under control at high levels of excursion.

The voice coil is a 2.36” long / 3” diameter 4-layer aluminum winding / aluminum former unit – which is the same coil we use in our X v.2 series and, thus, the U series has the same 1500-watt RMS ratings. The coil temperature is kept in check by a heavily smoothed / high-velocity pole-vent and a series of ten direct air-gap vents in the back plate. The U series also features newly tooled cast aluminum vent rings in between the frame and top plate to effectively exchange air at a high velocity over the voice coil beneath the spider landing.

The U series features an all-new cast aluminum frame series to the Sundown line which allows for taller cones than the older frames used on the Z v.3 series. The taller cones provide enhanced coil stability and increased mechanical excursion capability. We also tooled matching cast-aluminum surround clamps for the U series to ensure durability in the most demanding situations. The surrounds and cone bodies have been fully custom tooled especially for the U series and are stronger / support more excursion than the Z v.3 series cones and surrounds. The new cone bodies also feature an indentation for the same wide-flange, ultra-strong dust caps as our new platform subwoofers.

If you are looking for a woofer that sounds similar to the SA series but handles significantly more power… the U series is exactly what you need. It has been designed to live up to the reputation earned by our Z v.3 series both in terms of every-day music enjoyment and SPL competition.

  • Black Aluminum 3” voice coil former for superior heat dissipation
  • High Temperature Round-Wire CCAW voice coil with high-temp black adhesive
  • Double stitched surround
  • Heavy duty cast basket
  • Spring loaded terminals accept up to 8 gauge
  • Stitched-on double-XL tinsel leads
  • Rear vented pole piece
  • Rear drilled gap-venting
  • Innovative high-velocity cast aluminum vented frame spacer ring
  • Magnet ID shorting ring
  • Top-Plate Cooling Channels
  • Cast Aluminum surround bolt-on rings
  • Optimized for small ported or bandpass enclosures

              Sundown Audio U-Series v.1 10" Subwoofer

              Product form

              The Sundown U Series is our premier “standard suspension” woofer series. It is the most direct replacement for the world... Read more

              $339.99

                • Free shipping in the contiguous USA on all orders above $99
                • Full Manufacturer Warranty On All Items
                • No Hassle, Easy 30 Day Returns
                • Price Match Guarantee. Lowest Prices Anywhere.
                • REAL Audio Enthusiasts, Expert Support
                ParameterD2 ModelD4 Model
                Re3.80 Ω6.10 Ω
                Fs48.5 Hz41.1 Hz
                Qms3.20003.2100
                Qes0.35000.3900
                Qts0.32000.3500
                Vas8.300 L11.500 L
                Mms216.30 g219.70 g
                Cms0.05 mm/N0.07 mm/N
                BL26.800 T·m29.700 T·m
                Le2.56 mH3.71 mH
                Sd506.6 cm²506.6 cm²
                Xmax30mm30mm
                SPL (1W/1m)86.2 dB84.9 dB
                SpecificationD2 ModelD4 Model
                RMS Power1500 W1500 W
                Peak Power3000 W3000 W
                Displacement0.18 cu ft0.18 cu ft
                Mounting Depth7.007"7.007"
                Outside Diameter10.94"10.94"
                Cutout Diameter9.17"9.17"
                Motor Diameter9.379.37
                Sealed Enclosure0.5 cu ft0.5 cu ft
                Ported Enclosure1.0 cu ft1.0 cu ft
                Recommended Port Tuning35hz35hz
                Recommended Port Area16 sq in16 sq in
                Xmax30mm30mm
                4th Order Sealed.4cu ft.4cu ft
                4th Order Ported1.2cu ft1.2cu ft
                4th Order Port Area24sq in24sq in
                4th Order Port Length6"6"

                Description

                The Sundown U Series is our premier “standard suspension” woofer series. It is the most direct replacement for the world famous Z v.3 woofer line which we produced from 2011 to 2016 before launching the “new platform” Z v.4 series. Due to numerous advancements in our design process the U Series is able to deliver performance on-par with the Z v.3 series but at a much lower cost.

                We start with a double-stacked / 8.66” wide Y35 grade ferrite magnet system coupled to a one-piece, bumped T-Yoke and a 0.6” thick top-plate. Just as with the Z v.3 before it and our other high-end subwoofers we also add a very thick (5mm thickness) aluminum shorting ring inside the magnets to reduce static inductance and level out inductance over stroke. The U series motor also features a 0.6” long pole-extension to keep the coil under control at high levels of excursion.

                The voice coil is a 2.36” long / 3” diameter 4-layer aluminum winding / aluminum former unit – which is the same coil we use in our X v.2 series and, thus, the U series has the same 1500-watt RMS ratings. The coil temperature is kept in check by a heavily smoothed / high-velocity pole-vent and a series of ten direct air-gap vents in the back plate. The U series also features newly tooled cast aluminum vent rings in between the frame and top plate to effectively exchange air at a high velocity over the voice coil beneath the spider landing.

                The U series features an all-new cast aluminum frame series to the Sundown line which allows for taller cones than the older frames used on the Z v.3 series. The taller cones provide enhanced coil stability and increased mechanical excursion capability. We also tooled matching cast-aluminum surround clamps for the U series to ensure durability in the most demanding situations. The surrounds and cone bodies have been fully custom tooled especially for the U series and are stronger / support more excursion than the Z v.3 series cones and surrounds. The new cone bodies also feature an indentation for the same wide-flange, ultra-strong dust caps as our new platform subwoofers.

                If you are looking for a woofer that sounds similar to the SA series but handles significantly more power… the U series is exactly what you need. It has been designed to live up to the reputation earned by our Z v.3 series both in terms of every-day music enjoyment and SPL competition.

                • Black Aluminum 3” voice coil former for superior heat dissipation
                • High Temperature Round-Wire CCAW voice coil with high-temp black adhesive
                • Double stitched surround
                • Heavy duty cast basket
                • Spring loaded terminals accept up to 8 gauge
                • Stitched-on double-XL tinsel leads
                • Rear vented pole piece
                • Rear drilled gap-venting
                • Innovative high-velocity cast aluminum vented frame spacer ring
                • Magnet ID shorting ring
                • Top-Plate Cooling Channels
                • Cast Aluminum surround bolt-on rings
                • Optimized for small ported or bandpass enclosures
