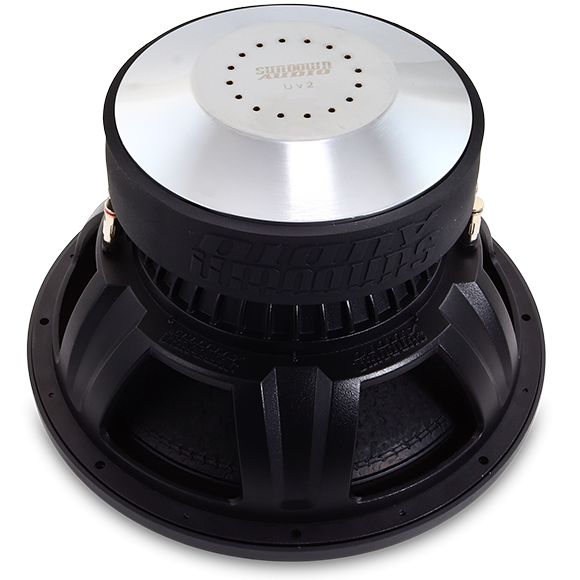

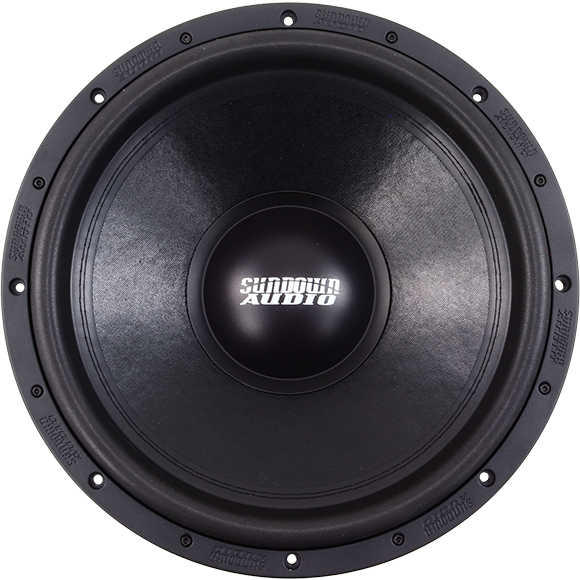

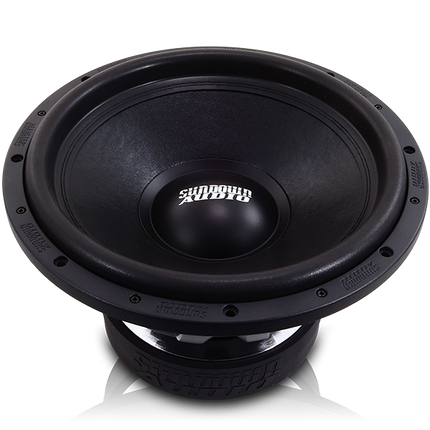

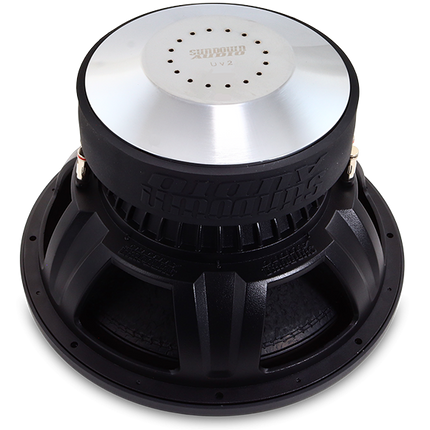

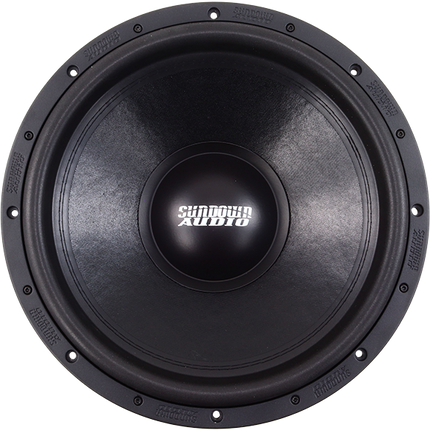

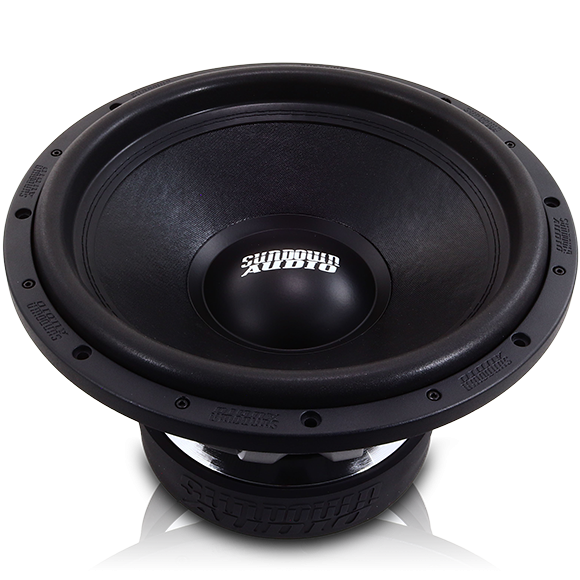

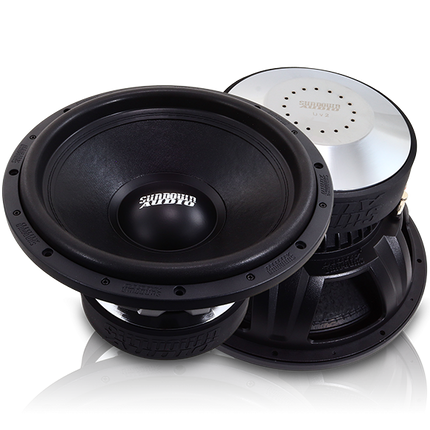

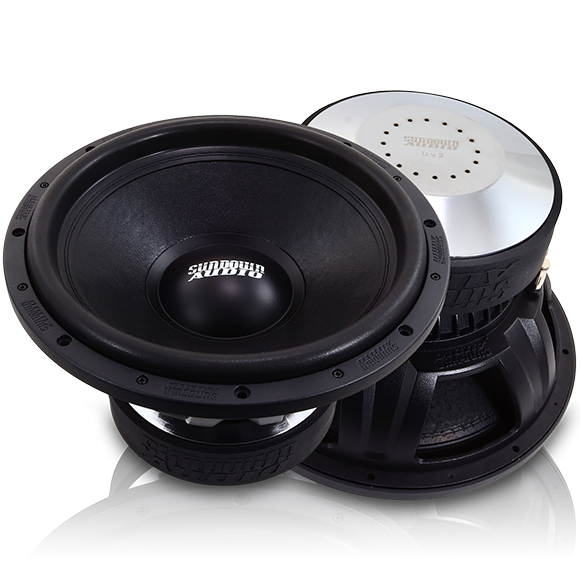

U-Series v.2 15" Subwoofer
Free Shipping In The Contiguous United States
Free Shipping In The United States, excluding Alaska and Hawaii.
International Shipping available and calculated at checkout.
Description
- 2000 Watts RMS / 4000 Watts Peak
- Dual 2 or 4 ohm voice coils
- Optimized for small ported or bandpass enclosures
- Aluminum 3” voice coil former for superior heat dissipation
- High-temperature copper voice coil
- Double stitched surround
- Heavy-duty cast basket
- Spring-loaded terminals accept up to 8-gauge wire
- Stitched-on heavy-duty tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear gap-venting
- Top-Plate Cooling Channels
Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension” woofer in the Sundown lineup. A double-stacked 9.4-inch wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom aluminum frame was designed specifically for the U Series. It’s substantially thicker and equipped with heat dissipation ribs at the bottom of the frame. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is controlled with machined, high-velocity pole channels and a series of 16 direct air-gap vents in the back plate.
Specifications
| T/S SPECS | UV.2 15" D2 | UV.2 15" D4 |
|---|---|---|
| RE (Ohms) | 3.8279 | 6.0586 |
| FS (Hz) | 37.1918 | 36.4015 |
| VAS (L) | 43.5048 | 46.1027 |
| Qes | 0.5463 | 0.6170 |
| Qms | 5.4082 | 5.5975 |
| Qts | 0.4962 | 0.5557 |
| Le (mH) | 3.4147 | 4.6596 |
| BL (NA) | 26.7943 | 31.1468 |
| Mms (Grams) | 438.4924 | 431.9457 |
| Cms (uM/N) | 41.7623 | 44.2561 |
| Sens (dB @ 1w/1m) | 87.8716 | 87.3156 |
| Xmax | 30mm | 30mm |
Enclosure Specifications
| Sealed Enclosure | 2.0 cu ft |
| Ported Enclosure | 3.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 48 sq in |
| Displacement | 0.24 cu ft |
| Depth | 9.0″ |
| Outside Diameter | 15.6″ |
| Cut-Out | 14.1″ |
| Physical Dimensions | Download |
Dimensions
 |
