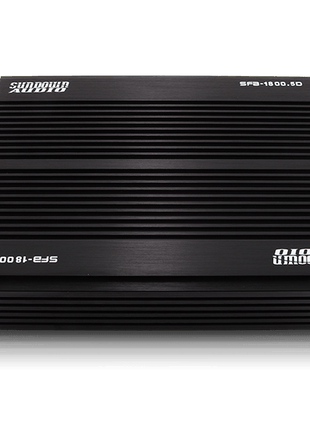

SFB-1800.5 5-Channel Amplifier
Free Lanyard and Stickers With Every Purchase
Full Manufacturer Warranty On All Products
Couldn't load pickup availability
- Multiple Financing Options
- Expert Support Before and After Purchase
- Free Shipping On Orders $75+
- Full Warranty On Every Product
About the Product
- 1,000 x 1 @ 1 ohm RMS (Ch. 5)
- 300 x 4 (Ch. 1-4) + 500 x 1(Ch. 5) @ 2 ohms RMS
- 200 x 4 (Ch. 1-4) + 250 x 1(Ch. 5) @ 4 ohms RMS
- 5-channel full-range amplifier
- Variable 12dB low pass filter: 50Hz – 6kHz (Ch. 1-4)
- Variable 12dB low pass filter: 50Hz – 20kHz (Ch. 5)
- Variable 12dB high pass filter: 15Hz – 6kHz (Ch. 1-4)
- Variable 12dB high pass filter: 50Hz – 1kHz (Ch. 5)
- Variable 12dB Bass Boost @ 50Hz
- Power, protection & clipping indicators included
- Thermal, voltage, speaker short, and dc-offset protection circuitry
- Optional wired remote control with clipping indicator
Full Bridge for your full system! The “Brazilian Style” SFB packs a powerful punch in a compact size, with a bass channel stable down to 1 ohm. Use the SFB to wire several speakers together on every channel - an ideal amp for a PA mid/high speaker array, a large marine system, or your favorite set of separates, plus a dedicated powerhouse for a sub channel. If you are looking for raw power on a budget – look no further!
Specifications
- Frequency Response: 10HZ-20KHZ(-3dB)
- Input Impedance: 56k ohms
- Input Sensitivity 5V Max
- S/N Ratio 100dB
- Minimum Supply Voltage: 9VDC
- Maximum Supply Voltage: 16VDC
- Working Voltage 10.5v-15.5v
- Recommended Fuse Rating 150A
- Dimensions 8.86″ x 11.81″ x 2.70″
