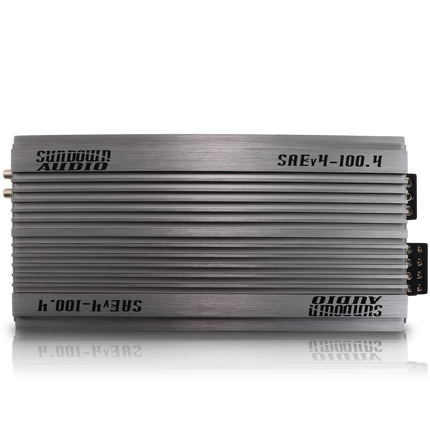

Sundown Audio SAEv4-100.4 4-Channel Amplifier

Description



  • 250 x 2 @ 4 ohms RMS (Bridged)
  • 125 x 4 @ 2 ohm RMS
  • 100 x 4 @ 4 ohms RMS
  • Hi-fidelity Class A/B design

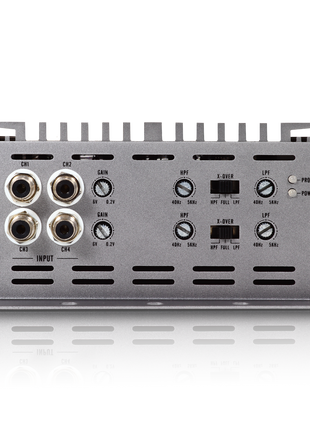

  • Variable 12dB low & high pass filters: 40Hz-5kHz
  • Power and protection indicators included
  • Thermal, voltage, speaker short, and dc-offset protection circuitry


The SAEv4 is engineered with high-fidelity Class A/B multi-channel architecture, providing an ideal balance between performance and affordability. Leveraging the latest half-bridge technology, these amplifiers deliver clean, powerful audio signals in a compact form factor.

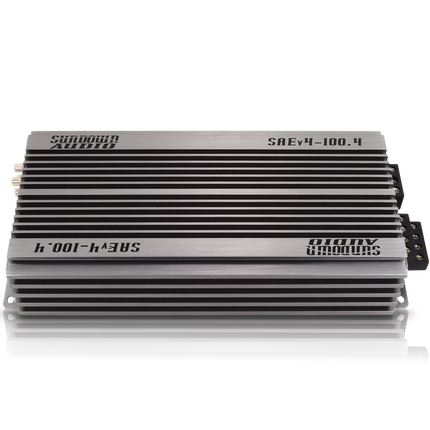

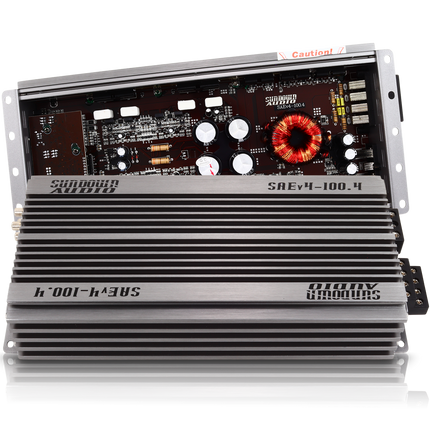

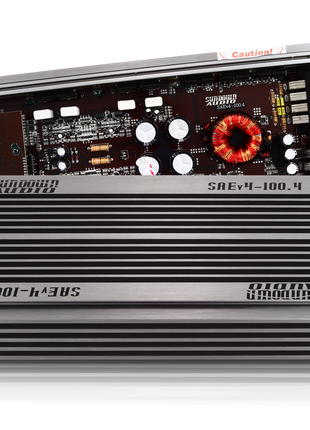

Featuring an all-new chassis and heatsink design with 33% more aluminum, this SAEv4 keeps your system cool even during intense listening sessions. The amp is packed with a variable subsonic, high pass and low pass filters, plus a 4-way protection circuit (thermal, voltage, speaker short, and DC offset).

With an input sensitivity of 6V max and RMS power output of 125W x 4 at 2 ohms and 100W x 4 at 4 ohms, the SAEv4-100.4 is designed to drive your car audio system with precision and clarity. The variable crossover slope (LPF/HPF) and a high signal-to-noise ratio of 92dB further enhance audio quality, with an exceptionally low noise floor.

Sundown Audio SAEv4-100.4 4-Channel Amplifier

Product form

  250 x 2 @ 4 ohms RMS (Bridged) 125 x 4 @ 2 ohm RMS 100 x 4 @... Read more

$349.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    SpecificationSAEv4-100.4
    Power per Channel @ 2Ω125W × 4
    Power per Channel @ 4Ω100W × 4
    Power Bridged @ 4Ω250W × 2
    Amplifier ClassA/B
    Operating Voltage10.5V – 15.5V
    Signal-to-Noise Ratio92 dB
    Input Sensitivity6V max

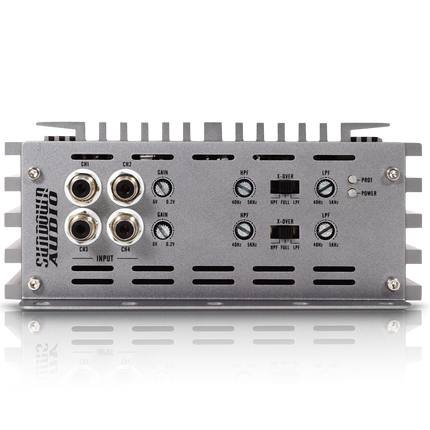

    High/Low Pass Filter40 Hz – 5 kHz (12 dB variable)
    Fuse Rating60A

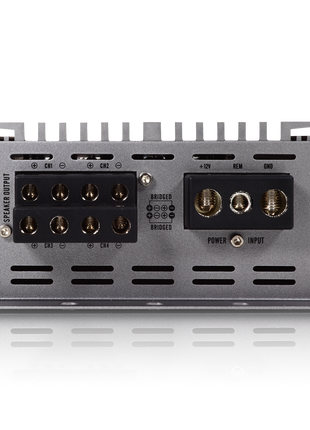

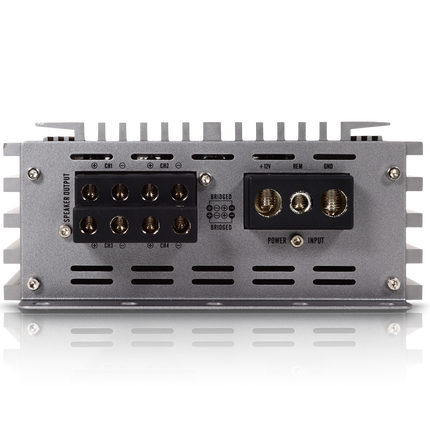

    Input Wire Size4 Ga
    Dimensions (L × W × H)14.88" × 6.3" × 2.75"

    Description



    • 250 x 2 @ 4 ohms RMS (Bridged)
    • 125 x 4 @ 2 ohm RMS
    • 100 x 4 @ 4 ohms RMS
    • Hi-fidelity Class A/B design
    • Variable 12dB low & high pass filters: 40Hz-5kHz
    • Power and protection indicators included
    • Thermal, voltage, speaker short, and dc-offset protection circuitry


    The SAEv4 is engineered with high-fidelity Class A/B multi-channel architecture, providing an ideal balance between performance and affordability. Leveraging the latest half-bridge technology, these amplifiers deliver clean, powerful audio signals in a compact form factor.

    Featuring an all-new chassis and heatsink design with 33% more aluminum, this SAEv4 keeps your system cool even during intense listening sessions. The amp is packed with a variable subsonic, high pass and low pass filters, plus a 4-way protection circuit (thermal, voltage, speaker short, and DC offset).

    With an input sensitivity of 6V max and RMS power output of 125W x 4 at 2 ohms and 100W x 4 at 4 ohms, the SAEv4-100.4 is designed to drive your car audio system with precision and clarity. The variable crossover slope (LPF/HPF) and a high signal-to-noise ratio of 92dB further enhance audio quality, with an exceptionally low noise floor.
