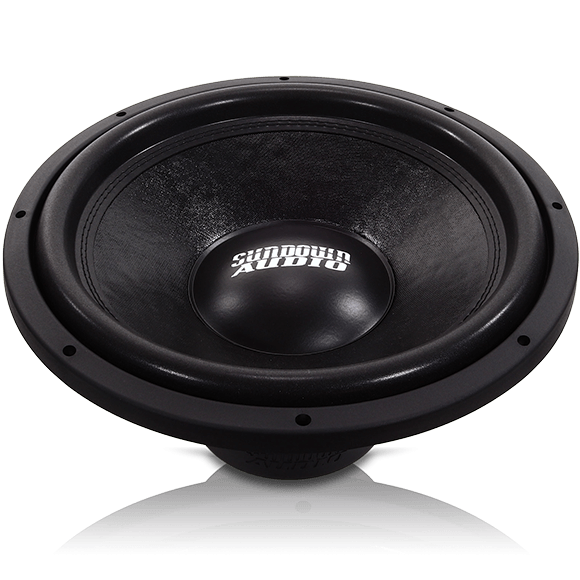

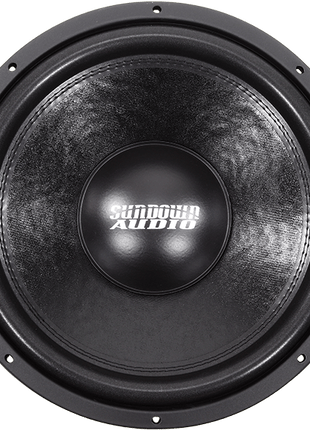

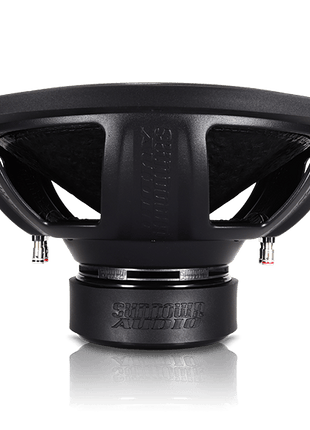

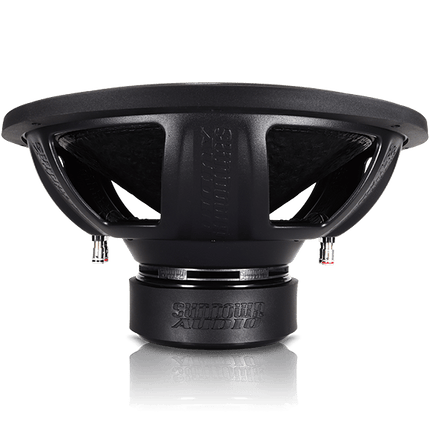

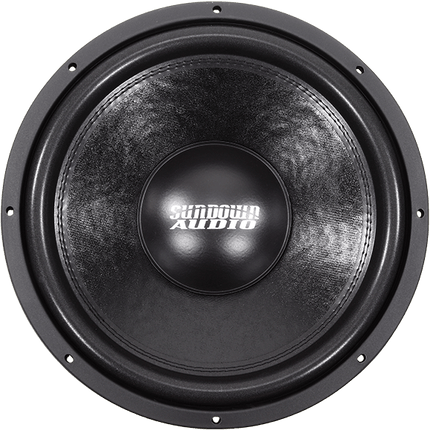

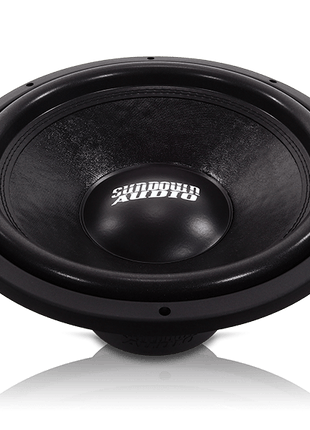

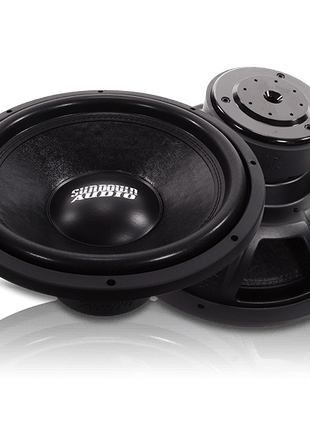

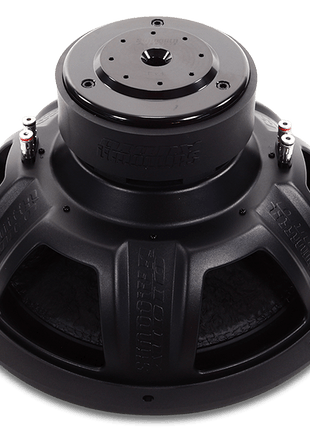

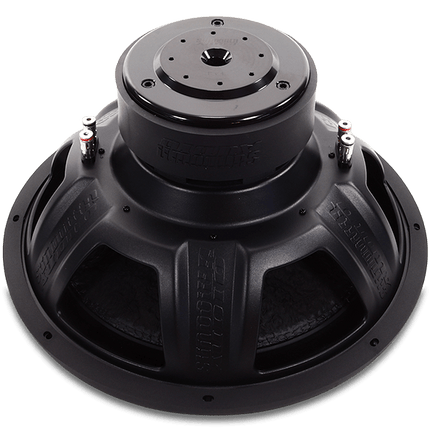

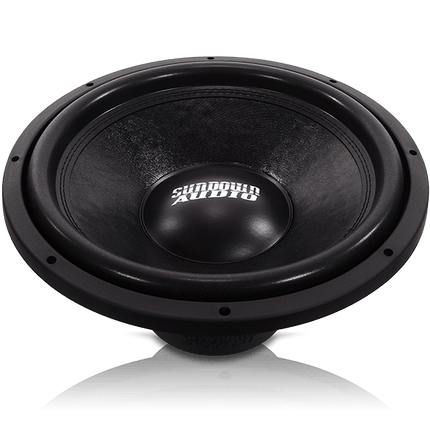

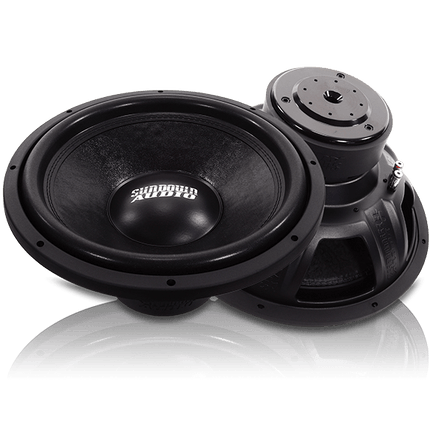

Sundown Audio E-Series v.4 15" Subwoofer
Free Lanyard and Stickers With Every Purchase
Full Manufacturer Warranty On All Products
Couldn't load pickup availability
- Multiple Financing Options
- Expert Support Before and After Purchase
- Free Shipping On Orders $75+
- Full Warranty On Every Product
About the Product
- RMS 500 watts
- Dual 2 or 4 ohm voice coils
- Optimized for ported enclosures
- Class-leading 14mm Xmax
- Double-stacked magnet
- Vented magnetic gap & pole piece for superior cooling
- High strength stamped steel frame
- High temp 4-layer copper voice coil wire
- High-quality push terminals

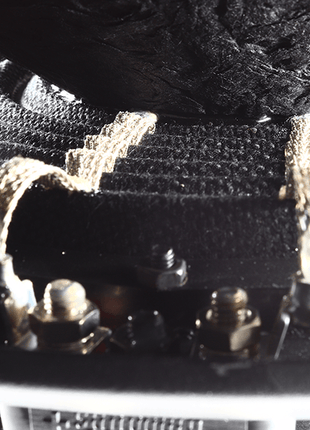

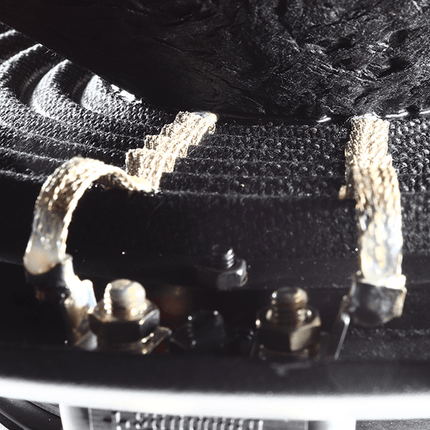

- Stitched-on Mini-XL tinsel leads
Typical entry-level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance. Through relentless research in their North Carolina Headquarters, Sundown optimized a 2.5” voice coil and a truly unique motor design to get the deepest possible bass response out of a 15” subwoofer.
The subwoofer showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.
Specifications
| T/S Specs | E v.4 15" D2 | E v.4 15" D4 |
|---|---|---|
| RE (Ohms) | 4.030 | 6.130 |
| FS (Hz) | 30.535 | 30.539 |
| VAS (L) | 101.063 | 103.031 |
| Qes | 0.759 | 0.818 |
| Qms | 4.101 | 3.750 |
| Qts | 0.641 | 0.671 |
| BL (NA) | 15.880 | 19.247 |
| Mms (Grams) | 262.699 | 257.621 |
| Cms (mm/N) | 103.416 | 105.429 |
| Sens (dB @ 1w/1m) | 87.7 | 87.4 |
Enclosure Specs
- Ported Enclosure
- Size: 3.0 cuft net
- Port Area: 44 sqin
- Port Tuning: 35hz
- Sealed Enclosure
- Not Recommended
- Displacement: 0.14 cu. ft.
- Depth: 7.25"
- Outside Diameter: 15.125"
- Cutout: 13.875"
