Sundown Audio E-Series V.4 12” Subwoofer
- Sundown Audio

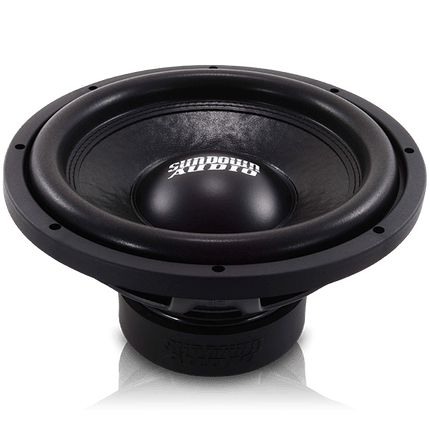

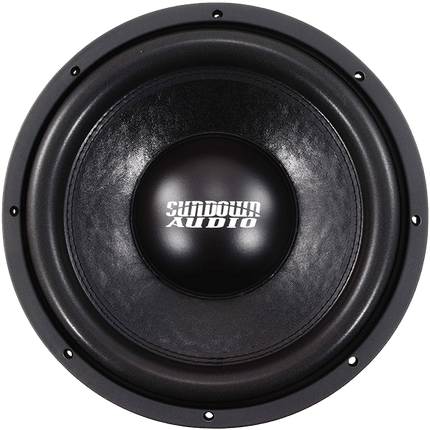

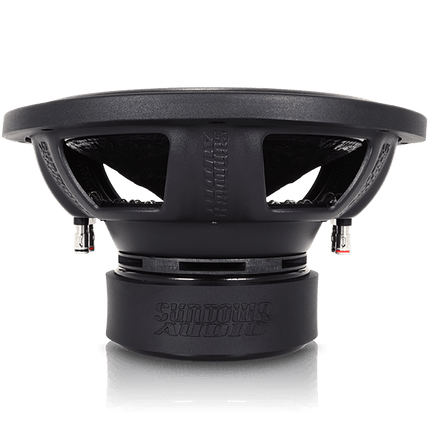

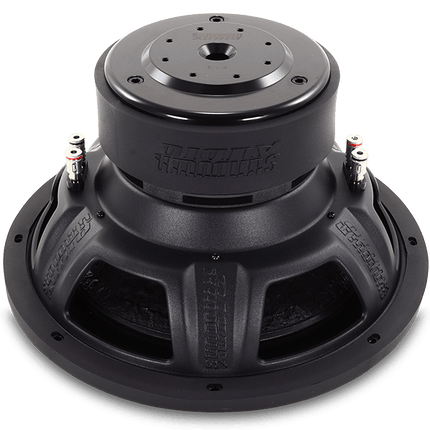

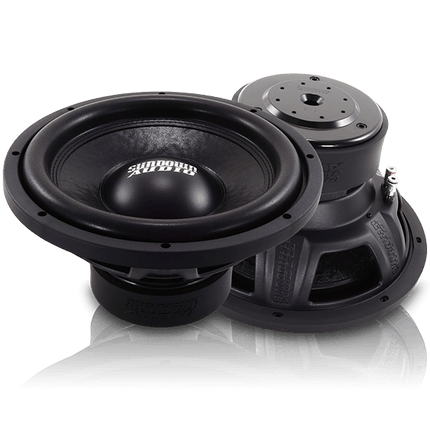

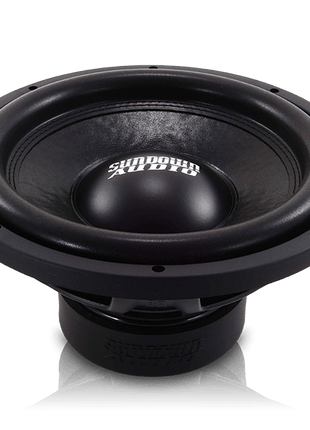

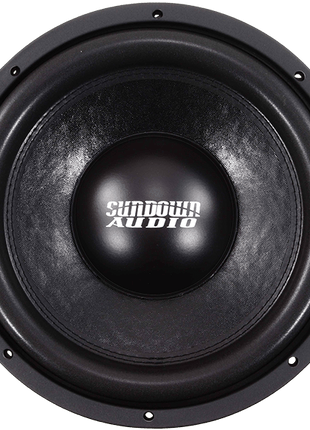

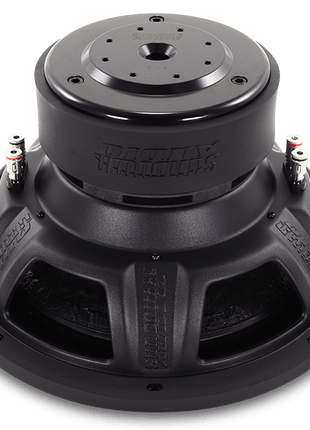

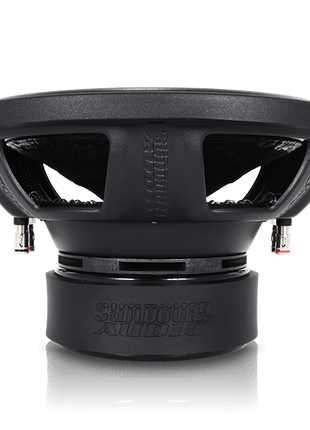

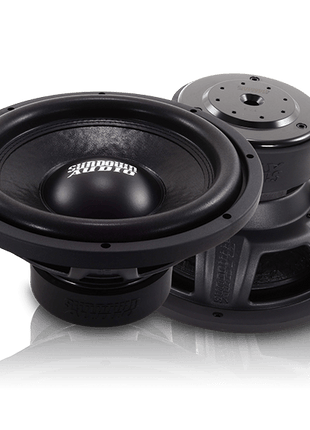

Sundown Audio E-Series V.4 12” Subwoofer
- Sundown Audio
750 Watts RMS / 1500 Watts Peak Dual 2 or 4 ohm voice coils Optimized for ported enclosures Class-leading 14mm... Read more
$244.99
- Free shipping in the contiguous USA on all orders above $99
- Full Manufacturer Warranty On All Items
- No Hassle, Easy 30 Day Returns
- Price Match Guarantee. Lowest Prices Anywhere.
- REAL Audio Enthusiasts, Expert Support
| Specification | E-12v3 D2 | E-12v3 D4 |
|---|---|---|
| Fs | 32.4 Hz | 36.6 Hz |
| Re | 4.00 Ω | 6.10 Ω |
| Qms | 3.9000 | 4.5800 |
| Qes | 0.4100 | 0.5300 |
| Qts | 0.3700 | 0.4700 |
| Mms | 228.30 g | 224.00 g |
| Cms | 0.11 µm/N | 0.08 µm/N |
| Sd | 735.5 cm² | 735.5 cm² |
| Vas | 38.5 L | 30.8 L |
| Sensitivity | 86.9 dB | 86.4 dB |
| BL | 21.400 T·m | 24.400 T·m |
| Le | 2.55 mH | 3.59 mH |
| X-Max | 14 mm | 14 mm |
| RMS Power | 750 W | 750 W |
| Peak Power | 1500 W | 1500 W |
| Specification | E-12v3 D2/D4 |
|---|---|
| Overall Diameter | 12.25" |
| Cutout Diameter | 11.125" |
| Motor Diameter | 6.37" |
| Mounting Depth | 6.5" |
| Displacement | 0.08 Cu. Ft. |
| Sealed Volume | Not Recommended |
| Ported Volume | 1.75 cu ft |
| Port Tuning | 35 Hz |
| Port Area | 26 sq in |
| 4th Order Sealed | 0.75 cu ft |
| 4th Order Ported | 2.25 cu ft |
| 4th Order Port Area | 24 sq in |
| 4th Order Port Length | 6" |
